Door Holders for Enclosures

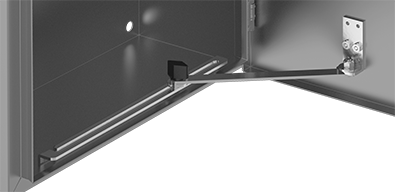

Bottom Mounting

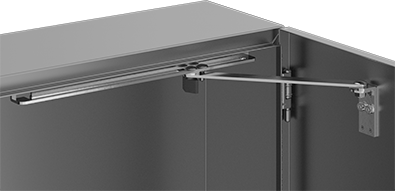

Top Mounting
Open and lock your enclosure door into place so it won’t close while you’re working inside the enclosure. Made of strong, sturdy steel, these holders stand up to most applications. Install them with the included sealing washers to maintain your enclosure’s NEMA rating.
Holders that open 0° to 90° are best for enclosures in tight spots or near sensitive equipment that you don’t want to accidentally bump.
Choose holders that open 90° to 135° when you need a lot of space to work inside your enclosure.
For technical drawings and 3-D models, click on a part number.
Mounting | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Hold Open Range | For Minimum Door Width | For Maximum Door Width | Finish | Material | Hardware Included | Screw Size | For Enclosure Environmental Rating | Includes | Each | |
Bottom and Top Mounting | ||||||||||
| 0° to 90° | 16" | Not Rated | Zinc-Plated | Steel | Yes | No. 12 | NEMA 12, NEMA 4 | Sealing Washers | 0000000 | 0000000 |
Bottom Mounting | ||||||||||
| 90° to 135° | 12" | Not Rated | Zinc-Plated | Steel | Yes | 1/4" | NEMA 12, NEMA 4, NEMA 4X | Sealing Washers | 0000000 | 000000 |
