    9 Products

    TOTO Flush Valve Replacement Parts

    Image of System. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. TOTO Flush Valve Replacement Parts.
    Cover and Body Components
    Image of System. Concealed Valve Cover and Body Components. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. TOTO Flush Valve Replacement Parts, Cover and Body Components.
    Image of System. Exposed Valve Cover and Body Components. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. TOTO Flush Valve Replacement Parts, Cover and Body Components.

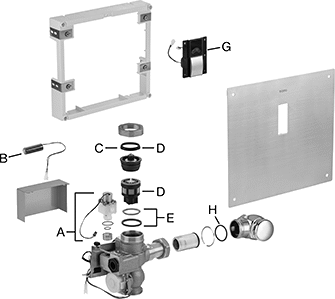

    Concealed Valve Cover and Body Components

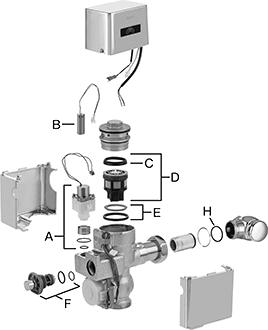

    Exposed Valve Cover and Body Components

    Style
    Component
    For Use With
    Mfr. Model
    No.
    Each
    For Touch-Free EcoPower Flush Valves
    ASolenoid Valve AssemblyToilets, UrinalsTHP3190R6555N111000000
    BBatteryToilets, UrinalsTHP30536555N11600000
    CU-Cup SealToilets, UrinalsTH305SV1036555N11800000
    DPiston KitToilets, UrinalsTH323V104R6555N11200000
    EGasket SetToilets, UrinalsTH3216555N1130000
    FPush-Button Flush Assembly for Exposed ValvesToilets, UrinalsTH559EDV5066555N11400000
    GFinger-Touch Flush Assembly for Concealed ValvesToilets, UrinalsTHP32146555N11700000

    Control Stop and Tailpiece Components
    Image of System. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. TOTO Flush Valve Replacement Parts, Control Stop and Tailpiece Components.
    Style
    Component
    For Use With
    Mfr. Model
    No.
    Each
    For Touch-Free EcoPower Flush Valves
    HTailpiece O-RingToilets, UrinalsTH305SV1066555N11500000


    Toilet Tank Replacement Parts

    Get your toilet flushing like brand new. These parts work with the listed manufacturer series, or universally where none are noted.
    Flush Valve Assemblies
    Image of Product. Front orientation. Toilet Tank Replacement Parts. Flush Valve Assemblies.
    For Flush
    Valve Dia.
    Material
    Ht.
    For Mfr.
    For Mfr. Series
    Includes
    Each
    3", 4"Plastic, Rubber, Metal7" to 11 1/4"American Standard, Ferguson, Gerber, Mansfield, TOTOAvalanche, Barrett, Cadet 3, Champion, Champion 4, Diplomat, Drake, Eco Drake, Maverick, Pegasus Westminster, Pro Flo HET, Stratus, Summit, Sure Flush, Titan, Titan 4, WaverlyAdjustable Flapper, Chain, Installation Hardware, Overflow Tube, Tank-to-Bowl Gasket2740K33000000
