Wet-Location Portable Lights

Plastic
Lens

Tempered
Glass Lens
Light up damp areas—these lights seal out moisture and humidity. They’ll even work in areas with frequent washdowns. Rated NEMA 4X, they withstand spraying liquid, resist corrosion, and keep out dust. Use them with medium-base, screw-in CFL (compact fluorescent), halogen, incandescent, and LED bulbs (sold separately).
PTFE plastic lenses are impact resistant.
Tempered glass lenses are more durable than plastic lenses. They have a zinc-plated steel guard to protect them.
Overall | Hook | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lg. | Dia. | Cord Lg., ft. | Wattage | Color | Handle Material | Environmental Rating | Voltage | Electrical Connection Type | Wire Gauge | Material | Adjustability | Each | |
For Replaceable CFL, Halogen, Incandescent, LED Bulbs | |||||||||||||
With PTFE Plastic Lens | |||||||||||||
10" | 5" | 25 | 100W | Yellow | Plastic | NEMA 4X | 120V AC | Two-Prong Plug | 16 | Plastic | Swivel | 0000000 | 0000000 |
10" | 5" | 50 | 100W | Yellow | Plastic | NEMA 4X | 120V AC | Two-Prong Plug | 16 | Plastic | Swivel | 0000000 | 000000 |
With Tempered Glass Lens | |||||||||||||
18" | 4 3/4" | __ | 100W | Yellow | Rubber | NEMA 4X | 120V AC | Hardwire | 16 | Aluminum | Swivel | 0000000 | 000000 |
18" | 4 3/4" | 25 | 100W | Yellow | Rubber | NEMA 4X | 120V AC | Three-Prong Plug | 16 | Aluminum | Swivel | 0000000 | 000000 |
18" | 4 3/4" | 50 | 100W | Yellow | Rubber | NEMA 4X | 120V AC | Three-Prong Plug | 16 | Aluminum | Swivel | 0000000 | 000000 |

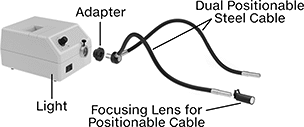

Miniature Fiber-Optic Adjustable-Arm Lights

Create a high-intensity lighting system for inspecting small and microscopic parts. To create a complete lighting system, you need a fiber-optic light, fiber-optic cable, and an adapter to connect the cable to the light. They cast a neutral white light often found in workspaces.
Add a probe to 1/8" dia. fiber-optic cables to illuminate small areas that have recessed or deep orifices.
Pair a focusing lens with a positionable cable to create a concentrated beam of light on your work.

Tip Dia. | Dia. | Lg. | Each | |
Single Flexible Vinyl-Coated Steel Cable | ||||
---|---|---|---|---|
0.187" | 1/16" | 48" | 000000 | 0000000 |
0.187" | 1/8" | 48" | 000000 | 000000 |
0.187" | 1/8" | 72" | 0000000 | 000000 |
0.312" | 1/4" | 48" | 000000 | 000000 |
0.312" | 1/4" | 72" | 0000000 | 000000 |
0.562" | 1/2" | 36" | 0000000 | 000000 |
Single Flexible Stainless Steel Cable | ||||
0.187" | 1/8" | 48" | 0000000 | 000000 |
0.187" | 1/8" | 72" | 0000000 | 000000 |
0.312" | 3/16" | 48" | 0000000 | 000000 |
0.312" | 1/4" | 48" | 0000000 | 000000 |
0.312" | 1/4" | 72" | 0000000 | 000000 |
0.562" | 1/2" | 36" | 0000000 | 000000 |
Dual Flexible Vinyl-Coated Steel Cable | ||||
0.312" | 11/64"; 1/4" | 36" | 0000000 | 000000 |
Single Positionable Steel Cable | ||||
1/2" | 1/4" | 20" | 0000000 | 000000 |
Dual Positionable Steel Cable | ||||
1/2" | 9/32" | 23" | 0000000 | 000000 |

Dia. | Lg. | Each | |
7/8" | 2 1/2" | 0000000 | 000000 |
Cord-Suspended Ceiling Lights

Also known as pendant lights, these fixtures hang from a cord. They work with LED, CFL, halogen, and incandescent bulbs (sold separately).
Overall | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Dia. | Ht. | Voltage | Bulbs Included | No. of Bulbs Required | Screw-In Base Size | Max. Wattage per Bulb | Wire Gauge | No. of Wires | Cord Lg., ft. | Mounting Hardware Included | Includes | Housing Finish | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | ||||||||||||||
16" | 8 1/8" | 120V AC | No | 1 | Medium (Standard Household) | 100W | 18 | 3 | 12 | Yes | Outlet Box Cover | Powder-Coated | 00000000 | 000000 |
Temporary Light Bulb Sockets

Also known as pigtail holders. Temporarily wire these sockets to provide light during construction. They have a rubber lip that molds around bulbs to form a water-resistant seal.
Housing | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Overall Dia. | Voltage | Screw-In Base Size | Max. Wattage per Bulb | Collar Dia. | Material | Color | Wire Connection Type | Specifications Met | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | ||||||||||
1 1/2" | 120V AC, 208V AC, 240V AC, 277V AC, 480V AC | Medium (Standard Household) | 300W | 1 5/8" | Ceramic | Yellow | Wire Leads | UL Listed | 0000000 | 000000 |
Light Bulb Sockets




Install sockets for medium (standard household) screw-in base light bulbs.
Styles A-C mount to outlet boxes.
Overall | Mounting Holes | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | Switch Type | Dia. | Lg. | Wd. | Voltage | Max. Wattage per Bulb | Collar Dia. | Housing Material | For Outlet Box Ht. | Mounting Hardware Included | No. of | Dia. | Specifications Met | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||||||||||
A | No Switch | 4 1/2" | __ | __ | 120V AC, 208V AC, 240V AC | 660W | 1 9/16" | Porcelain | 3 1/4", 4" | Yes | 2 | 7/32" | UL Listed, CSA Certified | 00000000 | 00000 |
B | Pull Chain | 4 1/2" | __ | __ | 120V AC, 208V AC, 240V AC | 250W | 1 11/16" | Porcelain | 3 1/4", 4" | Yes | 2 | 7/32" | UL Listed, CSA Certified | 0000000 | 00000 |
C | Pull Chain | 4 1/2" | __ | __ | 120V AC | 250W | 1 5/8" | Porcelain | 3 1/4", 4" | Yes | 2 | 7/32" | UL Listed, CSA Certified | 0000000 | 00000 |
D | No Switch | __ | 2" | 2" | 120V AC, 208V AC, 240V AC, 277V AC, 480V AC | 660W | 1 1/2" | Porcelain | __ | No | 2 | 3/16" | UL Listed | 00000000 | 00000 |
Wet-Location Ceiling and Wall Lights with Guard


Also known as jelly jar lights. These fixtures have a heat-resistant lens and a guard that protects the lens from breaking. Lights are sealed to keep out humidity and dripping, splashing, and falling liquids.
Lights without bulbs work with medium (standard household) screw-in base LED, CFL, halogen, and incandescent bulbs (sold separately).
Lights with a tempered glass lens are more impact resistant than those with a glass lens.
Overall | Mounting Holes | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mounting Location | Dia. | Ht. | Dp. | Equiv. Incandescent Bulb Wattage | Voltage | Bulbs Included | No. of Bulbs Required | Max. Wattage per Bulb | Outlet Box Dia. | For Conduit Trade Size | Thread Type | Mounting Hardware Included | No. of | Dia. | Each | |
Wall (Fastener Mount) | 4 1/2" | 10" | 7 1/4" | 150W | 120V AC | No | 1 | 150W | 4 1/4" | 3/4 | NPT | Yes | 2 | 3/8" | 00000000 | 000000 |
Heat-Resistant Lights


Designed to withstand heat and grease, these lights are often used in commercial cooking hoods. They are also known as hood lights. These fixtures work with LED, CFL, halogen, and incandescent bulbs (sold separately).
Lights with a guard protect the glass lens from breaking.
Overall | Mounting Holes | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mount Type | Guard Material | Dia. | Ht. | Voltage | Bulbs Included | No. of Bulbs Required | Screw-In Base Size | Max. Wattage per Bulb | Mounting Hardware Included | No. of | Dia. | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||||||||
Fastener Mount | __ | 5 3/8" | 8 3/8" | 120V AC | No | 1 | Medium (Standard Household) | 100W | No | 2 | 3/16" | 0000000 | 000000 |
Fastener Mount | Aluminum | 5 3/8" | 8 3/4" | 120V AC | No | 1 | Medium (Standard Household) | 100W | No | 2 | 3/16" | 0000000 | 00000 |
Plug-In Landscape Lights

No need for wiring—these lights plug-in with a three-prong plug. Use these fixtures to illuminate outdoor areas such as building grounds and entrance signs with a narrow beam of directed light. Heads adjust to any angle to direct light where needed. Lights work with LED, CFL, halogen, and incandescent bulbs (sold separately).
Overall | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mounting Location | Mount Type | Housing Material | Voltage | Bulbs Included | No. of Bulbs Required | Max. Wattage per Bulb | Screw-In Base Size | Dia. | Ht. | Environment | Plug Type | Cord Lg., ft. | Environmental Rating | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||||||||||
Ground | Stake | Aluminum | 120V AC | No | 1 | 150W | Medium (Standard Household) | 2 1/8" | 11 5/8" | Wet Location | Three Prong | 6 | NEMA 3R | 0000000 | 000000 |
Landscape Lights

Illuminate outdoor areas such as building grounds and entrance signs with a narrow beam of directed light. Heads adjust to direct light where needed.
Style B work with LED, CFL, halogen and incandescent bulbs (sold separately).
Lights with a zinc housing are more impact resistant than those with an aluminum housing.

Overall | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mounting Location | Mount Type | Housing Material | Voltage | Bulbs Included | No. of Bulbs Required | Max. Wattage per Bulb | Screw-In Base Size | Dia. | Ht. | Environment | For Conduit Trade Size | Thread Type | Gender | Each | |
Ground, Pole | Thread In | Zinc | 120V AC | No | 1 | 150W | Medium (Standard Household) | 2" | 3 1/2" | Wet Location | 1/2 | NPSM | Male | 0000000 | 000000 |
Motion-Sensing Security Lights

Heads adjust to any angle to direct light where needed. These lights automatically turn on when the sensor detects motion. Lights turn off when an area is unoccupied.
Style B detect motion up to 68 feet away. They are compatible with LED, halogen, and incandescent bulbs (sold separately).

Overall | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Equiv. Incandescent Bulb Wattage | Voltage | Bulbs Included | No. of Bulbs Required | Max. Wattage per Bulb | Screw-In Base Size | Wd. | Ht. | Dp. | Environment | Max. Sensing Distance, ft. | Mounting Hardware Included | Each | |
150W | 120V AC | No | 2 | 150W | Medium (Standard Household) | 9 1/2" | 10" | 10" | Wet Location | 68 | Yes | 0000000 | 000000 |
Adjustable-Head Dusk-to-Dawn Wall Lights

Heads adjust to any angle to direct light where needed. No need for timers—a sensor automatically turns the light on at dusk and off at dawn. These lights work with LED, CFL, halogen, and incandescent bulbs (sold separately).
Overall | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Voltage | Bulbs Included | No. of Bulbs Required | Screw-In Base Size | Max. Wattage per Bulb | Wd. | Ht. | Dp. | Environment | Mounting Hardware Included | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||||||
120V AC | No | 2 | Medium (Standard Household) | 150W | 9 7/8" | 2 7/8" | 4 1/2" | Wet Location | Yes | 000000 | 000000 |
Articulating-Arm Dock Lights
Brighten loading docks and trailers—these lights swing out from the wall and tilt to direct light where it’s needed. They have a standard three-prong plug, so you won’t have to wire them. Rated for use in damp environments, these lights withstand humidity and moisture.
Styles A-C are compatible with standard household screw-in LED bulbs (not included). They have a zinc-plated steel guard to protect the bulb. Screw in a PAR38 LED with 5° beam angle bulb for focused light that illuminates the full length of docked trailers. These bulbs are designed to withstand jostling and frequent movement.
Add a fan to circulate air and cool your trailer. With three speed settings, you can set your preferred airflow. For Style A and D lights, plug the fan into the second outlet on the light’s arm. Fans for Style B, C, and E lights come with a splitter cable, so you can power the light and the fan on the same circuit.

Lights | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Arm | Mounting Holes | Fans | |||||||||||||
Style | Reach | Adjustability | Head Dia. | Voltage | Wattage | Head Material | Arm Material | Mounting Hardware Included | No. of | Dia. | Specifications Met | Each | Each | ||
For Replaceable LED Bulbs | |||||||||||||||
A | 40" | Horizontal | 8 1/4" | 120V AC | 250W | Powder-Coated Plastic | Powder-Coated Steel | No | 6 | 0.43" | UL Listed, C-UL Listed | 0000000 | 0000000 | 00000000 | 0000000 |
A | 60" | Horizontal | 8 1/4" | 120V AC | 250W | Powder-Coated Plastic | Powder-Coated Steel | No | 6 | 0.43" | UL Listed, C-UL Listed | 0000000 | 000000 | 00000000 | 000000 |
PAR38 LED Bulbs with 5 Degree Beam Angle for Styles A-C (Pkg. of 1) | 00000000 | Pkg. | 0000000 |
Underwater Floodlights

This light is sealed to withstand shallow water, such as ponds and fountains. It has a durable tempered-glass lens to protect the bulb. It's furnished with a halogen bulb that casts a warm, yellow-toned light that's similar in apprearance to incandescent lights.
Overall | Head | Base | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brightness | Light Appearance | Wattage | Bulb Rated Life, hrs. | No. of Heads | Lg. | Dia. | Lg. | Dia. | Lg. | Wd. | Dp. | Head Material | Color | For Max. Water Dp. | Each | |
Halogen Bulbs | ||||||||||||||||
210 lumens | Warm | 20W | 5,000 | 1 | 3 3/4" | 3 7/8" | 3 3/4" | 3 7/8" | 2 7/8" | 2 3/4" | 2 3/4" | Powder-Coated Aluminum | Black | 4 ft. | 0000000 | 000000 |
Pipe/Surface-Mount Flashing Lights
Lights meet NEMA 4X for protection from corrosion and washdowns.
The clear replacement lens is intended for use with the white light color.
Light intensity is measured in candlepower (cp), which indicates how bright a light appears at a distance. Common examples include a car’s taillights (50 cp), traffic signals (600 cp), headlights (15,000 cp), high beams (50,000 cp), and police car searchlights (150,000 cp).

Lights | Replacement Bulbs | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Voltage | Current, A | Light Intensity, cp | Ht. | Dia. | Material | No. of Wire Leads | Wire Lead Lg | Pipe Size | Thread Type | Gender | Fasteners Included | Choose a Light Color | Each | Each | ||
Halogen | ||||||||||||||||
120V AC | 0.2 | 879 | 3 7/8" | 3 1/4" | Plastic | 2 | 18" | 3/4 | NPT | Male | Yes | 000000 | 0000000 | 0000000 | 000000 | |
24V AC | 0.8 | 653 | 3 7/8" | 3 1/4" | Plastic | 2 | 18" | 3/4 | NPT | Male | Yes | 000000 | 000000 | 000000 | 00000 | |
24V DC | 0.8 | 653 | 3 7/8" | 3 1/4" | Plastic | 2 | 18" | 3/4 | NPT | Male | Yes | 000000 | 000000 | 000000 | 00000 |
Surface-Mount Revolving Light Bars

Voltage | Current, A | Ht. | Wd. | Dp. | Material | Lens Material | Environment | No. of Wire Leads | Wire Lead Lg. | Fasteners Included | Environmental Rating | Light Color | Each | |
Halogen | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12V DC | 10 | 5 1/4" | 23" | 8 1/2" | Steel | Plastic | Outdoor, Wet Location | 2 | 30" | Yes | IP62, NEMA 3 | Amber | 00000000 | 0000000 |
Surface-Mount Revolving Lights
304 stainless steel and aluminum lights meet NEMA 3 for protection from corrosion and wet environments.
Light intensity is measured in candlepower (cp), which indicates how bright a light appears at a distance. Common examples include a car’s taillights (50 cp), traffic signals (600 cp), headlights (15,000 cp), high beams (50,000 cp), and police car searchlights (150,000 cp).

Lights | Replacement Bulbs | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Voltage | Current, A | Light Intensity, cp | Ht. | Dia. | No. of Wire Leads | Wire Lead Lg. | Lens Material | Fasteners Included | Environmental Rating | Choose a Light Color | Each | Each | ||
Halogen | ||||||||||||||
12V DC | 4.5 | 65,000 | 5 1/4" | 5 1/2" | 1 | 78" | Plastic | Yes | IP62, NEMA 3 | 0000000 | 0000000 | 0000000 | 000000 | |
24V DC | 2.8 | 65,000 | 5 1/4" | 5 1/2" | 1 | 78" | Plastic | Yes | IP62, NEMA 3 | 0000000 | 000000 | 0000000 | 00000 |
Revolving Light Bars with Vehicle Plug

Plug into a standard 12-volt vehicle receptacle and mount using the magnetic base.
Voltage | Current, A | Ht. | Wd. | Dp. | Material | Lens Material | Environment | Cord Lg., ft. | Environmental Rating | Light Color | Each | |
Halogen | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
12V DC | 10 | 5 1/4" | 23" | 8 1/2" | Steel | Plastic | Outdoor, Wet Location | 15 | IP62, NEMA 3 | Amber | 00000000 | 0000000 |
Revolving Lights with Vehicle Plug
Plug these lights into a standard vehicle receptacle and mount using the magnetic base.
Aluminum lights meet NEMA 3 for protection from corrosion and wet environments.
Light intensity is measured in candlepower (cp), which indicates how bright a light appears at a distance. Common examples include a car’s taillights (50 cp), traffic signals (600 cp), headlights (15,000 cp), high beams (50,000 cp), and police car searchlights (150,000 cp).

Lights | Replacement Bulbs | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material | Voltage | Current, A | Light Intensity, cp | Ht. | Dia. | Cord Lg., ft. | Lens Material | Environmental Rating | Light Pattern | Choose a Light Color | Each | Each | ||
Halogen | ||||||||||||||
Aluminum | 12V DC | 4.5 | 65,000 | 5 1/4" | 5 1/2" | 15 | Plastic | IP62, NEMA 3 | Revolving | 0000000 | 0000000 | 0000000 | 000000 | |
Aluminum | 24V DC | 2.8 | 65,000 | 5 1/4" | 5 1/2" | 15 | Plastic | IP62, NEMA 3 | Revolving | 0000000 | 000000 | 0000000 | 00000 |
Plug-In Lamp Sockets for Screw-In Light Bulbs

Turn an overhead outlet or an extension cord into a temporary light. These sockets have a two-prong plug for a quick connection.
For Screw-In Base | |||||||
---|---|---|---|---|---|---|---|
Size | Dia. | Switch Type | Material | Color | Specifications Met | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||
Medium (Standard Household) | 1 1/16" | Without Switch | Plastic | Brown | UL Listed | 00000000 | 00000 |
Lamp Sockets for Screw-In Light Bulbs



Hardwire these sockets to a power source.
For Screw-In Base | Pipe | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Switch Type | Size | Dia. | Thread Type | Size | Gender | Color | Wire Connection Type | No. of Wire Leads | Specifications Met | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | |||||||||||
Plastic | |||||||||||
Without Switch | Medium (Standard Household) | 1 1/16" | NPSM | 1/8 | Female | Black | Wire Leads | 2 | UL Listed | 00000000 | 00000 |
Brass | |||||||||||
Without Switch | Medium (Standard Household) | 1 1/16" | NPSM | 1/8 | Female | __ | Screw Terminals | __ | UL Listed | 00000000 | 00000 |
Pull Chain | Medium (Standard Household) | 1 1/16" | NPSM | 1/8 | Female | __ | Screw Terminals | __ | UL Listed | 00000000 | 0000 |
Knob | Medium (Standard Household) | 1 1/16" | NPSM | 1/8 | Female | __ | Screw Terminals | __ | UL Listed | 00000000 | 0000 |
Plug-In Lamp Sockets with Cord for Screw-In Light Bulbs

Create temporary light wherever you need it. Just screw in a bulb and plug the socket into any two-prong outlet. The 15 ft. cord gives you ample distance from your outlet. These sockets are compatible with medium (standard household) screw-in base light bulbs.
Mount them in a 1 1/4" dia. hole with the included nut, or suspend with cable ties (not included).
For Screw-In Base | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Dia. | Wattage | Material | Color | Specifications Met | Cord Lg., ft. | Each | |
For LED, Halogen, and Incandescent Bulbs | ||||||||
Medium (Standard Household) | 1 1/16" | 660W | Plastic | White | UL Listed, C-UL Listed | 15 | 00000000 | 000000 |
Light Socket Splitters


Double your light output by installing two bulbs in place of one.
For Bulb Base | For Socket Base | For Max. | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Type | Size | Dia. | Type | Size | Dia. | Bulb Wattage | Voltage | Material | Color | Specifications Met | Each | |
For LED, CFL, Halogen, and Incandescent Bulbs | ||||||||||||
Screw In | Medium (Standard Household) | 1 1/16" | Screw In | Medium (Standard Household) | 1 1/16" | 660W | 250V AC | Plastic | White | UL Listed | 00000000 | 00000 |
