    6 Products

    Horizontal Fall-Arrest Anchor Spans

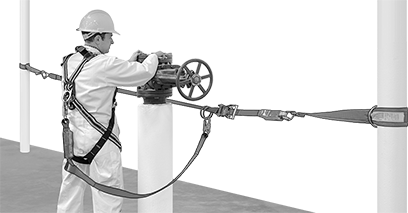

    Image of ProductInUse. Front orientation. Fall-Arrest Anchor Spans. Horizontal Fall-Arrest Anchor Spans.
    Image of Product. Front orientation. Fall-Arrest Anchor Spans. Horizontal Fall-Arrest Anchor Spans, Webbing.

    Webbing

    Image of Product. Front orientation. Fall-Arrest Anchor Spans. Horizontal Fall-Arrest Anchor Spans, Wire Rope.

    Wire Rope

    Image of Product. Front orientation. Fall-Arrest Anchor Spans. Horizontal Fall-Arrest Anchor Spans, Rope.

    Rope

    Also known as horizontal lifelines, these anchor spans provide fall protection on roofs and other areas where overhead anchors aren’t available. Attach to an anchor point on both sides. Once clipped in, you can move freely along the line while remaining tethered. When used together with a lanyard and harness, these anchor spans help you meet OSHA safety standards.
    Wire Rope—Wire rope anchor spans are made of galvanized steel, so they resist corrosion and abrasion better than other anchor spans. This makes them tough enough to use outdoors for lines that stay up for multiple jobs.
    Lg.,
    ft.
    Wt. Cap. per
    Person, lb.
    Max. No. of Simultaneous
    Users
    Material
    Construction
    Connection Hardware
    Breaking Strength,
    lbf
    Includes
    Specs. Met
    Each
    603102Polyester PlasticWebbingCarabiner × Carabiner3,600Two Tie-Off AdaptersOSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.5020000000000000
    604002Galvanized SteelWire RopeSnap Hook × Snap Hook5,000Two Tie-Off AdaptersOSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.50200000000000000
    1003104Polyester PlasticRopeCarabiner × Carabiner6,000Two Tie-Off AdaptersANSI/ASSP Z359.18, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.5020000000000000000

    Vertical Fall-Arrest Anchor Spans for Ladders

    Image of Product. Front orientation. Fall-Arrest Anchor Spans. Vertical Fall-Arrest Anchor Spans for Ladders.
    Protect against falls while climbing ladders. These anchor spans have adjustable clamp brackets and secure permanently with an eyebolt on each end. You supply a harness and a carabiner as well as a wire rope grab (sold separately). In the event of a fall, the rope grab stops you within inches.
    Anchor Spans
    Wire Rope Grabs
    Lg.,
    ft.
    For Max.
    Rung Dia.
    Wt. Cap. per
    Person, lb.
    Max. No. of Simultaneous
    Users
    Material
    Construction
    Connection
    Hardware
    Includes
    Specs. Met
    Each
    Each
    501 1/4"3104SteelWire RopeEyebolt × EyeboltMounting HardwareANSI-ASC A14.30000000000000000000000000000
    1001 1/4"3104SteelWire RopeEyebolt × EyeboltMounting HardwareANSI-ASC A14.300000000000000000000000000
