Component Component |
|---|
Material Material |
|---|
|
Finish Finish |
|---|
|
Maximum Capacity Maximum Capacity |
|---|
|
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
For Tray Orientation For Tray Orientation |
|---|
|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
Zinc-Plated Steel Formable Cable and Hose Trays
The zinc plating on these tray systems offers good corrosion resistance. Cut, bend, and connect the wire mesh trays to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
Use bolt cutters to cut trays to the size you need. The maximum capacity is based on mounting brackets spaced every 6 feet.
Straight connectors join two trays in a straight line.
Clamp connectors can be used to join two trays after you have bent them. You can also use these connectors to join trays in a straight line.
Drop outs relieve stress on the cable and hose as it exits the tray. Plastic drop outs can be attached to trays without bending or removing any wires.
Hanging clips attach to the sides of a tray to suspend it from 1/4", 3/8", or 1/2" threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
For technical drawings and 3-D models, click on a part number.
| Dp. | Lg. | Max. Capacity, lbs. | Material | Pkg. Qty. | Pkg. | |
2" Wd. | ||||||
|---|---|---|---|---|---|---|
| 2" | 78" | 10 | Zinc-Plated Steel | 2 | 0000000 | 0000000 |
4" Wd. | ||||||
| 2" | 78" | 10 | Zinc-Plated Steel | 2 | 0000000 | 000000 |
| 4" | 118" | 36 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
6" Wd. | ||||||
| 2" | 118" | 27 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 4" | 118" | 46 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | Not Rated | Zinc-Plated Steel | 1 | 00000000 | 000000 |
8" Wd. | ||||||
| 2" | 78" | 20 | Zinc-Plated Steel | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | 43 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
12" Wd. | ||||||
| 2" | 78" | 29 | Zinc-Plated Steel | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | 48 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
16" Wd. | ||||||
| 2" | 118" | 27 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | 50 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
18" Wd. | ||||||
| 2" | 118" | 27 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | 50 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
20" Wd. | ||||||
| 2" | 118" | 27 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
24" Wd. | ||||||
| 2" | 118" | 27 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 4" | 118" | 50 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| 6" | 118" | 60 | Zinc-Plated Steel | 1 | 00000000 | 000000 |
| For Tray Wd. | Material | Each | |
| 2", 4", 6", 8", 12", 16", 18", 20", 24" | Zinc-Plated Steel | 0000000 | 00000 |
| Component | For Tray Wd. | Material | Includes | Pkg. Qty. | Pkg. | |
| Clamp Connector | 2", 4", 6", 8", 12", 16", 18", 20", 24" | Zinc-Plated Steel | Connecting Hardware | 2 | 0000000 | 00000 |

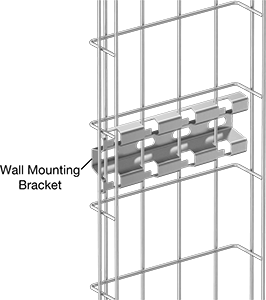

| For Tray Wd. | Material | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | |||||
|---|---|---|---|---|---|
| 4" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
| 6" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
| 8" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
| 12" | Zinc-Plated Steel | 7/16" | No | 0000000 | 00000 |
| 16" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
| 20" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
| 24" | Zinc-Plated Steel | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | |||||
| 8" | Zinc-Plated Steel | 5/16" | No | 0000000 | 0000 |
| 12" | Zinc-Plated Steel | 5/16" | No | 0000000 | 00000 |
| For Tray Wd. | Material | Mounting Hardware Included | Pkg. Qty. | Pkg. | |
| 2", 4", 6", 8", 12", 16", 18", 20", 24" | Zinc-Plated Steel | No | 2 | 00000000 | 00000 |
Steel Formable Cable and Hose Trays
Cut, bend, and connect these wire mesh tray systems to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
All components are painted black to blend into dark backgrounds.
Use bolt cutters to cut trays to the size you need. The maximum capacity is based on mounting brackets spaced every 6 feet.
Straight connectors join two trays in a straight line.
Clamp connectors can be used to join two trays after you have bent them. You can also use these connectors to join trays in a straight line.
Drop outs relieve stress on the cable and hose as it exits the tray. Plastic drop outs can be attached to trays without bending or removing any wires.
Hanging clips attach to the sides of a tray to suspend it from 1/4"-20 or 3/8"-16 threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
For technical drawings and 3-D models, click on a part number.
| Dp. | Lg. | Max. Capacity, lbs. | Material | Color | Includes | Pkg. Qty. | Pkg. | |
2" Wd. | ||||||||
|---|---|---|---|---|---|---|---|---|
| 2" | 78" | 10 | Painted Steel | Black | Two Straight Connectors | 2 | 0000000 | 0000000 |
4" Wd. | ||||||||
| 2" | 78" | 10 | Painted Steel | Black | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 36 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
6" Wd. | ||||||||
| 2" | 118" | 27 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 46 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | Not Rated | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
8" Wd. | ||||||||
| 2" | 78" | 20 | Painted Steel | Black | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 43 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
12" Wd. | ||||||||
| 2" | 78" | 29 | Painted Steel | Black | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 48 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
16" Wd. | ||||||||
| 2" | 118" | 27 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 50 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
18" Wd. | ||||||||
| 2" | 118" | 27 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 50 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
24" Wd. | ||||||||
| 2" | 118" | 27 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 50 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 60 | Painted Steel | Black | __ | 1 | 00000000 | 000000 |
| For Tray Wd. | Material | Color | Each | |
| 2", 4", 6", 8", 12", 16", 18", 20", 24" | Painted Steel | Black | 0000000 | 00000 |
| For Tray Wd. | Material | Color | Includes | Pkg. Qty. | Pkg. | |
| 2", 4", 6", 8", 12", 16", 18", 20", 24" | Painted Steel | Black | Connecting Hardware | 2 | 0000000 | 00000 |
 For 4", 8", and 12" Wd. Horizontal Trays |  For 6", 16", 18", and 24" Wd. Horizontal Trays |
 For 8" and 12" Wd. Vertical Trays |
| For Tray Wd. | Material | Color | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | ||||||
|---|---|---|---|---|---|---|
| 4" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
| 6" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
| 8" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
| 12" | Painted Steel | Black | 7/16" | No | 0000000 | 00000 |
| 16" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
| 18" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
| 24" | Painted Steel | Black | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | ||||||
| 8" | Painted Steel | Black | 5/16" | No | 0000000 | 00000 |
| 12" | Painted Steel | Black | 5/16" | No | 0000000 | 00000 |
| For Tray Wd. | Material | Color | Mounting Hardware Included | Pkg. Qty. | Pkg. | |
| 2", 4", 6", 8" | Painted Steel | Black | Yes | 2 | 00000000 | 00000 |
Corrosion-Resistant Stainless Steel Formable Cable and Hose Trays
These are the most corrosion-resistant tray systems we offer for routing cable and hose in configurations such as curves, slopes, and tees. Cut, bend, and connect the wire mesh trays. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
Use bolt cutters to cut trays to the size you need. The maximum capacity is based on mounting brackets spaced every 6 feet.
Straight connectors join two trays in a straight line.
Clamp connectors can be used to join two trays after you have bent them. You can also use these connectors to join trays in a straight line.
Drop outs relieve stress on the cable and hose as it exits the tray. Plastic drop outs can be attached to trays without bending or removing any wires.
Hanging clips attach to the sides of a tray to suspend it from 1/4", 3/8", or 1/2" threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
For technical drawings and 3-D models, click on a part number.
| Dp. | Lg. | Max. Capacity, lbs. | Material | Includes | Pkg. Qty. | Pkg. | |
2" Wd. | |||||||
|---|---|---|---|---|---|---|---|
| 2" | 78" | 10 | Stainless Steel | Two Straight Connectors | 2 | 0000000 | 0000000 |
4" Wd. | |||||||
| 2" | 78" | 10 | Stainless Steel | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 36 | Stainless Steel | __ | 1 | 00000000 | 000000 |
6" Wd. | |||||||
| 2" | 118" | 27 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 46 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 6" | 118" | Not Rated | Stainless Steel | __ | 1 | 00000000 | 000000 |
8" Wd. | |||||||
| 2" | 78" | 20 | Stainless Steel | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 43 | Stainless Steel | __ | 1 | 00000000 | 000000 |
12" Wd. | |||||||
| 2" | 78" | 29 | Stainless Steel | Two Straight Connectors | 2 | 0000000 | 000000 |
| 4" | 118" | 47 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 48 | Stainless Steel | __ | 1 | 00000000 | 000000 |
16" Wd. | |||||||
| 2" | 118" | 27 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 4" | 118" | 47 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| 6" | 118" | 50 | Stainless Steel | __ | 1 | 00000000 | 000000 |
| For Tray Wd. | Material | Each | |
| 2", 4", 6", 8", 12", 16" | Stainless Steel | 0000000 | 000000 |
| For Tray Wd. | Material | Includes | Pkg. Qty. | Pkg. | |
| 2", 4", 6", 8", 12", 16" | Stainless Steel | Connecting Hardware | 2 | 0000000 | 00000 |
| For Tray Wd. | Material | Mounting Hole Dia. | Mounting Hardware Included | Each | |
For Horizontal Tray | |||||
|---|---|---|---|---|---|
| 4" | Stainless Steel | 11/32" | No | 0000000 | 000000 |
| 6" | Stainless Steel | 3/8" | No | 00000000 | 00000 |
| 8" | Stainless Steel | 13/32" | No | 0000000 | 00000 |
| 12" | Stainless Steel | 13/32" | No | 0000000 | 00000 |
| 16" | Stainless Steel | 3/8" | No | 00000000 | 00000 |
For Vertical Tray | |||||
| 8" | Stainless Steel | 5/16" | No | 0000000 | 00000 |
| 12" | Stainless Steel | 5/16" | No | 0000000 | 00000 |
| For Tray Wd. | Material | Mounting Hardware Included | Pkg. Qty. | Pkg. | |
| 2", 4", 6", 8", 12", 16" | Stainless Steel | No | 2 | 00000000 | 000000 |
Cable and Hose Trays
For ease of installation and accessibility, lay cable and hose in trays instead of pulling it through conduit or raceway. These tray systems allow excellent ventilation and prevent sagging while routing. They support up to 280 lbs. per foot (based on a tray support, such as hanging clamps or a hanging bar, every 8 feet).
Trays, horizontal tees, 90° horizontal bends, 90° vertical inside bends, and 90° vertical outside bends include straight connectors for joining sections.
Drop outs relieve stress on cable and hose as it exits the tray.
Hanging clamps attach to the sides of a tray section to suspend it from 1/2"-13 threaded rod using two hex nuts on each clamp. Threaded rod and hex nuts are not included.
Hanging bars have a slotted strut channel that you suspend from 1/2"-13 threaded rod; the tray rests on the channel. Threaded rod is not included.
For technical drawings and 3-D models, click on a part number.
| Wd. | Dp. | Lg. | Bend Lg. | Usable Dp. | Material | Max. Capacity, lbs. | Includes | Each | |
| 6" | 4" | 60" | 30" | 3" | Aluminum | 280 | Four Straight Connectors | 000000000 | 0000000 |
| 12" | 4" | 66" | 33" | 3" | Aluminum | 280 | Four Straight Connectors | 000000000 | 000000 |
| 18" | 4" | 72" | 36" | 3" | Aluminum | 280 | Four Straight Connectors | 000000000 | 000000 |
| 24" | 4" | 78" | 39" | 3" | Aluminum | 280 | Four Straight Connectors | 000000000 | 000000 |
90° Vertical Inside Bends | 90° Vertical Outside Bends | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Bend Lg. | Usable Dp. | Material | Max. Capacity, lbs. | Includes | Each | Each | ||
| 6" | 4" | 31" | 3" | Aluminum | 280 | Two Straight Connectors | 000000000 | 0000000 | 000000000 | 0000000 |
| 12" | 4" | 31" | 3" | Aluminum | 280 | Two Straight Connectors | 000000000 | 000000 | 000000000 | 000000 |
| 18" | 4" | 31" | 3" | Aluminum | 280 | Two Straight Connectors | 000000000 | 000000 | 000000000 | 000000 |
| 24" | 4" | 31" | 3" | Aluminum | 280 | Two Straight Connectors | 000000000 | 000000 | 000000000 | 000000 |
| For Tray Wd. | Material | Mounting Hardware Included | Pair | |
| 6", 12", 18", 24" | Steel | No | 000000000 | 0000000 |
