94 Products

Vertical Fall-Arrest Anchor Spans for Ladders

Protect against falls while climbing ladders. These anchor spans have adjustable clamp brackets and secure permanently with an eyebolt on each end. You supply a harness and a carabiner as well as a wire rope grab (sold separately). In the event of a fall, the rope grab stops you within inches.

Anchor Spans											Wire Rope Grabs
Lg., ft.	For Max. Rung Dia.	Wt. Cap. per Person, lb.	Max. No. of Simultaneous Users	Material	Construction	Connection Hardware	Includes	Specs. Met		Each		Each
50	1 1/4"	310	4	Steel	Wire Rope	Eyebolt × Eyebolt	Mounting Hardware	ANSI-ASC A14.3	8272T61	0000000	8272T83	0000000
100	1 1/4"	310	4	Steel	Wire Rope	Eyebolt × Eyebolt	Mounting Hardware	ANSI-ASC A14.3	8272T62	000000	8272T83	000000

Tool Lanyards

Tether your tools to prevent accidental drops that could injure people and damage equipment below. These lanyards meet ANSI/ISEA 121 for design and performance to ensure safety when working at height. To properly tether your tool, you’ll need an attachment point on your tool and an anchor point for your lanyard.

For Hand Tools

Hand Tool Not Included


Elastic Loop	Detachable Elastic Loop	Carabiner for 1 Tool (Straight)

Carabiners for 2 Tools	Carabiner for 1 Tool (Coiled)	Webbing Loop

Lanyards for hand tools are the standard option—they can be used on most tools in your toolbox.

Straight Lanyard—Straight lanyards have elastic in the webbing that stretches a little as you use your tool for ease of movement.

Coil Lanyard—Coil lanyards stretch to their full length and then return to their retracted length when you let go to prevent snags and tangles.

Wire Rope—Wire rope lanyards are more abrasion resistant than webbing lanyards. A rubber coating protects the stainless steel wire rope from corrosion.

Detachable-Elastic-Loop Connection—Lanyards with a detachable elastic loop let you swap out tools while leaving the anchor and lanyard setup in place.

	Lanyards														Replacement Detachable Elastic Loops
	Connection Type	For No. of Tools	Wt. Cap., lb.	Lg.	Retracted Lg.	Extended Lg.	Coating Material	Material	For Min. Tool Opening	Carabiner Material	Features	Specs. Met		Each	Pkg. Qty.		Pkg.
Straight—Webbing



		Carabiner × Elastic Loop	1	10	35"	—	—	—	Nylon	3/8"	Aluminum	Cord Lock	ANSI/ISEA 121	1009N11	000000	—	———	0


		Carabiner × Detachable Elastic Loop	1	5	38"	—	—	—	Nylon	3/8"	Aluminum	Cord Lock	ANSI/ISEA 121	1009N31	00000	3	1009N41	00000
		Carabiner × Carabiner	1	10	35"	—	—	—	Nylon	1/4"	Aluminum	—	ANSI/ISEA 121	1009N21	00000	—	———	0
		Carabiner × Carabiner × Carabiner	2	15	35"	—	—	—	Nylon	1/4"	Stainless Steel	—	ANSI/ISEA 121	1009N71	00000	—	———	0


		Coil—Wire Rope



				Carabiner × Carabiner	1	5	—	7"	48"	Polyurethane Rubber	Stainless Steel	1/4"	Stainless Steel	—	ANSI/ISEA 121	1009N12	00000	—	———	0


				Coil—Webbing



						Carabiner × Webbing Loop	1	25	—	42"	109"	—	Nylon	3/8"	Stainless Steel	—	ANSI/ISEA 121	1009N15	00000	—	———	0


						Carabiner × Carabiner	1	25	—	55"	112"	—	Nylon	3/8"	Stainless Steel	—	ANSI/ISEA 121	1009N16	00000	—	———	0

For Power Tools

Power Tool Not Included

Lanyards for power tools wrap around the battery and base to hold the tool securely.

Straight Lanyard—Straight lanyards have elastic in the webbing that stretches a little as you use your tool for ease of movement.

	For No. of Tools	Wt. Cap., lb.	Lg.	Material	For Min. Tool Opening	Carabiner Material	Specs. Met		Each
Straight—Webbing



	Carabiner × Webbing Loop	1	10	38"	Nylon	7/16"	Aluminum	ANSI/ISEA 121	1009N13	000000

For Tape Measures

Tape Measure Not Included

Lanyards for tape measures wrap securely around all four sides while leaving the tape accessible.

Straight Lanyard—Straight lanyards have elastic in the webbing that stretches a little as you use your tool for ease of movement.

	For No. of Tools	Wt. Cap., lb.	Lg.	Material	For Min. Tool Opening	Carabiner Material	Specs. Met		Each
Straight—Webbing



	Carabiner × Webbing Loop	1	2	38"	Nylon	7/16"	Aluminum	ANSI/ISEA 121	1009N14	000000

Horizontal Fall-Arrest Anchor Spans

Webbing

Wire Rope

Rope

Also known as horizontal lifelines, these anchor spans provide fall protection on roofs and other areas where overhead anchors aren’t available. Attach to an anchor point on both sides. Once clipped in, you can move freely along the line while remaining tethered. When used together with a lanyard and harness, these anchor spans help you meet OSHA safety standards.

Wire Rope—Wire rope anchor spans are made of galvanized steel, so they resist corrosion and abrasion better than other anchor spans. This makes them tough enough to use outdoors for lines that stay up for multiple jobs.

Lg., ft.	Wt. Cap. per Person, lb.	Max. No. of Simultaneous Users	Material	Construction	Connection Hardware	Breaking Strength, lbf	Includes	Specs. Met		Each
60	310	2	Polyester Plastic	Webbing	Carabiner × Carabiner	3,600	Two Tie-Off Adapters	OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	1004N6	0000000
60	400	2	Galvanized Steel	Wire Rope	Snap Hook × Snap Hook	5,000	Two Tie-Off Adapters	OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	1004N113	000000
100	310	4	Polyester Plastic	Rope	Carabiner × Carabiner	6,000	Two Tie-Off Adapters	ANSI/ASSP Z359.18, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	1004N112	00000000

Hard Hat Lanyards

Attach to your hard hat to prevent accidental drops. These lanyards meet ANSI/ISEA 121, which certifies that their design keeps your hard hat from falling and harming people and equipment below.

Lg.	Material	Construction	Connection Type	Specs. Met		Each
23 1/4"	Polyester/Rubber	Webbing	Elastic Strap with Cinching Buckle × Cinching Buckle	ANSI/ISEA 121	1009N81	00000

Fall-Arrest Harnesses for Climbing

Stay secure while climbing ladders, poles, and other structures—a D-ring on the chest of these harnesses gives you a place to clip in while ascending and descending. Attach a lanyard to the D-ring on the back, and these harnesses will keep you upright if you fall. Used together with a lanyard and anchor, these harnesses help you meet OSHA and ANSI safety standards.

We offer a variety of styles—from a basic, no-nonsense version to one that you’ll barely feel. Premium harnesses offer more comfort and are easier to put on.

Style A

Slide Thigh Buckle

Belt Thigh Buckle

Squeeze-Release Thigh

Buckle

Style A are our most basic option. With no padding, these harnesses are less bulky than other harnesses. However, they may chafe if worn for long periods. Criss-cross straps distribute the weight evenly while keeping your arms free to move at the shoulders. These harnesses have built-in leg support straps, also known as trauma straps. If you fall, unravel the straps and hook them under your feet to ease pressure off your legs while you wait for help.

Slide Thigh Buckle—Slide thigh buckles are the basic option. However, they’re not as easy to adjust as belt thigh buckles and they need to be adjusted each time.

Belt Thigh Buckle—Belt thigh buckles reduce the risk of loosening over time. Lock them into the belt hole with each use.

Squeeze-Release Thigh Buckle—Squeeze-release thigh buckles connect and disconnect more quickly than slide and belt thigh buckles. They’re also more convenient, as you don’t have to adjust the size each time you put them on.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Pullover Harnesses—Slide Thigh Buckle



	S	58" to 72"	100 to 160	26" to 38"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T233	0000000


	M/L	60" to 76"	140 to 280	32" to 48"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T237	000000
	XL	64" to 78"	200 to 330	36" to 54"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T234	000000
	2XL	66" to 80"	230 to 380	42" to 57"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T235	000000
	3XL	68" to 80"	250 to 400	46" to 60"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T236	000000


	Pullover Harnesses—Belt Thigh Buckle



			M/L	60" to 76"	140 to 280	32" to 48"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T68	000000


			XL	64" to 78"	200 to 330	36" to 54"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T244	000000
			2XL	66" to 80"	230 to 380	42" to 57"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T245	000000
			3XL	68" to 80"	250 to 400	46" to 60"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T246	000000


			Pullover Harnesses—Squeeze-Release Thigh Buckle



					S	58" to 72"	100 to 160	26" to 38"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T223	000000


					M	60" to 74"	140 to 240	30" to 42"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T224	000000
					L	62" to 76"	170 to 300	34" to 50"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T225	000000
					XL	64" to 78"	200 to 330	36" to 54"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T226	000000
					2XL	66" to 80"	230 to 380	42" to 57"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8169T227	000000

Style B—With Back and Shoulder Padding


Belt Thigh Buckle	Squeeze-Release Thigh Buckle

Style B are a step up from the basic option—they have padding on the back and shoulders for comfort and to reduce chaffing. As you bend, sit, and move, the leg straps keep pressure off your inner thighs and won’t ride up. Their hardware is aluminum for good strength without weighing you down as you climb.

Belt Thigh Buckle—Belt thigh buckles reduce the risk of loosening over time. Lock them into the belt hole with each use.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Front-Buckle Harnesses—Belt Thigh Buckle



	XS/S	60" to 68"	100 to 150	24" to 32"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N11	0000000


	M/L	64" to 77"	150 to 225	32" to 48"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N12	000000
	XL	64" to 78"	225 to 300	36" to 52"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N13	000000
	2XL	64" to 78"	300 to 400	45" to 57"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N14	000000


	Front-Buckle Harnesses—Squeeze-Release Thigh Buckle



			XS/S	60" to 68"	100 to 150	24" to 32"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N15	000000


			M/L	64" to 77"	150 to 225	32" to 48"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N16	000000
			XL	64" to 78"	225 to 300	36" to 52"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N17	000000
			2XL	64" to 78"	300 to 400	45" to 57"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Horizontal Leg Straps, Impact-Indicating Stitching, Lanyard Holders, Lightweight Hardware, RFID Tag	9454N18	000000

Style C—With Back, Shoulder, and Leg Padding


		Squeeze-Release Thigh Buckle

Style C have padding on the back, shoulders, and legs for all-day comfort. Criss-cross straps distribute the weight evenly while keeping your arms free to move at the shoulders. These harnesses have built-in leg support straps, also known as trauma straps. If you fall, unravel the straps and hook them under your feet to ease pressure off your legs while you wait for help.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Pullover Harnesses—Squeeze-Release Thigh Buckle



	S	58" to 72"	100 to 160	26" to 38"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	9454N31	0000000


	M	60" to 74"	140 to 240	30" to 42"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	9454N32	000000
	L	62" to 76"	170 to 300	34" to 50"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	9454N33	000000
	XL	64" to 78"	200 to 330	36" to 54"	Polyester Plastic	Back (1), Chest (1)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	9454N34	000000

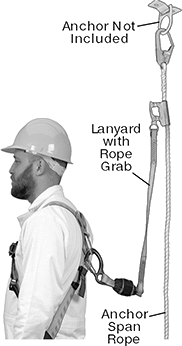

Vertical Fall-Arrest Anchor Spans

Also known as vertical lifelines, these anchor spans protect you from falls when climbing vertical structures such as ladders and scaffolding. Durable enough for outdoor use, the polyester plastic rope withstands abrasion, rot, and mildew. It can also handle temperatures up to 300° F.

To use these anchor spans, you’ll need a harness and a lanyard with a rope grab (sold separately). Attach the snap hook at one end of the rope to an overhead anchor point. If you fall, the rope grab stops you within inches. These anchor spans help you meet OSHA and ANSI safety standards.

Anchor Spans										Lanyards with Rope Grab
Lg., ft.	Max. No. of Simultaneous Users	Material	Construction	Connection Hardware	Wt. Cap., lb.	Breaking Strength, lbf	Specs. Met		Each		Each
25	1	Polyester Plastic	Rope	Snap Hook	310	5,000	OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502, ANSI/ASSP A10.32, ANSI/ASSP Z359.1	1004N111	000000	1004N11	0000000
50	1	Polyester Plastic	Rope	Snap Hook	310	5,000	OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502, ANSI/ASSP A10.32, ANSI/ASSP Z359.1	1004N8	000000	1004N11	000000
100	1	Polyester Plastic	Rope	Snap Hook	310	5,000	OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502, ANSI/ASSP A10.32, ANSI/ASSP Z359.1	1004N9	000000	1004N11	000000

Fall-Arrest Harnesses for Climbing and Positioning


For Positioning	For Climbing

With D-rings on the back, chest, and each hip, these harnesses are the most versatile we offer. Clip your lanyard onto the chest D-ring to scale tall ladders without the line getting in the way. Keep your hands free for tools and tether yourself close to your work by clipping into the hip D-rings. Attach your lanyard to the back D-ring, and these harnesses will keep you upright if you fall. When used together with a lanyard and anchor, these harnesses help you meet OSHA and ANSI safety standards.

We offer a variety of styles—from a basic, no-nonsense version to one that you’ll barely feel. Premium harnesses offer more comfort and are easier to put on and take off.

Style A


		Belt Thigh Buckle

Style A are our most basic option. They don’t have padding, so they’re less bulky than other harnesses. However, they may chafe if worn for long periods. The straps come together toward the middle of your chest so your arms and torso can move freely.

Belt Thigh Buckle—Belt thigh buckles reduce the risk of loosening over time. Lock them into the belt hole with each use.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Front-Buckle Harnesses—Belt Thigh Buckle



	XS/S	60" to 68"	100 to 150	26" to 38"	Polyester Plastic	Back (1), Chest (1), Hips (2)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching	7942T311	0000000


	M/L	64" to 77"	150 to 225	32" to 48"	Polyester Plastic	Back (1), Chest (1), Hips (2)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching	7942T382	000000
	XL	60" to 78"	200 to 300	36" to 52"	Polyester Plastic	Back (1), Chest (1), Hips (2)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching	7942T312	000000
	2XL	60" to 78"	300 to 400	45" to 57"	Polyester Plastic	Back (1), Chest (1), Hips (2)	400	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching	7942T313	000000

Style B


		Belt Thigh Buckle

Style B have crisscross straps that distribute weight evenly across your shoulders and back. They don’t have padding, so they’re less bulky than other harnesses. If you do fall, unfold the leg support straps to ease pressure on your legs while you wait for help.

Belt Thigh Buckle—Belt thigh buckles reduce the risk of loosening over time. Lock them into the belt hole with each use.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Pullover Harnesses—Belt Thigh Buckle



	S	58" to 72"	110 to 160	26" to 38"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T111	0000000


	M	60" to 74"	140 to 240	30" to 42"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T112	000000
	L	62" to 76"	170 to 300	34" to 44"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T113	000000
	XL	64" to 78"	200 to 340	38" to 50"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T114	000000
	2XL	64" to 78"	250 to 390	42" to 52"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T115	000000

Style C—With Back and Shoulder Padding


		Squeeze-Release Thigh Buckle

Style C are designed for all-day comfort. They have padding on the back and shoulders. If you do fall, unfold the leg support straps to ease pressure on your legs while you wait for help.

Squeeze-Release Thigh Buckle—Squeeze-release thigh buckles connect more quickly than other types and are easier to use, since you don’t have to adjust them each time.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Front-Buckle Harnesses—Squeeze-Release Thigh Buckle



	S	58" to 72"	110 to 160	24" to 34"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	7942T561	0000000


	M	60" to 74"	140 to 240	28" to 38"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	7942T562	000000
	L	62" to 76"	170 to 300	32" to 42"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	7942T563	000000
	XL	64" to 78"	200 to 340	36" to 46"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	7942T564	000000
	2XL	66" to 80"	250 to 390	40" to 50"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	7942T565	000000

Style D—With Back, Shoulder, and Leg Padding


		Squeeze-Release Thigh Buckle

Style D will feel the most lightweight—crisscross straps distribute weight and breathable padding on the back, shoulders, and legs keeps you comfortable, even when worn all day. If you do fall, unfold the leg support straps to ease pressure on your legs while you wait for help.

Squeeze-Release Thigh Buckle—Squeeze-release thigh buckles connect more quickly than other types and are easier to use, since you don’t have to adjust them each time.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

RFID Tag—Scan the RFID tag to log inspections, track usage, and schedule maintenance to keep these harnesses compliant with safety regulations.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Pullover Harnesses—Squeeze-Release Thigh Buckle



	XS	58" to 68"	90 to 130	20" to 30"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T116	0000000


	S	58" to 72"	110 to 160	24" to 34"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T117	000000
	M	60" to 74"	140 to 240	28" to 38"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T118	000000
	L	62" to 76"	170 to 300	32" to 42"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T119	000000
	XL	64" to 80"	200 to 340	36" to 46"	Polyester Plastic	Back (1), Chest (1), Hips (2)	420	ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1910.140, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders, Leg Support Straps, RFID Tag	8179T121	000000

Tool Lanyard Kits

Image of Product. Front orientation. Tool Lanyards. Tool Tethering Kits.

Everything you need to keep tools close to you while you work at height. These kits prevent tools from accidentally falling and hurting someone or damaging equipment below. The components in these kits meet ANSI/ISEA 121 design and performance safety standards. To tether your tools properly, combine a tool attachment point with a lanyard and secure it to an anchor point.

No. of Pieces	Includes	Specs. Met		Each
24	Six Webbing Tool Attachment Points Six Wire Tool Attachment Points Three Elastic Tool Attachment Points Two Coiled Tool Lanyards—Carabiner × Loop Straight Tool Lanyard—Carabiner × Loop Straight Tool Lanyard—Carabiner × Carabiner Two Rolls of Tool Tape Tape Measure Holder Power Tool Holder Glove Clip	ANSI/ISEA 121	9835N11	0000000

Tool Tether Anchors


Slide On	Wraparound	Wraparound with Extra-Wide D-Ring

Clip your tool’s lanyard to these anchors while working at height—they prevent tools from falling and hurting someone or damaging equipment below. You’ll need an attachment point on your tool and a lanyard to properly tether your tool.

Slide On—Slide-on anchor points attach to your harness or tool belt. They’re a good choice for anchoring hand tools.

Wraparound—Wraparound anchor points attach to rated structures such as railings and scaffolding. They support heavy tools without weighing you down.

Wraparound with Extra-Wide D-Ring—Wraparound anchor points with an extra-wide D-ring work well when you need to swap between multiple tools. You can attach up to five tool lanyards.

Nylon Cover—A nylon cover protects the webbing from rubbing and scraping for an extended lifespan.

ANSI/ISEA 121—To ensure safety, they meet ANSI/ISEA 121 for design and performance.

	For No. of Tools	Connection Hardware	Material	Cover Material	Construction	For Max. Dia.	Specs. Met		Each
Slide On



	15	1	D-Ring	Nylon	—	Webbing	2 1/2"	ANSI/ISEA 121	9865N11	00000


	Wraparound



			25	1	D-Ring	Polyester Plastic	—	Webbing	6"	ANSI/ISEA 121	9865N13	00000


			Wraparound with Extra-Wide D-Ring



					50	5	D-Ring	Nylon	Nylon	Webbing	6"	ANSI/ISEA 121	9865N12	00000

Retractable Tool Lanyards

Keep tools within reach when you need them and out of the way when you don’t—these lanyards retract to prevent snags and tangles. They meet ANSI/ISEA 121, which certifies that their design keeps your tool from falling and harming people and equipment below when you’re working at height. An extension lock on these lanyards keeps it retracted until you’re ready to use it. To properly tether your tool, you’ll need an attachment point on your tool and an anchor point for your lanyard

For Hand Tools


	Belt Clip × Detachable Elastic Loop	Carabiner × Carabiner

Detachable-Elastic-Loop Connection—Lanyards with a detachable elastic loop let you swap out tools while leaving the anchor and lanyard setup in place.

	Lanyards														Replacement Detachable Elastic Loops
	Connection Type	For No. of Tools	Wt. Cap., lb.	Retracted Lg.	Extended Lg.	Material	Housing Material	For Min. Tool Opening	For Max. Belt Wd.	Carabiner Material	Features	Specs. Met		Each	Pkg. Qty.		Pkg.
Rope



		Belt Clip × Detachable Elastic Loop	1	2	9"	50"	Nylon	Plastic	1/4"	2 1/4"	—	Cord Lock, Extension Lock	ANSI/ISEA 121	8448N113	000000	3	8448N114	000000


		Carabiner × Carabiner	1	4	12 1/2"	50"	Nylon	Plastic	1/4"	—	Stainless Steel	Extension Lock	ANSI/ISEA 121	8448N115	00000	—	———	0

Electrical Arc-Flash-Resistant Fall-Arrest Harnesses for Climbing and Positioning


	Slide Thigh Buckle


For Positioning	For Climbing

Our most versatile harness for tasks at height in areas with arc-flash and fire hazards—these harnesses have a D-ring on the back, chest, and each hip. Made with Nomex and Kevlar, they’re tested to ASTM F887 for arc-flash protection. Attach a lanyard to the D-ring on the back, and these harnesses will keep you upright if you fall. The chest D-ring lets you clip into ladder-climbing systems without the line getting in your way as you climb. Hip D-rings let you tether yourself close to your work, so your hands are free for tools and equipment. When used together with an anchor and a lanyard, these harnesses help you meet OSHA and ANSI safety standards.

Impact-Indicating Stitching—Impact-indicating stitching is designed to tear during a fall or impact, so it’s easy to tell if a harness is still safe to use.

Lanyard Holders—If you have an unused lanyard, clip it to one of the lanyard holders to keep it from dragging or catching on nearby equipment.

	For Ht. Range	For Wt., lb.	Waist Size	Harness Material	D-Ring Location (No. of)	Wt. Cap., lb.	Specs. Met	Features		Each
Front-Buckle Harnesses—Slide Thigh Buckle



	S	58" to 77"	100 to 310	34" to 43"	Kevlar/Nomex Fabric	Back (1), Chest (1), Hips (2)	420	ASTM F887, ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders	9267N11	0000000


	M	58" to 77"	100 to 310	38" to 47"	Kevlar/Nomex Fabric	Back (1), Chest (1), Hips (2)	420	ASTM F887, ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders	9267N12	000000
	L	58" to 77"	100 to 310	42" to 51"	Kevlar/Nomex Fabric	Back (1), Chest (1), Hips (2)	420	ASTM F887, ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders	9267N13	000000
	XL	68" to 77"	240 to 310	46" to 55"	Kevlar/Nomex Fabric	Back (1), Chest (1), Hips (2)	420	ASTM F887, ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders	9267N14	000000
	2XL	74" to 77"	270 to 310	50" to 59"	Kevlar/Nomex Fabric	Back (1), Chest (1), Hips (2)	420	ASTM F887, ANSI/ASSP Z359.11, OSHA Compliant 29 CFR 1926.502	Impact-Indicating Stitching, Lanyard Holders	9267N15	000000

Tool Tether Attachments

Tether almost any tool—these attachments add a ring for a lanyard connection. When used together with a lanyard and an anchor, they prevent tools from accidentally falling and hurting someone or damaging equipment below.

Clip-On Attachment

Image of Attribute. Front orientation. Contains Annotated.

Clip-on attachments are for long-necked tools with wide ends, such as wrenches, pry bars, and hammers. The end of your tool needs to be wider than where the attachment point rests, so it won’t slip off. Made of stainless steel, they resist corrosion and are more durable than other attachments. They may slide up and down the tool as you use them. Add threadlocker to the pin to prevent loosening over time.

ANSI/ISEA 121—They meet ANSI/ISEA 121 for design and performance to ensure safety when working at height.

	Ring Inside Wd.	Ring Inside Lg.	For No. of Tools	Material	Construction	Specs. Met	Pkg. Qty.		Pkg.
Rigid Ring



	15	0.4"	0.75"	1	Stainless Steel	Solid	ANSI/ISEA 121	2	9860N11	00000


	15	0.5"	1"	1	Stainless Steel	Solid	ANSI/ISEA 121	2	9860N12	00000
	15	0.65"	1.25"	1	Stainless Steel	Solid	ANSI/ISEA 121	2	9860N13	00000
	15	0.8"	1.5"	1	Stainless Steel	Solid	ANSI/ISEA 121	2	9860N14	00000

Tape-On Attachment


	Attachment

Tape-on attachments work for almost any tool. Use them on screwdrivers, pliers, and other hand tools. Loop the webbing with a D-ring around your tool, cinch it tight, and secure with tape (sold separately). The flexible tape molds to surfaces of different shapes and sizes.

ANSI/ISEA 121—They meet ANSI/ISEA 121 for design and performance to ensure safety when working at height.

	Tool Tether Attachments										Tool Tether Attachment Tape
	Wt. Cap., lb.	Ring Inside Wd.	Ring Inside Lg.	For No. of Tools	Material	Construction	Specs. Met	Pkg. Qty.		Pkg.		Each
Rigid Ring



		5	1"	0.94"	1	Nylon	Webbing	ANSI/ISEA 121	3	9860N22	000000	9860N25	000000


		10	1"	0.94"	1	Nylon	Webbing	ANSI/ISEA 121	3	9860N23	00000	9860N25	00000
		15	1"	0.94"	1	Nylon	Webbing	ANSI/ISEA 121	1	9860N24	0000	9860N25	00000


		Swivel Ring



				5	0.55"	0.45"	1	Nylon	Webbing	ANSI/ISEA 121	3	9860N19	00000	9860N25	00000


				15	0.53"	0.54"	1	Nylon	Webbing	ANSI/ISEA 121	3	9860N21	00000	9860N25	00000

Wrist Tool Lanyards


Wristband × Elastic Loop	Wristband × Detachable Elastic Loop

Wristband × Retractable Detachable Elastic Loop	Wristband × Carabiner

Tethered to your wrist, your tools will always be within reach. When working at height, these lanyards prevent accidental drops that could harm people and damage equipment below. They meet ANSI/ISEA 121 for design and performance to ensure safety. To properly tether your tool, you’ll need an attachment point on your tool.

Detachable-Elastic-Loop Connection—Lanyards with a detachable elastic loop let you quickly disconnect tools from the wristband—no need to undo the loop. Add more detachable loops (sold separately) so you can have other tools ready to snap in.

	Lanyards														Replacement Detachable Elastic Loops
	Connection Type	For No. of Tools	Wt. Cap., lb.	Lg.	Retracted Lg.	Extended Lg.	Material	For Min. Tool Opening	For Max. Wrist Circumference	Carabiner Material	Features	Specs. Met		Each	Pkg. Qty.		Pkg.
Straight—Rope



		Wristband × Elastic Loop	1	5	10"	—	—	Nylon	7/64"	10 1/4"	—	Cord Lock	ANSI/ISEA 121	9794N11	00000	—	———	0


		Wristband × Detachable Elastic Loop	1	5	10"	—	—	Nylon	3/16"	10 1/4"	—	Cord Lock	ANSI/ISEA 121	9794N12	00000	3	9794N14	000000
		Wristband × Retractable Detachable Elastic Loop	1	1	—	8 1/2"	46"	Nylon	9/32"	10 1/4"	—	Cord Lock	ANSI/ISEA 121	9794N13	00000	3	9794N15	00000


		Straight—Webbing



				Wristband × Carabiner	1	5	7"	—	—	Nylon	1/2"	10"	Aluminum	—	ANSI/ISEA 121	9794N16	00000	—	———	0
