    12 Products

    Laser Directing Components

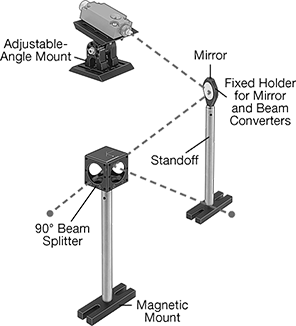

    Image of System. Front orientation. Contains Annotated. Laser Directing Components.
    Image of Product. Front orientation. Laser Directing Components. Mirrors.
    Image of Product. Front orientation. Laser Directing Components. 90° Turning Mirrors.
    Image of Product. Front orientation. Laser Directing Components. 90° Beam Splitters.
    Image of Product. Front orientation. Laser Directing Components. Dot-to-Line Converters.

    Mirrors

    90° Turning Mirrors

    90° Beam Splitters

    Dot-to-Line

    Converters

    Image of Product. Front orientation. Laser Directing Components. Fixed Holders for Mirror and Beam Converters.
    Image of Product. Front orientation. Laser Directing Components. Adjustable-Angle Holders for Mirror and Beam Converters.
    Image of Product. Front orientation. Laser Directing Components. Magnetic Mounts.
    Image of Product. Front orientation. Laser Directing Components. Adjustable-Angle Mounts.

    Fixed

    Holders

    for

    Mirror

    and Beam

    Converters

    Adjustable-Angle

    Holders for

    Mirror and Beam

    Converters

    Magnetic Mounts

    Adjustable-Angle Mounts

    Direct laser beams where you need them with components that turn or split your beam. They work with any dot laser.
    Mirrors—Mirrors require a holder to mount to a standoff.
    90° Turning Mirrors—90° turning mirrors screw into a standoff.
    90° Beam Splitters—90° beam splitters convert a single dot into two dots; one continues in a straight line, the other projects at a 90° angle. Splitters screw into a standoff.
    Dot-to-Line Converters—Dot-to-line converters require a holder to mount to a standoff.
    Component
    Max. Tilt
    Angle
    Max. Rotation
    Angle
    Each
    Mirror——5842T22000000
    90° Turning Mirror——5842T21000000
    90° Beam Splitter——5842T23000000
    Dot-to-Line Converter——5842T27000000
    Fixed Holder for Mirror and Beam Converters——5842T3400000
    Adjustable-Angle Holder for Mirror and Beam Converters4°—5842T3300000
    Magnetic Mount——5842T2800000
    Adjustable-Angle Mount—180°5842T35000000
    Standoffs
    Standoffs have 8-32 male threads on one end and 1/4"-20 female threads on the other. Diameter is 1/2". For additional lengths, see 18-8 Stainless Steel Standoffs.
    Lg.
    Each
    1"94033A42100000
    4"94033A4440000
    6"94033A44900000
    12"94033A46000000
