151 Products

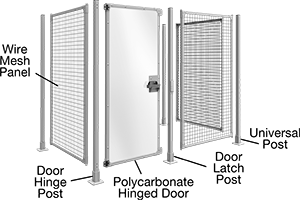

Machine Guards

Combine posts, panels, and doors to create a barrier around equipment.

Panels

Wire Mesh

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

					Wire Mesh Opening
	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Color	Mounting Hardware		Each
Wire Mesh—Powder-Coated Steel



		9 7/8"	13.875"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	000000


		21 5/8"	25.625"	78 3/4"	6"	1 7/8"	1 7/8"	0.157"	Black	Connecting Fasteners Included	0000000	000000
		33 1/2"	37.5"	78 3/4"	6"	1 7/8"	1 7/8"	0.157"	Black	Connecting Fasteners Included	0000000	000000
		45 1/4"	49.25"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	000000
		57 1/8"	61.125"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	000000

Hinged Doors


Wire Mesh	Replacement Latches	Replacement Latch Assemblies	Replacement Latch Brackets	Replacement Door Hinges

Hinged doors have a slide-bolt latch.

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors												Replacement Latch Assemblies		Replacement Latches		Replacement Latch Brackets		Replacement Door Hinges
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Color	Mounting Hardware		Each		Each		Each		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side	33"	37"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	0000000	0000000	0000000	0000000	000000	00000000	00000	00000000	000000


		Right-Hand Side	33"	37"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	000000	0000000	000000	0000000	00000	00000000	0000	00000000	00000

Sliding Doors


Wire Mesh	Replacement Handles

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors												Replacement Handles
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Color	Mounting Hardware		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side	45 1/4"	96.5"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	0000000	0000000	000000


		Right-Hand Side	45 1/4"	96.5"	78 3/4"	6"	1 7/8"	1 7/8"	0.165"	Black	Connecting Fasteners Included	0000000	000000	0000000	00000

Quick-Access Machine Guards

These panels lift on and off their posts in seconds, so you can protect machinery while providing access for maintenance.

Panels

2 ft. High and 66" High—To create taller panels, pair 66" high panels with 2 ft. high panels of the same width and add them to the posts.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

					Wire Mesh Opening
	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Color	Mounting Hardware	Specs. Met		Each
Wire Mesh—Powder-Coated Steel



		10"	15"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000


		10"	15"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	00000
		16"	21"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000
		16"	21"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000
		22"	27"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000
		22"	27"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		28"	33"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000
		28"	33"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000
		34"	39"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000
		34"	39"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		40"	45"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000


		40"	45"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000
		46"	51"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	00000
		46"	51"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		58"	63"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000
		58"	63"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		70"	75"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000
		70"	75"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		82"	87"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000
		82"	87"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000
		94"	99"	2 ft.	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000


		94"	99"	66"	6"	2"	2"	0.16"	Black	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	000000

Hinged Single Doors


	Replacement Door Latch Assemblies

90" High—For added protection around larger machines, choose 90" high doors.

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors															Replacement Door Latch Assemblies
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Material Thk.	Color	Includes	Mounting Hardware	Specs. Met		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side, Right-Hand Side	46 1/4"	56"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	00000000	0000000	000000000	000000


		Left-Hand Side	46 1/4"	56"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000	000000000	00000
		Right-Hand Side	46 1/4"	56"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000	000000000	00000
		Right-Hand Side	46 1/4"	56"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000	000000000	00000

Hinged Double Doors


	Replacement Door Latch Assemblies

90" High—For added protection around larger machines, choose 90" high doors.

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors															Replacement Door Latch Assemblies
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Material Thk.	Color	Includes	Mounting Hardware	Specs. Met		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side, Right-Hand Side	47"	99.25"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000000	000000000	000000


		Left-Hand Side, Right-Hand Side	47"	99.25"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Two Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000000	000000000	00000

Sliding Single Doors


	Replacement Door Latch Assemblies

90" High—For added protection around larger machines, choose 90" high doors.

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors															Replacement Door Latch Assemblies
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Material Thk.	Color	Includes	Mounting Hardware	Specs. Met		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side	46 1/4"	56"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Three Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000000	000000000	000000


		Left-Hand Side	46 1/4"	56"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Three Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000000	000000000	00000
		Right-Hand Side	46 1/4"	56"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Three Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000000	000000000	00000
		Right-Hand Side	46 1/4"	56"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Three Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000000	000000000	00000

Sliding Double Doors


	Replacement Door Latch Assemblies

90" High—For added protection around larger machines, choose 90" high doors.

Mounting Position—When standing on the side of the door that swings away from you, left-hand side doors open to the left; right-hand side doors open to the right.

Assembled Width—The assembled width measures the installed width of a panel or door when mounted with posts on each side.

	Doors															Replacement Door Latch Assemblies
						Wire Mesh Opening
	Mounting Position	Wd.	Assembled Wd.	Ht.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Material Thk.	Color	Includes	Mounting Hardware	Specs. Met		Each		Each
Wire Mesh—Powder-Coated Steel



		Left-Hand Side, Right-Hand Side	47"	99.25"	66"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Four Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	000000000	000000000	000000


		Left-Hand Side, Right-Hand Side	47"	99.25"	90"	6"	2"	2"	0.16"	1/16"	Black	Door Latch Kit, Four Posts	Connecting Fasteners Included	ANSI/RIA R15.06, CAN/CSA-Z434, OSHA Compliant 29 CFR 1910.212	000000000	00000000	000000000	00000

Build-Your-Own Wire Partitions

Create secure but visible tool and stock rooms. Mix-and-match panels, posts, doors, and locks to design a partition that meets your storage demands. Add a universal post every wall panel. Posts come with a 4” × 6” baseplate that can be mounted to the floor.

Note: There's a 2" clearance between the floor and the bottom of the partition.

Framed Wall Panels

Framed wall panels have a 1 ¼” × 1 ¼” frame around the panels for strength and stability.

							7 ft. High		8 ft. High		10 ft. High
	Wd., ft.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.		Each		Each		Each
Powder-Coated Steel



		1	Black	Welded Wire	10	2 1/2"	1 1/4"	00000000	0000000	00000000	0000000	0000000	0000000


		2	Black	Welded Wire	10	2 1/2"	1 1/4"	00000000	000000	00000000	000000	0000000	000000
		3	Black	Welded Wire	10	2 1/2"	1 1/4"	00000000	000000	00000000	000000	0000000	000000
		4	Black	Welded Wire	10	2 1/2"	1 1/4"	00000000	000000	00000000	000000	0000000	000000
		5	Black	Welded Wire	10	2 1/2"	1 1/4"	00000000	000000	00000000	000000	0000000	000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Unframed Wall Panels

Unframed wall panels can be cut-to-size or stacked up to 8’ high. They have 1 ½” bends around the top and bottom for extra rigidity. They can be installed at any angle without additional hardware. Unframed wall panels are compatible with framed wall panels.

							2 ft. High		4 ft. High
	Wd., ft.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.		Each		Each
Powder-Coated Steel



		4	Black	Welded Wire	8	2 1/2"	1 1/4"	0000000	000000	0000000	000000


		8	Black	Welded Wire	8	2 1/2"	1 1/4"	0000000	00000	0000000	000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Universal Posts for Framed and Unframed Wall Panels

				7 ft. High		8 ft. High		10 ft. High
	Wd.	Color	Dp.		Each		Each		Each
Powder-Coated Steel



		2"	Black	2"	00000000	000000	00000000	0000000	0000000	0000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Universal Post Extensions

				2 ft. High		4 ft. High
	Wd.	Color	Dp.		Each		Each
Powder-Coated Steel



		2"	Black	2"	000000	000000	000000	000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Hinged Doors for Framed and Unframed Wall Panels


	Replacement Lock Cylinders

To access the inside of the enclosure, you will need to pick either a sliding or hinged door. All doors lock from the outside only. Door opening direction is determined when standing outside the partition.

	Wire Partition Doors														Replacement Lock Cylinders
									7 ft. High		8 ft. High		10 ft. High
	Wd., ft.	Door Opening Wd.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.	Choose a Door Opening Direction		Each		Each		Each		Each
Powder-Coated Steel



		3	34 1/2"	Black	Welded Wire	10	2 1/2"	1 1/4"	Swings Left, Swings Right	000000	0000000	00000000	0000000	00000000	0000000	00000000	000000


		4	46"	Black	Welded Wire	10	2 1/2"	1 1/4"	Swings Left, Swings Right	00000000	000000	00000000	000000	00000000	000000	00000000	00000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Hinged Double Doors for Framed and Unframed Wall Panels


	Replacement Lock Cylinders

	Wire Partition Doors														Replacement Lock Cylinders
									7 ft. High		8 ft. High		10 ft. High
	Wd., ft.	Door Opening Wd.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.	Door Opening Direction		Each		Each		Each		Each
Powder-Coated Steel



		6	70 1/2"	Black	Welded Wire	10	2 1/2"	1 1/4"	Swings Out	0000000	000000000	0000000	000000000	0000000	000000000	00000000	000000


		8	94 1/2"	Black	Welded Wire	10	2 1/2"	1 1/4"	Swings Out	0000000	00000000	0000000	00000000	0000000	00000000	00000000	00000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Replacement Lever Handles for Hinged Doors and Hinged Double Doors

Image of Product. Front orientation. Wire Partitions. Build-Your-Own Wire Partitions, Replacement Lever Handles for Hinged Doors and Hinged Double Doors.

	Color	Mounting Hardware Included		Each
Powder-Coated Steel



	Swings Left	Black	Yes	0000000	0000000


	Swings Right	Black	Yes	0000000	000000

Hydraulic Closers for Hinged Doors and Hinged Double Doors

Mounting Hardware Included	Includes		Each
Yes	Brackets	00000000	0000000

Sliding Doors for Framed and Unframed Wall Panels


	Replacement Lock Cylinders	Replacement Gate Latches

	Wire Partition Doors															Replacement Lock Cylinders		Replacement Square Locking Units
										7 ft. High		8 ft. High		10 ft. High
	Wd., ft.	Door Opening Wd., ft.	Door Track Lg., ft.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.	Door Opening Direction		Each		Each		Each		Each		Each
Powder-Coated Steel



		3	3	11 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	0000000	000000000	0000000	000000000	———	0	00000000	000000	0000000	0000000


		4	4	14 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	0000000	00000000	0000000	00000000	0000000	000000000	00000000	00000	0000000	000000
		5	5	17 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	0000000	00000000	0000000	00000000	0000000	00000000	00000000	00000	0000000	000000
		6	6	14 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	0000000	00000000	0000000	00000000	0000000	00000000	00000000	00000	0000000	000000
		8	8	11 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	———	0	———	0	000000	00000000	00000000	00000	0000000	000000
		8	8	18 1/4	Black	Welded Wire	10	2 1/2"	1 1/4"	Slides Left	000000	00000000	0000000	00000000	———	0	00000000	00000	0000000	000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Hardware Kits for Sliding Doors

Includes		Each
Hardware, Two Trolleys (Rollers)	0000000	000000

Lower Guide Assemblies for Sliding Doors

Image of Product. Front orientation. Contains MultipleImages. Wire Partitions. Build-Your-Own Wire Partitions, Lower Guide Assemblies for Sliding Doors.

Mounting Hardware Included	Includes		Each
Yes	Bracket	0000000	000000

Window Kits for Framed Wall Panels

Windows can only be used with framed wall panels. Windows have a drop-down shelf.

	Construction		Each
Powder-Coated Steel



	Black	Welded Wire	0000000	0000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Adjustable Corner Post Kits for Framed Wall Panels

Pair adjustable corner post kits with universal posts and framed wall panels to make corners wider or narrower than 90°.

	Includes		Each
Zinc-Plated Steel



	7, 8	Fasteners for Assembly	00000000	000000


	10	Fasteners for Assembly	0000000	000000

Top Cap Rails for Unframed Wall Panels

Add top cap rails to unframed wall panels for extra support. Rails can be cut to the length you need.

	Color		Each
Powder-Coated Steel



	4	Black	0000000	000000


	8	Black	0000000	00000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Wall Mounting Kits for Framed Wall Panels

Use wall mounting kits to make use of existing walls. Order one kit for each panel you’ll connect to a wall.

		Each
Steel



	1, 2, 3, 4, 5	0000000	000000

Paint

Cannot Be Sold To—Paint cannot be sold to the listed areas due to VOC (Volatile Organic Compounds) regulations.

Container
Net Wt., oz.	Type	Color	Cannot Be Sold To		Each
12	Aerosol Can	Black	California	000000	000000

Wall Mounting Kits for Unframed Wall Panels

Use wall mounting kits to make use of existing walls. Order one kit for each panel you’ll connect to a wall.

	For Wall Panel Wd., ft.		Each
Powder-Coated Steel



	Black	4	0000000	000000


	Black	8	0000000	00000

T-Slotted Framing Machine Guards

Framed in aluminum T-slotted extrusions, these customizable machine guards provide multiple points of attachment for other components and structures.

Panels


Wire Mesh

				Wire Mesh Opening			Extrusion					6 ft. High		7 ft. High
	Overall Wd.	No. of Posts	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Ht.	Wd.	T-Slot Wd.	Mounting Hardware	Choose a Color		Each		Each
Wire Mesh—PVC-Coated Steel



		18"	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	0000000	0000000	0000000


		2 ft.	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000
		30"	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000
		3 ft.	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000
		42"	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000
		4 ft.	2	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000

Hinged Doors


Wire Mesh

Doors have a magnetic latch. They can be mounted to swing open to the left or right.

			Wire Mesh Opening			Extrusion					66" High		78" High
	Wd., ft.	Floor Clearance When Assembled	Ht.	Wd.	Wire Dia.	Ht.	Wd.	T-Slot Wd.	Mounting Hardware	Choose a Color		Each		Each
Wire Mesh—PVC-Coated Steel



		3	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	0000000	0000000	0000000


		4	6"	1"	1"	0.0781"	1 1/2"	1 1/2"	0.320"	Connecting Fasteners Included	Black, Yellow	0000000	000000	0000000	000000

Machine-Mount T-Slotted Framing Machine Guards

Compact in size, these guards can be mounted directly to a machine or workbench. Panels are framed in aluminum T-slotted extrusions to provide multiple points of attachment for other components.

Panels

		Wire Mesh Opening			Extrusion				1 ft. High		21" High
	Wd., ft.	Ht.	Wd.	Wire Dia.	Ht.	Wd.	T-Slot Wd.	Choose a Color		Each		Each
Wire Mesh—PVC-Coated Steel



		1	1/2"	1/2"	0.0625"	1"	1"	0.26"	Black, Yellow	0000000	0000000	0000000	0000000


		2	1/2"	1/2"	0.0625"	1"	1"	0.26"	Black, Yellow	0000000	000000	0000000	000000
		3	1/2"	1/2"	0.0625"	1"	1"	0.26"	Black, Yellow	0000000	000000	0000000	000000

Wire Partitions


2 Sides	3 Sides

4 Sides

These complete partitions include everything you'll need. We’ll supply the unframed wall panels, unframed door panels, unframed roof panels (when necessary), universal posts with baseplates, door track and brackets, and mounting kits (fasteners included). Door opening direction is determined when standing outside the partition.

2 Sides—Use two-sided partitions to create a room in a corner.

3 Sides—Use three-sided partitions to create a room along a wall.

4 Sides—Use four-sided partitions to create a freestanding room.

	Overall, ft.					Door Opening							Complete Partitions without Roofs		Complete Partitions with Roofs
	Ht.	Wd.	Dp.	Door Type	Door Opening Direction	Ht.	Wd., ft.	Color	Construction	Steel Wire Ga.	Wire Opening Ht.	Wire Opening Wd.		Each		Each
Powder-Coated Steel







				2 Sides

				8	8	8	Sliding	Slides Left	85"	3	Black	Welded Wire	8	2 1/2"	1 1/4"	0000000	000000000	00000000	000000000


				8	8	12	Sliding	Slides Left	97"	4	Black	Welded Wire	8	2 1/2"	1 1/4"	00000000	00000000	00000000	00000000




						3 Sides

						8	8	8	Sliding	Slides Left	85"	3	Black	Welded Wire	8	2 1/2"	1 1/4"	00000000	00000000	00000000	00000000


						8	8	12	Sliding	Slides Left	97"	4	Black	Welded Wire	8	2 1/2"	1 1/4"	00000000	00000000	000000	00000000




								4 Sides

								8	8	8	Sliding	Slides Left	85"	3	Black	Welded Wire	8	2 1/2"	1 1/4"	00000000	00000000	00000000	00000000


								8	8	12	Sliding	Slides Left	97"	4	Black	Welded Wire	8	2 1/2"	1 1/4"	00000000	00000000	00000000	00000000
