    27 Products

    Tight-Hold Swing-Handle Keyed Multipoint Locks

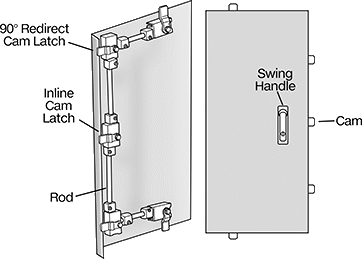

    Image of System. Front orientation. Contains Annotated. Multipoint Latches. Tight-Hold Swing-Handle Keyed Multipoint Locks.
    Pair a handle with a cam latch and rod to create a keyed latching system that securely fastens doors at multiple points. Also known as compression cam locks, these locks create a tighter hold than a traditional cam lock, making them useful for doors that have a seal. Turn the handle a quarter turn to lock, then turn it another quarter turn to create compression and minimize rattling from vibration. The handle lies flat when locked, which means it won’t snag anything passing by. Choose these locks if you need several locks that open with the same key.
    Through-Hole Mount
    Image of Product. Keyed. Front orientation. Multipoint Latches. Tight-Hold Swing-Handle Keyed Multipoint Locks, Through-Hole Mount, Black Nylon, Keyed.
    Image of Product. Keyed/Padlockable. Front orientation. Multipoint Latches. Tight-Hold Swing-Handle Keyed Multipoint Locks, Through-Hole Mount, Black Nylon, Keyed/Padlockable.

    Keyed

    Keyed/Padlockable

    Keyed/Padlockable—Add a padlock to keyed/padlockable handles for an added layer of security. These handles are often used in lockout-tagout procedures to ensure equipment is properly shut off.
    Handle
    For
    Cutout
    Mounting
    Plate
    Mounting
    For Max.
    Thk.
    Lg.
    Wd.
    Projection
    For Max. Padlock
    Shackle Dia.
    Ht.
    Wd.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Key
    No.
    No. of Keys
    Included
    Each
    Black Nylon

    Keyed
    3/32"5 3/4"1 1/16"13/16"—2"1"6 3/16"1 5/16"YesM4.2
    		133320000000000000

    Keyed/Padlockable
    3/32"5 3/4"1 1/16"13/16"3/8"2"1"6 3/16"1 5/16"YesM4.2
    		13332000000000000

    Accessories for Multipoint Latches
    Inline Cam Latches
    Image of Product. Left-Side Door Mount for 2 Rods. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Clockwise to Open, Left-Side Door Mount, For 2 Rods.
    Image of Product. Right-Side Door Mount for 1 Rod. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Clockwise to Open, Right-Side Door Mount, For 1 Rod.
    Image of Product. Left-Side Door Mount for 1 Rod. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Counterclockwise to Open, Left-Side Door Mount, For 1 Rod.
    Image of Product. Right-Side Door Mount for 2 Rods. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Counterclockwise to Open, Right-Side Door Mount, For 2 Rods.

    Left-Side

    Door Mount

    for 2 Rods

    Right-Side Door

    Mount for 1 Rod

    Left-Side

    Door Mount

    for 1 Rod

    Right-Side

    Door Mount

    for 2 Rods

    Inline Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance.
    For 1 Rod—Latches for one rod can be used as the main latch with a handle to control one additional latch point. You can also use them as a final latch point along a line in your multipoint system.
    For 2 Rods—Latches for two rods can be used as the main latch with a handle that controls two additional latch points. You can also use them as a midpoint latch that is controlled by the main latch for operating yet another latch along your multipoint system.
    Straight
    Cam
    Offset
    Cam
    Door Mounting
    Location
    For Max.
    Thk.
    Number of
    Rods
    Latching Distance
    Lg.
    Wd.
    Lg.
    Wd.
    Each
    Inline Cam Latch—Zinc—Dull

    Half-Turn Clockwise to Open
    Left Side3/32"For 2 Rods1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"0000000000000
    Right Side3/32"For 1 Rod1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Half-Turn Counterclockwise to Open
    Left Side3/32"For 1 Rod1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000
    Right Side3/32"For 2 Rods1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    90° Redirect Cam Latches
    Image of Product. Bottom Left Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Clockwise to Open, Bottom Left Side Door Mount.
    Image of Product. Top Left Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Clockwise to Open, Top Left Side Door Mount.
    Image of Product. Bottom Right Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Counterclockwise to Open , Bottom Right Side Door Mount.
    Image of Product. Top Right Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Counterclockwise to Open , Top Right Side Door Mount.

    Bottom Left

    Side Door Mount

    Top Left Side

    Door Mount

    Bottom Right

    Side Door Mount

    Top Right Side

    Door Mount

    90° Redirect Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance. Use 90° redirect cam latches on the inside corners of your door to redirect your multi-point latching system 90° and add additional points along other edges of the door.
    Straight
    Cam
    Offset
    Cam
    Door Mounting
    Location
    For Max.
    Thk.
    For No.
    of Rods
    Latching Distance
    Lg.
    Wd.
    Lg.
    Wd.
    Each
    90° Redirect Cam Latches—Zinc—Dull

    Half-Turn Clockwise to Open
    Bottom Left Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"0000000000000
    Top Left Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Half-Turn Counterclockwise to Open
    Bottom Right Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000
    Top Right Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Rods
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Rods.

    Rods

    Rods—Rods connect latches to each other. Cut them to the length you need.
    Lg.
    Dia.
    Each
    Rods—Zinc-Plated Steel
    11 1/2"5/16"000000000000
    15 1/2"5/16"00000000000
    19 3/8"5/16"00000000000
    23 3/8"5/16"000000000000
    27 1/4"5/16"000000000000
    31 1/4"5/16"000000000000


    Swing-Handle Keyed Multipoint Locks

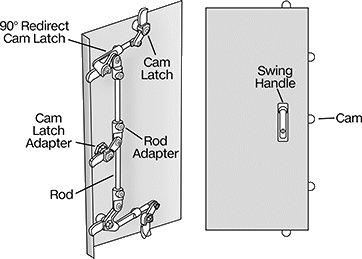

    Image of System. Front orientation. Contains Annotated. Multipoint Latches. Swing-Handle Keyed Multipoint Locks.
    Create a keyed locking system that fastens doors at multiple points. The swing-handle lock rotates smoothly when you lift the handle to latch and unlatch the door. The handle lies flat when locked, which means it won’t snag anything passing by. This lock is often installed on server cabinets and electrical panels. It comes with multiple cams, so you can change its fixed latching distance.
    You first need a swing-handle lock, which acts as the base for these locks. Add a latch point by connecting an inline or 90° cam latch using a cam latch adapter (sold separately). For each latch point, you’ll need a cam latch, a rod, and two rod adapters. Weld cam latches to the inside of your enclosure door.
    Through-Hole Mount
    Image of Product. Front orientation. Multipoint Latches. Swing-Handle Keyed Multipoint Locks, Through-Hole Mount.
    Keyed Alike—Choose keyed alike locks when you need several locks that open with the same key.
    Keyed Differently—Choose keyed differently locks when you need locks that each open with a separate key.
    Handle
    Straight
    Cam
    Offset
    Cam
    For
    Cutout
    Mounting
    Plate
    Mounting
    Quarter-Turn Clockwise or
    Counterclockwise to Open
    Keying
    For Max.
    Thk.
    Latching Distance
    Lg.
    Wd.
    Projection
    Lg.
    Wd.
    Lg.
    Wd.
    Ht.
    Wd.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Key
    No.
    No. of Keys
    Included
    Includes
    Retaining Ring
    Included
    Each
    Black Powder-Coated Zinc
    Keyed Alike3/32"5/16", 23/32", 1 3/32"4 5/16"11/16"1/2"1 3/4"3/4"1 3/4"3/4"2"1"5 1/4"1 7/16"YesM4
    		13332One Straight Cam, Two Nonreversible Offset CamsYes0000000000000
    Keyed Differently3/32"5/16", 23/32", 1 3/32"4 5/16"11/16"1/2"1 3/4"3/4"1 3/4"3/4"2"1"5 1/4"1 7/16"YesM4
    		—2One Straight Cam, Two Nonreversible Offset CamsYes000000000000

    Chrome-Plated Zinc
    Keyed Alike3/32"5/16", 23/32", 1 3/32"4 5/16"11/16"1/2"1 3/4"3/4"1 3/4"3/4"2"1"5 1/4"1 7/16"YesM4
    		13332One Straight Cam, Two Nonreversible Offset CamsYes000000000000
    Keyed Differently3/32"5/16", 23/32", 1 3/32"4 5/16"11/16"1/2"1 3/4"3/4"1 3/4"3/4"2"1"5 1/4"1 7/16"YesM4
    		—2One Straight Cam, Two Nonreversible Offset CamsYes000000000000

    Accessories for Multipoint Latches
    Cam Latch Adapters
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Cam Latch Adapters.

    Cam Latch

    Adapters

    Through-Hole
    Dia.
    For Min. Rear
    Projection
    Retaining Ring
    Included
    Each
    Cam Latch Adapters—Zinc

    Quarter-Turn Clockwise or Counterclockwise to Open
    5/16"5/8"Yes000000000000

    Inline Cam Latches
    Image of Product. Inline Cam Latches. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Quarter-Turn Clockwise or Counterclockwise to Open.

    Inline Cam Latches

    Inline Cam Latches—Inline cam latches come with multiple cams to accommodate different latching distances.
    Straight
    Cam
    Offset
    Cam
    Mounting
    Door Mounting
    Location
    For Through-Hole
    Dia.
    Latching
    Distance
    Lg.
    Wd.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Retaining Ring
    Included
    Each
    Inline Cam Latch—Zinc—Polished

    Quarter-Turn Clockwise or Counterclockwise to Open
    Left Side, Right Side5/16"1/4", 5/8", 1"1 3/4"3/4"1 3/4"3/4"NoM6
    		Yes0000000000000

    Inline Roller Cam Latches
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Inline Roller Cam Latches.

    Inline

    Roller

    Cam

    Latches

    Inline Roller Cam Latches—Inline roller cam latches rotate more smoothly than standard inline cam latches, making them easier to open and close. The cam won't scrape paint or metal chips off the frame that can damage items in your enclosures. It also compresses a bit to help minimize rattling from vibration. Good for jobs when precise distances are unknown, these latches have an adjustable latching distance. Adjust the position of the cam before installing.
    Roller
    Cam
    Mounting
    Latching
    Distance
    For Through-Hole
    Dia.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Retaining Ring
    Included
    Each
    Inline Roller Cam Latches—Zinc—Polished

    Quarter-Turn Clockwise or Counterclockwise to Open
    13/16" to 1"5/16"2 7/16"11/16"NoM6
    		Yes0000000000000

    90° Redirect Cam Latches
    Image of Product. Bottom Left Side Door Mount, Top Right Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Quarter-Turn Clockwise or Counterclockwise to Open, Top Right Side Door Mount, Bottom Left Side Door Mount.
    Image of Product. Bottom Right Side Door Mount, Top Left Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Quarter-Turn Clockwise or Counterclockwise to Open, Bottom Right Side Door Mount, Top Left Side Door Mount.

    Bottom Left

    Side Door

    Mount,

    Top Right Side

    Door Mount

    Bottom Right

    Side Door

    Mount, Top

    Left Side Door

    Mount

    90° Redirect Cam Latches—Use 90° redirect cam latches on the inside corners of your door to redirect your multi-point latching system 90° and add additional points along other edges of the door. They come with multiple cams, so you can change their fixed latching distance.
    Straight
    Cam
    Offset
    Cam
    Mounting
    Door Mounting Location
    Latching
    Distance
    For Through-Hole
    Dia.
    Lg.
    Wd.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Retaining Ring
    Included
    Each
    90° Redirect Cam Latches—Zinc—Polished

    Quarter-Turn Clockwise or Counterclockwise to Open
    Bottom Left Side, Top Right Side1/4", 5/8"5/16"1 3/4"3/4"1 3/4"3/4"NoM6
    		Yes0000000000000
    Bottom Right Side, Top Left Side1/4", 5/8"5/16"1 3/4"3/4"1 3/4"3/4"NoM6
    		Yes000000000000

    Rods
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Rods.

    Rods

    Rods—Rods connect latches to each other. Cut them to the length you need.
    Lg.
    Dia.
    Each
    Rods—Zinc-Plated Steel
    11 1/2"5/16"000000000000
    15 1/2"5/16"00000000000
    19 3/8"5/16"00000000000
    23 3/8"5/16"000000000000
    27 1/4"5/16"000000000000
    31 1/4"5/16"000000000000

    Rod Adapters
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Rod Adapters.

    Rod

    Adapters

    Rod Adapters—Rod adapters connect rods to latches. You need one for each rod end.
    Set Screw
    For Rod
    Dia.
    Drive
    Style
    Included
    Drive Size,
    mm
    Retaining Ring
    Included
    Each
    Rod Adapters—Zinc
    5/16"Hex
    		Yes3No000000000000


    Tight-Hold Swing-Handle Padlockable Multipoint Latches

    Image of System. Front orientation. Contains Annotated. Multipoint Latches. Tight-Hold Swing-Handle Padlockable Multipoint Latches.
    Join a handle with a cam latch and rod to create a padlockable latching system that securely fastens doors at multiple points. The handle lies flat when locked, which means it won’t snag anything passing by. Also known as compression cam latches, these latches create a tighter hold than a traditional cam latch, making them useful for doors that have a seal. Turn the handle a quarter turn to lock, then turn it another quarter turn to create compression and minimize rattling from vibration. Add a padlock for extra security.
    Through-Hole Mount
    Image of Product. Padlockable. Front orientation. Multipoint Latches. Tight-Hold Swing-Handle Padlockable Multipoint Latches, Through-Hole Mount, Black Nylon, Padlockable.

    Padlockable

    Handle
    For
    Cutout
    Mounting
    Plate
    Mounting
    For Max.
    Thk.
    Lg.
    Wd.
    Projection
    For Max. Padlock
    Shackle Dia.
    Ht.
    Wd.
    Lg.
    Wd.
    Fasteners
    Included
    Screw
    Size
    Each
    Black Nylon

    Padlockable
    3/32"5 3/4"1 1/16"13/16"3/8"2"1"6 3/16"1 5/16"YesM4.2
    		0000000000000

    Accessories for Multipoint Latches
    Inline Cam Latches
    Image of Product. Left-Side Door Mount for 2 Rods. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Clockwise to Open, Left-Side Door Mount, For 2 Rods.
    Image of Product. Right-Side Door Mount for 1 Rod. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Clockwise to Open, Right-Side Door Mount, For 1 Rod.
    Image of Product. Left-Side Door Mount for 1 Rod. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Counterclockwise to Open, Left-Side Door Mount, For 1 Rod.
    Image of Product. Right-Side Door Mount for 2 Rods. Front orientation. Multipoint Latch Conversion Kits. Inline Cam Latches, Half-Turn Counterclockwise to Open, Right-Side Door Mount, For 2 Rods.

    Left-Side

    Door Mount

    for 2 Rods

    Right-Side Door

    Mount for 1 Rod

    Left-Side

    Door Mount

    for 1 Rod

    Right-Side

    Door Mount

    for 2 Rods

    Inline Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance.
    For 1 Rod—Latches for one rod can be used as the main latch with a handle to control one additional latch point. You can also use them as a final latch point along a line in your multipoint system.
    For 2 Rods—Latches for two rods can be used as the main latch with a handle that controls two additional latch points. You can also use them as a midpoint latch that is controlled by the main latch for operating yet another latch along your multipoint system.
    Straight
    Cam
    Offset
    Cam
    Door Mounting
    Location
    For Max.
    Thk.
    Number of
    Rods
    Latching Distance
    Lg.
    Wd.
    Lg.
    Wd.
    Each
    Inline Cam Latch—Zinc—Dull

    Half-Turn Clockwise to Open
    Left Side3/32"For 2 Rods1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"0000000000000
    Right Side3/32"For 1 Rod1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Half-Turn Counterclockwise to Open
    Left Side3/32"For 1 Rod1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000
    Right Side3/32"For 2 Rods1 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    90° Redirect Cam Latches
    Image of Product. Bottom Left Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Clockwise to Open, Bottom Left Side Door Mount.
    Image of Product. Top Left Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Clockwise to Open, Top Left Side Door Mount.
    Image of Product. Bottom Right Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Counterclockwise to Open , Bottom Right Side Door Mount.
    Image of Product. Top Right Side Door Mount. Front orientation. Multipoint Latch Conversion Kits. 90° Redirect Cam Latches, Half-Turn Counterclockwise to Open , Top Right Side Door Mount.

    Bottom Left

    Side Door Mount

    Top Left Side

    Door Mount

    Bottom Right

    Side Door Mount

    Top Right Side

    Door Mount

    90° Redirect Cam Latches—Weld cam latches to the inside of your enclosure door. All come with multiple cams, so you can change their fixed latching distance. Use 90° redirect cam latches on the inside corners of your door to redirect your multi-point latching system 90° and add additional points along other edges of the door.
    Straight
    Cam
    Offset
    Cam
    Door Mounting
    Location
    For Max.
    Thk.
    For No.
    of Rods
    Latching Distance
    Lg.
    Wd.
    Lg.
    Wd.
    Each
    90° Redirect Cam Latches—Zinc—Dull

    Half-Turn Clockwise to Open
    Bottom Left Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"0000000000000
    Top Left Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Half-Turn Counterclockwise to Open
    Bottom Right Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000
    Top Right Side3/32"21 1/16", 1 5/16", 1 9/16"1 3/4"3/4"1 3/4"3/4"000000000000

    Rods
    Image of Product. Front orientation. Multipoint Latch Conversion Kits. Rods.

    Rods

    Rods—Rods connect latches to each other. Cut them to the length you need.
    Lg.
    Dia.
    Each
    Rods—Zinc-Plated Steel
    11 1/2"5/16"000000000000
    15 1/2"5/16"00000000000
    19 3/8"5/16"00000000000
    23 3/8"5/16"000000000000
    27 1/4"5/16"000000000000
    31 1/4"5/16"000000000000

    back to top
