    2 Products

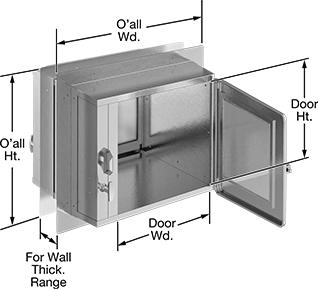

    Pass-Through Cabinets for Clean Rooms

    Image of ProductInUse. Front orientation. Pass-Through Cabinets. Pass-Through Cabinets for Clean Rooms.
    Image of Product. Front orientation. Contains Annotated. Pass-Through Cabinets. Pass-Through Cabinets for Clean Rooms.
    Protect your clean room from contaminants by moving parts, materials, and equipment in and out through these cabinets. They limit the number of people entering the clean room, which helps you comply with pharmaceutical, semiconductor, food-processing, vehicle, and air and spacecraft industry standards. Use them as an airlock—closing their doors compresses a gasket, which makes the seal airtight. Since the two doors are interlocked, only one can be open at a time and there’s no risk of depressurizing and contaminating the clean room. There’s a window on each door for checking if materials are inside, as well as seeing into the opposite room.
    Made of stainless steel and meeting USP 800, these cabinets stand up to regular cleanings without degrading. Inside, they have no lips or crevices that could hold contaminants, so they’re easy to wipe down to meet clean room standards in manufacturing and lab settings. Their silicone gasket holds up to frequent wiping because it’s non-porous and won’t disintegrate.
    Mount these cabinets to a wide range of wall thicknesses. Choose any spot along their body to attach them to their mounting frame. This lets you customize how far these cabinets extend into the clean room. You can even make them flush on either side of the wall.
    For
    Opening
    Door
    Overall
    Window
    Viewing
    For Wall
    Thk.
    Ht.
    Wd.
    Ht.
    Wd.
    Ht.
    Wd.
    Ht.
    Wd.
    For Use
    Outdoors
    Mounting Fasteners
    Included
    Clean Room
    Std.
    Specs.
    Met
    Includes
    Each
    Stainless Steel with Silicone Rubber Gasket
    2" to 24"20 1/2"29 1/4"24"24"26"28 3/4"20"20"NoYesISO Class 4
    USP 800Liner4310N12000000000

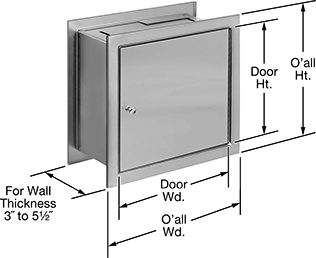

    Pass-Through Cabinets

    Image of ProductInUse. Front orientation. Pass-Through Cabinets. Pass-Through Cabinets.
    Image of Product. Front orientation. Contains Annotated. Pass-Through Cabinets. Pass-Through Cabinets.
    Mount these cabinets in a wall to pass samples, supplies, and other materials between rooms while maintaining privacy and minimizing person-to-person contact. They’re common in sanitary environments such as labs. The two doors are interlocked, which means only one can be open at a time, and they close by themselves to prevent contamination and privacy breaches.
    Made of stainless steel, these cabinets withstand frequent cleanings without rusting. They also come with a removable tray to place samples on, so you don’t have to clean the entire cabinet after each use.
    Adjust them to fit in walls between 3" and 5 1/2" thick.
    For
    Opening
    Door
    Overall
    For Wall
    Thk.
    Ht.
    Wd.
    Ht.
    Wd.
    Ht.
    Wd.
    For Use
    Outdoors
    Mounting Fasteners
    Included
    Includes
    Each
    Stainless Steel
    3" to 5 1/2"10 3/4"11 1/2"10 5/8"11 3/8"12 5/8"13 3/8"NoYesTray4308N110000000
