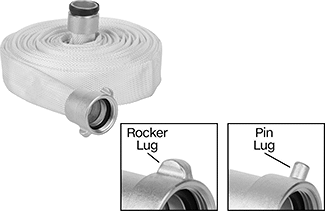

Lightweight Fire-Fighting Hose
- Temperature Range: -40° to 180° F
- Material: Polyurethane with Polyester Cover
- Color: White
- Female Fitting Swivels Until Tightened
Also known as pin-rack hose, this hose can be folded to fit in a rack. The lugs provide a quick connection to hydrants and washdown equipment. Use a hook-style spanner wrench to tighten them. Fittings that swivel until tightened are easy to install.
Brass fittings are more durable than aluminum fittings. Aluminum fittings are lighter than brass fittings.
Hoses meet NFPA 1961. They are also FM Approved to meet American safety standards.
| ID | OD | Hose Size | Max. Pressure | Specifications Met | Each | ||
50-ft. Lengths | |||||||
|---|---|---|---|---|---|---|---|
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 0000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Brass Threaded NH/NST Male × Brass Threaded NH/NST Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NH/NST Male × Aluminum Threaded NH/NST Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
75-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Brass Threaded NH/NST Male × Brass Threaded NH/NST Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NH/NST Male × Aluminum Threaded NH/NST Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
100-ft. Lengths | |||||||
Brass Threaded NPSH Male × Brass Threaded NPSH Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Brass Threaded NH/NST Male × Brass Threaded NH/NST Female | |||||||
| Pin | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
| Pin/Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NPSH Male × Aluminum Threaded NPSH Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
Aluminum Threaded NH/NST Male × Aluminum Threaded NH/NST Female | |||||||
| Rocker | 1 1/2" | 1 11/16" | 1 1/2 × 1 1/2 | 225 psi @ 72° F | FM Approved | 00000000 | 000000 |
