    94 Products

    Drawbar Couplers

    Image of System. Coupler Shown with Drawbar Components. Front orientation. Exploded view. Contains Annotated. Drawbar Couplers.

    Coupler Shown with Drawbar Components

    Also known as pintle hitches, these are used with drawbar rings to connect a trailer to your vehicle for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball. Use Grade 8 fasteners (included with some couplers) for mounting. Mount couplers directly to a vehicle or use a mounting plate insert to mount them to a hitch receiver. See Mounting Plate Inserts for Drawbar Couplers and Hitch Receivers.
    Note: Capacity is reduced 25% in off-road use.
    Eye Drawbar Couplers
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 1.
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 2.

    Style 1

    Style 2

    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 3.

    Style 3

    Vertical Latch—Couplers with a vertical latch move up to open. They are the most common type.
    Mounting Hole
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    For Min. Drawbar
    Ring ID
    For Max. Drawbar
    Ring Thk.
    Overall
    Dp.
    Material
    Locking
    Mechanism
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Ctr.-to-Ctr.
    (C)
    Each
    Vertical Latch
    120,0004,0002"1 5/8"6 3/8"SteelSpring-Loaded PinYes17/32"3 3/8"1 3/4"—2853T614000000
    130,0006,0002"1 5/8"6 3/16"SteelSpring-Loaded PinYes17/32"3 3/8"1 3/4"—2853T61200000
    140,0008,0002"1 5/8"6 5/8"SteelSpring-Loaded PinYes19/32"3 3/8"1 3/4"—2853T613000000
    220,0004,0001 3/4"2"6 9/16"SteelLever, PinYes1/2"3 1/2"2"3"2853T11100000
    230,0006,0001 3/4"2"6 9/16"SteelLever, PinYes1/2"3 1/2"2"3"2853T112000000
    260,00012,0001 3/4"2"6 9/16"SteelLever, PinYes1/2"3 1/2"2"3"2853T113000000
    360,00015,0002 3/8"1 5/8"7 3/8"SteelSpring-Loaded PinYes25/32"4 1/2"4 1/2"—2853T611000000

    Combination Ball/Eye Drawbar Couplers
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 4.
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 5.

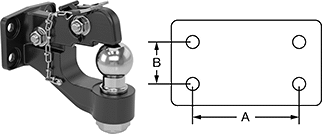

    Style 4

    Style 5

    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 6.

    Style 6

    Combination ball/eye couplers include a ball for use with hitch-ball connections.
    Vertical Latch—Couplers with a vertical latch move up to open. They are the most common type.
    Horizontal Latch—Couplers with a horizontal latch swing open sideways. Use these if there is not enough space above the coupler to open a vertical latch.
    Hitch
    Ball
    Mounting Hole
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    For Min. Drawbar
    Ring ID
    For Max. Drawbar
    Ring Thk.
    Overall
    Dp.
    Material
    Dia.
    Material
    Locking
    Mechanism
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Each
    Vertical Latch
    416,0003,0002 1/4"1 15/16"7"Steel2"Chrome-Plated SteelLever, PinYes1/2"3 3/8"1 3/4"2288T50000000
    416,0003,0002 1/2"1 3/4"7"Steel2 5/16"Chrome-Plated SteelLever, PinYes1/2"3 3/8"1 3/4"2288T6000000
    530,0004,0002 3/8"1 9/16"7 7/16"Steel2 5/16"Chrome-Plated SteelSpring-Loaded PinNo19/32"3 3/8"1 3/4"2853T616000000

    Horizontal Latch
    620,0005,0002 1/4"1 7/8"6 5/8"Steel2"Chrome-Plated SteelLever, PinNo1/2"3 3/8"1 3/4"2288T111000000

    Hook Drawbar Couplers
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 7.
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 8.

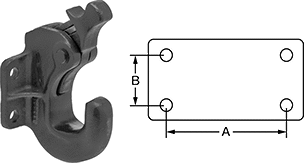

    Style 7

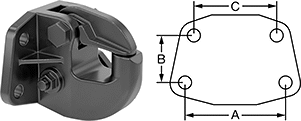

    Style 8

    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 9.
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 10.

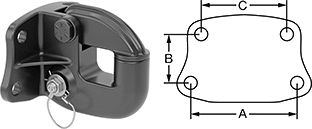

    Style 9

    Style 10

    Vertical Latch—Couplers with a vertical latch move up to open. They are the most common type.
    Horizontal Latch—Couplers with a horizontal latch swing open sideways. Use these if there is not enough space above the coupler to open a vertical latch.
    Mounting Hole
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    For Min. Drawbar
    Ring ID
    For Max. Drawbar
    Ring Thk.
    Overall
    Dp.
    Material
    Locking
    Mechanism
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Ctr.-to-Ctr.
    (C)
    Each
    Vertical Latch
    730,0004,5002"1 1/2"6"SteelLeverNo5/8"4"2 5/8"—2853T40000000
    870,00030,0002 1/4"1 7/8"6 7/8"SteelLeverNo3/4"6 1/2"3"5 1/4"2853T115000000
    990,00018,0002 3/8"1 5/8"7 1/4"IronSpring-Loaded PinNo3/4"6 1/2"3"5 1/4"2853T615000000

    Horizontal Latch
    1030,0005,0002 1/4"1 7/8"6"SteelLever, PinNo1/2"3 3/8"1 3/4"—2853T114000000

    Drop Down Drawbar Couplers
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 11.

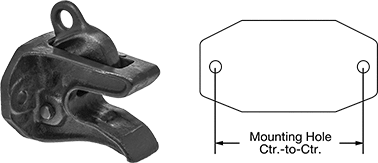

    Style 11

    Vertical Latch—Couplers with a vertical latch move up to open. They are the most common type.
    Mounting
    Hole
    Style
    For Max. Trailer
    Wt., lb.
    Vert.
    Cap.
    For Min. Drawbar
    Ring ID
    For Max. Drawbar
    Ring Thk.
    Overall
    Dp.
    Material
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    Each
    Vertical Latch
    1112,000Not Rated2"1"5 13/16"SteelNo5/8"4.25"2853T60000000

    Clevis Drawbar Couplers
    Image of Attribute. Front orientation. Contains Annotated, MultipleImages. Drawbar Couplers. Style 12.

    Style 12

    Vertical Latch—Couplers with a vertical latch move up to open. They are the most common type.
    Mounting
    Hole
    Style
    For Max. Trailer
    Wt., lb.
    Vert.
    Cap.
    For Min. Drawbar
    Ring ID
    For Max. Drawbar
    Ring Thk.
    Overall
    Dp.
    Material
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    Each
    Vertical Latch
    1260,000Not Rated2"1 13/16"5"SteelNo1"6.5"2853T80000000


    Tow Eyes

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 1.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 2.
    Image of Product. Style 2 (Back). Back orientation. Contains Annotated. Tow Eyes. Style 2.

    Style 1

    Style 2

    Style 2 (Back)

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 3.
    Image of Product. Style 3 (Back). Top orientation. Contains Annotated. Tow Eyes. Style 3.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 4.

    Style 3

    Style 3 (Back)

    Style 4

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 5.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 6.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 7.

    Style 5

    Style 6

    Style 7

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 8.

    Style 8

    These eyes mount to a trailer and connect to the drawbar coupler or tow hook on a vehicle to create a towing connection.
    Note: Capacity is reduced 25% in off-road use.
    Bolt On
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 1.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 2.
    Image of Product. Style 2 (Back). Back orientation. Contains Annotated. Tow Eyes. Style 2.

    Style 1

    Style 2

    Style 2 (Back)

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 3.
    Image of Product. Style 3 (Back). Top orientation. Contains Annotated. Tow Eyes. Style 3.

    Style 3

    Style 3 (Back)

    Style 2—Style 2 have a pivoting shackle, so you can tow at an angle. They come with a locking pin.
    Style 3—Styles 3 are adjustable, so you can create towing connections with vehicles of different heights. Side bolts are included.
    Powder-Coated Steel—Powder-coated steel eyes are more corrosion resistant than black-oxide steel eyes.
    Zinc-Plated Steel—Zinc-plated steel eyes are more corrosion resistant than black-oxide steel eyes.
    For Maximum Trailer Weight—Maximum trailer weight is the total weight being towed.
    Vertical Capacity—Vertical capacity (also known as tongue weight) represents the weight of the load on the tow eye.
    Overall
    Eye
    Mounting Hole
    Mounting
    Plate
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    No. of
    Positions
    Ht. Adjustment
    Increments
    Dp.
    Ht.
    Material
    Color
    ID
    Thk.
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Ctr.-to-Ctr.
    Wd.
    Ht.
    Each
    Fixed Height
    110,0001,000——5 13/16"6"Powder-Coated SteelBlack2 1/2"1"5/8"4 1/2"4 1/2"—6"6"12675T1280000000
    142,0007,000——6 11/16"6"Powder-Coated SteelBlack2 1/2"1 1/4"5/8"4 1/2"4 1/2"—6"6"12675T83000000
    160,00015,000——6 7/8"6"Zinc-Plated Steel—3"1 5/8"3/4"4 1/2"4 1/2"—6 5/8"6"12675T123000000
    190,00019,000——7"6"Powder-Coated SteelBlack3"1 5/8"7/8"4 1/2"4 1/2"—6 5/8"6"12675T129000000
    218,000Not Rated——7 1/4"5"Powder-Coated SteelBlack2 3/4"7/8"5/8"4 3/8"2 7/8"—6"5"12675T12400000

    Adjustable Height
    320,0002,00032"8 7/16"7 5/8"Black-Oxide Steel—3"1 5/8"5/8"——5"3 15/16"7 5/8"12675T121000000
    320,0002,00052"8 7/16"11 5/8"Black-Oxide Steel—3"1 5/8"5/8"——9"3 15/16"11 5/8"12675T122000000

    Threaded-Stud Mount
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 4.

    Style 4

    Corrosion-Resistant-Coated Steel—Corrosion-resistant-coated steel eyes offer the most corrosion resistance.
    For Maximum Trailer Weight—Maximum trailer weight is the total weight being towed.
    Vertical Capacity—Vertical capacity (also known as tongue weight) represents the weight of the load on the tow eye.
    Overall
    Eye
    Thread
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Dp.
    Ht.
    Material
    Color
    ID
    Thk.
    Stud
    Lg.
    Size
    Lg.
    Specs.
    Met
    Each
    Fixed Height
    415,0003,0009 1/8"2 1/2"Corrosion-Resistant-Coated SteelBlack2 1/2"1 1/2"3 1/4"1 1/2"-6
    		1 3/4"ASTM B117
    		12675T230000000

    Weld On
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 5.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 6.

    Style 5

    Style 6

    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 7.
    Image of Product. Front orientation. Contains Annotated. Tow Eyes. Style 8.

    Style 7

    Style 8

    Style 7—Style 7 have prongs to weld them to the outside end of a rectangular tube or channel. The prongs distribute the load evenly for extra stability.
    Style 8—Styles 8 are adjustable, so you can create towing connections with vehicles of different heights. Side bolts are included.
    Powder-Coated Steel—Powder-coated steel eyes are more corrosion resistant than black-oxide steel eyes.
    For Maximum Trailer Weight—Maximum trailer weight is the total weight being towed.
    Vertical Capacity—Vertical capacity (also known as tongue weight) represents the weight of the load on the tow eye.
    Overall
    Eye
    Mounting
    Plate
    Style
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    No. of
    Positions
    Ht. Adjustment
    Increments
    Dp.
    Ht.
    Material
    Color
    ID
    Thk.
    Wd.
    Ht.
    Each
    Fixed Height
    512,0001,800——8 9/16"7/8"Powder-Coated SteelGray2"7/8"——12675T110000000
    690,00013,500——9 5/16"1 5/8"Powder-Coated SteelGray2 3/8"1 5/8"——12675T73000000
    6150,00015,000——11 1/8"1 5/8"Powder-Coated SteelGray3"1 5/8"——12675T126000000
    7100,00015,000——10 1/8"5 3/8"Powder-Coated SteelGray2 3/8"1 5/8"——12675T127000000

    Adjustable Height
    820,0001,00032"8"8 1/2"Powder-Coated SteelBlack2 1/2"1"4"8 1/2"12675T131000000
    820,0001,00052"7 3/4"12 1/2"Powder-Coated SteelBlack2 1/2"1"4"12 1/2"12675T132000000


    Hitch Inserts

    Image of System. Insert Shown with Hitch-Ball Components. Front orientation. Exploded view. Contains Annotated, Border. Hitch Inserts. Hitch Inserts.

    Insert Shown with Hitch-Ball Components

    Use these inserts in hitch-ball connections for towing. They fit into a receiver that's attached to a vehicle. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the hitch ball.
    Height Adapters for Hitch Balls
    Image of Product. (Shown in Drop Position). Front orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adapters for Hitch Balls.
    Image of Product. (Shown in Raise Position). Bottom orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adapters for Hitch Balls.

    (Shown in Drop Position)

    (Shown in Raise Position)

    Height adapters for hitch balls raise or drop the ball to the height that works for your trailer. From the drop position, rotate the adapter 180° to achieve the raise position.
    Stainless Steel— Adapters made from stainless steel offer the most long-term corrosion resistance.
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Drop
    Ht.
    Rise
    Ht.
    Overall
    Dp.
    For Hitch Receiver
    Size
    For Hitch Ball
    Thread Size
    Each
    Powder-Coated Steel
    6,0006002"3/4"12"2" Square1"-14
    		2507T21000000
    6,0006004"2 3/4"12 1/4"2" Square1"-14
    		2507T2200000
    12,0001,2003 1/2"2"10 1/2"2 1/2" Square1 1/4"-12
    		7765T6100000
    12,0001,2005"3 1/2"10 1/2"2 1/2" Square1 1/4"-12
    		7765T6200000
    12,0001,2006"5"10 1/4"2" Square1 1/4"-12
    		7765T5900000
    12,0001,2006 3/4"5"10 1/2"2 1/2" Square1 1/4"-12
    		7765T6300000

    Stainless Steel
    6,0006002"3/4"11 3/4"2" Square1"-14
    		7765T10100000

    Height Adjusting Adapters for Hitch Balls
    Image of Product. (Shown in Drop Position). Front orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adjusting Adapters for Hitch Balls.
    Image of Product. (Shown in Raise Position). Bottom orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adjusting Adapters for Hitch Balls.

    (Shown in Drop Position)

    (Shown in Raise Position)

    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Max. Drop
    Ht.
    Max. Rise
    Ht.
    Ht. Adjustment
    Increments
    Overall
    Dp.
    For Hitch
    Receiver Size
    For Hitch Ball
    Thread Size
    Each
    Powder-Coated Steel
    6,00060011"9 3/4"2"12"2" Square1"-14
    		7765T54000000
    10,0001,00011"9 3/4"2"12"2" Square1"-14
    		7765T53000000

    Combination Ball/Eyes
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Combination Ball/Eyes.
    Combination ball/eyes give you the versatility of mating with a drawbar ring or hitch-ball coupler.
    Hitch
    Ball
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Overall
    Dp.
    For Hitch Receiver
    Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Each
    Powder-Coated Steel
    12,0002,40015 11/32"2" Square12"Chrome-Plated Steel2507T410000000
    12,0002,40015 1/2"2" Square12 5/16"Chrome-Plated Steel7765T102000000
    20,0003,60015 3/4"2 1/2" Square12"Chrome-Plated Steel7765T104000000
    24,0003,60015 3/4"2 1/2" Square12 5/16"Chrome-Plated Steel7765T103000000

    Multisize Hitch Balls
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Multisize Hitch Balls, 3 Hitch Balls Included.
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Multisize Hitch Balls, 2 Hitch Balls Included.

    3 Hitch Balls Included

    2 Hitch Balls Included

    Multi-size hitch balls provide two or three sizes in one. The larger hitch ball sizes have higher capacities.
    Hitch
    Ball
    For Max. Trailer Wt., lb.
    Vert. Cap., lb.
    Overall
    Dp.
    For Hitch Receiver
    Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Each
    Powder-Coated Steel
    6,000/10,000/14,000600/1,000/1,40012 3/4"2 1/2" Square31 7/8", 2", 2 5/16"Chrome-Plated Steel7765T1060000000
    6,000/7,500/10,000Not Rated12"2" Square31 7/8", 2", 2 5/16"Chrome-Plated Steel7765T4400000
    7,500/10,000750/1,00012"2" Square22", 2 5/16"Powder-Coated Steel7765T10500000

    Height Adjusting Multisize Hitch Balls
    Image of Attribute. (Shown in Drop Position). Front orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adjusting Multisize Hitch Balls.
    Image of Attribute. (Shown in Raise Position). Front orientation. Contains Annotated. Hitch Inserts. Hitch Inserts, Height Adjusting Multisize Hitch Balls.

    (Shown in Drop Position)

    (Shown in Raise Position)

    Height adjusting multi-size hitch balls provide three sizes in one and can raise or drop the ball to the height that works for your trailer. The larger hitch ball sizes have higher capacities.
    Hitch
    Ball
    For Max. Trailer Wt., lb.
    Vert.
    Cap.
    Max. Drop
    Ht.
    Max. Rise
    Ht.
    Ht. Adjustment
    Increments
    Overall
    Dp.
    For Hitch
    Receiver Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Each
    Powder-Coated Steel
    6,000/7,500/10,000Not Rated6"6"1 1/4"20 7/32"2" Square31 7/8", 2", 2 5/16"Chrome-Plated Steel7765T450000000

    Eyes
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Eyes.
    Eyes allow for more range of movement than ball hitches, making them good for use on uneven surfaces. Since they can also tow higher capacities than ball hitches, they’re often used to haul large items.
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Overall
    Dp.
    For Hitch
    Receiver Size
    Each
    Powder-Coated Steel
    20,0004,00014 3/8"2" Square7765T550000000

    Combination Ball/Eye with Multi-Size Hitch Balls
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Combination Ball/Eye with Multi-Size Hitch Balls.
    Combination ball/eyes with multi-size hitch balls allow for more range of movement than ball hitches, making them good for use on uneven surfaces. Since they can also tow higher capacities than ball hitches, they’re often used to haul large items.
    Hitch
    Ball
    For Max. Trailer Wt., lb.
    Vert. Cap., lb.
    Overall
    Dp.
    For Hitch Receiver
    Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Each
    Powder-Coated Steel
    6,000/7,500/10,000600/750/1,00012 1/2"2" Square31 7/8", 2", 2 5/16"Chrome-Plated Steel7765T1070000000
    6,000/10,000/14,000600/1,000/1,40013 1/2"2 1/2" Square31 7/8", 2", 2 5/16"Chrome-Plated Steel7765T51000000

    Clevises
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Clevises.
    Use clevises as a hitch or ball mount to connect parts for towing. They can also be used with rings.
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Opening
    Wd.
    Overall
    Dp.
    For Hitch
    Receiver Size
    Each
    Powder-Coated Steel
    5,0005002"15"2" Square7765T56000000

    Rings
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Rings.
    Use rings with clevises to evenly distribute pressure. They also keep tow chains and straps from slipping.
    Ring
    For Max. Trailer
    Wt., lb.
    Vert.
    Cap.
    ID
    Thk.
    Overall
    Dp.
    For Hitch
    Receiver Size
    Each
    Powder-Coated Steel
    12,000Not Rated2 1/2"1 1/4"11 7/16"2" Square7765T58000000

    Hooks
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Hooks.
    Use hooks to attach towing chains, straps, or cable to haul heavy objects, such as vehicles.
    For Max. Trailer
    Wt., lb.
    Vert.
    Cap.
    Overall
    Dp.
    For Hitch
    Receiver Size
    Each
    Powder-Coated Steel
    12,000Not Rated11 3/4"2" Square7765T57000000

    Multisize Hitch Balls with Hook
    Image of Product. Front orientation. Hitch Inserts. Hitch Inserts, Multisize Hitch Balls with Hook.
    Use multi-size hitch balls with hook to attach towing chains, straps, or cable to haul heavy objects, such as vehicles.
    Hitch
    Ball
    For Max. Trailer Wt., lb.
    Vert. Cap., lb.
    Overall
    Dp.
    For Hitch
    Receiver Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Each
    Powder-Coated Steel
    6,000/7,500/10,000600/750/1,00013"2" Square31 7/8", 2", 2 5/16"Powder-Coated Steel7765T52000000

    Shackles
    Image of Product. Side1 orientation. Hitch Inserts. Hitch Inserts, Shackles.
    Shackles pivot around a pin, so you can choose the right towing angle. Tighten the pin to secure the shackle in place.
    Inside
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Pin
    Dia.
    Opening
    Wd.
    Overall
    Dp.
    Lg.
    Wd.
    Thk.
    For Hitch Receiver
    Size
    Each
    Powder-Coated Steel
    10,0001,0007/8"1 3/8"10"2 1/16"2"3/4"2" Square7765T108000000
    13,0001,3001"1 1/2"11 1/4"2 3/8"2 7/32"7/8"2 1/2" Square7765T10900000
    18,0001,8001"1"11 1/4"2 3/8"2 7/32"7/8"3" Square7765T111000000


    Hitch Receivers

    Image of System. Receiver Shown with Drawbar Components. Front orientation. Exploded view. Contains Annotated, Border. Hitch Receivers.
    Image of System. Receiver Shown with Hitch-Ball Components. Front orientation. Exploded view. Contains Annotated, Border. Hitch Receivers.

    Receiver Shown with Drawbar Components

    Receiver Shown with Hitch-Ball

    Components

    Mount these receivers to a vehicle. Use them with an insert and pin to create a complete hitch for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball.
    Bolt On
    Image of Product. Front orientation. Hitch Receivers. Bolt On.
    Image of Attribute. Front orientation. Contains Annotated.
    Hitch
    Receiver
    Mounting
    Plate
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Wd.
    Ht.
    Shape
    Material
    Color
    Mounting Hole
    Ctr.-to-Ctr.
    Wd.
    Dp.
    Each
    5,0005002"2"SquarePowder-Coated SteelBlack8 1/2"12"4 1/2"2507T15000000
    Weld On
    Image of Product. Front orientation. Hitch Receivers. Weld On.
    Hitch
    Receiver
    For Max. Trailer
    Wt.
    Vert.
    Cap.
    Overall
    Dp.
    Wd.
    Ht.
    Shape
    Material
    Color
    Each
    Not RatedNot Rated8"2"2"SquarePowder-Coated SteelBlack2507T63000000

    Tow Hooks

    Add an anchor point to pull stuck vehicles out of mud, snow, or ditches. Mount these hooks to a bumper or trailer and then attach a tow strap or chain. The maximum trailer weight is the total weight being towed.
    Note: Capacity is reduced 25% in off-road use.
    Weld On
    Image of Product. Front orientation. Contains Annotated. Tow Hooks. Weld On, Single Hooks.

    Single Hooks

    Weld-on hooks have a narrow throat and curved profile, so chains will catch and not slip off.
    For
    Chain
    Overall
    For Max. Trailer
    Wt., lb.
    Grade
    Thk.
    Dp.
    Ht.
    Material
    Hook Opening
    Wd.
    Mounting
    Plate Thk.
    Each
    Single Hooks
    3,500435/16"3 1/8"3 7/8"Steel5/8"1 1/16"2589T1600000
    5,000433/8"2 3/8"3"Steel1/2"13/16"2589T150000
    6,500703/8"2 1/4"3"Steel9/16"11/16"2589T180000
    9,000431/2"3 1/8"3 7/8"Steel11/16"1"2589T170000

    Bolt On
    Image of Product. Front orientation. Contains Annotated. Tow Hooks. Bolt On, Single Hooks.
    Image of Product. Front orientation. Contains Annotated. Tow Hooks. Bolt On, Double Hooks.

    Single Hooks

    Double Hooks

    Double Hooks—Double hooks bolt to both sides of a vehicle for balanced towing. You can also use only one of the hooks to tow, but someone must counter-steer in the towed vehicle to keep it in a straight line.
    Powder-Coated Steel—Powder-coated steel hooks offer more corrosion resistance than uncoated steel in wet environments.
    Overall
    Mounting Holes
    For Max. Trailer
    Wt., lb.
    Dp.
    Ht.
    Material
    Hook Opening
    Wd.
    No.
    of
    Dia.
    Ctr.-to-Ctr.
    Mounting
    Plate Thk.
    Each
    Single Hooks
    10,0003 1/4"5"Powder-Coated Steel1 5/8"21/2"1 3/8"1"2589T900000
    20,0004 7/8"5 3/8"Powder-Coated Steel2 1/8"31/2"2 13/16"
    2 1/2"    		1"2589T1400000
    30,0005 1/4"6"Powder-Coated Steel2 1/8"41/2"2 3/4"
    2 1/4"    		3/4"2589T1100000

    Double Hooks
    13,5005 1/4"8 1/2"Powder-Coated Steel2 3/16"23/4"4 1/4"1 1/2"2589T1200000
    44,0005 7/16"9 1/4"Steel2 1/2"1
    1    		3/4"
    5/8"    		4 3/16"1 7/16"2589T1300000


    Mounting Plate Hitch Inserts for Drawbar Couplers

    Image of System. Insert Shown with Drawbar Components. Front orientation. Exploded view. Contains Annotated, Border. Hitch Inserts. Mounting Plate Hitch Inserts for Drawbar Couplers.

    Insert Shown with Drawbar Components

    Image of Product. Front orientation. Contains Annotated. Hitch Inserts. Mounting Plate Hitch Inserts for Drawbar Couplers, 4 Mounting Holes.
    Image of Product. Front orientation. Contains Annotated. Hitch Inserts. Mounting Plate Hitch Inserts for Drawbar Couplers, 6 Mounting Holes.

    4 Mounting Holes

    6 Mounting Holes

    Image of Product. Front orientation. Contains Annotated. Hitch Inserts. Mounting Plate Hitch Inserts for Drawbar Couplers, 8 Mounting Holes.
    Image of Product. Front orientation. Contains Annotated. Hitch Inserts. Mounting Plate Hitch Inserts for Drawbar Couplers, 10 Mounting Holes.

    8 Mounting Holes

    10 Mounting Holes

    These inserts allow you to connect a drawbar coupler to a hitch receiver on a vehicle for towing. Fit them into a receiver and mount a coupler to the mounting plate. The more mounting holes a plate has, the more you can adjust the position of the coupler to match the height of your trailer.
    Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring.
    Powder-Coated Steel—Powder-coated inserts are more corrosion resistant than painted inserts.
    Mounting Hole
    Mounting
    Plate
    No. of Mounting
    Holes
    Overall
    Dp.
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Material
    Color
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Wd.
    Ht.
    Each
    For 2" Square Hitch Receiver
    47"16,0003,000Painted SteelBlack1/2"3 3/8"1 3/4"4 7/8"4 1/8"2507T31000000
    88 1/2"16,0003,000Painted SteelBlack1/2"3 3/8"1 3/4"4 7/8"7 5/8"2507T3200000

    For 2 1/2" Square Hitch Receiver
    612 1/2"16,0003,200Powder-Coated SteelBlack1/2"3 3/8"1 3/4"5"6 1/8"2507T12100000
    811 1/4"20,0003,000Powder-Coated SteelBlack1/2"3 3/8"1 3/4"5"7 1/8"2507T122000000

    For 3" Square Hitch Receiver
    1012"30,0006,000Powder-Coated SteelBlack1/2"3 3/8"1 3/4"5"9"2507T123000000


    Hitch Pin Locks

    Image of Product. Front orientation. Hitch Pins. Hitch Pin Locks, Style A.

    Style A

    Image of Product. Front orientation. Hitch Pins. Hitch Pin Locks, Style B.

    Style B

    Secure trailers to vehicles by locking the hitch pin into the receiver—you can't disconnect the trailer without the key. Use them to prevent someone from stealing your trailer or moving it. Built to stand up to any weather, they're great for outdoor trailers. The lock body rotates around your hitch pin, so you can easily reach the key into the cylinder to unlock. A plastic cover protects the key cylinder from water and debris, so it won’t freeze, corrode, or jam.
    Style A—Style A lock from the side of your vehicle—access to the key cylinder is perpendicular to the hitch. These locks do not include a hole for a cotter pin. Made of steel, they’re stronger than stainless steel locks. Chrome plating adds corrosion resistance. The included cover is a separate piece.
    Style B—Style B lock from behind your vehicle—access to the key cylinder is parallel to the hitch. Made of stainless steel, they resist corrosion better than steel locks. The included cover is connected to the lock.
    Keyed Alike—Choose keyed alike locks if you need several locks that open with the same key.
    Keyed Differently—Choose keyed differently locks if you need locks that each open with a different key.
    For 1 1/4" Hitch Receiver Height—Locks for 1 1/4" hitch receivers fit class I and II hitches.
    For 2" Hitch Receiver Height—Locks for 2" square hitch receivers fit class III and IV hitches.
    For 2 1/2" Hitch Receiver Height— Locks for 2 1/2" square hitch receivers fit class III-V hitches.
    Material
    Style
    Keying
    For Hitch Receiver
    Height and Width
    Hitch Pin
    Style
    Dia.
    Lg.
    Pin
    Body
    No. of Keys
    Included
    Keyhole Cover
    Material
    Key
    No.
    Each
    AKeyed Differently1 1/4" SquareLocking1/2"7"Chrome-Plated SteelSteel2Plastic—6685A41000000
    AKeyed Differently2" Square, 2 1/2" SquareLocking5/8"7"Chrome-Plated SteelSteel2Plastic—6685A5200000
    BKeyed Alike2" SquareLocking1"6 1/4"Stainless SteelAnodized Aluminum2Plastic461577536N11100000
    BKeyed Differently2" SquareLocking1"6 1/4"Stainless SteelAnodized Aluminum2Plastic—7536N11200000


    Hitch-Ball Coupler Locks

    Image of Product. Front orientation. Hitch-Ball Coupler Locks. Style A.
    Image of Product. Back orientation. Hitch-Ball Coupler Locks. Style B.
    Image of Product. Front orientation. Hitch-Ball Coupler Locks. Style C.

    Style A

    Style B

    Style C

    Insert these locks into the hitch-ball coupler latch or socket on your trailer to prevent theft. Each lock is plated or powder-coated to stand up to weather, so you can use them on outdoor trailers without worrying about corrosion.
    Style A
    Image of ProductInUse. Front orientation. Hitch-Ball Coupler Locks. Style A.
    Image of Product. Front orientation. Hitch-Ball Coupler Locks. Style A.
    Style A locks block the latch lever, so no one can open the latch and connect their own vehicle without the key. These locks are a good choice when your vehicle and trailer are unsupervised, such as at refueling stops.
    Keyed Differently—Choose keyed differently locks if you need locks that each open with a different key.
    Shackle
    Keying
    Type
    Dia.
    Material
    Ht.
    Wd.
    Dp.
    No. of Keys
    Included
    Each
    Solid Brass-Plated Steel Body
    Keyed DifferentlyStandard1/4"Chrome-Plated Steel1 3/4"1 3/4"7/8"22743T8000000

    Style B
    Image of ProductInUse. Front orientation. Hitch-Ball Coupler Locks. Style B.
    Image of Product. Back orientation. Hitch-Ball Coupler Locks. Style B.
    Style B locks block access to the socket, so no one can hitch your trailer without the key. These locks are a good choice when your trailer is unhitched from your vehicle, such as during drop-offs or while in storage. They are one piece and compact for easy installation and storage. Made of aluminum, they resist corrosion better than steel locks.
    Keyed Differently—Choose keyed differently locks if you need locks that each open with a different key.
    Keying
    For Ball Dia.
    Ht.
    Wd.
    Dp.
    No. of Keys
    Included
    Each
    Solid Powder-Coated Aluminum Body

    Red Body
    Keyed Differently1 7/8", 2", 2 5/16"4 5/8"3 1/4"3 3/4"26965N11000000

    Style C
    Image of ProductInUse. Front orientation. Hitch-Ball Coupler Locks. Style C.
    Image of Product. Front orientation. Hitch-Ball Coupler Locks. Style C.
    Style C locks block access to the socket, so no one can hitch your trailer without the key. These locks are a good choice when your trailer is unhitched from your vehicle, such as during drop-offs or while in storage. They can also be used on ring-type hitches. Made of two hardened steel pieces, they’re heavy duty and stand up to attempts to cut them open better than aluminum locks.
    Keyed Alike—Choose keyed alike locks if you need several locks that open with the same key.
    Keyed Differently—Choose keyed differently locks if you need locks that each open with a different key.
    Keying
    For Ball Dia.
    Ht.
    Wd.
    Dp.
    No. of Keys
    Included
    Key
    No.
    Each
    Solid Hardened Powder-Coated Steel Body

    Red Body
    Keyed Alike1 7/8", 2", 2 5/16"7"5"6"2461576965N120000000
    Keyed Differently1 7/8", 2", 2 5/16"7"5"6"2—6965N13000000


    Forklift Hitch Receivers

    Image of ProductInUse. Towing Adapter with Bumper Insert. Front orientation. Forklift Hitch Receivers.
    Image of Product. Front orientation. Forklift Hitch Receivers.

    Towing Adapter with Bumper Insert

    Image of Specification. Front orientation. Contains Annotated.
    Modify your forklift to tow machines, trailers, and disabled vehicles. These adapters have a hitch receiver that works with hitch inserts, mounting plate inserts, drawbar couplers, and other towing connectors. Lock adapters in place with a connecting pin behind each fork, then wrap the chain around your carriage.
    Hitch
    Receiver
    Fork
    Pockets
    For
    Max. Fork
    Overall
    Mounting Hole
    Wt. Cap.,
    lb.
    Size
    For Hitch Ball
    Thread Size
    No.
    of
    Spacing
    Ctr.-to-Ctr.
    Wd.
    Ht.
    Lg.
    Wd.
    Ht.
    Dia.
    Ctr.-to-Ctr.
    (A)
    Ctr.-to-Ctr.
    (B)
    Forklift Attachment
    Type
    Material
    Color
    Each
    4,0002" Square1"-14
    		224"5"2"46"30 11/16"6"19/32"3 3/8"1 3/4"Hook and Chain, PinPowder-Coated SteelBlue9114N110000000
    Bumper Inserts
    Image of Product. Front orientation. Hitch Inserts.
    Add bumper inserts to these adapters to push equipment instead of pulling it. The bumper is rubber, so it won’t scratch surfaces.
    Hitch Receiver
    Size
    Overall
    Lg.
    Overall
    Wd.
    Overall
    Ht.
    Material
    Base Material
    Base
    Color
    Each
    2" Square14 1/16"30 3/16"6 1/2"Rubber
    		Powder-Coated SteelYellow9114N120000000

    Hitch Kits

    Image of System. Front orientation. Exploded view. Contains Annotated, Border. Hitch Kits.
    Image of Product. Kit with Cotter Pin. Front orientation. Hitch Kits. Cotter.
    Image of Product. Kit with Locking Pin. Front orientation. Hitch Kits. Locking.

    Kit with Cotter Pin

    Kit with Locking Pin

    Everything you need to attach a hitch to your vehicle's receiver—these kits include a hitch insert, ball, and pin. To match the height of your trailer, you can flip them over to raise or drop the ball. The ball in these kits connects with hitch-ball couplers on trailers.
    Locking—Kits with a locking hitch pin prevent your hitch from getting stolen—you can't pull the hitch insert out without the key. A dust cap keeps debris out of the locking mechanism.
    For Maximum Trailer Weight—Maximum trailer weight is the total weight being towed.
    Vertical Capacity—Vertical capacity (also known as tongue weight) is the weight of the load on the hitch ball.
    Hitch
    Ball
    Hitch
    Pin
    For Max. Trailer
    Wt., lb.
    Vert. Cap.,
    lb.
    Drop
    Ht.
    Rise
    Ht.
    Overall
    Dp.
    For Hitch Receiver
    Size
    No. of Hitch
    Balls Included
    Dia.
    Material
    Thread
    Size
    Stud
    Lg.
    Dia.
    Lg.
    Keying
    No. of Keys
    Included
    Each
    Cotter
    6,0006002"3/4"11 1/2"2" × 2" Square12"Chrome-Plated Steel1"-14
    		2"5/8"2 7/8"——9012N11000000

    Locking
    6,0006002"3/4"13 1/4"2" × 2" Square12"Chrome-Plated Steel1"-14
    		2"5/8"3 1/4"Keyed Differently29012N1200000


    Hitch Pins

    Image of Product. Bent Head with Cotter Pin. Front orientation. Hitch Pins. Hitch Pins, Bent Head, Cotter.
    Image of Product. Bent Head with Toggle. Front orientation. Hitch Pins. Hitch Pins, Bent Head, Toggle.

    Bent Head with

    Cotter Pin

    Bent Head with

    Toggle

    Image of Product. Loop Head with Cotter Pin. Front orientation. Hitch Pins. Hitch Pins, Loop Head, Cotter.

    Loop Head with

    Cotter Pin

    These pins secure an insert to a receiver on a vehicle as part of a connection for towing.
    Stainless Steel—Stainless steel pins resist corrosion better in outdoor environments than steel pins.
    Toggle—Toggle hitch pins don’t require a cotter pin. Instead, the toggle swivels out of the way to insert them and then swivels back to secure them.
    Adapter Sleeve—Hitch pins with an adapter sleeve are compatible with three receiver sizes, so they’re handy if you have vehicles with different hitch sizes.
    For Hitch Receiver
    Height and Width
    Hitch Pin
    Style
    Dia.
    Lg.
    Includes
    Each
    Steel

    Bent Head
    1 1/4" SquareCotter1/2"4 1/4"—9031N1100000
    2" SquareCotter5/8"5"—2507T510000
    2" Square, 2 1/2" SquareCotter5/8"6"—9031N1200000
    2" Square, 2 1/2" Square, 3" SquareCotter5/8"6 1/16"Adapter Sleeve9031N1300000

    Loop Head
    1 1/4" SquareCotter1/2"6 3/8"—9031N170000
    2" SquareCotter5/8"7 1/8"—9031N160000

    Stainless Steel

    Bent Head
    2" SquareCotter5/8"5 1/16"—9031N1500000
    2" SquareToggle5/8"5"—9031N1400000

    back to top
