Plastic Friction Hinges
Plastic hinges are a lightweight alternative to metal hinges and provide smooth, silent operation. Constant resistance through the full range of motion holds lids, panels, and doors at any angle. All of these hinges have a nonremoveable pin to deter tampering.
Acetal hinges are more moisture resistant than nylon.

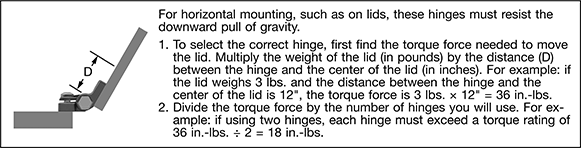

For technical drawings and 3-D models, click on a part number.
Door Leaf | Frame Leaf | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Ht. | Wd. | O'all Wd. | Leaf Thick. | Range of Motion | Torque, in.-lbs. | Pin Dia. | Pin Material | Max. Temp., °F | Mounting Fasteners Included | No. of Mounting Holes | Mounting Hole Style | Mounting Screw Size  | Each | |
White Acetal Plastic | ||||||||||||||||
| 13/16" | 1/2" | 13/16" | 1/2" | 1" | 0.079" | 260° | 0.6 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M2 | 00000000 | 00000 |
| 1 3/16" | 1/2" | 1 3/16" | 1/2" | 1" | 0.079" | 260° | 1.2 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M3 | 00000000 | 0000 |
| 1 9/16" | 9/16" | 1 9/16" | 9/16" | 1 1/8" | 0.079" | 255° | 2 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M3 | 00000000 | 0000 |
| 2" | 11/16" | 2" | 11/16" | 1 7/16" | 0.256" | 270° | 1.2 | 1/2" | Acetal Plastic | Not Rated | No | 4 | Counterbored | M3 | 00000000 | 00000 |
| 2" | 11/16" | 2" | 11/16" | 1 7/16" | 0.256" | 270° | 3 | 1/2" | Acetal Plastic | Not Rated | No | 4 | Counterbored | M3 | 00000000 | 00000 |
Black Acetal Plastic | ||||||||||||||||
| 13/16" | 1/2" | 13/16" | 1/2" | 1" | 0.063" | 260° | 0.6 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M2 | 000000 | 0000 |
| 1 3/16" | 1/2" | 1 3/16" | 1/2" | 1" | 0.063" | 260° | 1.2 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M3 | 000000 | 0000 |
| 1 9/16" | 9/16" | 1 9/16" | 9/16" | 1 1/8" | 0.125" | 255° | 2 | 1/8" | 304 Stainless Steel | Not Rated | No | 4 | Countersunk | M3 | 000000 | 0000 |
| 2" | 11/16" | 2" | 11/16" | 1 7/16" | 0.256" | 270° | 1.2 | 1/2" | Acetal Plastic | Not Rated | No | 4 | Counterbored | M3 | 00000000 | 00000 |
| 2" | 11/16" | 2" | 11/16" | 1 7/16" | 0.256" | 270° | 3 | 1/2" | Acetal Plastic | Not Rated | No | 4 | Counterbored | M3 | 00000000 | 00000 |
Black Nylon Plastic | ||||||||||||||||
| 1 11/16" | 3/4" | 1 11/16" | 3/4" | 1 1/2" | 0.236" | 270° | 3.5 | 3/8" | Steel | 140° | No | 4 | Straight | M4 | 00000000 | 00000 |
| 1 11/16" | 3/4" | 1 11/16" | 3/4" | 1 1/2" | 0.236" | 270° | 7 | 3/8" | Steel | 140° | No | 4 | Straight | M4 | 0000000 | 00000 |
| 1 11/16" | 3/4" | 1 11/16" | 3/4" | 1 1/2" | 0.236" | 270° | 10 | 3/8" | Steel | 140° | No | 4 | Straight | M4 | 00000000 | 00000 |
| 1 11/16" | 3/4" | 1 11/16" | 3/4" | 1 1/2" | 0.236" | 270° | 12 | 3/8" | Steel | 140° | No | 4 | Straight | M4 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 12 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 15 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 18 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 0000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 20 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 25 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 30 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 35 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 40 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 45 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 2 1/2" | 1 1/8" | 2 1/2" | 1 1/8" | 2 1/4" | 0.236" | 270° | 50 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 000000 | 00000 |
| 3 5/16" | 1 1/8" | 3 5/16" | 1 1/8" | 2 1/4" | 0.315" | 270° | 15 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 3 5/16" | 1 1/8" | 3 5/16" | 1 1/8" | 2 1/4" | 0.315" | 270° | 40 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
| 3 5/16" | 1 1/8" | 3 5/16" | 1 1/8" | 2 1/4" | 0.315" | 270° | 70 | 5/8" | Steel | 140° | No | 4 | Straight | M6 | 00000000 | 00000 |
Adjustable-Friction Hinges
Tighten or loosen an adjustment screw to change the hinge resistance. Constant resistance through the full range of motion holds lids, panels, and doors at any angle. These hinges discourage tampering, since they can’t be taken apart without damaging the hinge. Capacity is based on one hinge per door.
Plastic hinges are a lightweight alternative to metal hinges.
For technical drawings and 3-D models, click on a part number.
Door Leaf | Frame Leaf | Mounting | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Ht. | Wd. | Thick. | O'all Wd. | Range of Motion | Cap., lbs. | Torque, in.-lbs. | Pin Dia. | Pin Material | Max. Temp., °F | Fasteners Included | No. of Holes | Hole Style | Screw Size | Each | |
Black Acetal Plastic | ||||||||||||||||||
| 1 11/16" | 23/32" | 0.23" | 1 11/16" | 23/32" | 0.23" | 1 7/16" | 180° | 200 | 7 | 23/64" | Polycarbonate Plastic | 150° | No | 4 | Straight | No. 8 | 0000000 | 00000 |
| 2 1/2" | 1 1/8" | 0.2" | 2 1/2" | 1 1/8" | 0.2" | 2 1/4" | 180° | 450 | 35 | 37/64" | Polycarbonate Plastic | 150° | No | 4 | Straight | 1/4" | 0000000 | 00000 |
White Acetal Plastic | ||||||||||||||||||
| 1 11/16" | 23/32" | 0.23" | 1 11/16" | 23/32" | 0.23" | 1 7/16" | 180° | 200 | 7 | 23/64" | Polycarbonate Plastic | 150° | No | 4 | Straight | No. 8 | 0000000 | 0000 |
| 2 1/2" | 1 1/8" | 0.2" | 2 1/2" | 1 1/8" | 0.2" | 2 1/4" | 180° | 450 | 35 | 37/64" | Polycarbonate Plastic | 150° | No | 4 | Straight | 1/4" | 0000000 | 00000 |
Soft-Close Friction Lid Hinges
Eliminate slamming lids—these hinges hold lids open at their widest angle and then slowly pull them closed. All have a nonremoveable pin to deter tampering.
Hinges sold as a pair include two hinges for one lid.
Style 3 has hinge leaves that fit into two cutouts (mortises) to mount flush with door and frame edges.
Acetal hinges have better chemical resistance than polybutylene.
For technical drawings and 3-D models, click on a part number.
Door Leaf | Frame Leaf | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Ht. | Wd. | O'all Wd. | Leaf Thick. | Range of Motion | Torque, in.-lbs. | Pin Dia. | Pin Material | Mounting Fasteners Included | No. of Mounting Holes | Mounting Hole Style | Mounting Screw Size | Each | ||
Gray Polybutylene Plastic | ||||||||||||||||
| 1 | 4 1/2" | 1 7/16" | 4 1/2" | 1 7/16" | 2 7/8" | 0.413" | 115° | 40 | 51/64" | Polybutylene Plastic | No | 4 | Straight | M5, No. 11 | 0000000 | 000000 |
| 1 | 4 1/2" | 1 7/16" | 4 1/2" | 1 7/16" | 2 7/8" | 0.413" | 115° | 60 | 51/64" | Polybutylene Plastic | No | 4 | Straight | M5, No. 11 | 0000000 | 00000 |
| Pair | ||||||||||||||||
| 2 | 2 15/16" | 1 3/16" | 2 15/16" | 1 3/16" | 2 3/8" | 0.413" | 115° | 40 | 51/64" | Polybutylene Plastic | No | 4 | Straight | M5, No. 11 | 0000000 | 00000 |
| 2 | 2 15/16" | 1 3/16" | 2 15/16" | 1 3/16" | 2 3/8" | 0.413" | 115° | 60 | 51/64" | Polybutylene Plastic | No | 4 | Straight | M5, No. 11 | 0000000 | 00000 |
Black Acetal Plastic | ||||||||||||||||
| 3 | 2 9/16" | 1 1/16" | 2 9/16" | 1 1/16" | 2 1/8" | 0.125" | 105° | 70 | 13/16" | Polybutylene Plastic | No | 12 | Straight | M4, No. 8 | 0000000 | 00000 |
White Acetal Plastic | ||||||||||||||||
| 3 | 2 9/16" | 1 1/16" | 2 9/16" | 1 1/16" | 2 1/8" | 0.125" | 105° | 70 | 13/16" | Polybutylene Plastic | No | 12 | Straight | M4, No. 8 | 0000000 | 00000 |
T-Slotted Framing Hinges
Use hinges to add doors, lids, and machine guards to T-slotted framing.
Rail-to-rail hinges provide smooth motion at the junction between two rails. Rail-to-panel hinges provide smooth motion at the junction between a rail and a panel.
For technical drawings and 3-D models, click on a part number.
Friction hinges provide constant resistance through the full range of motion to hold lids, panels, and doors at any angle. Tighten or loosen the adjustment screw to change the resistance of the hinge.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Friction hinges provide constant resistance through the full range of motion to hold lids, panels, and doors at any angle. Tighten or loosen the adjustment screw to change the resistance of the hinge.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | For Max. Panel Thickness | Lg. | Ht. | Torque, in.-lbs. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1" | Black | Plastic | 1/4" | 1 7/16" | 1 11/16" | 7 | Yes | 000000000 | 000000 |
| 1 1/2" | Black | Plastic | 1/4" | 2 1/4" | 2 1/2" | 35 | Yes | 000000000 | 00000 |
| 25mm | Black | Plastic | 1/4" | 1 11/16" | 1 7/16" | 7 | Yes | 00000000 | 00000 |
| 40mm | Black | Plastic | 1/4" | 2 1/4" | 2 1/2" | 35 | Yes | 00000000 | 00000 |
