49 Products

Nonmarring Wedges


Style A	Style B

Made of ABS, these wedges resist splitting and shattering, even in subzero temperatures.

	Lg.	Wd.	Thk.	Wt.		Each
ABS



	A	5 1/2"	2 1/2"	1/32" to 1"	5 oz.	5868A91	00000


	A	7 1/2"	3"	1/32" to 1 1/4"	9 oz.	5868A92	00000
	A	10"	3"	1/32" to 1"	10 oz.	5868A93	00000
	A	12"	3 1/2"	1/32" to 1 1/4"	1 lb.	5868A94	00000
	B	14"	2"	1/16" to 1 5/8"	8 oz.	6036A11	00000

Nonmarring Wedge Sets for Hard Materials

These wedges won't damage materials such as fiberglass and metal.

No. of Pieces	Includes	Material		Each
3	5" Long × 7/8" Wide × 1/2" Thick Wedge 7" Long × 1" Wide × 5/8" Thick Wedge 7" Long × 2" Wide × 5/8" Thick Round-Tip Wedge	Polycarbonate	6036A21	000000

Tapered Shims

Wedge these angled shims into gaps to quickly level cabinets, doors, and windows without stacking multiple flat shims.

Plastic

These shims won't degrade when exposed to moisture or chemicals. They're also naturally mold and rot resistant. All are ribbed to grip surfaces and keep these shims from sliding, while also facilitating small adjustments. Trim any excess with a utility knife to get the length you need.

Flexible—These shims conform to uneven surfaces but are not as precise as rigid shims. They're also easier to trim.

Rigid—These durable shims maintain their shape, so they're more precise than flexible shims.

			Thk.
	Lg.	Wd.	(A)	(B)	Texture	Mounting Hole Dia.	Material	Color	Pkg. Qty.		Pkg.
Flexible



		2"	1 1/4"	1/32"	1/4"	Ribbed	1/8"	PVC	Clear	10	97203A702	000000


		2"	1 1/4"	1/32"	1/4"	Ribbed	1/8"	PVC	White	10	97203A300	00000
		3 1/2"	1 3/16"	1/32"	15/32"	Ribbed	1/8"	PVC	Clear	2	97203A120	0000


		Rigid



				2"	1 1/4"	1/32"	1/4"	Ribbed	1/8"	Polypropylene	Black	30	97203A200	00000


				2"	1 1/4"	1/32"	1/4"	Ribbed	1/8"	Polypropylene	Clear	10	97203A701	00000
				3 1/2"	1 3/16"	1/32"	15/32"	Ribbed	1/8"	Polypropylene	Clear	2	97203A110	0000

Nonmarring Wedge Sets for Soft and Brittle Materials

These wedges won't damage materials such as wood and plastic.

No. of Pieces	Includes	Material		Each
3	5" Long × 7/8" Wide × 1/2" Thick Wedge 7" Long × 1" Wide × 5/8" Thick Wedge 7" Long × 2" Wide × 5/8" Thick Round-Tip Wedge	Polyethylene	6036A22	000000

Slotted Tapered Shims

Image of Product. Front orientation. Contains Annotated. Shims. Taper, Sold Individually, Slot.

Quickly level cabinets, doors, and windows without unfastening existing mounting fasteners or stacking multiple flat shims. Just wedge these shims into gaps until you reach your desired level. All are made of plastic to resist moisture and prevent rot.

		Thk.
Lg.	Wd.	(A)	(B)	Material	Color	Specs. Met	Pkg. Qty.		Pkg.
3 1/4"	1 7/16"	1/16"	1/4"	Polystyrene	White	ASTM D785	20	97203A500	000000
3 1/2"	1 1/2"	1/16"	1/4"	Polystyrene	Black	—	25	97203A400	00000

Inflatable Wedges

Twin Wedges

Wedge

Repair Kits

Insert into a tight space and then squeeze the pump to inflate and pry objects apart.

Twin Wedges—Twin wedges evenly distribute pressure to each wedge during inflation, putting less stress on the workpiece than standard single wedges. They also create space between the wedges for more leverage.

	Wedges						Repair Kits
	Lg.	Wd.	Deflated Thk.	Max. Inflated Thk.		Each		Each
Vinyl Plastic



		6 1/4"	5 3/4"	5/64"	2 5/8"	3833T43	000000	———	0


		11"	5 1/8"	5/64"	2 7/8"	3833T44	00000	———	0


		Nylon



				5 1/2"	4"	1/8"	1 3/4"	3833T45	00000	3833T48	000000


				7"	9"	1/8"	3 3/4"	3833T47	00000	3833T48	00000


				Nylon with Twin Wedges



						5 1/2"	4"	1/8"	1 3/4"	3833T46	00000	3833T48	00000

Feed-Through Cable Bundling Tools

Thread wires, cables, or cords into your assembled bundle without removing cable ties. Also known as wire spoons, these tools wedge between a cable tie and your material to create a gap. Slide a cable along the tool’s indent to feed it into the gap.

		Handle
Overall Lg.	Tip Style	Lg.	Wd.	Material	Grip Style	Flexibility	Material		Each
3 3/4"	Pointed	1 1/2"	1"	Plastic	Cushion	Semi-Flexible	Stainless Steel	6105N11	00000

Wedge Air Nozzles

Shaped to fit into extremely tight spaces, these nozzles can be used to remove parts from molds. Tap the wedge into position, attach the nozzle to a blowgun, and activate airflow to release the part.

	Air Inlet
Tip Wd.	Pipe Size	Thread Type	Gender	Connection Port	Connection	Air Consumption @ Pressure	Max. Temp.	Volume @ Pressure	Overall Lg.	Thk.	Max. Inlet Pressure	Material		Each
3 3/16"	1/8	NPT	Male	Pipe	Threaded	Not Rated	Not Rated	Not Rated	6 3/4"	3/16" to 15/16"	Not Rated	Polyethylene	2097N11	000000

Wheel Chocks


Style 14 (Chocks Sold Separately)	Style 15 (Chocks Sold Separately)

Style 16 (Chocks Sold Separately)	Style 17

Style 18	Style 19

Style 31	Style 32

Keep wheels stationary while loading, unloading, and servicing vehicles. Chocks for wheel diameters 30" and larger are typically used for commercial vehicles, including semi-trucks and tractors. Chocks for wheel diameters under 30" are for use on small cars, trucks, and vans.

Chocks with a rope, carrying handle, or U-bolt handle give you a gripping point for easy carrying.

Chocks with a hole, an anchor plate with hole, an eyebolt, or a chain let you connect two chocks or can be secured to prevent theft.

Not Reversible


Style 14 (Chocks Sold Separately)	Style 15 (Chocks Sold Separately)

Style 16 (Chocks Sold Separately)	Style 17

Polyurethane Rubber—Polyurethane rubber chocks are lightweight and resist chemicals and oils.

Antislip Surface—Chocks with an antislip or serrated surface improve traction between wheels and the chock.

	For Max. Wheel Dia.	Lg.	Wd.	Ht.	Color	Base Texture	Surface Texture	Chock Base Style	For Max. Vehicle Wt., lb.	Features		Each
Polyurethane Rubber



	14	30"	11 1/4"	7 3/4"	8"	Orange	Smooth	Ridged	Closed	Not Rated	3/4" Dia. Hole	2269T14	000000


	14	65"	17"	14"	14"	Orange	Smooth	Ridged	Closed	245,000	1" Dia. Hole	2269T13	000000
	15	46"	21"	11 1/4"	12 1/4"	Yellow	Aluminum Plates with Gripping Teeth	Ridged	Open	150,000	Carrying Handle	21745T13	000000
	15	65"	15"	15"	11"	Yellow	Rubber Gripping Pads	Ridged	Closed	245,000	1 3/8" Dia. Hole, Antislip Surface	21835T51	000000
	16	105"	17 3/4"	15 1/4"	10"	Yellow	Rubber Gripping Pads	Ridged	Closed	550,000	1 1/8" Dia. Hole, Antislip Surface	2269T16	000000

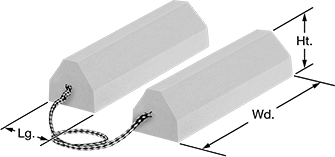

	17	28"	8 1/2"	6"	6"	Orange	Smooth	Ridged	Open	30,000	35" Long Nylon Rope	2254T141	00000
	17	36"	10"	7"	7 1/2"	Orange	Smooth	Ridged	Open	60,000	40" Long Nylon Rope	2254T142	00000

Reversible


Style 18	Style 19

Style 31	Style 32

Reversible chocks can be used on both sides for twice the service life.

Polyurethane Rubber—Polyurethane rubber chocks are lightweight and resist chemicals and oils.

Glow-in-the-Dark Strip and Reflective Sides—Chocks with reflective sides or a glow-in-the-dark strip are easy to see at night.

	For Max. Wheel Dia.	Lg.	Wd.	Ht.	Color	Base Texture	Surface Texture	Chock Base Style	For Max. Vehicle Wt., lb.	Features		Each
Plastic



	18	28"	6"	9 1/2"	3 7/8"	Yellow	Smooth	Smooth	Closed	Not Rated	27" Long Nylon Rope	2188T1	000000


	19	28"	6"	9 1/2"	3 7/8"	Yellow	Smooth	Smooth	Closed	Not Rated	33" Long Nylon Rope	2188T2	00000


	Polyurethane Rubber



			31	65"	16"	8"	6"	Orange	Smooth	Diamond	Open	100,000	44" Long Nylon Rope, Glow-in-the-Dark Strip, Reflective Sides	2254T143	000000


			32	120"	24"	8"	6"	Orange	Smooth	Pyramid	Open	100,000	44" Long Nylon Rope, Glow-in-the-Dark Strip, Reflective Sides	2254T144	000000

Door/Hinge-Mount Door Holders

Insert these holders three ways—under the door, over the top corner of the door, or over the hinge pin to prop doors open. They’re small and ideal for workers on the move.

Lg.	Ht.	Wd.	Choose a Color		Each



Plastic	3 1/2"	2 1/8"	2 1/2"	Black , Blue , Fluorescent Green , Fluorescent Orange , Fluorescent Yellow , Olive , Pink , Yellow	1560A11	000000

Light Duty Wheel Chocks with Magnet


	Magnet on Chock Base

Stick these wheel chocks onto pallet trucks, carts, and other metal surfaces to keep them handy when they’re not in use—there’s a magnet on the base. Often used during deliveries, they keep light vehicles from rolling away while you load and unload.

	Lg.	Wd.	Ht.	Color	Base Texture	Surface Texture	Chock Base Style	For Max. Vehicle Wt., lb.	Specs. Met		Each
Polyurethane Rubber



	5 7/8"	5 3/4"	4"	2 1/4"	Green	Rubber Gripping Pads	Ridged	Closed	10,000	OSHA Compliant 29 CFR 1910.178	5324N11	000000

Door Wedges

Plastic

Slide these wedges under the door to hold it open.

	Wd.	Ht.	Color		Each
Plastic



	6 3/4"	3 1/2"	2"	Black	8145A22	00000

Screwdriver-Style Pry Bars


	Wedge End

The plastic handle provides a comfortable grip. The end is tapered on both sides of the bar.

Pry bars 36" and longer have a cap on the end of the handle that lets you strike it without damage.

				Bar
	Overall Lg.	Shaft Lg.	Wt.	Size	Shape	End Wd.	Material	Handle Material	Features		Each
Offset Wedge End



		12"	7"	6 oz.	3/8"	Flat	5/8"	Black-Oxide Steel	Plastic	—	60025A65	000000


		17"	12"	8 oz.	3/8"	Flat	5/8"	Black-Oxide Steel	Plastic	—	60025A66	00000
		25"	18"	1 1/2 lb.	1/2"	Flat	3/4"	Black-Oxide Steel	Plastic	—	60025A67	00000
		31"	24"	2 lb.	1/2"	Flat	3/4"	Black-Oxide Steel	Plastic	—	60025A68	00000
		36"	29"	4 lb.	5/8"	Flat	1"	Black-Oxide Steel	Plastic	Striking Cap	60025A69	00000
		42"	35"	5 1/2 lb.	5/8"	Flat	1"	Black-Oxide Steel	Plastic	Striking Cap	60025A71	00000
		48"	38"	7 1/2 lb.	3/4"	Flat	1"	Black-Oxide Steel	Plastic	Striking Cap	60025A72	000000

Pry Lever Bars for Dollies

Style B

Also known as pry bars or Johnson bars, these provide the leverage you need to lift a large load onto a dolly. They are often used in pairs to lift each end of a load so a dolly can be slid underneath.

Polyurethane Rubber Wheels—Rubber wheels are quiet and protect your floors.

Style B—Style B have a step bar on the back that makes it easier to push the load plate under the load. It has grooves on the plate to grip the load.

				Load Plate				Wheel
	Style	Overall Wt. Cap., lb.	Handle Lg., ft.	Wd.	Lg.	Color	Shape	Configuration	Dia.	Type	Features		Each
Steel Handle and Powder-Coated Steel Load Plate







				Polyurethane Rubber Wheels

				B	5,000	6	6"	3 1/2"	Blue	Taper	Two Axle-Mounted Wheels	5"	Tread on Core	Step Bar	2752T17	0000000

Recycled Plastic Wheel Chocks

A sustainable alternative to standard plastic wheel chocks, these chocks are made from 100% recycled material, conserving manufacturing energy and resources. They keep wheels from moving while you load, unload, or service a vehicle. All have at least one hole, so you can tie two chocks together with a rope or attach a chain to secure the chock.

Not Reversible

Nonreversible chocks only have one usable side.

	Lg.	Wd.	Ht.	Color	Base Texture	Surface Texture	Chock Base Style	For Max. Vehicle Wt., lb.	Features		Each
Plastic



	35"	10 1/4"	7 1/2"	7 1/2"	Black	Smooth	Diamond	Closed	40,000	Two 1 3/8" Dia. Holes	5285N11	000000

Reversible

Reversible chocks last longer than nonreversible chocks. When one side wears out, you can use the other side.

	Lg.	Wd.	Ht.	Color	Base Texture	Surface Texture	Chock Base Style	For Max. Vehicle Wt., lb.	Features		Each
Plastic



	35"	10 1/2"	9 1/4"	6"	Yellow	Smooth	Ridged	Open	40,000	1 1/8" Dia. Hole	5285N12	000000

Electrically-Insulating Pry Bars


	Offset Wedge End

An insulated handle protects against shock from accidental contact with live electrical circuits. These tools are tested to 1,000 volts to meet IEC 60900 and ASTM F1505. The end is tapered on both sides of the bar.

				Bar
	Overall Lg.	Shaft Lg.	Wt., lb.	Size	Shape	End Wd.	Material	Handle Material	Specs. Met		Each
Offset Wedge End



		36"	8 3/4"	8	1 3/8"	Round	1"	Black-Oxide Steel	Plastic	IEC 60900, ASTM F1505	2831N61	0000000

Screwdriver-Style Pry Bar Sets


	Wedge End

The plastic handle provides a comfortable grip. The end is tapered on both sides of the bar.

No. of Pieces	End Style	Overall Lg.	Shaft Lg.	Wt.	Bar Size	Bar Shape	End Wd.	Material		Each
3	Offset Wedge End	12" 17" 25"	7" 12" 18"	6 oz. 8 oz. 1 1/2 lb.	3/8" 3/8" 1/2"	Flat Flat Flat	5/8" 5/8" 3/4"	Black-Oxide Steel	60025A7	000000
