Press-Fit Drill Bushings with Head
Shown in Countersunk Hole
Shown in Standard Hole
A flanged head on these bushings acts as a stop, so they won’t press through your jig even under extreme drilling pressure. They’re ANSI Type H bushings, also known as headed bushings. The head adds support and protects the jig from damage caused by heavy use, so they’re often used in jigs made of thin or soft materials. These bushings guide your drill bit, reamer, or other cutting bit to create accurate, consistent holes from one workpiece to the next. They’re also used as spacers, shims, and machinery bushings. Made of hardened, ground steel, they hold their shape and resist wear, so they last for many cycles without needing to be replaced.
To install, fit the bushing into a hole in your jig. In a standard hole, the head will sit above the jig plate; to mount flush, install in a countersunk hole. A chamfered edge on the bottom of the bushing helps center the bushing in the hole. Once it’s centered, press the bushing into place with a hydraulic or lever press.

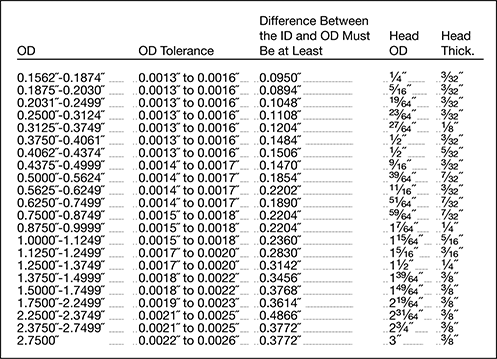

Don't see the size you need? Additional sizes are available.
For technical drawings and 3-D models, click on a part number.
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.0135" ID | ||||||||||||||
| 5/32" | 1/4" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
| 5/32" | 3/8" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/32" | 1/2" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0625" ID | ||||||||||||||
| 5/32" | 1/4" | 1/16" | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0635" ID | ||||||||||||||
| 3/16" | 1/4" | No. 52 | 5/16" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.07" ID | ||||||||||||||
| 3/16" | 1/4" | No. 50 | 5/16" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0781" ID | ||||||||||||||
| 3/16" | 1/4" | 5/64" | 5/16" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.086" ID | ||||||||||||||
| 13/64" | 1/4" | No. 44 | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.089" ID | ||||||||||||||
| 13/64" | 1/4" | No. 43 | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0938" ID | ||||||||||||||
| 13/64" | 1/4" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/64" | 3/8" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/64" | 1/2" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.096" ID | ||||||||||||||
| 3/16" | 1/4" | No. 41 | 5/16" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.098" ID | ||||||||||||||
| 1/4" | 1/4" | No. 40 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 40 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0995" ID | ||||||||||||||
| 3/16" | 1/4" | No. 39 | 5/16" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1015" ID | ||||||||||||||
| 1/4" | 1/4" | No. 38 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 38 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1065" ID | ||||||||||||||
| 1/4" | 1/4" | No. 36 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.1094" ID | ||||||||||||||
| 1/4" | 1/4" | 7/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 7/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.116" ID | ||||||||||||||
| 1/4" | 1/4" | No. 32 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.12" ID | ||||||||||||||
| 1/4" | 1/4" | No. 31 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.125" ID | ||||||||||||||
| 1/4" | 1/4" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/4" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 3/8" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 1/2" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 3/4" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.1285" ID | ||||||||||||||
| 1/4" | 1/4" | No. 30 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | No. 30 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.136" ID | ||||||||||||||
| 1/4" | 1/4" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1" | No. 29 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1405" ID | ||||||||||||||
| 1/4" | 1/4" | No. 28 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.1406" ID | ||||||||||||||
| 1/4" | 1/4" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.144" ID | ||||||||||||||
| 5/16" | 1/4" | No. 27 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.1495" ID | ||||||||||||||
| 5/16" | 1/4" | No. 25 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/16" | 1/2" | No. 25 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.1563" ID | ||||||||||||||
| 5/16" | 3/8" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 1/2" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 3/4" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.157" ID | ||||||||||||||
| 5/16" | 5/16" | No. 22 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.159" ID | ||||||||||||||
| 5/16" | 3/8" | No. 21 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.161" ID | ||||||||||||||
| 5/16" | 5/16" | No. 20 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.166" ID | ||||||||||||||
| 5/16" | 1/4" | No. 19 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/16" | 1/2" | No. 19 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.1695" ID | ||||||||||||||
| 5/16" | 5/16" | No. 18 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.1719" ID | ||||||||||||||
| 5/16" | 3/8" | 11/64" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.173" ID | ||||||||||||||
| 5/16" | 5/16" | No. 17 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.177" ID | ||||||||||||||
| 5/16" | 5/16" | No. 16 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.18" ID | ||||||||||||||
| 5/16" | 1/4" | No. 15 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.1875" ID | ||||||||||||||
| 5/16" | 1/4" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/16" | 5/16" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/16" | 3/8" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 1/2" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 3/4" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 1" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1 3/8" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1/4" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 13/32" | 3/8" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 13/32" | 1/2" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 13/32" | 3/4" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 13/32" | 1" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1 3/8" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1/4" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 5/16" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 1/2" | 3/8" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 3/4" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 1/2" | 1" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1 3/8" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.189" ID | ||||||||||||||
| 5/16" | 1/2" | No. 12 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.191" ID | ||||||||||||||
| 5/16" | 1/2" | No. 11 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.1935" ID | ||||||||||||||
| 5/16" | 3/8" | No. 10 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 00000 |
| 5/16" | 1/2" | No. 10 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/8" | 3/8" | No. 10 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 1/2" | No. 10 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.196" ID | ||||||||||||||
| 3/8" | 1/2" | No. 9 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.199" ID | ||||||||||||||
| 5/16" | 1/4" | No. 8 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | No. 8 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.201" ID | ||||||||||||||
| 3/8" | 3/8" | No. 7 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 1/2" | No. 7 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/4" | No. 7 | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | No. 7 | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | No. 7 | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.2031" ID | ||||||||||||||
| 1/2" | 1/4" | 13/64" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | 13/64" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 13/64" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.204" ID | ||||||||||||||
| 13/32" | 1/2" | No. 6 | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.213" ID | ||||||||||||||
| 3/8" | 1/2" | No. 3 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 3/4" | No. 3 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/8" | 1" | No. 3 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.2188" ID | ||||||||||||||
| 3/8" | 1/4" | 7/32" | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 3/8" | 3/8" | 7/32" | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 1/2" | 7/32" | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 3/4" | 7/32" | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.221" ID | ||||||||||||||
| 3/8" | 1/2" | No. 2 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/8" | 3/4" | No. 2 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.228" ID | ||||||||||||||
| 3/8" | 1/2" | No. 1 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.2344" ID | ||||||||||||||
| 1/2" | 1/2" | 15/64" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.238" ID | ||||||||||||||
| 1/2" | 1/2" | B | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.246" ID | ||||||||||||||
| 1/2" | 1/2" | D | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.25" ID | ||||||||||||||
| 13/32" | 1/4" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 13/32" | 3/8" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 13/32" | 1/2" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 13/32" | 3/4" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 13/32" | 1" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1 3/8" | 1/4", E | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/16" | 1/4" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 7/16" | 5/16" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 7/16" | 3/8" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 7/16" | 1/2" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 7/16" | 3/4" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/16" | 1" | 1/4", E | 9/16" | 3/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1/4" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 5/16" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 3/4" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 1/2" | 1" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1 3/8" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.251" ID | ||||||||||||||
| 1/2" | 1/2" | 1/4", E | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.252" ID | ||||||||||||||
| 1/2" | 1/2" | 6.4 mm | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.257" ID | ||||||||||||||
| 1/2" | 1/4" | F | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | F | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | F | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.261" ID | ||||||||||||||
| 1/2" | 1/2" | G | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.2656" ID | ||||||||||||||
| 7/16" | 3/8" | 17/64" | 9/16" | 3/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 7/16" | 1/2" | 17/64" | 9/16" | 3/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 17/64" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.266" ID | ||||||||||||||
| 1/2" | 1/2" | H | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.272" ID | ||||||||||||||
| 1/2" | 1/2" | I | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.277" ID | ||||||||||||||
| 1/2" | 1/2" | J | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.281" ID | ||||||||||||||
| 1/2" | 1/2" | K | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.2813" ID | ||||||||||||||
| 1/2" | 1/4" | 9/32" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | 9/32" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 9/32" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.2969" ID | ||||||||||||||
| 1/2" | 1/2" | 19/64" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.302" ID | ||||||||||||||
| 1/2" | 1/2" | N | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.3125" ID | ||||||||||||||
| 1/2" | 1/4" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 5/16" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 1/2" | 3/8" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 1/2" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 3/4" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 1/2" | 1" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1 3/8" | 5/16" | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/8" | 1/4" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 5/16" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 3/8" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 1/2" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 3/4" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 1" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/8" | 1 3/8" | 5/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1/4" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 3/8" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 1/2" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 5/8" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 3/4" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1 3/8" | 5/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.315" ID | ||||||||||||||
| 1/2" | 5/8" | 8 mm | 39/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.316" ID | ||||||||||||||
| 9/16" | 5/8" | O | 11/16" | 3/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.323" ID | ||||||||||||||
| 5/8" | 5/8" | P | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.3281" ID | ||||||||||||||
| 5/8" | 1/4" | 21/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 3/8" | 21/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 1/2" | 21/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 5/8" | 21/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/8" | 3/4" | 21/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.332" ID | ||||||||||||||
| 5/8" | 5/8" | Q | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.3438" ID | ||||||||||||||
| 5/8" | 1/4" | 11/32" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 1/2" | 11/32" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.3594" ID | ||||||||||||||
| 5/8" | 3/4" | 23/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.375" ID | ||||||||||||||
| 5/8" | 1/4" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 5/16" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 3/8" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 1/2" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 5/8" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 3/4" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 1" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/8" | 1 3/8" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1/2" | 3/8" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 3/4" | 3/8" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1 3/8" | 3/8" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.376" ID | ||||||||||||||
| 5/8" | 3/4" | 3/8" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.377" ID | ||||||||||||||
| 5/8" | 3/4" | V | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.386" ID | ||||||||||||||
| 5/8" | 3/4" | W | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.3906" ID | ||||||||||||||
| 5/8" | 1/4" | 25/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 1/2" | 25/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 3/4" | 25/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 1/2" | 25/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.397" ID | ||||||||||||||
| 5/8" | 3/4" | X | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.4063" ID | ||||||||||||||
| 5/8" | 3/8" | 13/32" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 1/2" | 13/32" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 3/4" | 13/32" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.4219" ID | ||||||||||||||
| 5/8" | 1" | 27/64" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.4375" ID | ||||||||||||||
| 5/8" | 1/4" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 3/8" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 1/2" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
| 5/8" | 5/8" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 3/4" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 5/8" | 1" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/8" | 1 3/8" | 7/16" | 51/64" | 7/32" | 0.0001" to 0.0005" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1/4" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 3/8" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 1/2" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 5/8" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 3/4" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1" | 7/16" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.4531" ID | ||||||||||||||
| 3/4" | 1/2" | 29/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 3/4" | 29/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1 3/8" | 29/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.4688" ID | ||||||||||||||
| 3/4" | 1" | 15/32" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
0.4844" ID | ||||||||||||||
| 3/4" | 1/2" | 31/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 1" | 31/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.5" ID | ||||||||||||||
| 3/4" | 1/4" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 3/8" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 1/2" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 5/8" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 3/4" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1 1/4" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1 3/8" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1 1/2" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/4" | 1 3/4" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1/2" | 1/2" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 5/8" | 1/2" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 3/4" | 1/2" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1" | 1/2" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1/2" | 1/2" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1" | 1/2" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 3/8" | 1/2" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 3/4" | 1/2" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.501" ID | ||||||||||||||
| 3/4" | 1" | 1/2" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 0000 | 0000 | 0000 |
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.5156" ID | ||||||||||||||
| 3/4" | 1/2" | 33/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 00000 | 00000 |
| 3/4" | 3/4" | 33/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1" | 33/64" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.5313" ID | ||||||||||||||
| 3/4" | 1/2" | 17/32" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 3/4" | 3/4" | 17/32" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 3/4" | 1" | 17/32" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.5469" ID | ||||||||||||||
| 7/8" | 1/2" | 35/64" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.5625" ID | ||||||||||||||
| 7/8" | 1/2" | 9/16" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.625" ID | ||||||||||||||
| 3/4" | 1" | 5/8" | 59/64" | 7/32" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1/2" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 5/8" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 3/4" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1 1/4" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 7/8" | 1 3/8" | 5/8" | 1 7/64" | 1/4" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1/2" | 5/8" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 3/4" | 5/8" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1" | 5/8" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 3/8" | 5/8" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 1/2" | 5/8" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.6406" ID | ||||||||||||||
| 1" | 1 3/8" | 41/64" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
0.6563" ID | ||||||||||||||
| 1" | 1 3/8" | 21/32" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
0.6875" ID | ||||||||||||||
| 1" | 1/2" | 11/16" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 3/4" | 11/16" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.75" ID | ||||||||||||||
| 1" | 1/2" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 3/4" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 1/4" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 3/8" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1 1/2" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 2 1/2" | 3/4" | 1 15/64" | 5/16" | 0.0001" to 0.0005" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 1/2" | 3/4" | 1 39/64" | 3/8" | 0.0001" to 0.0005" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 1 3/4" | 3/4" | 1 39/64" | 3/8" | 0.0001" to 0.0005" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.751" ID | ||||||||||||||
| 1" | 1 1/2" | 3/4" | 1 15/64" | 5/16" | 0.0002" to 0.0006" | 0.0015" to 0.0018" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.7656" ID | ||||||||||||||
| 1" | 1/2" | 49/64" | 1 15/64" | 5/16" | 0.0002" to 0.0006" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 3/4" | 49/64" | 1 15/64" | 5/16" | 0.0002" to 0.0006" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1" | 1" | 49/64" | 1 15/64" | 5/16" | 0.0002" to 0.0006" | 0.0015" to 0.0018" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.7812" ID | ||||||||||||||
| 1 3/8" | 1 3/4" | 25/32" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.7969" ID | ||||||||||||||
| 1 3/8" | 3/4" | 51/64" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.8125" ID | ||||||||||||||
| 1 3/8" | 1" | 13/16" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.875" ID | ||||||||||||||
| 1 1/4" | 1" | 7/8" | 1 1/2" | 1/4" | 0.0002" to 0.0006" | 0.0017" to 0.002" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 1/4" | 1 3/8" | 7/8" | 1 1/2" | 1/4" | 0.0002" to 0.0006" | 0.0017" to 0.002" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.9063" ID | ||||||||||||||
| 1 1/4" | 1 1/2" | 29/32" | 1 1/2" | 1/4" | 0.0002" to 0.0006" | 0.0017" to 0.002" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.9375" ID | ||||||||||||||
| 1 3/8" | 1 3/4" | 15/16" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1" ID | ||||||||||||||
| 1 3/8" | 1/2" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 3/4" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 1 3/8" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 0000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 1 3/4" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 2 1/8" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/8" | 3" | 1" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/4" | 1" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 3" | 1" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.0156" ID | ||||||||||||||
| 1 3/8" | 2 1/8" | 1 1/64" | 1 39/64" | 3/8" | 0.0002" to 0.0006" | 0.0018" to 0.0022" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.0625" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 1/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1 1/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1 1/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 2 1/8" | 1 1/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
1.0781" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 5/64 | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
1.125" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 1/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1 1/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1 1/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/4" | 1 1/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 2 1/8" | 1 1/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.25" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 1/2" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/4" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 2 1/8" | 1 1/4" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.3125" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 5/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1 5/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1 5/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 2 1/8" | 1 5/16" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.375" ID | ||||||||||||||
| 1 3/4" | 3/4" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/8" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 1/2" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 1 3/4" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 2 1/8" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1 3/4" | 3" | 1 3/8" | 1 63/64" | 3/8" | 0.0002" to 0.0006" | 0.0019" to 0.0023" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.5" ID | ||||||||||||||
| 2 1/4" | 3" | 1 1/2" | 2 31/64" | 3/8" | 0.0002" to 0.0006" | 0.0021" to 0.0025" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.625" ID | ||||||||||||||
| 2 1/4" | 1 3/8" | 1 5/8" | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.75" ID | ||||||||||||||
| 2 1/4" | 3" | 1 3/4" | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.01" to 0.01" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
1.7656" ID | ||||||||||||||
| 2 1/4" | 1" | 1 49/64 | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 2 1/4" | 1 1/2" | 1 49/64 | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 2 1/4" | 2" | 1 49/64 | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 2 1/4" | 3" | 1 49/64 | 2 31/64" | 3/8" | 0.0003" to 0.0007" | 0.0021" to 0.0025" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
Metric Press-Fit Drill Bushings with Head
Shown in Countersunk Hole
Shown in Standard Hole
Even under extreme drilling pressure, these metric bushings won't press through your jig plate. They’re ANSI Type H bushings, also known as headed bushings. A flanged head acts as a stop, so these bushings won’t move as you push down your drill bit, reamer, or other cutting bit. Use them even in jigs made of thin or soft materials—the head adds support to protect your jig from damage caused by heavy use. Drill bushings ensure accurate, consistent cuts and drilled holes from one part to the next. They’re also used as spacers, shims, and machinery bushings. Made of hardened, ground steel, these bushings hold their shape and resist wear, so they last for many cycles without needing to be replaced.
These bushings meet DIN 172 dimensional standards. This standard is no longer active, but it’s often used as a reference point for making sure parts are compatible with other parts and tools.
To install, fit the bushing into a hole in your jig. In a standard hole, the head will sit above the jig plate; to mount flush, install in a countersunk hole. A chamfered edge on the bottom of the bushing helps center the bushing in the hole. Once it’s centered, press the bushing into the hole with a hydraulic or lever press.
For technical drawings and 3-D models, click on a part number.
Head | Tolerance | Each | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD, mm | Lg., mm | For Drill Bit Size | For Drill Bit Size Decimal Equivalent | OD, mm | Thick., mm | ID, mm | OD, mm | Lg., mm | Drill Bushing Type | Material | Hardness | Specifications Met | 1-5 | 6-11 | 12-Up | |
0.6 mm ID | ||||||||||||||||
| 3 | 4 | 0.6 mm | 0.0236" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 000000 | 000000 | 000000 |
0.7 mm ID | ||||||||||||||||
| 3 | 4 | 0.7 mm | 0.0276" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
0.8 mm ID | ||||||||||||||||
| 3 | 4 | 0.8 mm | 0.0315" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
0.9 mm ID | ||||||||||||||||
| 3 | 4 | 0.9 mm | 0.0354" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1 mm ID | ||||||||||||||||
| 3 | 4 | 1 mm | 0.0394" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 3 | 7 | 1 mm | 0.0394" | 6 | 2 | 0.006 to 0.016 | 0.004 to 0.01 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.1 mm ID | ||||||||||||||||
| 4 | 7 | 1.1 mm | 0.0433" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.2 mm ID | ||||||||||||||||
| 4 | 4 | 1.2 mm | 0.0472" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 4 | 7 | 1.2 mm | 0.0472" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.3 mm ID | ||||||||||||||||
| 4 | 4 | 1.3 mm | 0.0512" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 4 | 7 | 1.3 mm | 0.0512" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.4 mm ID | ||||||||||||||||
| 4 | 4 | 1.4 mm | 0.0551" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.5 mm ID | ||||||||||||||||
| 4 | 4 | 1.5 mm | 0.0591" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 4 | 7 | 1.5 mm | 0.0591" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.6 mm ID | ||||||||||||||||
| 4 | 4 | 1.6 mm | 0.063" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 4 | 7 | 1.6 mm | 0.063" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.7 mm ID | ||||||||||||||||
| 4 | 4 | 1.7 mm | 0.0669" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.8 mm ID | ||||||||||||||||
| 4 | 4 | 1.8 mm | 0.0709" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 4 | 7 | 1.8 mm | 0.0709" | 7 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
1.9 mm ID | ||||||||||||||||
| 5 | 4 | 1.9 mm | 0.0748" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2 mm ID | ||||||||||||||||
| 5 | 4 | 2 mm | 0.0787" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2 mm | 0.0787" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.1 mm ID | ||||||||||||||||
| 5 | 4 | 2.1 mm | 0.0827" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.1 mm | 0.0827" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.2 mm ID | ||||||||||||||||
| 5 | 4 | 2.2 mm | 0.0866" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.2 mm | 0.0866" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.3 mm ID | ||||||||||||||||
| 5 | 4 | 2.3 mm | 0.0906" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.3 mm | 0.0906" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.4 mm ID | ||||||||||||||||
| 5 | 4 | 2.4 mm | 0.0945" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.4 mm | 0.0945" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.5 mm ID | ||||||||||||||||
| 5 | 4 | 2.5 mm | 0.0984" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.5 mm | 0.0984" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.6 mm ID | ||||||||||||||||
| 5 | 4 | 2.6 mm | 0.1024" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.1 to 0.1 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 5 | 7 | 2.6 mm | 0.1024" | 8 | 2 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
2.7 mm ID | ||||||||||||||||
| 6 | 5.5 | 2.7 mm | 0.1063" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 2.7 mm | 0.1063" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 6 | 13.5 | 2.7 mm | 0.1063" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
2.8 mm ID | ||||||||||||||||
| 6 | 5.5 | 2.8 mm | 0.1102" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 2.8 mm | 0.1102" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
2.9 mm ID | ||||||||||||||||
| 6 | 5.5 | 2.9 mm | 0.1142" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 2.9 mm | 0.1142" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
3 mm ID | ||||||||||||||||
| 6 | 5.5 | 3 mm | 0.1181" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 3 mm | 0.1181" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 6 | 13.5 | 3 mm | 0.1181" | 9 | 2.5 | 0.006 to 0.016 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.1 mm ID | ||||||||||||||||
| 6 | 5.5 | 3.1 mm | 0.122" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 3.1 mm | 0.122" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 6 | 13.5 | 3.1 mm | 0.122" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.2 mm ID | ||||||||||||||||
| 6 | 5.5 | 3.2 mm | 0.126" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 3.2 mm | 0.126" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 6 | 13.5 | 3.2 mm | 0.126" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.3 mm ID | ||||||||||||||||
| 6 | 5.5 | 3.3 mm | 0.1299" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 6 | 9.5 | 3.3 mm | 0.1299" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 6 | 13.5 | 3.3 mm | 0.1299" | 9 | 2.5 | 0.01 to 0.022 | 0.008 to 0.016 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.4 mm ID | ||||||||||||||||
| 7 | 5.5 | 3.4 mm | 0.1339" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 7 | 9.5 | 3.4 mm | 0.1339" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 7 | 13.5 | 3.4 mm | 0.1339" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.5 mm ID | ||||||||||||||||
| 7 | 5.5 | 3.5 mm | 0.1378" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 7 | 9.5 | 3.5 mm | 0.1378" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 7 | 13.5 | 3.5 mm | 0.1378" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.6 mm ID | ||||||||||||||||
| 7 | 5.5 | 3.6 mm | 0.1417" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 7 | 13.5 | 3.6 mm | 0.1417" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
3.7 mm ID | ||||||||||||||||
| 7 | 9.5 | 3.7 mm | 0.1457" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
3.8 mm ID | ||||||||||||||||
| 7 | 9.5 | 3.8 mm | 0.1496" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
3.9 mm ID | ||||||||||||||||
| 7 | 9.5 | 3.9 mm | 0.1535" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
4 mm ID | ||||||||||||||||
| 7 | 5.5 | 4 mm | 0.1575" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 0000 | 0000 |
| 7 | 9.5 | 4 mm | 0.1575" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 7 | 13.5 | 4 mm | 0.1575" | 10 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.1 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.1 mm | 0.1614" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.1 mm | 0.1614" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 4.1 mm | 0.1614" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.2 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.2 mm | 0.1654" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.2 mm | 0.1654" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 4.2 mm | 0.1654" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.3 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.3 mm | 0.1693" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.3 mm | 0.1693" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 4.3 mm | 0.1693" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.4 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.4 mm | 0.1732" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.4 mm | 0.1732" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
4.5 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.5 mm | 0.1772" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.5 mm | 0.1772" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 4.5 mm | 0.1772" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.6 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.6 mm | 0.1811" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
4.7 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.7 mm | 0.185" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.7 mm | 0.185" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
4.8 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.8 mm | 0.189" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.8 mm | 0.189" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 4.8 mm | 0.189" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
4.9 mm ID | ||||||||||||||||
| 8 | 5.5 | 4.9 mm | 0.1929" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 4.9 mm | 0.1929" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
5 mm ID | ||||||||||||||||
| 8 | 5.5 | 5 mm | 0.1969" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 9.5 | 5 mm | 0.1969" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 8 | 13.5 | 5 mm | 0.1969" | 11 | 2.5 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
5.1 mm ID | ||||||||||||||||
| 10 | 7 | 5.1 mm | 0.2008" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.1 mm | 0.2008" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 17 | 5.1 mm | 0.2008" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
5.2 mm ID | ||||||||||||||||
| 10 | 7 | 5.2 mm | 0.2047" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.2 mm | 0.2047" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 17 | 5.2 mm | 0.2047" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
5.3 mm ID | ||||||||||||||||
| 10 | 7 | 5.3 mm | 0.2087" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.3 mm | 0.2087" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
5.4 mm ID | ||||||||||||||||
| 10 | 7 | 5.4 mm | 0.2126" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.4 mm | 0.2126" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
5.5 mm ID | ||||||||||||||||
| 10 | 7 | 5.5 mm | 0.2165" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.5 mm | 0.2165" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 17 | 5.5 mm | 0.2165" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
5.6 mm ID | ||||||||||||||||
| 10 | 7 | 5.6 mm | 0.2205" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.6 mm | 0.2205" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 17 | 5.6 mm | 0.2205" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
5.7 mm ID | ||||||||||||||||
| 10 | 13 | 5.7 mm | 0.2244" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
5.8 mm ID | ||||||||||||||||
| 10 | 7 | 5.8 mm | 0.2283" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 5.8 mm | 0.2283" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
5.9 mm ID | ||||||||||||||||
| 10 | 7 | 5.9 mm | 0.2323" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
6 mm ID | ||||||||||||||||
| 10 | 7 | 6 mm | 0.2362" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 13 | 6 mm | 0.2362" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 10 | 17 | 6 mm | 0.2362" | 13 | 3 | 0.01 to 0.022 | 0.01 to 0.019 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.1 mm ID | ||||||||||||||||
| 12 | 7 | 6.1 mm | 0.2402" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.1 mm | 0.2402" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.1 mm | 0.2402" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.2 mm ID | ||||||||||||||||
| 12 | 7 | 6.2 mm | 0.2441" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.2 mm | 0.2441" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.2 mm | 0.2441" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.3 mm ID | ||||||||||||||||
| 12 | 7 | 6.3 mm | 0.248" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.3 mm | 0.248" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.3 mm | 0.248" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.4 mm ID | ||||||||||||||||
| 12 | 7 | 6.4 mm | 0.252" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.4 mm | 0.252" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.4 mm | 0.252" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.5 mm ID | ||||||||||||||||
| 12 | 7 | 6.5 mm | 0.2559" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.5 mm | 0.2559" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.5 mm | 0.2559" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.6 mm ID | ||||||||||||||||
| 12 | 7 | 6.6 mm | 0.2598" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.6 mm | 0.2598" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.6 mm | 0.2598" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.7 mm ID | ||||||||||||||||
| 12 | 7 | 6.7 mm | 0.2638" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.7 mm | 0.2638" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.7 mm | 0.2638" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.8 mm ID | ||||||||||||||||
| 12 | 7 | 6.8 mm | 0.2677" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 6.8 mm | 0.2677" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 6.8 mm | 0.2677" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
6.9 mm ID | ||||||||||||||||
| 12 | 7 | 6.9 mm | 0.2717" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 17 | 6.9 mm | 0.2717" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7 mm ID | ||||||||||||||||
| 12 | 7 | 7 mm | 0.2756" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7 mm | 0.2756" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 7 mm | 0.2756" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.1 mm ID | ||||||||||||||||
| 12 | 7 | 7.1 mm | 0.2795" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7.1 mm | 0.2795" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 7.1 mm | 0.2795" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.2 mm ID | ||||||||||||||||
| 12 | 7 | 7.2 mm | 0.2835" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7.2 mm | 0.2835" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 7.2 mm | 0.2835" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.3 mm ID | ||||||||||||||||
| 12 | 13 | 7.3 mm | 0.2874" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.4 mm ID | ||||||||||||||||
| 12 | 13 | 7.4 mm | 0.2913" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.5 mm ID | ||||||||||||||||
| 12 | 7 | 7.5 mm | 0.2953" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7.5 mm | 0.2953" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 7.5 mm | 0.2953" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.6 mm ID | ||||||||||||||||
| 12 | 7 | 7.6 mm | 0.2992" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7.6 mm | 0.2992" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.7 mm ID | ||||||||||||||||
| 12 | 7 | 7.7 mm | 0.3031" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
7.8 mm ID | ||||||||||||||||
| 12 | 13 | 7.8 mm | 0.3071" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
7.9 mm ID | ||||||||||||||||
| 12 | 7 | 7.9 mm | 0.311" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 7.9 mm | 0.311" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8 mm ID | ||||||||||||||||
| 12 | 7 | 8.0 mm | 0.315" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 0000 |
| 12 | 13 | 8.0 mm | 0.315" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 12 | 17 | 8.0 mm | 0.315" | 15 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.1 mm ID | ||||||||||||||||
| 15 | 9 | 8.1 mm | 0.3189" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.1 mm | 0.3189" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 8.1 mm | 0.3189" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.2 mm ID | ||||||||||||||||
| 15 | 9 | 8.2 mm | 0.3228" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.2 mm | 0.3228" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 8.2 mm | 0.3228" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.3 mm ID | ||||||||||||||||
| 15 | 9 | 8.3 mm | 0.3268" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.3 mm | 0.3268" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.4 mm ID | ||||||||||||||||
| 15 | 9 | 8.4 mm | 0.3307" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.4 mm | 0.3307" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.5 mm ID | ||||||||||||||||
| 15 | 9 | 8.5 mm | 0.3346" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.5 mm | 0.3346" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 8.5 mm | 0.3346" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.6 mm ID | ||||||||||||||||
| 15 | 9 | 8.6 mm | 0.3386" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.6 mm | 0.3386" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.7 mm ID | ||||||||||||||||
| 15 | 9 | 8.7 mm | 0.3425" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.8 mm ID | ||||||||||||||||
| 15 | 9 | 8.8 mm | 0.3465" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.8 mm | 0.3465" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
8.9 mm ID | ||||||||||||||||
| 15 | 9 | 8.9 mm | 0.3504" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 8.9 mm | 0.3504" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9 mm ID | ||||||||||||||||
| 15 | 9 | 9.0 mm | 0.3543" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 9.0 mm | 0.3543" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 9.0 mm | 0.3543" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.1 mm ID | ||||||||||||||||
| 15 | 9 | 9.1 mm | 0.3583" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.2 mm ID | ||||||||||||||||
| 15 | 9 | 9.2 mm | 0.3622" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.3 mm ID | ||||||||||||||||
| 15 | 9 | 9.3 mm | 0.3661" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.4 mm ID | ||||||||||||||||
| 15 | 9 | 9.4 mm | 0.3701" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.5 mm ID | ||||||||||||||||
| 15 | 9 | 9.5 mm | 0.374" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 9.5 mm | 0.374" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 9.5 mm | 0.374" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.6 mm ID | ||||||||||||||||
| 15 | 9 | 9.6 mm | 0.378" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 9.6 mm | 0.378" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.7 mm ID | ||||||||||||||||
| 15 | 17 | 9.7 mm | 0.3819" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 9.7 mm | 0.3819" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.8 mm ID | ||||||||||||||||
| 15 | 22 | 9.8 mm | 0.3858" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
9.9 mm ID | ||||||||||||||||
| 15 | 9 | 9.9 mm | 0.3898" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10 mm ID | ||||||||||||||||
| 15 | 9 | 10 mm | 0.3937" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 17 | 10 mm | 0.3937" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 15 | 22 | 10 mm | 0.3937" | 18 | 3 | 0.013 to 0.028 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.1 mm ID | ||||||||||||||||
| 18 | 8 | 10.1 mm | 0.3976" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 10.1 mm | 0.3976" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 21 | 10.1 mm | 0.3976" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.2 mm ID | ||||||||||||||||
| 18 | 8 | 10.2 mm | 0.4016" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 10.2 mm | 0.4016" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 21 | 10.2 mm | 0.4016" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.3 mm ID | ||||||||||||||||
| 18 | 8 | 10.3 mm | 0.4055" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.4 mm ID | ||||||||||||||||
| 18 | 8 | 10.4 mm | 0.4094" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.5 mm ID | ||||||||||||||||
| 18 | 8 | 10.5 mm | 0.4134" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 10.5 mm | 0.4134" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 21 | 10.5 mm | 0.4134" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.6 mm ID | ||||||||||||||||
| 18 | 8 | 10.6 mm | 0.4173" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.7 mm ID | ||||||||||||||||
| 18 | 21 | 10.7 mm | 0.4213" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.8 mm ID | ||||||||||||||||
| 18 | 8 | 10.8 mm | 0.4252" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 10.8 mm | 0.4252" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
10.9 mm ID | ||||||||||||||||
| 18 | 8 | 10.9 mm | 0.4291" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11 mm ID | ||||||||||||||||
| 18 | 8 | 11 mm | 0.4331" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 11 mm | 0.4331" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 21 | 11 mm | 0.4331" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.1 mm ID | ||||||||||||||||
| 18 | 16 | 11.1 mm | 0.437" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.2 mm ID | ||||||||||||||||
| 18 | 16 | 11.2 mm | 0.4409" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.3 mm ID | ||||||||||||||||
| 18 | 8 | 11.3 mm | 0.4449" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.4 mm ID | ||||||||||||||||
| 18 | 8 | 11.4 mm | 0.4488" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.5 mm ID | ||||||||||||||||
| 18 | 8 | 11.5 mm | 0.4528" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 11.5 mm | 0.4528" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.6 mm ID | ||||||||||||||||
| 18 | 8 | 11.6 mm | 0.4567" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.7 mm ID | ||||||||||||||||
| 18 | 8 | 11.7 mm | 0.4606" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.8 mm ID | ||||||||||||||||
| 18 | 16 | 11.8 mm | 0.4646" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
11.9 mm ID | ||||||||||||||||
| 18 | 8 | 11.9 mm | 0.4685" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12 mm ID | ||||||||||||||||
| 18 | 8 | 12 mm | 0.4724" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 16 | 12 mm | 0.4724" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 18 | 21 | 12 mm | 0.4724" | 22 | 4 | 0.016 to 0.034 | 0.012 to 0.023 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.1 mm ID | ||||||||||||||||
| 22 | 12 | 12.1 mm | 0.4764" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 12.1 mm | 0.4764" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 32 | 12.1 mm | 0.4764" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.2 mm ID | ||||||||||||||||
| 22 | 12 | 12.2 mm | 0.4803" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 12.2 mm | 0.4803" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.3 mm ID | ||||||||||||||||
| 22 | 12 | 12.3 mm | 0.4843" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.4 mm ID | ||||||||||||||||
| 22 | 12 | 12.4 mm | 0.4882" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.5 mm ID | ||||||||||||||||
| 22 | 12 | 12.5 mm | 0.4921" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 12.5 mm | 0.4921" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.6 mm ID | ||||||||||||||||
| 22 | 12 | 12.6 mm | 0.4961" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.7 mm ID | ||||||||||||||||
| 22 | 12 | 12.7 mm | 0.5" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 12.7 mm | 0.5" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.8 mm ID | ||||||||||||||||
| 22 | 12 | 12.8 mm | 0.5039" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
12.9 mm ID | ||||||||||||||||
| 22 | 24 | 12.9 mm | 0.5079" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
13 mm ID | ||||||||||||||||
| 22 | 12 | 13 mm | 0.5118" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 13 mm | 0.5118" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 32 | 13 mm | 0.5118" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
13.1 mm ID | ||||||||||||||||
| 22 | 12 | 13.1 mm | 0.5157" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
13.5 mm ID | ||||||||||||||||
| 22 | 12 | 13.5 mm | 0.5315" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 13.5 mm | 0.5315" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
13.9 mm ID | ||||||||||||||||
| 22 | 12 | 13.9 mm | 0.5472" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
14 mm ID | ||||||||||||||||
| 22 | 12 | 14 mm | 0.5512" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 14 mm | 0.5512" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 32 | 14 mm | 0.5512" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
14.1 mm ID | ||||||||||||||||
| 22 | 24 | 14.1 mm | 0.5551" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
14.3 mm ID | ||||||||||||||||
| 22 | 12 | 14.3 mm | 0.563" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
14.5 mm ID | ||||||||||||||||
| 22 | 12 | 14.5 mm | 0.5709" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
15 mm ID | ||||||||||||||||
| 22 | 12 | 15 mm | 0.5906" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 24 | 15 mm | 0.5906" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 22 | 32 | 15 mm | 0.5906" | 26 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
15.5 mm ID | ||||||||||||||||
| 26 | 12 | 15.5 mm | 0.6102" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 24 | 15.5 mm | 0.6102" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
16 mm ID | ||||||||||||||||
| 26 | 12 | 16 mm | 0.6299" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 24 | 16 mm | 0.6299" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 32 | 16 mm | 0.6299" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
16.5 mm ID | ||||||||||||||||
| 26 | 12 | 16.5 mm | 0.6496" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 24 | 16.5 mm | 0.6496" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
17 mm ID | ||||||||||||||||
| 26 | 12 | 17 mm | 0.6693" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 24 | 17 mm | 0.6693" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 32 | 17 mm | 0.6693" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
17.5 mm ID | ||||||||||||||||
| 26 | 12 | 17.5 mm | 0.689" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
18 mm ID | ||||||||||||||||
| 26 | 12 | 18 mm | 0.7087" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 24 | 18 mm | 0.7087" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 26 | 32 | 18 mm | 0.7087" | 30 | 4 | 0.016 to 0.034 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
18.5 mm ID | ||||||||||||||||
| 30 | 15 | 18.5 mm | 0.7283" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 18.5 mm | 0.7283" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
19 mm ID | ||||||||||||||||
| 30 | 15 | 19 mm | 0.748" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 19 mm | 0.748" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 40 | 19 mm | 0.748" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
19.5 mm ID | ||||||||||||||||
| 30 | 15 | 19.5 mm | 0.7677" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
20 mm ID | ||||||||||||||||
| 30 | 15 | 20 mm | 0.7874" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 20 mm | 0.7874" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 40 | 20 mm | 0.7874" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
20.5 mm ID | ||||||||||||||||
| 30 | 15 | 20.5 mm | 0.8071" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 20.5 mm | 0.8071" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
21 mm ID | ||||||||||||||||
| 30 | 15 | 21 mm | 0.8268" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 21 mm | 0.8268" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
22 mm ID | ||||||||||||||||
| 30 | 15 | 22 mm | 0.8661" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 31 | 22 mm | 0.8661" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 30 | 40 | 22 mm | 0.8661" | 34 | 5 | 0.02 to 0.041 | 0.015 to 0.028 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
23 mm ID | ||||||||||||||||
| 35 | 31 | 23 mm | 0.9055" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
24 mm ID | ||||||||||||||||
| 35 | 15 | 24 mm | 0.9449" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 35 | 31 | 24 mm | 0.9449" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
25 mm ID | ||||||||||||||||
| 35 | 15 | 25 mm | 0.9843" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 35 | 31 | 25 mm | 0.9843" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 35 | 40 | 25 mm | 0.9843" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
25.5 mm ID | ||||||||||||||||
| 35 | 15 | 25.5 mm | 1.0039" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 35 | 31 | 25.5 mm | 1.0039" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
26 mm ID | ||||||||||||||||
| 35 | 15 | 26 mm | 1.0236" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 35 | 31 | 26 mm | 1.0236" | 39 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
27 mm ID | ||||||||||||||||
| 42 | 20 | 27 mm | 1.063" | 46 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
28 mm ID | ||||||||||||||||
| 42 | 20 | 28 mm | 1.1024" | 46 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
29 mm ID | ||||||||||||||||
| 42 | 20 | 29 mm | 1.1417" | 46 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
30 mm ID | ||||||||||||||||
| 42 | 20 | 30 mm | 1.1811" | 46 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 42 | 40 | 30 mm | 1.1811" | 46 | 5 | 0.02 to 0.041 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
32 mm ID | ||||||||||||||||
| 48 | 20 | 32 mm | 1.2598" | 52 | 5 | 0.025 to 0.05 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
35 mm ID | ||||||||||||||||
| 48 | 20 | 35 mm | 1.378" | 52 | 5 | 0.025 to 0.05 | 0.017 to 0.033 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
| 48 | 40 | 35 mm | 1.378" | 52 | 5 | 0.025 to 0.05 | 0.017 to 0.033 | -0.3 to 0.3 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
40 mm ID | ||||||||||||||||
| 55 | 25 | 40 mm | 1.5748" | 59 | 5 | 0.025 to 0.05 | 0.02 to 0.039 | -0.2 to 0.2 | H | Steel | Rockwell C61 | DIN 172 | 000000000 | 00000 | 00000 | 00000 |
Made-to-Order Press-Fit Drill Bushings with Head
The head prevents these bushings from being pushed through the jig when drilling pressure is extreme. The head sits above the jig plate or can be mounted flush by installing in a counterbored hole. Drill bushings can also be used as spacers, shims, and machinery bushings.
To Order: Specify ID, OD, and length from the ranges listed.
For technical drawings and 3-D models, click on a part number.
Length | Each | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Choose an ID | Choose an OD | Choose a Length | Increment | Tolerance | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
| 0.0135" to 2.2656" in 0.0001" increments | 0.1562" to 2.7500" in 0.0001" increments | 0.125" to 3" | 1/16" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
