    25 Products

    Raceway and Fittings

    Also known as wireway and wire trough, this raceway system routes and protects electrical wiring.
    Raceway, 45° elbows, 90° elbows, tees, and reducers have a removable screw-on cover that allows you to lay in wire and cable instead of pulling it through.
    45° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Raceway and Fittings, 45° Elbow Connectors.
    Each
    Wd.
    Dp.
    Cover
    Style
    Material
    Color
    Material
    Thk.
    Enclosure
    Rating
    Certification
    1-4
    5-Up
    2 1/2"2 1/2"Screw OnPainted SteelGray0.06"NEMA 1
    		UL Listed, CSA Certified
    		8130K495000000000000
    4"4"Screw OnPainted SteelGray0.06"NEMA 1
    		UL Listed, CSA Certified
    		8130K49600000000000
    6"6"Screw OnPainted SteelGray0.06"NEMA 1
    		UL Listed, CSA Certified
    		8130K497000000000000
    8"8"Screw OnPainted SteelGray0.06"NEMA 1
    		UL Listed, CSA Certified
    		8130K498000000000000
    10"10"Screw OnPainted SteelGray0.06"NEMA 1
    		UL Listed, CSA Certified
    		8130K499000000000000

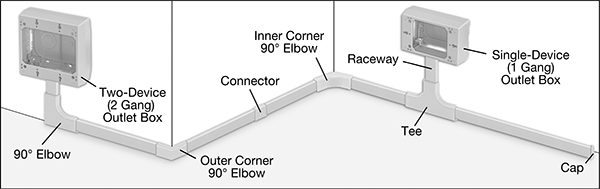

    Low-Profile Raceway and Fittings

    Image of System. Front orientation. Contains Annotated, Border. Raceway and Fittings. Low-Profile Raceway and Fittings.
    Surface mount this compact raceway system where you can't get inside walls to run power, data, and control wiring. It conceals wiring and takes up little space. All components are compatible with Wiremold raceway of the same size.
    Inside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Low-Profile Raceway and Fittings, Inside-Corner 90° Elbow Connectors.
    Wd.
    Dp.
    Material
    Color
    Features
    Voltage Rating
    Certification
    Each
    3/4"17/32"SteelIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		9274K1300000
    7/8"7/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K340000
    1 5/16"7/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K350000
    1 29/32"7/8"SteelIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		9320K1300000
    2 1/4"11/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K360000
    Outside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Low-Profile Raceway and Fittings, Outside-Corner 90° Elbow Connectors.
    Wd.
    Dp.
    Material
    Color
    Features
    Voltage Rating
    Certification
    Each
    3/4"17/32"SteelIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		9274K1400000
    7/8"7/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K370000
    1 5/16"7/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K380000
    1 29/32"7/8"SteelIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		9320K1400000
    2 1/4"11/16"PVCIvoryPaintable Surface600V AC
    600V DC    		UL Listed, C-UL Listed
    		70075K390000

    Dust-Resistant Raceway and Fittings

    Gaskets on the covers and at connection points protect against dust as well as seeping oil and coolant.
    Raceway, 45° elbow connectors, 90° elbow connectors, connectors, and tee connectors have a hinged cover that opens for quick access and allows you to lay in wire and cable instead of pulling it through.
    45° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Dust-Resistant Raceway and Fittings, 45° Elbow Connectors.
    IP54 Enclosure Rating—Components are rated IP54 to resist dust and splashing water.
    NEMA 12 Enclosure Rating—All components are rated NEMA 12 for indoor use and resistance to falling liquids and light splashing; nonhazardous dust, lint, and fibers; and oil and coolant seepage.
    Wd.
    Dp.
    Cover
    Style
    Material
    Color
    Material
    Thk.
    Features
    Includes
    Environment
    Enclosure
    Rating
    Certification
    Each
    2 1/2"2 1/2"HingedPainted SteelGray0.08"Neoprene Rubber End Gasket, Urethane Foam Cover GasketConnecting HardwareCorrosive, Wet, Dusty, OilyIP54, NEMA 12
    		UL Listed, CSA Certified
    		9892T740000000
    4"4"HingedPainted SteelGray0.08"Neoprene Rubber End Gasket, Urethane Foam Cover GasketConnecting HardwareCorrosive, Wet, Dusty, OilyIP54, NEMA 12
    		UL Listed, CSA Certified
    		9892T75000000
    6"6"HingedPainted SteelGray0.08"Neoprene Rubber End Gasket, Urethane Foam Cover GasketConnecting HardwareCorrosive, Wet, Dusty, OilyIP54, NEMA 12
    		UL Listed, CSA Certified
    		9892T76000000
    8"8"HingedPainted SteelGray0.08"Neoprene Rubber End Gasket, Urethane Foam Cover GasketConnecting HardwareCorrosive, Wet, Dusty, OilyIP54, NEMA 12
    		UL Listed, CSA Certified
    		9892T77000000

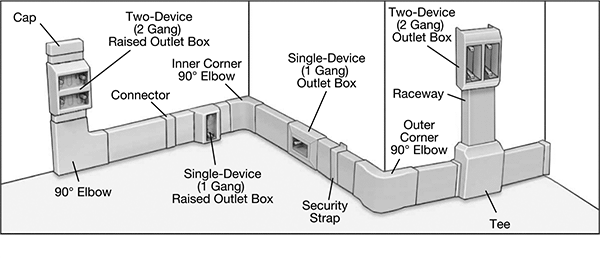

    Multichannel Low-Profile Raceway and Fittings

    Image of System. Front orientation. Contains Annotated, Border. Raceway and Fittings. Multichannel Low-Profile Raceway and Fittings.
    With more than one channel, this raceway allows you to separate power and data wiring to prevent signal interference. Surface mount it where you can't get inside walls; it conceals wiring and takes up little space. All components are flame retardant.
    Inside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Multichannel Low-Profile Raceway and Fittings, Inside-Corner 90° Elbow Connectors.
    90° elbow connectors meet the 1 1/4" bend radius required for fiber-optic cord.
    No. of
    Channels
    Wd.
    Dp.
    Material
    Color
    Features
    Voltage Rating
    Certification
    Each
    22 1/8"1 1/32"PVCOff-WhitePaintable Surface600V AC
    600V DC    		UL Listed, CSA Certified
    		71865K331000000
    34 1/2"1 5/8"PVCOff-WhitePaintable Surface600V AC
    600V DC    		UL Listed, CSA Certified
    		71865K23100000
    Outside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Multichannel Low-Profile Raceway and Fittings, Outside-Corner 90° Elbow Connectors.
    90° elbow connectors meet the 1 1/4" bend radius required for fiber-optic cord.
    No. of
    Channels
    Wd.
    Dp.
    Material
    Color
    Features
    Voltage Rating
    Certification
    Each
    22 1/8"1 1/32"PVCOff-WhitePaintable Surface600V AC
    600V DC    		UL Listed, CSA Certified
    		71865K351000000
    34 1/2"1 5/8"PVCOff-WhitePaintable Surface600V AC
    600V DC    		UL Listed, CSA Certified
    		71865K24100000

    Outlet Strips Raceway and Fittings

    Image of System. Front orientation. Contains Annotated. Raceway and Fittings. Outlet Strips Raceway and Fittings.
    Create a permanent outlet system without opening walls.
    Outside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Outlet Strips Raceway and Fittings, Outside-Corner 90° Elbow Connectors.
    Elbow connectors join outlet strips or channels.
    Material
    Certification
    Choose a Color
    Each
    SteelUL Listed, C-UL Listed
    		White, Black, Ivory8050K1900000

    Inside-Corner 90° Elbow Connectors
    Image of Product. Front orientation. Raceway and Fittings. Outlet Strips Raceway and Fittings, Inside-Corner 90° Elbow Connectors.
    Elbow connectors join outlet strips or channels.
    Material
    Certification
    Each
    SteelUL Listed, C-UL Listed
    		8050K9700000
