    4 Products

    Low-Height Walk Ramps

    Image of Product. Front orientation. Contains Annotated. Ramps. Low-Height Walk Ramps, Foldable.
    Image of Product. Shown Folded. Front orientation. Ramps. Low-Height Walk Ramps, Foldable.

    Foldable

    Shown Folded

    Create a smooth transition over curbs and thresholds. Often used for moving hand trucks, these ramps can also serve as an accessible pathway for wheelchairs and scooters. Made of aluminum, they are lightweight and easy to handle. They can also withstand outdoor use. The ramp surface has a diamond or ridged texture for traction. A barrier along each side keeps wheels from running off the edge.
    Foldable—Foldable ramps bend in half for storage.
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Lg.
    Overall
    Wd.
    Material
    Foldable
    Features
    Each
    Ridged Surface
    8"60048"30"AluminumYesCarrying Handle2187T1210000000
    12"60072"30"AluminumYesCarrying Handle2187T122000000


    Walk Ramps

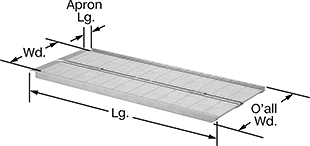

    Image of Product. Front orientation. Contains Annotated. Ramps. Walk Ramps, Foldable.

    Foldable

    Image of Specification. Shown Folded. Front orientation. Ramps. Walk Ramps, Foldable.

    Shown Folded

    Create a walkway to maneuver hand trucks on or off vehicles and trailers. These ramps come with chains to secure them in place. One end is sloped to provide a smooth transition from the ramp to a truck bed or the ground. The ramp surface has ridges to give wheels traction, and a lip is welded to each side to keep them from running off the edge. Made from aluminum, these ramps are durable and corrosion resistant, so you can use them outdoors.
    Note: Not for use with pallet trucks and forklifts.
    Foldable—Foldable ramps bend in half for storage. Carry them from job to job with the built-in handle. They have a lighter duty construction and lower capacity than comparable solid ramps.
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Lg.,
    ft.
    Wd.
    Overall
    Wd.
    Material
    Lip
    Material
    Apron
    Lg.
    Foldable
    Features
    Each
    Ridged Surface
    30"1,200630"30"AluminumAluminum3"YesAntislip Surface, Two 54" Long Security Chains, Carrying Handle2167T110000000


    Vehicle Ramps

    Image of Attribute. Shown Disassembled. Front orientation. Ramps. Vehicle Ramps.

    Shown Disassembled

    Image of Attribute. Front orientation. Contains Annotated. Ramps. Vehicle Ramps.
    Drive a fully loaded forklift into a truck, trailer, or dock door from ground level. When you’re done, these ramps break down to the size of a double-wide pallet for storage. They’re often referred to as yard ramps because they’re common in shipping yards. Made entirely of aluminum, these ramps stand up to the weather. The perforated surface gives your vehicle traction in all conditions and allows rain, snow, and dirt to pass through. These ramps have two included ratchet straps to secure them to a vehicle and prevent them from pulling away. Plates on either end facilitate smooth transitions from ground to ramp and ramp to truck.
    No tools are needed for setup. Assembly can be completed in as little as 15 minutes with two people and a forklift.
    Note: Check local, state, and federal codes, including OSHA, for safe set up and operating practices.
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Ht.
    Lg.,
    ft.
    Wd.
    Overall
    Wd.
    Material
    Lip
    Material
    Foldable
    Specs. Met
    Includes
    Each
    Perforated Surface
    60"30,00015" to 60"8 to 3099"101"AluminumAluminumYesOSHA Compliant 29 CFR 1910 Subpart D, OSHA Compliant 29 CFR 1926.451
    Three Adjustable-Height Support Stands, Six Stand Pins with Clips, Eight Ramp Sections, Six Steel Rods with Hooks, Two Ratchet Straps8417N1010000000000
