    4 Products

    Low-Height Walk Ramps

    Image of Product. Front orientation. Contains Annotated. Ramps. Low-Height Walk Ramps, Foldable.
    Image of Product. Shown Folded. Front orientation. Ramps. Low-Height Walk Ramps, Foldable.

    Foldable

    Shown Folded

    Image of Product. Front orientation. Contains Annotated. Ramps. Low-Height Walk Ramps, Not Foldable.

    Not Foldable

    Create a smooth transition over curbs and thresholds. Often used for moving hand trucks, these ramps can also serve as an accessible pathway for wheelchairs and scooters. Made of aluminum, they are lightweight and easy to handle. They can also withstand outdoor use. The ramp surface has a diamond or ridged texture for traction. A barrier along each side keeps wheels from running off the edge.
    Foldable—Foldable ramps bend in half for storage.
    Cal/OSHA Compliant Title 8 Section 3337 and OSHA Compliant 29 CFR 1910.26—Ramps that have OSHA and Cal/OSHA specifications listed meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Lg.
    Overall
    Wd.
    Material
    Foldable
    Features
    Specs. Met
    Each
    Diamond Surface
    5"60018"30"AluminumNoTwo Carrying HandlesCal/OSHA Compliant Title 8 Section 3337, OSHA Compliant 29 CFR 1910.262187T320000000

    Ridged Surface
    8"60048"30"AluminumYesCarrying Handle—2187T121000000
    12"60072"30"AluminumYesCarrying Handle—2187T122000000


    Walk Ramps

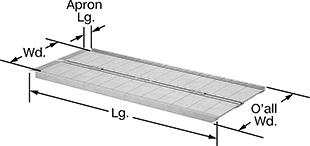

    Image of Product. Front orientation. Contains Annotated. Ramps. Walk Ramps, Foldable.

    Foldable

    Image of Specification. Shown Folded. Front orientation. Ramps. Walk Ramps, Foldable.

    Shown Folded

    Create a walkway to maneuver hand trucks on or off vehicles and trailers. These ramps come with chains to secure them in place. One end is sloped to provide a smooth transition from the ramp to a truck bed or the ground. The ramp surface has ridges to give wheels traction, and a lip is welded to each side to keep them from running off the edge. Made from aluminum, these ramps are durable and corrosion resistant, so you can use them outdoors.
    Note: Not for use with pallet trucks and forklifts.
    Foldable—Foldable ramps bend in half for storage. Carry them from job to job with the built-in handle. They have a lighter duty construction and lower capacity than comparable solid ramps.
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Lg.,
    ft.
    Wd.
    Overall
    Wd.
    Material
    Lip
    Material
    Apron
    Lg.
    Foldable
    Features
    Each
    Ridged Surface
    30"1,200630"30"AluminumAluminum3"YesAntislip Surface, Two 54" Long Security Chains, Carrying Handle2167T110000000
