Rectangular Pin-and-Socket Connectors

Filter by

Number of Poles

For Wire Gauge

Conduit Connection Location

Wire Connection

System of Measurement

Current

Number of Latching Levers

Voltage

Electrical Connector Component

Gender

Environment

Housing Material

Component

Signal Type

Enclosure Rating

Color

Electrical Connection

Shape

Material

Housing Connection Method

Latch

Push In

Screw Together

U.S.–Mexico–Canada Agreement (USMCA) Qualifying

RoHS

Compliant

Compliant with Exemptions

Not Compliant

REACH

Compliant

Not Compliant

DFARS Specialty Metals

Exempt

Export Control Classification Number (ECCN)

Maximum Temperature

156 Products

Build-Your-Own Latching Connectors

Male

Female

Configure a connector for your application—combine male and female inserts with a base and a hood. Select components based on the number of poles needed. To protect connections while maintaining access, the base and hood latch together securely, yet can be quickly detached for equipment repair or replacement. Once assembled, these connectors are rated NEMA 4X, 12, and IP65 for protection against corrosion, washdowns, dirt, oil/coolant dripping, and water projected from a nozzle.

	Inserts									Hoods with Side Conduit Connection			Hoods with Top Conduit Connection			Bases
						Male		Female
	No. of Poles	Voltage	Current, amp	For Wire Ga.	Latching Connector Insert Type		Each		Each	Conduit Trade Size		Each	Conduit Trade Size		Each		Each
Spring-Clamp-Terminal Wire Inlet Connection



		6	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K16	000000	8037K17	000000	1/2	8037K49	000000	1/2	8037K48	000000	8037K92	000000


		10	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K18	00000	8037K19	00000	1/2	8037K59	00000	1/2	8037K58	00000	8037K93	00000
		16	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K26	00000	8037K27	00000	3/4	8037K69	00000	3/4	8037K68	00000	8037K94	00000
		24	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K38	00000	8037K39	00000	3/4	8037K79	00000	3/4	8037K78	00000	8037K95	00000
		32	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K28	00000	8037K29	00000	1	8037K91	00000	1	8037K98	00000	8037K72	00000
		48	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	Power, Signal	8037K36	00000	8037K37	00000	1	8037K89	00000	1	8037K88	00000	8037K71	00000


		Screw-Terminal Wire Inlet Connection



				6	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K46	0000	8037K47	00000	1/2	8037K49	00000	1/2	8037K48	00000	8037K92	00000


				10	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K56	00000	8037K57	00000	1/2	8037K59	00000	1/2	8037K58	00000	8037K93	00000
				16	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K66	00000	8037K67	00000	3/4	8037K69	00000	3/4	8037K68	00000	8037K94	00000
				24	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K76	00000	8037K77	00000	3/4	8037K79	00000	3/4	8037K78	00000	8037K95	00000
				32	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K86	00000	8037K87	00000	1	8037K91	00000	1	8037K98	00000	8037K72	00000
				48	600V AC/600V DC	16	18, 17, 16, 15, 14	Power, Signal	8037K96	00000	8037K97	00000	1	8037K89	00000	1	8037K88	00000	8037K71	00000


				Crimp-On Wire Inlet Connection



						24	250V AC/250V DC	10	18	Power, Signal	8037K491	00000	8037K492	00000	1/2	8037K49	00000	1/2	8037K48	00000	8037K92	00000


						42	250V AC/250V DC	10	18	Power, Signal	8037K493	000000	8037K494	000000	1/2	8037K59	00000	1/2	8037K58	00000	8037K93	00000
						72	250V AC/250V DC	10	18	Power, Signal	8037K495	000000	8037K496	000000	3/4	8037K69	00000	3/4	8037K68	00000	8037K94	00000

Accessories for Latching Connectors

		Each
Extraction Tool for 10A Crimp-On Inserts	1829K71	000000
Ratcheting Crimper for 10A Crimp-On Inserts	1829K73	000000

Latching Connectors

Protect connections while maintaining access. The base and hood latch together securely yet can be quickly detached for equipment repair or replacement.

Side Conduit Connection—1 Latching Lever


	With Attached Cover

Latching connectors with one latching lever quickly disconnect with one hand.

IP65 Enclosure Rating—IP65 rated connectors protect against dust and rinsing.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

NEMA 4X Enclosure Rating—NEMA 4X rated connectors protect against washdowns.

NEMA 12 Enclosure Rating—NEMA 12 rated connectors resist oil/coolant dripping.

				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Base Cover Style	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each
Powder-Coated Aluminum Housing



		6	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	1.7"	2.8"	—	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K11	000000


		6	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	1.7"	2.8"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K15	00000
		10	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	1.7"	3.4"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K16	00000
		16	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	3.6"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K17	000000
		24	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.5"	1.7"	3.6"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K18	000000
		48	600V AC/600V DC	16	1 1/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	6.5"	3.8"	5.4"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K19	000000


		Polypropylene Housing



				6	600V AC/600V DC	16	1/2	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	3.3"	2.6"	3.9"	—	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K33	000000

Side Conduit Connection—2 Latching Levers

Connectors with two latching levers don’t need as much room to unlatch as connectors with one latching lever and are best for tight spaces.

IP65 Enclosure Rating—IP65 rated connectors protect against dust and rinsing.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

NEMA 4X Enclosure Rating—NEMA 4X rated connectors protect against washdowns.

NEMA 12 Enclosure Rating—NEMA 12 rated connectors resist oil/coolant dripping.

	Conduit Connections																	Replacement Levers
				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each
Powder-Coated Aluminum Housing



		10	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	1.7"	3.4"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K12	000000	———	0


		16	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	3.6"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K13	000000	———	0
		24	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.5"	1.7"	3.6"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K14	000000	———	0
		32	600V AC/600V DC	16	1 1/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.9"	3.5"	5"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K31	000000	3240K47	000000


		Polypropylene Housing



				10	600V AC/600V DC	16	1/2	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	4.4"	2.3"	3.9"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K35	000000	———	0


				16	600V AC/600V DC	16	3/4	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	5.3"	2.3"	4.2"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K37	000000	———	0
				24	600V AC/600V DC	16	3/4	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	6.3"	2.3"	4.2"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K39	000000	———	0

Top Conduit Connection—1 Latching Lever


	With Attached Cover

Latching connectors with one latching lever quickly disconnect with one hand.

IP65 Enclosure Rating—IP65 rated connectors protect against dust and rinsing.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

NEMA 4X Enclosure Rating—NEMA 4X rated connectors protect against washdowns.

NEMA 12 Enclosure Rating—NEMA 12 rated connectors resist oil/coolant dripping.

				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Base Cover Style	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each
Powder-Coated Aluminum Housing



		6	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	1.7"	2.7"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K21	000000


		10	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	1.7"	2.9"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K22	00000
		16	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	2.9"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K23	000000
		24	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.5"	1.7"	4.1"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K24	000000
		48	600V AC/600V DC	16	1 1/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	6.5"	3.8"	5.4"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K25	000000


		Polypropylene Housing



				6	600V AC/600V DC	16	1/2	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	3.3"	1.83"	4.5"	—	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K32	000000

Top Conduit Connection—2 Latching Levers

Connectors with two latching levers don’t need as much room to unlatch as connectors with one latching lever and are best for tight spaces.

IP65 Enclosure Rating—IP65 rated connectors protect against dust and rinsing.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

NEMA 4X Enclosure Rating—NEMA 4X rated connectors protect against washdowns.

NEMA 12 Enclosure Rating—NEMA 12 rated connectors resist oil/coolant dripping.

	Conduit Connections																	Replacement Levers
				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each
Powder-Coated Aluminum Housing



		10	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	1.7"	2.9"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K26	000000	———	0


		16	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	2.9"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K27	00000	3240K46	000000
		24	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.5"	1.7"	4.1"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K28	000000	3240K46	00000
		32	600V AC/600V DC	16	1 1/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.9"	3.5"	5"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	3240K29	000000	3240K47	00000


		Polypropylene Housing



				10	600V AC/600V DC	16	1/2	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	4.4"	2.3"	4.5"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K34	000000	———	0


				16	600V AC/600V DC	16	3/4	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	5.3"	2.3"	4.6"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K36	000000	———	0
				24	600V AC/600V DC	16	3/4	NPT	Female	Spring-Clamp Terminal, Wire Inlet	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	6.3"	2.3"	4.6"	190	C-UL Recognized Component, CE Marked, UL Recognized Component	IP66, NEMA 4X, NEMA 12	Gray	3240K38	000000	———	0

Side Cord Connection with Cord Grip—1 Latching Lever

Latching connectors with cord grips secure cable and protect it from strain.

Latching connectors with one latching lever quickly disconnect with one hand.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

Covers—Covers (sold separately) protect internal terminals on IP66 rated connectors and maintain their IP rating.

	Cord Connections															Replacement Levers		Covers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each		Each
Polypropylene Housing



		6	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	2.4"	5"	255	CE Marked	IP66	Black	6758N11	0000000	6758N24	00000	6758N26	000000

Side Cord Connection with Cord Grip—2 Latching Levers

Latching connectors with cord grips secure cable and protect it from strain.

Connectors with two latching levers don’t need as much room to unlatch as connectors with one latching lever and are best for tight spaces.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

Covers—Covers (sold separately) protect internal terminals on IP66 rated connectors and maintain their IP rating.

	Cord Connections															Replacement Levers		Covers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each		Each
Polypropylene Housing



		10	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	2.4"	5"	255	CE Marked	IP66	Black	6758N12	0000000	6758N25	00000	6758N27	000000


		16	600V AC/600V DC	16	0.51" to 0.82"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	2.4"	5.84"	255	CE Marked	IP66	Black	6758N13	000000	6758N25	0000	6758N28	00000
		24	600V AC/600V DC	16	0.63" to 1.1"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.6"	2.4"	6.3"	255	CE Marked	IP66	Black	6758N14	000000	6758N25	0000	6758N29	00000

Top Cord Connection with Cord Grip—1 Latching Lever

Latching connectors with cord grips secure cable and protect it from strain.

Latching connectors with one latching lever quickly disconnect with one hand.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

Covers—Covers (sold separately) protect internal terminals on IP66 rated connectors and maintain their IP rating.

	Cord Connections															Replacement Levers		Covers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each		Each
Polypropylene Housing



		6	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	2.4"	6.1"	255	CE Marked	IP66	Black	6758N15	0000000	6758N24	00000	6758N26	000000

Top Cord Connection with Cord Grip—2 Latching Levers

Latching connectors with cord grips secure cable and protect it from strain.

Connectors with two latching levers don’t need as much room to unlatch as connectors with one latching lever and are best for tight spaces.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

Covers—Covers (sold separately) protect internal terminals on IP66 rated connectors and maintain their IP rating.

	Cord Connections															Replacement Levers		Covers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each		Each
Polypropylene Housing



		10	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	2.4"	6.1"	255	CE Marked	IP66	Black	6758N16	0000000	6758N25	00000	6758N27	000000


		16	600V AC/600V DC	16	0.51" to 0.82"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	2.4"	7.11"	255	CE Marked	IP66	Black	6758N17	000000	6758N25	0000	6758N28	00000
		24	600V AC/600V DC	16	0.63" to 1.1"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.6"	2.4"	7.62"	255	CE Marked	IP66	Black	6758N18	000000	6758N25	0000	6758N29	00000

Top and Bottom Cord Connection with Two Cord Grips—1 Latching Lever

Latching connectors with cord grips secure cable and protect it from strain. Choose connectors with two cord grips to create a disconnection point on curved or compact equipment that cannot have a panel cutout.

Latching connectors with one latching lever quickly disconnect with one hand.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

	Cord Connections															Replacement Levers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each
Polypropylene Housing



		6	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	2.9"	1.8"	9.59"	255	CE Marked	IP66	Black	6758N19	0000000	6758N24	00000

Top and Bottom Cord Connection with Two Cord Grips—2 Latching Levers

Image of Product. Front orientation. Latching Connectors. Latching Connectors, Top and Bottom Cord Connection with Two Cord Grips—2 Latching Levers.

Connectors with two latching levers don’t need as much room to unlatch as connectors with one latching lever and are best for tight spaces.

IP66 Enclosure Rating—IP66 rated connectors protect against washdowns.

	Cord Connections															Replacement Levers
	No. of Poles	Voltage	Current, amp	For Cable OD	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each		Each
Polypropylene Housing



		10	600V AC/600V DC	16	0.35" to 0.66"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.2"	2.2"	9.6"	255	CE Marked	IP66	Black	6758N21	0000000	6758N25	00000


		16	600V AC/600V DC	16	0.51" to 0.82"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.02"	2.2"	11.66"	255	CE Marked	IP66	Black	6758N22	000000	6758N25	0000
		24	600V AC/600V DC	16	0.63" to 1.1"	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	6.06"	2.2"	12.68"	255	CE Marked	IP66	Black	6758N23	000000	6758N25	0000

High-Current Latching Connectors

Able to carry more than twice the current of standard latching signal/power connectors, these can be used with thermosensors or brakes on large motors. Use them to protect connections while maintaining access. The base and hood latch together securely, yet can be quickly detached for equipment repair or replacement. They’re rated NEMA 4X, 12, and IP65 for protection against corrosion, washdowns, dirt, oil/coolant dripping, and water projected from a nozzle.

Side Conduit Connection—2 Latching Levers

Image of Product. Front orientation. Latching Connectors. High-Current Latching Connectors.

4 Poles—4-pole connector has two control pins to prevent arcing if it is disconnected before the power is turned off.

						Conduit
	No. of Poles	No. of Control Pins	Voltage	Control Pin Voltage, V AC	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each
Powder-Coated Aluminum Housing



		4	2	600V AC/600V DC	300	80	1	NPT	Female	Screw Terminal, Wire Inlet	16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6	4.5"	1.7"	4.1"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	8754T6	0000000


		6	—	600V AC/600V DC	—	35	1	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	4.1"	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Gray	8754T5	000000

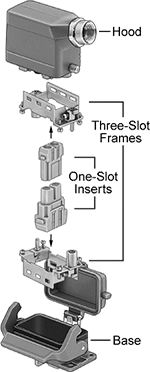

Multipurpose Build-Your-Own Latching Connectors

Combine power, USB, computer, and compressed air inserts to build a connector that sends signal, power, and data. A complete connector requires a hood, a base, two frames, and a male and female insert for each slot in the frame. The frames fit into the hood and base, and the inserts snap into the frame. Select components based on the number of slots needed. Once assembled, connectors are rated NEMA 4X, 12, and IP65 for protection against dirt, washdowns, and oil/coolant dripping.

Power Inserts


Power Inserts—Plugs	Power Inserts—Sockets

						Temp., ° F							Plugs		Sockets
	No. of Poles	Voltage	Current, amp	For Wire Ga.	For No. of Frame Slots	Min.	Max.	No. of Pins Included	No. of Sleeves Included	Certification	Flammability Rating	Electrical Connection		Each		Each
Spring-Clamp-Terminal Wire Inlet Connection



		5	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	1	-40	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K48	000000	1829K49	000000


		8	600V AC/600V DC	16	20, 19, 18, 17, 16, 15, 14	1	—	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K323	00000	1829K324	00000
		12	600V AC/600V DC	10	23, 22, 21, 20, 19, 18, 17, 16	1	—	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K325	00000	1829K326	00000


		Screw-Terminal Wire Inlet Connection



				2	600V AC/600V DC	40	14, 13, 12, 11, 10, 9	1	-40	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K46	00000	1829K47	00000


				2	600V AC/600V DC	40	10, 9, 8	1	—	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K311	00000	1829K315	00000
				2	600V AC/600V DC	70	8, 7, 6	1	-40	255	—	—	—	UL 94 V-0	Latching Connector	1829K15	00000	1829K16	00000
				2	600V AC/600V DC	70	4, 3, 2	1	—	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K312	00000	1829K316	00000
				2	600V AC/600V DC	100	6, 5, 4, 3, 2	2	-40	255	—	—	—	UL 94 V-0	Latching Connector	1829K21	00000	1829K22	00000
				3	600V AC/600V DC	40	14, 13, 12, 11, 10, 9	1	-40	255	—	—	—	UL 94 V-0	Latching Connector	1829K17	00000	1829K18	00000
				3	600V AC/600V DC	40	10, 9, 8	1	—	255	—	—	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K319	00000	1829K32	00000
				5	230V AC/230V DC	16	20, 19, 18, 17, 16, 15, 14	1	—	255	—	—	DNV-GL Type Approved, UL Recognized Component	UL 94 V-0	Latching Connector	1829K321	00000	1829K322	00000


				Crimp-On Wire Inlet Connection



						17	250V AC/250V DC	10	18	1	—	255	—	17	—	UL 94 V-0	Latching Connector	———	0	1829K328	00000


						17	250V AC/250V DC	10	18	1	—	255	17	—	—	UL 94 V-0	Latching Connector	1829K327	00000	———	0

Accessories for Latching Connectors

Extraction tools make it easier to remove pins or sleeves from 10A and 16A power inserts.

Crimpers are required for wire installation for crimp-on connectors. They ratchet to ensure the correct pressure is applied to every crimp.

		Each
Extraction Tool for 16A Inserts	1829K77	000000
Extraction Tool for 10A Crimp-On Inserts	1829K71	00000
Ratcheting Crimper for 10A Crimp-On Inserts	1829K73	000000

Computer Inserts


Computer Inserts—Plugs	Computer Inserts—Sockets

												Plugs		Sockets
	Computer Connection Type	No. of Poles	Voltage	Current, amp	For Wire Ga.	For No. of Frame Slots	Max. Temp., ° F	No. of Pins Included	No. of Sleeves Included	Certification	Electrical Connection		Each		Each
Crimp-On Wire Inlet Connection



		DB25	25	600V AC/600V DC	4	23, 22, 21, 20	1	255	—	25	C-UL Recognized Component, UL Recognized Component	Latching Connector	———	0	1829K332	000000


		DB25	25	600V AC/600V DC	4	23, 22, 21, 20	1	255	25	—	C-UL Recognized Component, UL Recognized Component	Latching Connector	1829K331	000000	———	0

Accessories for Latching Connectors

Use positioners with crimpers to hold pins and sleeves at the correct height while crimping.

Crimpers are required for wire installation for crimp-on connectors. They ratchet to ensure the correct pressure is applied to every crimp.

Insertion/Extraction tools make it easier to install DB25 inserts.

		Each
Positioner for 4A/6.5A Inserts	1829K88	0000000
Ratcheting Crimper for 4A/6.5A Inserts	1829K84	00000000
Insertion/Extraction Tool for 4A/6.5A Inserts	1829K82	00000

Compressed Air Inserts


Compressed Air Inserts—Plugs	Compressed Air Inserts—Sockets

					Temp., ° F				Plugs		Sockets
	For No. of Tubes	For Tube ID, mm	For No. of Frame Slots	Max. Pressure, psi	Min.	Max.	Certification	Electrical Connection		Each		Each
Wire Inlet Connection



		2	6	1	115	-40	175	UL Recognized Component	Latching Connector	1829K64	000000	1829K63	000000


		3	4	1	115	—	175	UL Recognized Component	Latching Connector	1829K335	00000	1829K338	000000

USB Inserts—Adapters

USB

Inserts—Adapters

Use USB adapters with USB holders to connect two male USB cords.

				Temp., ° F							Adapters
	Voltage	Current, amp	For No. of Frame Slots	Min.	Max.	Certification	Flammability Rating	USB Std.	Electrical Connection	Gender		Each
Wire Inlet Connection



		30V AC/30V DC	1	1	-40	185	DNV-GL Type Approved	UL 94 V-0	2.0	Latching Connector, USB-A	Female × Female	1829K61	000000

USB Inserts—Holders

USB

Inserts—Holders

Use USB adapters with USB holders to connect two male USB cords.

				Temp., ° F
	Voltage	Current, amp	For No. of Frame Slots	Min.	Max.	Certification	Flammability Rating	Electrical Connection		Each
Wire Inlet Connection



		30V AC/30V DC	1	1	-40	185	DNV-GL Type Approved	UL 94 V-0	Latching Connector	1829K62	00000

Spacer Inserts

		Temp., ° F
	For No. of Frame Slots	Min.	Max.	Flammability Rating	Electrical Connection		Each
Wire Inlet Connection



		1	-40	255	UL 94 V-0	Latching Connector	1829K23	00000

Frames

				Temp., ° F
	No. of Frame Slots	Frame Lg.	Frame Material	Min.	Max.	Certification	Electrical Connection		Each
Wire Inlet Connection



		2	2"	Zinc Alloy	-40	255	UL Recognized Component	Latching Connector	1829K41	000000


		3	2.5"	Zinc Alloy	-40	255	UL Recognized Component	Latching Connector	1829K42	00000
		4	3.3"	Zinc Alloy	-40	255	UL Recognized Component	Latching Connector	1829K43	00000
		6	4.4"	Zinc Alloy	-40	255	UL Recognized Component	Latching Connector	1829K44	00000

Hood and Base Sets

				Conduit								Temp., ° F
	For No. of Frame Slots	For Frame Lg.	No. of Latching Levers	Trade Size	Thread Type	Connection Gender	Lg.	Wd.	Ht.	Housing Material	Base Cover Style	Min.	Max.	Enclosure Rating	Certification	Electrical Connection		Each
Wire Inlet Connection



		2	2"	1	1/2	NPT	Female	3.1"	1.7"	2.8"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K51	000000


		3	2.5"	1	1/2	NPT	Female	3.7"	1.7"	3.4"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K52	00000
		4	3.3"	1	3/4	NPT	Female	4.5"	1.7"	3.6"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K53	00000
		6	4.4"	1	3/4	NPT	Female	5.5"	1.7"	4.1"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K54	00000

Hood and Base Sets with Two Frames

				Conduit								Temp., ° F
	No. of Frame Slots	Frame Material	No. of Latching Levers	Trade Size	Thread Type	Connection Gender	Lg.	Wd.	Ht.	Housing Material	Base Cover Style	Min.	Max.	Enclosure Rating	Certification	Electrical Connection		Each
Wire Inlet Connection



		2	Zinc Alloy	1	1/2	NPT	Female	3.1"	1.7"	2.8"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K11	000000


		3	Zinc Alloy	1	1/2	NPT	Female	3.7"	1.7"	3.4"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K12	00000
		4	Zinc Alloy	1	3/4	NPT	Female	4.5"	1.7"	3.6"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K13	00000
		6	Zinc Alloy	1	3/4	NPT	Female	5.5"	1.7"	4.1"	Powder-Coated Aluminum	Attached	-40	255	IP65, NEMA 4X, NEMA 12	UL Recognized Component	Latching Connector	1829K14	00000

Harsh Environment Latching Connectors

Rated NEMA 4X, 12, and IP65, connectors protect against corrosion, washdowns, oil/coolant dripping, and water projected from a nozzle. They have a rubber seal and stainless steel hardware for excellent chemical resistance. Use them to protect connections while maintaining access. The base and hood latch together securely, yet can be quickly detached for equipment repair or replacement.

Side Conduit Connection—1 Latching Lever

				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Base Cover Style	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each
Powder-Coated Aluminum Housing



		6	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.2"	1.7"	2.9"	Removable	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Black	3240K41	0000000


		48	600V AC/600V DC	16	1 1/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	6.5"	3.8"	5.4"	Attached	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Black	3240K45	000000

Side Conduit Connection—2 Latching Levers

				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Base Cover Style	Max. Temp., ° F	Certification	Enclosure Rating	Color		Each
Powder-Coated Aluminum Housing



		10	600V AC/600V DC	16	1/2	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	3.7"	1.7"	3.4"	Removable	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Black	3240K42	0000000


		16	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	4.5"	1.7"	3.6"	Removable	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Black	3240K43	000000
		24	600V AC/600V DC	16	3/4	NPT	Female	Screw Terminal, Wire Inlet	18, 17, 16, 15, 14	5.5"	1.7"	3.6"	Removable	255	UL Recognized Component	IP65, NEMA 4X, NEMA 12	Black	3240K44	000000

High-Current Compact Latching Connectors

Carry up to four times the current of standard compact latching signal/power connectors. To protect connections while maintaining access, the base and hood latch together securely, yet can be quickly detached for equipment repair or replacement. They’re rated IP65 for protection against dirt and water projected from a nozzle.

Side Conduit Connection—1 Latching Lever

Image of Product. Front orientation. Latching Connectors. High-Current Compact Latching Connectors.

				Conduit
	No. of Poles	Voltage	Current, amp	Trade Size	Thread Type	Connection Gender	Wire Connection	For Wire Ga.	Lg.	Wd.	Ht.	Max. Temp., ° F	Certification	Enclosure Rating		Each
Nickel-Plated Zinc Alloy Housing



		3	600V AC/600V DC	40	3/4	NPT	Female	Screw Terminal, Wire Inlet	14, 13, 12, 11, 10	1.9"	1.4"	3.3"	255	UL Recognized Component	IP65	8735T2	0000000

Multipurpose Build-Your-Own Connectors


Stacked Horizontally (Inserts Sold Separately)	Stacked Vertically and Horizontally (Inserts Sold Separately)	Cable Entry View

Connect and disconnect your equipment all at once. Stack these connectors horizontally, vertically, or both ways to fit a wide variety of equipment. Mix and match inserts for power, data, and compressed air to control your equipment. As your application evolves, swap out the inserts or reconfigure their layout. These connectors are often used to replace traditional hardwiring in cable and hose carriers as well as other long, moving cable runs. All are rated IP54 when assembled, so they withstand dust and splashing water.

For a complete connector, you’ll need one housing set and up to eight inserts—four plugs and four sockets (all sold separately).

Housing Sets


Housing Set	One Cable Entry Housing	Crimper	Computer Inserts—Sockets

Power Inserts—Plugs	Compressed Air Inserts—Plugs	Extraction Tool	USB Inserts—Holders

Insertion/Extraction Tool	Compressed Air Inserts—Sockets	USB Inserts—Adapters	Power Inserts—Sockets

Positioner	Computer Inserts—Plugs

Housing sets come with everything you need to build a plug housing and a socket housing. They also include connector elements to join housings together if you stack them, as well as single and double locking elements, which screw together to secure a connected plug and socket. Both the locking and connector elements create a secure connection in places with frequent vibration and movement. Strain relief covers stop cables from coming loose, even if they’re accidentally pulled.

Inserts are available for power, computer, compressed air, and USB connections. For a USB connection, you’ll need an adapter and a holder.

Crimpers are required to install wire for crimp-on inserts. These tools ratchet to apply the correct pressure to every crimp. Use positioners with crimpers to hold pins and sleeves on computer inserts at the right height while crimping. Add extraction tools to help you remove pins or sleeves from 10A and 16A power inserts. Insertion/extraction tools help you install computer inserts.

									Temp., ° F
Wire Connection	For No. of Cables	For Cable OD	For No. of Frame Slots	For Stack Orientation	Space Saving Features	Wd.	Ht.	Dp.	Min.	Max.	Enclosure Rating	Color	Material	Temp. Range, ° F	Includes		Each



	Wire Inlet	3	0.2" to 0.63" 0.36" to 0.94" 0.2" to 0.63"	4	Horizontal, Vertical	Stackable	3.7"	1.9"	2.3"	-40	255	IP54	Black	Nylon	-40 to 255	2 Cable Entry Housings, 2 Double Locking Element, 2 Hoods, 2 Housing Connector Elements, 2 Strain Relief Covers, 4 Seals for 0.2" - 0.63" Cable, 4 Seals for 0.36" - 0.94" Cable, 4 Single Locking Elements	8745N111	0000000


	Wire Inlet	4	0.16" to 0.39" 0.2" to 0.63" 0.2" to 0.63" 0.16" to 0.39"	4	Horizontal, Vertical	Stackable	3.7"	1.9"	2.3"	-40	255	IP54	Black	Nylon	-40 to 255	2 Cable Entry Housings, 2 Double Locking Element, 2 Hoods, 2 Housing Connector Elements, 2 Strain Relief Covers, 4 Seals for 0.16 - 0.39" Cable, 4 Seals for 0.2" - 0.63" Cable, 4 Single Locking Elements	8745N112	000000

Accessories for Latching Connectors

Power Inserts

											Plugs		Sockets
	No. of Poles	Voltage	Current, amp	For Wire Ga.	For No. of Frame Slots	Max. Temp., ° F	No. of Pins Included	No. of Sleeves Included	Certification	Flammability Rating		Each		Each
Screw-Terminal Wire Inlet Connection



		2	600V AC/600V DC	40	14, 13, 12, 11, 10, 9	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K46	000000	1829K47	000000


		2	600V AC/600V DC	40	10, 9, 8	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K311	00000	1829K315	00000
		3	600V AC/600V DC	40	14, 13, 12, 11, 10, 9	1	255	—	—	—	UL 94 V-0	1829K17	00000	1829K18	00000
		3	600V AC/600V DC	40	10, 9, 8	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K319	00000	1829K32	00000
		5	230V AC/230V DC	16	20, 19, 18, 17, 16, 15, 14	1	255	—	—	DNV-GL Type Approved, UL Recognized Component	UL 94 V-0	1829K321	00000	1829K322	00000


		Spring-Clamp-Terminal Wire Inlet Connection



				5	600V AC/600V DC	16	26, 25, 24, 23, 22, 21, 20, 19, 18, 17, 16, 15, 14	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K48	00000	1829K49	00000


				8	600V AC/600V DC	16	20, 19, 18, 17, 16, 15, 14	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K323	00000	1829K324	00000
				12	600V AC/600V DC	10	23, 22, 21, 20, 19, 18, 17, 16	1	255	—	—	DNV-GL Type Approved	UL 94 V-0	1829K325	00000	1829K326	00000


				Crimp-On Wire Inlet Connection



						17	250V AC/250V DC	10	18	1	255	—	17	—	UL 94 V-0	———	0	1829K328	00000


						17	250V AC/250V DC	10	18	1	255	17	—	—	UL 94 V-0	1829K327	00000	———	0

Computer Inserts

											Plugs		Sockets
	Computer Connection Type	No. of Poles	Voltage	Current, amp	For Wire Ga.	For No. of Frame Slots	Max. Temp., ° F	No. of Pins Included	No. of Sleeves Included	Certification		Each		Each
Crimp-On Connection



		DB25	25	600V AC/600V DC	4	23, 22, 21, 20	1	255	—	25	C-UL Recognized Component, UL Recognized Component	———	0	1829K332	000000


		DB25	25	600V AC/600V DC	4	23, 22, 21, 20	1	255	25	—	C-UL Recognized Component, UL Recognized Component	1829K331	000000	———	0

Compressed Air Inserts

						Plugs		Sockets
For No. of Tubes	For Tube ID, mm	For No. of Frame Slots	Max. Pressure, psi	Max. Temp., ° F	Certification		Each		Each
2	6	1	115	175	UL Recognized Component	1829K64	000000	1829K63	000000
3	4	1	115	175	UL Recognized Component	1829K335	00000	1829K338	000000

USB Inserts

						Female × Female Adapters				Holders
Voltage	Current, amp	For No. of Frame Slots	Temp. Range, ° F	Certification	Flammability Rating	USB Std.	Electrical Connection		Each	Electrical Connection		Each
30V AC/30V DC	1	1	-40 to 185	DNV-GL Type Approved	UL 94 V-0	2.0	Latching Connector, USB-A	1829K61	000000	Latching Connector	1829K62	00000

Removal Tools, Crimper Positioners, Crimpers and Other Products

		Each
Extraction Tool for 16A Inserts	1829K77	000000
Extraction Tool for 10A Crimp-On Inserts	1829K71	00000
Positioner for 4A/6.5A Inserts	1829K88	000000
Ratcheting Crimper for 4A/6.5A Inserts	1829K84	00000000
Ratcheting Crimper for 10A Crimp-On Inserts	1829K73	000000
Insertion/Extraction Tool for 4A/6.5A Inserts	1829K82	00000
