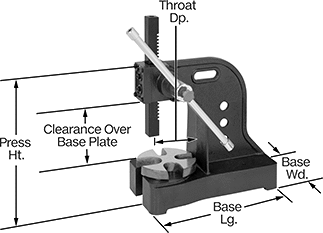

Compact Bench-Mount Lever Presses with
Removable Rotating Base Plate for Small Parts
Removable rotating base-plate press accommodates shafts and arbors with different diameters. For pressing and assembling small parts, this press provides the right amount of force in a compact size. It has an adjustable-length arm to modify leverage.
For technical drawings and 3-D models, click on a part number.
Base Plate | Ram | Base | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Removable | Slot Wd. | Material | Wd. | Ram Hole Dia. | Press Ht. | Frame Material | Lg. | Wd. | Each | |
Rotating Base Plate | ||||||||||||||
| 1,000 | 5" | 3 3/8" | 4" | Yes | 3/8" | Steel | 3/4" | 3/8" | 9 1/4" | Cast Iron | 9 1/4" | 5 1/4" | 0000000 | 0000000 |

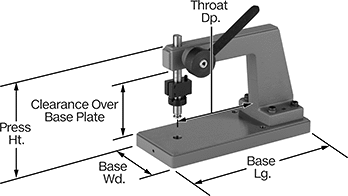

Extended-Reach Compact Bench-Mount Lever Presses for Small Parts
These presses reach past the edge of your material, and they accommodate long and unusual-shape workpieces. For pressing and assembling small parts, they provide the right amount of force in a compact size.
1 3/4" maximum stroke length press has a handle that provides low-effort pressing by internally increasing pressing force at the end of the stroke. The handle is positioned in the center of the press, making it usable in right- or left-hand operation.
For technical drawings and 3-D models, click on a part number.
Compact Bench-Mount Lever Presses for Small Parts
For pressing and assembling small parts, these presses provide the right amount of force in a compact size.
3 3/4" maximum stroke length press has an adjustable arm to modify leverage. The base has a slot for arbors and two holes for attaching dies and tools. To attach tools to the ram, insert the tool into the reamed hole on the bottom and thread a 10-32 set screw (not included) into the tapped hole on the side.
For technical drawings and 3-D models, click on a part number.
Compact Bench-Mount Lever Presses with Center Handle for Small Parts
The handle is at the center of the press head for right- or left-hand operation. For pressing and assembling small parts, this press provides the right amount of force in a compact size. The ram rises automatically when the handle is released, and the base has a T-slot to hold dies.
For technical drawings and 3-D models, click on a part number.
Ram | Base | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Dia. | Ram Hole Thread Size  | Press Ht. | Frame Material | Lg. | Wd. | Features | Each | |
Fixed Base Plate | |||||||||||||
| 400 | 1" | 2 1/2" | 5 1/8" | Steel | 9/16" | 8-32 | 10 1/8" | Aluminum | 6" | 3 5/8" | Die-Holding T-Slot | 0000000 | 000000000 |
Adjustable-Height Compact Bench-Mount Lever Presses for Small Parts
Move the head of these presses to accommodate your workpiece. For pressing and assembling small parts, these presses provide the right amount of force in a compact size.
8 7/8" maximum stroke length press has an adjustable handle for right- or left-hand operation and a T-slot in the base to hold dies.
For technical drawings and 3-D models, click on a part number.
Ram | Base | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Wd. | Dia. | Ram Hole Thread Size | Press Ht. | Frame Material | Lg. | Wd. | Features | Each | |
Fixed Base Plate | ||||||||||||||
| 1,000 | 8 7/8" | 2 3/4" | 8 3/8" | Steel | 3/4" | __ | 10-32 | 12" | Cast Iron | 7 7/8" | 7 7/8" | Die-Holding T-Slot | 0000000 | 000000000 |
| 1,000 | 9 1/2" | 2 3/4" | 8 3/8" | Steel | 3/4" | __ | 10-32 | 12" | Cast Iron | 7" | 4" | __ | 0000000 | 00000000 |
| 1,000 | 14 3/4" | 2 5/8" | 8 3/8" | Steel | __ | 3/4" | 10-32 | 12" | Cast Iron | 7" | 4" | __ | 0000000 | 00000000 |
Bench-Mount Air-Powered Presses
For punching, pressing, and swaging operations, these presses provide consistent pressure and faster operation than manual presses. The air power controls the pressing and return of the ram. The two-handed safety controls meet OSHA 29 CFR 1910.217 standards for mechanical power presses. These presses can be used with die sets (sold separately).
For technical drawings and 3-D models, click on a part number.
Ram | Air Connection | Base | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Force @ Pressure | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Dia. | Ram Hole Thread Size | Pipe Size | Thread Type | Gender | Press Ht. | Frame Material | Lg. | Wd. | Specifications Met | Each | |
Fixed Base Plate | ||||||||||||||||
| 330 lbs. @ 50 psi 396 lbs. @ 60 psi 462 lbs. @ 70 psi 528 lbs. @ 80 psi | 3" | 3 3/16" | 6" | Steel | 3/4" | 1/2"-13 | 1/4 | NPT | Female | 21" | Aluminum/Steel | 7 1/16" | 4 1/16" | OSHA Compliant 29 CFR 1910.217 | 0000000 | 000000000 |
| 755 lbs. @ 50 psi 906 lbs. @ 60 psi 1,057 lbs. @ 70 psi 1,208 lbs. @ 80 psi | 3" | 4" | 6 3/4" | Steel | 1" | 3/4"-10 | 1/4 | NPT | Female | 22" | Aluminum/Steel | 11" | 15" | OSHA Compliant 29 CFR 1910.217 | 0000000 | 00000000 |
| 1,510 lbs. @ 50 psi 1,812 lbs. @ 60 psi 2,114 lbs. @ 70 psi 2,416 lbs. @ 80 psi | 3" | 4" | 6 3/4" | Steel | 1" | 3/4"-10 | 1/4 | NPT | Female | 27" | Aluminum/Steel | 11" | 15" | OSHA Compliant 29 CFR 1910.217 | 0000000 | 00000000 |
| 2,265 lbs. @ 50 psi 2,718 lbs. @ 60 psi 3,171 lbs. @ 70 psi 3,624 lbs. @ 80 psi | 3" | 4" | 6 3/4" | Steel | 1" | 3/4"-10 | 1/4 | NPT | Female | 32" | Aluminum/Steel | 11" | 15" | OSHA Compliant 29 CFR 1910.217 | 0000000 | 00000000 |
Hydraulic High-Force Bench-Mount Lever Presses
For applications requiring the greatest force, this press has a hydraulic pump that provides 20,000 lbs. of pressure. With the pull of a lever, it delivers force for staking, riveting, and removing bearings and arbors. Also known as an arbor press. The adjustable safety valve screw lets you set the pressure below the maximum.
For technical drawings and 3-D models, click on a part number.
Ram | Base | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Dia. | Press Ht. | Frame Material | Lg. | Wd. | Includes | Each | |
Fixed Base Plate | ||||||||||||
| 20,000 | 6 5/8" | 8 1/2" | 9 1/2" | Steel | 1" | 38 1/2" | Steel | 19 1/2" | 12" | Adjustable Safety Valve Screw, Capacity and Pressure Gauge, Removable Ram Tip, Two V-Blocks | 0000000 | 000000000 |
| Optional Ram Size Adapter Set—One each of 1 3/4" long inserts in diameters: 3/8", 1/2", 5/8", 3/4", and 7/8" | 0000000 | Each | 0000000 |
Economy Bench-Mount Lever Presses
With the pull of a lever, these presses deliver force for staking, riveting, and removing bearings and arbors. They have an adjustable-length arm to modify leverage. The rotating base plate fits shafts and arbors of different diameters. Also known as arbor presses.
For technical drawings and 3-D models, click on a part number.
Lever Presses | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Base Plate | Ram | Base | Floor Stands | |||||||||||||
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Removable | Slot Wd. | Material | Wd. | Ram Hole Dia. | Press Ht. | Frame Material | Lg. | Wd. | Each | Each | ||
Rotating Base Plate | ||||||||||||||||
| 2,000 | 6 7/8" | 4" | 5 3/8" | Yes | 1/2" | Steel | 1" | 1/2" | 11" | Cast Iron | 10 1/2" | 6" | 0000000 | 0000000 | 000000 | 00 |
| 4,000 | 9" | 5 1/8" | 7" | Yes | 3/4" | Steel | 1 1/4" | 1/2" | 15 1/4" | Cast Iron | 16" | 7 7/8" | 0000000 | 000000 | 0000000 | 0000000 |
| 6,000 | 13" | 5 7/8" | 11 5/8" | Yes | 3/4" | Steel | 1 1/2" | 1/2" | 21 1/4" | Cast Iron | 18" | 9 1/2" | 0000000 | 000000 | 0000000 | 000000 |
| 8,000 | 16 1/4" | 8 3/8" | 14 1/2" | Yes | 3/4" | Steel | 1 3/4" | 1/2" | 27 1/4" | Cast Iron | 21 1/4" | 11 1/4" | 0000000 | 00000000 | 0000000 | 000000 |
High-Force Bench-Mount Lever Presses
With a high-leverage arm, these presses provide more force with less effort than standard presses. With the pull of a lever, these presses deliver force for staking, riveting, and removing bearings and arbors. The removable rotating base-plate press accommodates shafts and arbors with different diameters. Also known as arbor presses.
Adjustable lever works like a ratchet wrench to move the lever to a convenient position.
Handwheel allows you to quickly advance the ram.
For technical drawings and 3-D models, click on a part number.
Lever Presses | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ram | Base | Floor Stands | ||||||||||||
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Wd. | Press Ht. | Frame Material | Lg. | Wd. | Features | Each | Each | ||
Rotating Base Plate | ||||||||||||||
| 6,000 | 11 1/2" | 7" | 10 3/4" | Steel | 1 1/4" | 19" | Cast Iron | 18" | 7 1/4" | Adjustable Lever, Hand Wheel | 0000000 | 000000000 | 00000000 | 0000000 |
| 6,000 | 18 1/4" | 7" | 17 1/2" | Steel | 1 1/4" | 28" | Cast Iron | 21" | 8 1/4" | Adjustable Lever, Hand Wheel | 0000000 | 00000000 | 0000000 | 000000 |
| 6,000 | 22" | 7" | 22 1/8" | Steel | 1 3/4" | 36 1/4" | Cast Iron | 21 3/4" | 8" | Adjustable Lever, Hand Wheel | 0000000 | 00000000 | 0000000 | 00000000 |
| 10,000 | 16" | 10" | 14 1/2" | Steel | 2" | 28 1/2" | Cast Iron | 24" | 10" | Adjustable Lever, Hand Wheel | 0000000 | 00000000 | 00000000 | 00000000 |
| 12,000 | 21 1/2" | 7 3/4" | 20 1/4" | Steel | 1 1/2" | 32 1/2" | Cast Iron | 20" | 8 1/4" | __ | 0000000 | 00000000 | 0000000 | 000000 |
Bench-Mount Lever Presses with Removable Rotating Base Plate
Removable rotating base-plate presses accommodate shafts and arbors with different diameters. With the pull of a lever, these presses deliver force for staking, riveting, and removing bearings and arbors. They have an adjustable-length arm to modify leverage. Also known as arbor presses.
For technical drawings and 3-D models, click on a part number.
Lever Presses | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Base Plate | Ram | Base | Floor Stands | ||||||||||||
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Removable | Slot Wd. | Material | Wd. | Press Ht. | Frame Material | Lg. | Wd. | Each | Each | ||
Rotating Base Plate | |||||||||||||||
| 2,000 | 5" | 3 1/2" | 4 1/2" | Yes | 9/16" | Steel | 1" | 9 3/8" | Cast Iron | 9" | 4 1/4" | 0000000 | 0000000 | 000000 | 00 |
| 3,000 | 7 3/4" | 4 1/2" | 7 1/8" | Yes | 1/2" | Steel | 1" | 14 1/2" | Cast Iron | 14" | 6" | 0000000 | 000000 | 00000000 | 0000000 |
| 6,000 | 11 1/2" | 7" | 10 3/4" | Yes | 13/16" | Steel | 1 1/4" | 19" | Cast Iron | 18" | 7 1/4" | 0000000 | 00000000 | 00000000 | 000000 |
| 6,000 | 12" | 17" | 11 1/4" | Yes | 3/4" | Steel | 1 3/4" | 27 3/4" | Cast Iron | 30 1/4" | 10" | 0000000 | 00000000 | 0000000 | 00000000 |
Bench-Mount Lever Presses with Fixed Base Plate
Fixed base-plate presses have a flat surface for attaching dies, press-in assemblies, and printed circuit boards. With the pull of a lever, these presses deliver force for staking, riveting, and removing bearings and arbors. They have an adjustable-length arm to modify leverage. Also known as arbor presses.
Lever Presses | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ram | Base | Floor Stands | |||||||||||
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Clearance Over Base Plate | Material | Wd. | Press Ht. | Frame Material | Lg. | Wd. | Each | Each | ||
Fixed Base Plate | |||||||||||||
| 2,000 | 4 1/2" | 3 1/2" | 4 1/2" | Steel | 1" | 9" | Cast Iron | 9 1/2" | 4 1/4" | 0000000 | 0000000 | 000000 | 00 |
| 3,000 | 7 3/4" | 4 1/2" | 7 3/4" | Steel | 1" | 14 1/2" | Cast Iron | 15" | 6" | 0000000 | 000000 | 00000000 | 0000000 |
| 6,000 | 12 1/2" | 7 5/8" | 12 1/2" | Steel | 1 1/2" | 21 1/2" | Cast Iron | 18" | 8" | 0000000 | 00000000 | 0000000 | 000000 |
Wall-Mount Presses
Attach this press to a wall, sturdy column, or machine side. With the pull of a lever, it delivers force for staking, riveting, and removing bearings and arbors. It has an adjustable-length arm to modify leverage. The rotating base plate to accommodate shafts or arbors with different diameters. Also known as an arbor press.
For technical drawings and 3-D models, click on a part number.
Base Plate | Ram | Base | Mounting Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cap., lbs. | Max. Stroke Lg. | Throat Dp. | Removable | Slot Wd. | Material | Dia. | Frame Material | Lg. | Wd. | No. of | Dia. | Each | |
Rotating Base Plate | |||||||||||||
| 6,000 | 12" | 5 1/2" | Yes | 3/4" | Steel | 1 3/4" | Cast Iron | 7 1/4" | 8" | 4 | 5/8" | 00000000 | 000000000 |
