Mil. Spec. Ball Joint Rod Ends
 |
 |
Made of cadmium-plated steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They provide moderate corrosion resistance. All have a PTFE liner that allows smooth ball rotation and eliminates the need for lubrication. Liner meets SAE AS81820.
Oversized Shank—Rod ends with an oversized shank have a shank that is one size larger than the ID to handle greater stress.
Shank | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

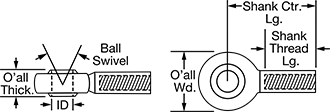

Thread Size | Ctr. Lg. | Thread Lg. | ID | Max. Ball Swivel | Overall Wd. | Overall Thk. | Static Radial Load Cap., lb. | Mil. Spec. | Specs. Met | Material | Choose a Shank Thread Direction | Each | |||
Ball Joints | |||||||||||||||
| 5/16"-24 | 1 7/8" | 1 3/16" | 5/16" | 14° | 7/8" | 7/16" | 7,150 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K131 | 0000000 | ||
| 3/8"-24 | 1 15/16" | 1 3/16" | 3/8" | 8° | 1" | 1/2" | 8,550 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand, Left Hand | 2998K14 | 000000 | ||
| 7/16"-20 | 2 1/8" | 1 1/4" | 7/16" | 10° | 1 1/8" | 9/16" | 12,000 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K151 | 000000 | ||
| 1/2"-20 | 2 7/16" | 1 7/16" | 1/2" | 9° | 1 5/16" | 5/8" | 19,500 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand, Left Hand | 2998K16 | 000000 | ||
| 5/8"-18 | 2 5/8" | 1 9/16" | 5/8" | 12° | 1 1/2" | 3/4" | 21,900 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand, Left Hand | 2998K17 | 000000 | ||
| 3/4"-16 | 2 7/8" | 1 11/16" | 3/4" | 13° | 1 3/4" | 7/8" | 29,300 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand, Left Hand | 2998K18 | 000000 | ||
| 7/8"-14 | 3 3/8" | 2" | 7/8" | 6° | 2" | 7/8" | 34,500 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K191 | 000000 | ||
Ball Joints with Oversized Shank | |||||||||||||||
| 5/16"-24 | 1 9/16" | 15/16" | 3/16" | 15° | 13/16" | 7/16" | 2,350 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K111 | 000000 | ||
| 5/16"-24 | 1 9/16" | 15/16" | 1/4" | 15° | 13/16" | 7/16" | 4,850 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand, Left Hand | 2998K12 | 000000 | ||
| 1 1/4"-12 | 4 1/8" | 2 5/16" | 1" | 12° | 2 3/4" | 1 3/8" | 80,300 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K221 | 000000 | ||
Internally Threaded Mil. Spec. Ball Joint Rod Ends
 |
 |
Made of cadmium-plated steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They provide moderate corrosion resistance. All have a PTFE liner that allows smooth ball rotation and eliminates the need for lubrication. Liner meets SAE AS81820.
Oversized Shank—Rod ends with an oversized shank have a shank that is one size larger than the ID to handle greater stress.
Shank | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thread Size | Ctr. Lg. | Thread Lg. | ID | Max. Ball Swivel | Overall Wd. | Overall Thk. | Static Radial Load Cap., lb. | Mil. Spec. | Specs. Met | Material | Shank Thread Direction | Each | |||
Ball Joints | |||||||||||||||
| 3/8"-24 | 1 13/16" | 1" | 3/8" | 8° | 1" | 1/2" | 8,550 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K341 | 0000000 | ||
| 1/2"-20 | 2 1/4" | 1 1/4" | 1/2" | 9° | 1 5/16" | 5/8" | 19,500 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K361 | 000000 | ||
| 5/8"-18 | 2 1/2" | 1 3/8" | 5/8" | 12° | 1 1/2" | 3/4" | 21,900 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K371 | 000000 | ||
| 3/4"-16 | 2 7/8" | 1 5/8" | 3/4" | 13° | 1 3/4" | 7/8" | 29,300 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K381 | 000000 | ||
| 7/8"-14 | 3 3/8" | 1 7/8" | 7/8" | 6° | 2" | 7/8" | 34,500 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K391 | 000000 | ||
Ball Joints with Oversized Shank | |||||||||||||||
| 5/16"-24 | 1 7/16" | 3/4" | 1/4" | 15° | 13/16" | 7/16" | 4,850 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K321 | 000000 | ||
| 1 1/4"-12 | 4 1/8" | 2 1/8" | 1" | 12° | 2 3/4" | 1 3/8" | 80,300 | MIL-B-81935 | SAE AS81820 SAE AS81935 | Cadmium-Plated Alloy Steel | Right Hand | 2998K411 | 000000 | ||
