9 Products

Revolving Bins

4 Storage Levels

6 Storage Levels

8 Storage Levels

10 Storage Levels

Each storage level rotates independently.

Add extra dividers to increase the number of bins per storage level. 17" dia. bins hold up to 12 dividers per storage level. 34" dia. bins hold up to 25 dividers per storage level.

For technical drawings and 3-D models, click on a part number.

Bins
	Overall				Bins										Optional Dividers
No. of Storage Levels	Dia.	Ht.	Cap., lbs.	Total No. of Bins	Wd.	Ht.	Dp.	No. of Bins per Storage Level	Cap. per Storage Level, lbs.	Max. No. of Dividers per Storage Level	Color	Assembled or Unassembled		Each	Pkg. Qty.		Pkg.
Painted Steel
4	34"	34 1/2"	2,000	20	21"	7"	15"	5	500	25	Gray	Unassembled	0000000	0000000	1	0000000	00000
6	17"	25 1/2"	360	24	13"	3 3/8"	7 1/2"	4	60	12	Gray	Unassembled	0000000	000000	1	0000000	0000
8	34"	66"	4,000	40	21"	7"	15"	5	500	25	Gray	Unassembled	0000000	00000000	1	0000000	0000
10	17"	41 1/2"	600	40	13"	3 3/8"	7 1/2"	4	60	12	Gray	Unassembled	0000000	000000	1	0000000	0000

Bench-Height Revolving Bins

Each storage level rotates independently. Storage capacity is 35 lbs. for the top level, 50 lbs. for the second level, 60 lbs. for the third level, and 75 lbs. for the fourth level.

	Overall				Bins
No. of Storage Levels	Dia.	Ht.	Cap., lbs.	Total No. of Bins	Wd.	Ht.	Dp.	No. of Bins per Storage Level	Cap. per Storage Level, lbs.	Color	Assembled or Unassembled		Each
Plastic
4	19 1/2"	38 1/2"	220	24	8"	2 1/8"	9 3/4"	6	35	Black	Unassembled	00000000	0000000

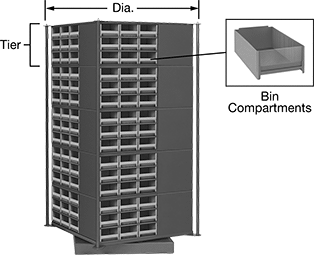

Revolving Bin-Box Racks

Pull out the bin boxes for easy access to contents. The overall diameter is measured from corner to corner.

Bin-Box Racks
	Overall						Bins									Optional Dividers
No. of Storage Levels	Dia.	Wd.	Ht.	Dp.	Cap., lbs.	Total No. of Bins	Wd.	Ht.	Dp.	No. of Bins per Storage Level	Cap. per Storage Level, lbs.	Color	Assembled or Unassembled		Each	Pkg. Qty.		Pkg.
Painted Steel
15	44"	31"	60"	31"	1,000	180	5 1/8"	3"	10 1/2"	12	65	Gray	Unassembled	0000000	000000000	27	0000000	000000
