36 Products

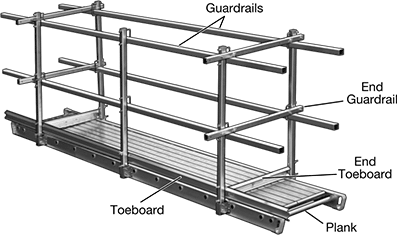

Planks, Guardrails, and Toeboards

Create catwalks, bridges, gangways, and mezzanines by combining these planks, guardrails, and toeboards. They also work well between trestles, ladder jacks, and ladder scaffolding supports. Rungs on the underside are for use as hand grips.

Note: Planks, guardrails, and toeboards meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices. Planks, guardrails, and toeboards also meet CAL-OSHA standards, which is required for use in California.

Planks

Planks have a slip-resistant surface for sure footing. The vinyl end caps protect against sharp edges and act as hand grips.

									500 lb. Capacity		750 lb. Capacity
	Lg., ft.	Ht.	Wt., lb.	Material	Plank Tread	Mounting Hardware Included	Assembly	Specs. Met		Each		Each
14" Wide



		8	4"	27	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T63	0000000	———	0


		12	4"	40	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T65	000000	———	0
		16	5"	58	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T67	000000	———	0
		20	6"	85	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T73	00000000	———	0


		20" Wide



				8	4"	33	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T41	000000	———	0


				12	4"	48	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T42	000000	———	0
				16	5"	70	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T43	000000	———	0
				20	6"	102	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T44	00000000	———	0
				24	6"	121	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T45	00000000	———	0


				24" Wide



						8	4"	38	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T51	000000	———	0


						12	4"	56	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T52	000000	———	0
						16	5"	81	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T53	000000	———	0
						20	6"	115	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T54	00000000	———	0
						24	6"	138	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T55	00000000	———	0


						28" Wide



								8	4"	41	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T31	000000	———	0


								12	4"	60	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T32	000000	———	0
								12	4"	71	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	———	0	8265T12	0000000
								16	5"	103	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	———	0	8265T14	00000000
								20	5"	128	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	———	0	8265T16	00000000
								20	6"	124	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T34	00000000	———	0
								24	6"	147	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	7962T35	00000000	———	0
								24	6"	161	Aluminum	Smooth	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	———	0	8265T17	00000000

Guardrails

Guardrails mount to either side of the plank with the upper rails 38" to 42" above the plank surface.

Material	Mounting Hardware Included	Assembly	Includes	Specs. Met		Each



8	Aluminum	Yes	Unassembled	Midrail Vertical Posts	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T81	0000000


12	Aluminum	Yes	Unassembled	Midrail Vertical Posts	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T82	000000
16	Aluminum	Yes	Unassembled	Midrail Vertical Posts	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T13	000000
20	Aluminum	Yes	Unassembled	Midrail Vertical Posts	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T83	000000
24	Aluminum	Yes	Unassembled	Midrail Vertical Posts	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T15	000000

Toeboards

Toeboards mount to either side of the plank. They clamp to guardrail posts.

Toeboard Ht.	Material	Mounting Hardware Included	Assembly	Specs. Met		Each



8	3 1/2"	Aluminum	No	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T21	000000


12	3 1/2"	Aluminum	No	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T22	000000
16	3 1/2"	Aluminum	No	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T23	000000
20	3 1/2"	Aluminum	No	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T24	000000
24	3 1/2"	Aluminum	No	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T25	000000

End Guardrails/Toeboards

Toeboard Ht.	Material	Mounting Hardware Included	Assembly	Specs. Met		Each



20", 24", 28"	3 1/2"	Aluminum	Yes	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1637 OSHA Compliant 29 CFR 1926.451 UL 1322	8266T27	0000000

Scaffold Guardrails

Add a barrier around your scaffold platform to prevent falls. These guardrails attach to posts (not included) on the edge of your platform. You can also replace sections of an existing barrier to make sure your scaffold meets safety requirements. Made of galvanized steel, these guardrails resist rust and hold up to outdoor use.

Note: Guardrails meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

					Mounting
	Lg., ft.	OD	Material	Wt., lb.	Hardware Included	No. of Holes	Hole Dia.	Specs. Met		Each
End Rails



		5	1"	Galvanized Steel	3	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N11	000000


		Side Rails



				7	1"	Galvanized Steel	5	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N12	00000


				10	1 1/4"	Galvanized Steel	9	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N13	00000
