32 Products

Uneven Surface Scaffolds


Shown Assembled

Even if your surface isn't level, your scaffold can be—the end frames on these scaffolds adjust independently so you can set each side at a different height. You can change the plank height in 4" increments; use the spring-loaded pins to lock it in place.

Note: Scaffolds meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices. Scaffolds also meet CAL-OSHA standards, which is required for use in California.

Base Sections

Base sections have positioning guides that hold the plank within the frame. Sections roll on four locking swivel casters; install base plates (sold separately) when used on stairs. Do not stack more than two add-on height sections per base section.

		Plank		Overall
	Platform Ht.	Lg., ft.	Wd.	Lg., ft.	Wd.	Ht.	Wt. Cap., lb.	Color	Wheel Configuration	Brake Type	No. of Wheel Brakes	Assembly	Includes	Specs. Met		Each
Powder-Coated Steel



		76"	6	28 1/2"	6	29 1/2"	79"	1,000	Yellow	Four Swivel Casters	Wheel Brake	4	Unassembled	Plywood Plank Two End Frames with Adjustable Legs	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T12	0000000


		76"	8	28 1/2"	8	29 1/2"	78"	1,000	Yellow	Four Swivel Casters	Wheel Brake	4	Unassembled	Plywood Plank Two End Frames with Adjustable Legs	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T19	000000

Casters

Wheel		Stem
5"	1 1/8"	6 1/4"	250	5/8"	2"	Rubber	Swivel with Brake	8069T25	000000

Add-On Height Sections

			Cap., lb.
	Overall Lg., ft.	Ht.	with One Add-On Ht. Section	with Two Add-On Ht. Sections	Color	Assembly	Includes	Specs. Met		Each
Powder-Coated Steel



		6	72"	850	700	Yellow	Unassembled	Plywood Plank Two End Frames	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T17	0000000


		8	72"	850	700	Yellow	Unassembled	Plywood Plank Two End Frames	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T21	000000

Guardrail/Toeboard Kits

Guardrail/toeboard kits are required by OSHA when add-on height sections are used.

	Guardrail Ht.	Toeboard Ht.	Color	Assembly	Specs. Met		Each
Powder-Coated Steel



	6	40"	3"	Yellow	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T14	0000000


	8	40"	4"	Yellow	Unassembled	ANSI/ASSP A10.8 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29	8069T22	000000

Easy-Adjust Scaffolds

Turn the winch on these scaffolds to adjust the platform height from two to eleven feet in 6" increments. Plank has a perforated surface for good slip resistance. Spring-loaded pins lock it in place. Scaffold can be assembled by one person without tools.

Note: Scaffolds meet OSHA dimensional standards. Users are responsible for checking local, state, and federal codes, including OSHA, for safe installation and operating practices.

Base Sections

	Plank		Overall
	Lg.	Wd.	Ht. (A)	Lg.	Wd.	Platform Ht. (B), ft.	Guardrail Ht.	Color	Wt. Cap., lb.	Wheel Configuration	No. of Wheel Brakes	Assembly	Includes	Specs. Met		Each
Painted Steel



		68"	19"	118 1/4" to 172"	76 1/2"	31 1/2" to 72"	2 to 11	43"	Yellow	550	Four Swivel Casters	4	Unassembled	Beam Assembly Guardrail Perforated Steel Plank Safety Chains Two Diagonal Braces Two End Frames	ANSI/ASSP A10.8 ASME B30.19 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.450	8004T11	000000000

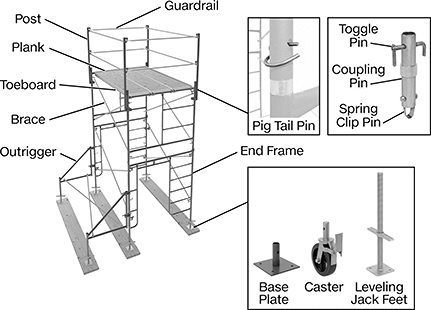

Tower Scaffolds

Braces


Caster Foot	Posts	Leveling Foot

Bottom Diagonal Braces	Coupling Pins	Toeboards

End Frames	Spring Clip	Cross Braces

Toeboards	Casters

Everything you need to build a tower scaffold. These kits include braces, end frames, guardrail posts, rails, plywood planks, and connecting pins. All scaffolds are made of powder-coated steel, so they’re rust resistant and durable for outdoor use. Use scaffold inspection tags to mark when a scaffold is ready to use or still being built.

Note: Tower scaffolds meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

Add toeboards (sold separately) to keep tools and materials from sliding off your platform.

Caster Foot—Scaffolds with casters can be moved easily.

Leveling Foot—Scaffolds with leveling feet can be adjusted for stability on uneven surfaces. Raise or lower each foot up to 18" to create a level platform.

		Overall
	Platform Ht.	Lg., ft.	Wd.	Ht.	Wt. Cap., lb.	Color	Wheel Configuration	No. of Wheel Brakes	Brake/Lock Type	Assembly	Includes	Specs. Met		Each
Powder-Coated Steel—With Caster Feet



		130"	7	65 1/2"	139"	2,500	Blue	Four Swivel Casters	4	Wheel Brake and Swivel Lock (Total Lock)	Unassembled	Bottom Diagonal Brace Connecting Pins Four Cross Braces Four End Frames Four End Rails Four Guardrail Posts Four Side Rails Three Plywood Planks	Cal/OSHA Compliant Title 8 Section 1637 Cal/OSHA Compliant Title 8 Section 1646 Cal/OSHA Compliant Title 8 Section 3622 Cal/OSHA Compliant Title 8 Section 3627 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8187T112	000000000


		130"	10	65 1/2"	139"	3,000	Blue	Four Swivel Casters	4	Wheel Brake and Swivel Lock (Total Lock)	Unassembled	Bottom Diagonal Brace Connecting Pins Four Cross Braces Four End Frames Four End Rails Four Guardrail Posts Four Side Rails Three Plywood Planks	Cal/OSHA Compliant Title 8 Section 1637 Cal/OSHA Compliant Title 8 Section 1646 Cal/OSHA Compliant Title 8 Section 3622 Cal/OSHA Compliant Title 8 Section 3627 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8187T114	00000000


		Powder-Coated Steel—With Leveling Feet



				128"	7	65 1/2"	176"	2,500	Blue	—	—	—	Unassembled	Bottom Diagonal Brace Connecting Pins Four Cross Braces Four End Frames Four End Rails Four Guardrail Posts Four Side Rails Three Plywood Planks	Cal/OSHA Compliant Title 8 Section 1637 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8187T111	00000000


				128"	10	65 1/2"	176"	3,500	Blue	—	—	—	Unassembled	Bottom Diagonal Brace Connecting Pins Four Cross Braces Four End Frames Four End Rails Four Guardrail Posts Four Side Rails Three Plywood Planks	Cal/OSHA Compliant Title 8 Section 1637 Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8187T113	00000000

Accessories and Replacements for Scaffolds

End Frames

	Wd.	Wt. Cap., lb.	OD	Material	Color	Assembly	Specs. Met		Each
Step-Through with Ladder Frame



	60"	60"	5,100	1 11/16"	Powder-Coated Steel	Blue	Assembled	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N11	0000000

Braces

							Mounting Holes
	For Plank Lg., ft.	Lg.	Wd.	Ht.	OD	Material	No. of	Dia.	Specs. Met		Each
Cross Braces



		7	—	84"	48"	1"	Galvanized Steel	4	9/16"	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N17	000000


		10	—	120"	48"	1"	Galvanized Steel	4	9/16"	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N16	000000


		Bottom Diagonal Braces



				7	84"	—	—	1"	Galvanized Steel	2	9/16"	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N22	00000


				10	10"	—	—	1"	Galvanized Steel	2	9/16"	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N21	00000

Pin Type	Material	Specs. Met		Each
Coupling	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N29	00000

Pig Tail Pins

Pig Tail

			Each		Package
Pin Type	Material	Specs. Met		Each	Pkg. Qty.		Pkg.
Pig Tail	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	7587N11	00000	25	7587N12	000000

Pin Type	Material	Specs. Met		Each
Spring Clip	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N31	00000

Casters

Wheel				Stem
Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Dia.	Lg.	For Pin Dia.	Wheel/Tread Material	Brake/Lock Type	Specs. Met		Each
7 7/8"	2"	9"	750	1 3/8"	3 15/16"	3/8"	Rubber	Wheel Brake and Swivel Lock (Total Lock)	Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8742N27	000000

Leveling Jack Feet

			Overall		Base				Thread		Base Mounting
Construction	Wt. Cap., lb.	Max. Lift	Ht.	Wd.	Lg.	Wd.	Wt., lb.	Material	Size	Lg.	Fasteners Included	No. of	Hole Dia.	Hole Ctr.-to-Ctr.	Specs. Met		Each
Hollow	5,300	18"	24"	9 3/8"	5 5/16"	5 5/16"	6	Galvanized Steel	1 3/8"-4	16 9/16"	No	4	1/2"	3 5/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	7819N11	000000

Planks

						Rail
	Wd.	Ht.	Features	Wt. Cap., lb.	Plank Tread	Ht.	Material	Wt., lb.	Assembly	Specs. Met		Each
Plywood







				7 ft. Long

				19"	4"	2" End Hooks	1,000	Smooth	4"	Aluminum	34	Assembled	ANSI/ASSP A10.8, Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8180T16	0000000




						10 ft. Long

						19"	4"	2" End Hooks	1,000	Smooth	4"	Aluminum	46	Assembled	ANSI/ASSP A10.8, Cal/OSHA Compliant Title 8 Section 1637, Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1926.451	8180T18	000000

Posts

					Mounting
Ht.	OD	Wt., lb.	Material	Color	Hardware Included	No. of Holes	Hole Dia.	Specs. Met		Each
60"	1 11/16"	11	Powder-Coated Steel	Blue	No	1	7/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	8742N23	000000

Guardrails

					Mounting
	Lg., ft.	OD	Wt., lb.	Material	Hardware Included	No. of	Hole Dia.	Specs. Met		Each
End Rails



		5	1"	3	Galvanized Steel	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N11	000000


		Side Rails



				7	1"	5	Galvanized Steel	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N12	00000


				10	1 1/4"	9	Galvanized Steel	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N13	00000

Toeboards

Toeboards—Add toeboards to keep tools and materials from sliding off your platform.

Lg., ft.	Ht.	Wt., lb.	Material	Specs. Met		Each
5	6"	11	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	8742N32	000000
10	6"	20	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	8742N34	00000
84	6"	14	Galvanized Steel	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	8742N33	00000

Scaffold Guardrails

Add a barrier around your scaffold platform to prevent falls. These guardrails attach to posts (not included) on the edge of your platform. You can also replace sections of an existing barrier to make sure your scaffold meets safety requirements. Made of galvanized steel, these guardrails resist rust and hold up to outdoor use.

Note: Guardrails meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

					Mounting
	Lg., ft.	OD	Material	Wt., lb.	Hardware Included	No. of Holes	Hole Dia.	Specs. Met		Each
End Rails



		5	1"	Galvanized Steel	3	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N11	000000


		Side Rails



				7	1"	Galvanized Steel	5	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N12	00000


				10	1 1/4"	Galvanized Steel	9	No	2	9/16"	Cal/OSHA Compliant Title 8 Section 1646, OSHA Compliant 29 CFR 1910.29, OSHA Compliant 29 CFR 1926.451	7665N13	00000

Build-Your-Own Scaffolds

Mix and match these components to build a scaffold that suits your job. All components are compatible with each other, but they can’t be combined with other scaffold systems. They can be used indoors or outdoors. Add scaffold inspection tags to show whether a scaffold is under construction or ready for use.

Note: Scaffold components meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

Posts

Add posts to a platform to support guardrails. They have welded pins that hold the guardrails in place. Attach the base of each post to your end frame with a coupling pin, a spring clip pin, and either a pig tail or a toggle pin (all sold separately).

				Mounting
	Ht.	OD	Color	Hardware Included	No. of Holes	Hole Dia.	Wt., lb.	Specs. Met		Each
Powder-Coated Steel



		60"	1 11/16"	Blue	No	1	7/16"	11	Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8742N23	000000

Toeboards


Toeboards	Toeboards

Use toeboards to create a raised edge around the platform so you don’t accidentally knock tools off the side.

	Lg., ft.	Wt., lb.	Specs. Met		Each
Galvanized Steel



	6"	5	11	Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8742N32	000000


	6"	10	20	Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8742N34	00000
	6"	84	14	Cal/OSHA Compliant Title 8 Section 1646 OSHA Compliant 29 CFR 1910.29 OSHA Compliant 29 CFR 1926.451	8742N33	00000
