Set Screw Lugs
Tighten the set screw for a secure connection without crimping. Mount lugs to a screw.
Copper lugs can be used in large power distribution systems, motors, and generators. Offset copper lugs have a tongue that gives you extra space to insert wire.
Aluminum lugs are more lightweight and can be used in electrical distribution systems.
For technical drawings and 3-D models, click on a part number.
Copper Lugs
| For Wire Gauge  | For Screw Size | For Screw Size Decimal Equivalent | Lg. | Wd. | Ht. | Thick. | For Wire Material | For Wire Type | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-8 | No. 10 | 0.19" | 0.800" | 0.380" | 0.420" | 0.09" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 0000000 | 00000 |
| 14-4 | 1/4" | 0.25" | 1.090" | 0.530" | 0.550" | 0.1" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 0000000 | 0000 |
| 10-1/0 | 5/16" | 0.313" | 1.500" | 0.750" | 0.630" | 0.1" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 0000000 | 0000 |
| 6-250 MCM | 3/8" | 0.375" | 1.970" | 0.940" | 1.060" | 1/8" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 0000000 | 00000 |
| 4/0-500 MCM | 1/2" | 0.5" | 2.970" | 1.380" | 1.440" | 0.55" | Copper | Stranded | 194° | 600V AC | UL Listed | 0000000 | 00000 |
| 500-1000 MCM | 1/2" | 0.5" | 3.970" | 2.000" | 2.190" | 0.55" | Copper | Stranded | 194° | 600V AC | UL Listed | 0000000 | 000000 |
Offset Copper Lugs
1 Hole — 1 Wire
1 Hole — 2 Wire
2 Hole — 1 Wire
| For Wire Gauge | Center-to-Center | For Screw Size | For Screw Size Decimal Equivalent | Lg. | Wd. | Ht. | Thick. | For Wire Material | For Wire Type | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-10 | __ | No. 6 | 0.138" | 0.940" | 0.310" | 0.660" | 0.07" | Copper | Stranded | 194° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 14-6 | __ | No. 10 | 0.19" | 1.130" | 0.380" | 0.750" | 0.06" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 0000 |
| 14-4 | __ | 1/4" | 0.25" | 1.250" | 0.500" | 0.810" | 0.08" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 0000 |
| 8-2 | __ | 1/4" | 0.25" | 1.440" | 0.500" | 1.000" | 0.08" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 0000 |
| 8-1/0 | __ | 1/4" | 0.25" | 1.880" | 0.630" | 1.340" | 0.12" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 0000 |
| 6-4/0 | __ | 5/16" | 0.313" | 2.380" | 1.000" | 1.810" | 0.12" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 4-3/0 | __ | 3/8" | 0.375" | 2.250" | 0.750" | 1.560" | 0.12" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 0000 |
| 1/0-350 MCM | __ | 3/8" | 0.375" | 3.220" | 1.000" | 2.630" | 0.19" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 4/0-500 MCM | __ | 3/8" | 0.375" | 4.060" | 1.500" | 2.750" | 0.18" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 600-1000 MCM | __ | 1/2" | 0.5" | 4.630" | 2.000" | 3.690" | 1/4" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
1 Hole — 2 Wire | ||||||||||||||
| 1/0-350 MCM | __ | 3/8" | 0.375" | 3.500" | 1.750" | 2.219" | 0.19" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 00000000 | 000000 |
2 Hole — 1 Wire | ||||||||||||||
| 14-6 | 1" | No. 10 | 0.19" | 2.250" | 0.375" | 0.750" | 0.072" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 00000000 | 0000 |
| 8-2 | 1" | 1/4" | 0.25" | 2.438" | 0.500" | 1.000" | 0.083" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 00000000 | 0000 |
| 6-1/0 | 1" | 1/4" | 0.25" | 2.938" | 0.625" | 1.344" | 1/8" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 00000000 | 00000 |
| 2-4/0 | 1" | 5/16" | 0.313" | 3.594" | 1.000" | 1.813" | 1/8" | Copper | Stranded | 194° | 600V AC | UL Listed, C-UL Listed, CSA Certified | 00000000 | 00000 |
Tin-Plated Aluminum Lugs
1 Hole—1 Wire
1 Hole—2 Wire
2 Hole—1 Wire
2 Hole—2 Wire
2 Hole—3 Wire
4 Hole—2 Wire
4 Hole—3 Wire
4 Hole—4 Wire
6 Hole — 2 Wire
6 Hole—3 Wire
8 Hole — 4 Wire
| For Wire Gauge | Center-to-Center | For Screw Size | For Screw Size Decimal Equivalent | Lg. | Wd. | Ht. | Thick. | For Wire Material | For Wire Type | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-4 | __ | 1/4" | 0.25" | 1.060" | 0.500" | 0.500" | 0.093" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 14-2 | __ | 1/4" | 0.25" | 1.160" | 0.500" | 0.560" | 0.1" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 14-1/0 | __ | 1/4" | 0.25" | 1.470" | 0.630" | 0.780" | 0.19" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 14-2/0 | __ | 1/4" | 0.25" | 1.470" | 0.630" | 0.780" | 0.19" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 6-250 MCM | __ | 5/16" | 0.313" | 2.000" | 1.000" | 1.130" | 1/4" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 6-300 MCM | __ | 1/4" | 0.25" | 2.000" | 0.860" | 1.130" | 1/4" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 4-500 MCM | __ | 3/8" | 0.375" | 2.810" | 1.500" | 1.810" | 0.31" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 2-600 MCM | __ | 3/8" | 0.375" | 3.190" | 1.500" | 1.560" | 0.437" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 300-800 MCM | __ | 5/8" | 0.625" | 3.380" | 1.750" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 350-1000 MCM | __ | 5/8" | 0.625" | 3.380" | 1.750" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
1 Hole — 2 Wire | ||||||||||||||
| 14-1/0 | __ | 1/4" | 0.25" | 1.470" | 1.130" | 0.800" | 3/16" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 14-2/0 | __ | 1/4" | 0.25" | 1.470" | 1.250" | 0.800" | 3/16" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 0000 |
| 6-250 MCM | __ | 3/8" | 0.375" | 2.560" | 1.660" | 1.190" | 1/4" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 6-350 MCM | __ | 1/2" | 0.5" | 2.880" | 1.890" | 1.250" | 1/4" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 2-600 MCM | __ | 1/2" | 0.5" | 3.190" | 2.410" | 1.560" | 7/16" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 350-800 MCM | __ | 5/8" | 0.625" | 3.500" | 3.500" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 500-1000 MCM | __ | 5/8" | 0.625" | 3.380" | 3.190" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
2 Hole — 1 Wire | ||||||||||||||
| 6-350 MCM | 1 3/4" | 1/2" | 0.5" | 4.310" | 1.130" | 1.380" | 0.31" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 2-600 MCM | 1 3/4" | 1/2" | 0.5" | 4.690" | 1.500" | 1.380" | 0.438" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 6.190" | 1.750" | 1.880" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 500-1000 MCM | 1 3/4" | 1/2" | 0.5" | 4.750" | 1.750" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
2 Hole — 2 Wire | ||||||||||||||
| 6-350 MCM | 1 3/4" | 1/2" | 0.5" | 4.310" | 2.000" | 1.380" | 5/16" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 2-600 MCM | 1 3/4" | 1/2" | 0.5" | 4.690" | 2.410" | 1.380" | 7/16" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 4.750" | 3.190" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
2 Hole — 3 Wire | ||||||||||||||
| 14-1/0 | 1" | 3/8" | 0.375" | 2.910" | 2.000" | 0.870" | 1/4" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 6.190" | 4.120" | 1.880" | 0.563" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 000000 |
4 Hole — 2 Wire | ||||||||||||||
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 5.750" | 3.570" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
4 Hole — 3 Wire | ||||||||||||||
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 6.190" | 3.500" | 1.880" | 0.563" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 000000 |
4 Hole — 4 Wire | ||||||||||||||
| 6-350 MCM | 1 3/4" | 1/2" | 0.5" | 4.500" | 4.720" | 1.380" | 0.312" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 2-600 MCM | 1 3/4" | 1/2" | 0.5" | 5.500" | 5.330" | 1.500" | 0.438" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 000000 |
| 350-1000 MCM | 1 3/4" | 3/8" | 0.5" | 5.750" | 5.970" | 1.940" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 000000 |
6 Hole — 2 Wire | ||||||||||||||
| 6-350 MCM | 1 3/4" | 1/2" | 0.5" | 5.500" | 2.750" | 1.969" | 3/8" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 00000000 | 00000 |
| 2-600 MCM | 1 3/4" | 1/2" | 0.5" | 5.500" | 2.750" | 1.969" | 3/8" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 00000000 | 00000 |
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 5.969" | 3.000" | 2.234" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 00000000 | 00000 |
6 Hole — 3 Wire | ||||||||||||||
| 6-350 MCM | 1 3/4" | 1/2" | 0.5" | 4.190" | 3.000" | 1.130" | 0.312" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 0000000 | 00000 |
| 300-800 MCM | 1 3/4" | 1/2" | 0.5" | 5.969" | 4.125" | 2.328" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 00000000 | 00000 |
8 Hole — 4 Wire | ||||||||||||||
| 350-1000 MCM | 1 3/4" | 1/2" | 0.5" | 5.969" | 6.500" | 2.203" | 1/2" | Aluminum, Copper | Stranded | 190° | 600V AC | UL Listed, CSA Certified | 00000000 | 00000 |
Stacked Set Screw Lugs
1 Hole — 2 Wire
2 Hole — 2 Wire
2 Hole — 3 Wire
2 Hole — 4 Wire
Save space on your mounting surface by installing wire vertically. These lugs have set screws that tighten onto wire for a secure connection without crimping.
For technical drawings and 3-D models, click on a part number.
| For Wire Gauge | For Screw Size | For Screw Size Decimal Equivalent | Center-to-Center | For Wire Material | For Wire Type | Terminal Material | Lg. | Wd. | Ht. | Thick. | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 2 Wire | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6-350 MCM | 5/16" | 0.313" | __ | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 3.000" | 1.000" | 2.000" | 0.31" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 000000 |
2 Hole — 2 Wire | |||||||||||||||
| 2-600 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.470" | 1.500" | 3.000" | 0.76" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 1/0-750 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.470" | 1.580" | 3.000" | 0.76" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
2 Hole — 3 Wire | |||||||||||||||
| 2-600 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.470" | 2.680" | 3.000" | 0.76" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
2 Hole — 4 Wire | |||||||||||||||
| 2-600 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.470" | 2.680" | 3.000" | 0.76" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 1/0-750 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.470" | 2.840" | 3.000" | 0.76" | 190° | 600V AC | UL Listed, C-UL Listed | 0000000 | 00000 |
Insulated Set Screw Lugs
To prevent short-circuiting with nearby wire, a plastic cover insulates the barrel on these lugs. Tighten the set screw for a secure connection without crimping.
45° elbow lugs connect to wire at an angle, so they fit in tight spaces.
Lug covers go over the entire lug, so they prevent accidental contact with other connections.
For technical drawings and 3-D models, click on a part number.
Lugs
Straight (1 Hole — 1 Wire)
Straight (1 Hole — 2 Wire)
45° Elbow
| For Wire Gauge | For Screw Size | For Screw Size Decimal Equivalent | Lg. | Wd. | Ht. | Thick. | For Wire Type | For Wire Material | Insulation Color | Insulation Material | Terminal Material | Max. Temp., °F | Max. Voltage | Each | |
Straight | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 Hole — 1 Wire | |||||||||||||||
| 6-1/0 | 1/2" | 0.5" | 3.625" | 1.054" | 1.270" | 0.2" | Stranded | Copper | Black | Nylon | Copper | 470° | 40V AC 40V DC | 0000000 | 000000 |
| 2/0-4/0 | 1/2" | 0.5" | 3.625" | 1.080" | 1.520" | 0.188" | Stranded | Copper | Black | Nylon | Copper | 470° | 40V AC 40V DC | 0000000 | 00000 |
1 Hole — 2 Wire | |||||||||||||||
| 2/0-4/0 | 5/8" | 0.625" | 6.875" | 2.687" | 1.562" | 0.257" | Stranded | Copper | Black | Nylon | Copper | 350° | 40V AC 40V DC | 0000000 | 00000 |
45° Elbow | |||||||||||||||
1 Hole — 1 Wire | |||||||||||||||
| 6-1/0 | 1/2" | 0.5" | 3.125" | 1.073" | 1.750" | 0.215" | Stranded | Copper | Black | Nylon | Copper | 470° | 40V AC 40V DC | 0000000 | 00000 |
| 2/0-4/0 | 1/2" | 0.5" | 3.375" | 0.913" | 1.991" | 0.188" | Stranded | Copper | Black | Nylon | Copper | 470° | 40V AC 40V DC | 0000000 | 00000 |
Lug Covers
| For Wire Gauge | Material | Each | |
| 6-4/0 | Vinyl Plastic | 0000000 | 000000 |
Box Set Screw Lugs
Thread these lugs onto grounding or neutral bars commonly found in panelboards. For a secure connection without crimping, tighten the set screw.
For technical drawings and 3-D models, click on a part number.
| For Wire Gauge | Thread Size | For Wire Material | For Wire Type | Terminal Material | Length | Width | Height | Maximum Temperature, °F | Maximum Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14-2 | 10-32 | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 0.469" | 0.487" | 0.640" | 165° | 600V AC 600V DC | UL Recognized Component, CSA Certified | 0000000 | 00000 |
| 14-1/0 | 10-32 | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 0.625" | 0.564" | 0.687" | 165° | 600V AC 600V DC | UL Recognized Component, CSA Certified | 0000000 | 0000 |
| 6-250 MCM | 1/4"-20 | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 1.000" | 0.812" | 1.000" | 165° | 600V AC 600V DC | UL Recognized Component, CSA Certified | 0000000 | 00000 |
Multi-Angle Set Screw Lugs
Multi-Angle
Often used in tight spaces, these lugs allow wire to enter at several angles. Tighten the set screw for a secure connection without crimping.
For technical drawings and 3-D models, click on a part number.
| For Wire Gauge | For Screw Size | For Screw Size Decimal Equivalent | For Wire Material | For Wire Type | Terminal Material | Lg. | Wd. | Ht. | Thick. | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-2 | 3/8" | 0.375" | Copper | Stranded | Copper | 2.500" | 0.810" | 1.380" | 0.25" | 190° | 600V AC 600V DC | UL Listed | 0000000 | 0000000 |
| 2-1/0 | 3/8" | 0.375" | Copper | Stranded | Copper | 2.690" | 0.880" | 1.440" | 0.25" | 190° | 600V AC 600V DC | UL Listed | 0000000 | 000000 |
| 1/0-4/0 | 3/8" | 0.375" | Copper | Stranded | Copper | 3.190" | 1.060" | 1.750" | 0.31" | 190° | 600V AC 600V DC | UL Listed | 0000000 | 000000 |
Lay-In Set Screw Lugs
Mount these lugs to a surface to create electrical connections without needing to cut or splice the conductor wire. For a secure connection without crimping, tighten the set screw onto the wire.
Copper lugs can be used in large power distribution systems, motors, and generators.
Aluminum lugs are more lightweight than copper lugs and can be used in electrical distribution systems.
For technical drawings and 3-D models, click on a part number.
| For Wire Gauge | For Screw Size | For Screw Size Decimal Equivalent | For Wire Material | For Wire Type | Lg. | Wd. | Ht. | Thick. | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
Tin-Plated Copper Lugs | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 Hole | |||||||||||||
| 14-4 | 3/16" | 0.188" | Copper | Stranded | 1.040" | 0.380" | 0.760" | 0.17" | __ | __ | UL Listed C-UL Listed | 0000000 | 00000 |
Tin-Plated Aluminum Lugs | |||||||||||||
1 Hole | |||||||||||||
| 14-4 | 3/16" | 0.188" | Aluminum, Copper | Stranded | 1.060" | 0.380" | 0.780" | 0.15" | 190° | 600V AC | UL Listed C-UL Listed | 0000000 | 0000 |
| 6-250 MCM | 5/16" | 0.313" | Aluminum, Copper | Stranded | 2.200" | 0.800" | 1.700" | 0.3" | 190° | 600V AC | UL Listed C-UL Listed | 0000000 | 0000 |
Tamper-Resistant Set Screw Lugs
1 Hole — 1 Wire
2 Hole — 1 Wire
With screw heads that shear off when the appropriate torque is applied, these lugs create a secure and tamper-resistant connection without crimping. Use 3/8" hex key to install.
For technical drawings and 3-D models, click on a part number.
| For Wire Gauge | For Screw Size | For Screw Size Decimal Equivalent | Ctr.-to-Ctr. | For Wire Material | For Wire Type | Terminal Material | Lg. | Wd. | Ht. | Thick. | Max. Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350-500 MCM | 1/2" | 0.5" | __ | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.190" | 1.460" | 1.750" | 0.500" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 000000 |
| 600-750 MCM | 1/2" | 0.5" | __ | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.190" | 1.670" | 1.900" | 0.620" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 1000 MCM | 1/2" | 0.5" | __ | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.190" | 1.750" | 2.010" | 0.800" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
2 Hole — 1 Wire | |||||||||||||||
| 2/0-4/0 | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.850" | 1.100" | 1.250" | 0.400" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 250-350 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 5.900" | 1.220" | 1.500" | 0.400" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 350-500 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 6.950" | 1.460" | 1.750" | 0.500" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 600-750 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 6.950" | 1.670" | 1.900" | 0.620" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |
| 1000 MCM | 1/2" | 0.5" | 1 3/4" | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 6.950" | 1.750" | 2.010" | 0.800" | 190° | 600V AC 600V DC | UL Listed, C-UL Listed | 0000000 | 00000 |

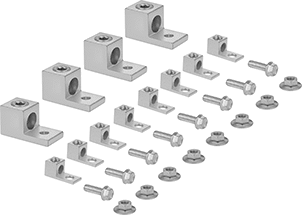

Set Screw Lug Assortments
Keep on hand the set screw lugs, nuts, and bolts needed to install single- or three-phase dry-type transformers. Tighten the set screw onto your wire for a secure connection without crimping.
| No. of Pieces | Includes | For Screw Size | For Transformer Electrical Phase (Power Output) | For Wire Material | For Wire Type | Terminal Material | Max.Temp., °F | Max. Voltage | Specifications Met | Each | |
1 Hole — 1 Wire | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 28 | 1/4"-20 Nuts 1/4"-20 × 3/4" Bolts Set Screw Lugs (14-2 AWG; 6 AWG-250 MCM) | 1/4" | Single (15-37 kVA) Three (15-45 kVA) | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 190° | 600V AC | UL Listed C-UL Listed | 0000000 | 000000 |
| 44 | 1/4"-20 Nuts 1/4"-20 × 3/4" Bolts 1/4"-20 × 1 3/4" Bolts Set Screw Lugs (6 AWG-250 MCM) | 1/4" | Single (50-75 kVA) Three (75-112 kVA) | Aluminum, Copper | Stranded | Tin-Plated Aluminum | 190° | 600V AC | UL Listed C-UL Listed | 0000000 | 00000 |
