Starrett Slide Ruler Calipers
Move the jaw along the ruler to take inside and outside measurements.
Measuring Range | Min. Inside Measuring Lg. | Accuracy | Measuring Increments | Fractional Increments | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Manufacturer Model Number | Each | |
0"-4 3/4" | 1/4" | ±0.006" | 0.01563", 0.03125" | 1/64", 1/32" | 6" | Stainless Steel | Stainless Steel | 1 3/8" | 1025 | 000000 | 0000000 |
Large-Capacity Slide Ruler Calipers
These calipers have deep jaws for measuring large-diameter objects, such as pipes, poles, and logs. Move the jaw along the ruler to take outside measurements.
Measuring Range | Min. Inside Measuring Lg. | Accuracy | Measuring Increments | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Each | |
0"-18" | 0.1" | ±0.100" | 0.1" | 28" | Aluminum | Aluminum | 11 1/2" | 00000000 | 0000000 |
0"-24" | 0.1" | ±0.100" | 0.1" | 34" | Aluminum | Aluminum | 14 1/2" | 00000000 | 000000 |
0"-30" | 0.1" | ±0.100" | 0.1" | 40" | Aluminum | Aluminum | 18" | 00000000 | 000000 |
0"-50" | 0.1" | ±0.100" | 0.1" | 58" | Aluminum | Aluminum | 27 1/2" | 00000000 | 000000 |
0cm-50cm | 2.54mm | ±1.000 mm | 1mm | 28" | Aluminum | Aluminum | 11 1/2" | 00000000 | 000000 |
Economy Slide Ruler Calipers
Take inside and outside measurements by moving the jaw along the ruler.
Measuring Range | Min. Inside Measuring Lg. | Accuracy | Measuring Increments | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | Metric | Inch | Metric | Inch | Metric | Inch | Metric | Fractional Increments | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Each | |
0"-4" | __ | 3/16" | __ | ±0.0312" | __ | 0.0625" | __ | 1/32" | 6" | Stainless Steel | Stainless Steel | 1" | 0000000 | 000000 |
0"-4" | 0 mm-100 mm | 1/4" | 6 mm | ±0.03125" | ±0.800 mm | 0.03125" | 1 mm | 1/32" | 4 1/2" | Brass | Brass | 1" | 0000000 | 00000 |
0"-3" | 0 mm-76 mm | 3/16" | 5 mm | ±0.0312" | ±0.800 mm | 0.03125" | 1 mm | 1/32" | 4 3/4" | Stainless Steel | Stainless Steel | 3/4" | 0000000 | 00000 |
Fine-Adjustment Economy Vernier Calipers

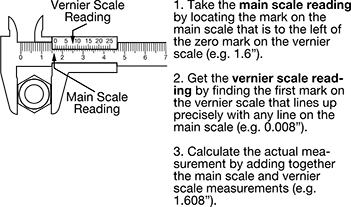

These calipers have a mechanism which allows you to make finer adjustments. Use the graduations on the sliding vernier scale coupled with graduations on the ruler to take precise measurements.
Measuring Range | Accuracy | Measuring Increments | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Inch | Metric | Inch | Metric | Inch | Metric | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Each | |
0"-6" | 0 mm-150 mm | ±0.001" | ±0.025 mm | 0.001" | 0.02 mm | 7" | Stainless Steel | Stainless Steel | 1 5/8" | 0000000 | 000000 |
0"-8" | 0 mm-200 mm | ±0.0015" | ±0.040 mm | 0.001" | 0.02 mm | 11 1/2" | Stainless Steel | Stainless Steel | 1 7/8" | 0000000 | 00000 |
0"-12" | 0 mm-300 mm | ±0.0015" | ±0.040 mm | 0.001" | 0.02 mm | 16" | Stainless Steel | Stainless Steel | 2 3/8" | 0000000 | 00000 |
Economy Vernier Calipers
Graduations on the sliding vernier scale coupled with graduations on the ruler allow you to take precise measurements.
Measuring Range | Accuracy | Measuring Increments | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Each | |
0"-4" | ±0.001" | 0.001" | 6 3/16" | Stainless Steel | Stainless Steel | 1.175" | 0000000 | 000000 |
Locking-Jaw Economy Vernier Calipers
Move the jaws only when the thumb lock is depressed. Graduations on the sliding vernier scale coupled with graduations on the ruler allow you to take precise measurements.
Measuring Range | Accuracy | Measuring Increments | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Inch | Metric | Inch | Metric | Inch | Metric | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Each | |
0"-6" | 0 mm-150 mm | ±0.0015" | ±0.040 mm | 0.001" | 0.02 mm | 9" | Stainless Steel | Stainless Steel | 1 1/2" | 0000000 | 000000 |
Fine-Adjustment Mitutoyo Vernier Calipers
These calipers have a mechanism which allows you to make finer adjustments. Use the graduations on the sliding vernier scale coupled with graduations on the ruler to take precise measurements.
Measuring Range | Accuracy | Measuring Increments | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | Metric | Inch | Metric | Inch | Metric | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Manufacturer Model No. | Each | |
0"-18" | 0 mm-450 mm | ±0.002" | ±0.050 mm | 0.001" | 0.02 mm | 24 3/4" | Stainless Steel | Stainless Steel | 3 15/16" | 160-151 | 0000000 | 0000000 |
0"-24" | 0 mm-600 mm | ±0.002" | ±0.050 mm | 0.001" | 0.02 mm | 30 3/4" | Stainless Steel | Stainless Steel | 3 15/16" | 160-153 | 0000000 | 00000000 |
0"-40" | 0 mm-1,000 mm | ±0.003" | ±0.070 mm | 0.001" | 0.02 mm | 48 3/4" | Stainless Steel | Stainless Steel | 5 1/2" | 160-155 | 0000000 | 00000000 |
Locking-Jaw Mitutoyo Vernier Calipers
Jaws move only when the thumb lock is depressed. Graduations on the sliding vernier scale coupled with graduations on the ruler allow you to take precise measurements.
Depth base attachment (sold separately) stabilizes the caliper when taking depth measurements.
Mitutoyo Vernier Calipers
Graduations on the sliding vernier scale coupled with graduations on the ruler allow you to take precise measurements.
Depth base attachments (sold separately) stabilize the caliper when taking depth measurements.
Measuring Range | Accuracy | Measuring Increments | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | Metric | Inch | Metric | Inch | Metric | Overall Lg. | Body Material | Jaw Material | Jaw Dp. | Manufacturer Model Number | Each | |
0"-6" | __ | ±0.0015" | __ | 0.001" | __ | 9" | Stainless Steel | Stainless Steel | 1 1/2" | 530-105 | 0000000 | 0000000 |
0"-6" | 0 mm-150 mm | ±0.0012" | ±0.030 mm | 0.001" | 0.02 mm | 9" | Stainless Steel | Stainless Steel | 1 1/2" | 530-312 | 0000000 | 000000 |
0"-12" | 0 mm-300 mm | ±0.0015" | ±0.040 mm | 0.001" | 0.02 mm | 16" | Stainless Steel | Stainless Steel | 2 1/2" | 530-119 | 0000000 | 000000 |
