Sloan Flush Valve Replacement Parts


Manual Regal, Royal, and Naval Flush Valves	Touch-Free ECOS, Optima Plus, G2 Optima Plus and SOLIS Flush Valves	Touch-Free Optima ESS Flush Valves

Cover and Body Components


Manual Regal, Royal, and Naval Flush Valves	Touch-Free ECOS, Optima Plus, G2 Optima Plus and SOLIS Flush Valves

Touch-Free Optima ESS Flush Valves

	Style	Component	For Use With	For Water per Flush	Mfr. Model No.		Each
For Manual Regal and Royal Flush Valves



		A	Outside Cover	Toilets, Urinals	—	A-72	0000000	000000


		B	Inside Cover	Toilets, Urinals	—	A-71	0000000	00000


		For Manual Royal Flush Valves



				G	Diaphragm Kit (White)	Toilets	3.5 gal.	A-1038-A	0000000	00000


				G	Diaphragm Kit (Blue)	Toilets	1.28 gal.	A-1045-A	0000000	00000
				G	Diaphragm Kit (Green)	Toilets	1.6 gal.	A-1041-A	0000000	00000
				G	Diaphragm Kit (Green)	Urinals	0.5 gal.	A-1043-A	0000000	00000
				G	Diaphragm Kit (Green)	Urinals	1 gal.	A-1042-A	0000000	00000
				G	Diaphragm Kit (Black)	Urinals	1.5 gal.	A-1037-A	0000000	00000


				For Manual Naval Flush Valves



						Y	Piston Kit	Toilets	—	CN-1002-A	0000000	00000


						Y	Piston Kit	Urinals	—	CN-1003-A	0000000	00000


						For Manual Regal and Royal; Touch-Free Optima ESS Flush Valves



								C	Relief Valve (White)	Toilets	—	A-19-AC	0000000	0000


								C	Relief Valve (Green)	Toilets, Urinals	—	A-19-ALC	0000000	0000
								C	Relief Valve (Black)	Urinals	—	A-19-AU	0000000	0000
								D	Molded Disc	Toilets, Urinals	—	A-15-A	0000000	0000
								E	Diaphragm	Toilets, Urinals	—	A-156-A	0000000	0000
								F	Guide Assembly	Toilets Urinals	4.5 gal. 1.5 gal.	A-163-A	0000000	0000
								F	Guide Assembly	Toilets	1.6 gal.	A-151-A	0000000	00000
								F	Guide Assembly	Toilets	3.5 gal.	A-152-A	0000000	0000
								F	Guide Assembly	Urinals	1 gal.	A-155-A	0000000	00000
								G	Diaphragm Kit	Toilets	2.4 gal.	A-44-A	00000000	00000
								G	Diaphragm Kit (White)	Toilets	3.5 gal.	A-38-A	0000000	00000


								G	Diaphragm Kit (White)	Toilets	4.5 gal.	A-36-A	0000000	00000
								G	Diaphragm Kit (Green)	Toilets	1.6 gal.	A-41-A	0000000	00000
								G	Diaphragm Kit (Green)	Urinals	0.5 gal.	A-43-A	0000000	00000
								G	Diaphragm Kit (Green)	Urinals	1 gal.	A-42-A	0000000	00000
								G	Diaphragm Kit (Black)	Urinals	1.5 gal.	A-37-A	0000000	00000


								For Touch-Free Optima Plus and G2 Optima Plus Flush Valves



										G	Diaphragm Kit	Toilets Urinals	1.6 gal., 3.5 gal., 4.5 gal. 3.5 gal.	EBV-1020-A	0000000	00000


G	Diaphragm Kit									Toilets	1.28 gal.	EBV-1024-A	0000000	00000
G	Diaphragm Kit									Urinals	0.5 gal.	EBV-1023-A	0000000	00000
G	Diaphragm Kit									Urinals	1 gal., 1.5 gal.	EBV-1022-A	0000000	00000
Z	Sensor Assembly									Toilets	—	EBV-138-A	0000000	000000
Z	Sensor Assembly									Urinals	—	EBV-139-A	0000000	000000
AA	Sensor Module									Toilets	—	EBV-129-A-C	0000000	000000
AA	Sensor Module									Toilets	1.6 gal.	EBV-146-A-C	0000000	000000
AA	Sensor Module									Urinals	—	EBV-129-A-U	0000000	000000


For Touch-Free ECOS Flush Valves



		Z	Sensor Assembly							Urinals	0.13 gal.	EBV-381-A	0000000	000000


		AA	Sensor Module							Toilets, Urinals	1.1 gal., 1.6 gal.	EBV-196-A	0000000	000000
		AA	Sensor Module							Urinals	0.13 gal.	EBV-386 AU	0000000	000000
		CC	Push-Button Assembly							Toilets	—	WES-23-A	00000000	00000


		For Touch-Free SOLIS Flush Valves



				AA	Sensor Module					Toilets	—	WES-33-A	0000000	000000


				AA	Sensor Module					Urinals	—	EBV-312-A-U	0000000	000000
				DD	Outside Cover					Toilets, Urinals	—	EBV-309-A	00000000	000000

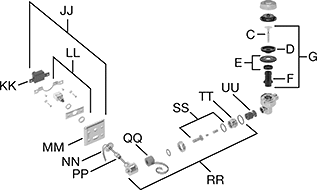

				For Touch-Free Optima ESS Flush Valves



						JJ	Sensor Assembly			Toilets	—	EL-595-A	00000000	000000


						KK	Sensor			Toilets	—	EL-1500-L	00000000	000000
						KK	Sensor			Urinals	—	EL-1500	00000000	000000
						LL	Push-Button Assembly			Toilets, Urinals	—	EL-141-A	00000000	00000
						MM	Wall-Plate Sensor Cover			Toilets	—	EL-201	00000000	00000
						NN	Wall-Plate Flange			Toilets, Urinals	—	EL-431-A	00000000	00000
						PP	Solenoid Valve Extender			Toilets, Urinals	—	EL-226	00000000	00000
						QQ	Solenoid Valve			Toilets, Urinals	—	EL-165-2	00000000	00000
						RR	Solenoid Valve Assembly			Toilets, Urinals	—	EL-124-2	00000000	000000
						RR	Solenoid Valve Assembly			Toilets, Urinals	—	EL-138-2	00000000	000000
						SS	Solenoid Valve Repair Kit			Toilets, Urinals	—	EL-163-A	00000000	00000


						TT	Solenoid Valve Adapter			Toilets, Urinals	—	EL-104	00000000	00000
						UU	Actuator Kit			Toilets, Urinals	—	EL-128-A	00000000	00000


						For Touch-Free Optima Plus Flush Valves



										AA	Sensor Module	Urinals	3 gal.	EBV-146-A-U	00000000	000000


								For Touch-Free ECOS and G2 Optima Plus Flush Valves



										DD	Outside Cover	Toilets, Urinals	—	EBV-142-A	00000000	000000


										For Touch-Free G2 Optima Plus and SOLIS Flush Valves



												BB	Solenoid Valve	Toilets, Urinals	—	EBV-136-A	00000000	00000


For Touch-Free ECOS, Optima Plus and G2 Optima Plus Flush Valves



												CC	Push-Button Assembly	Toilets, Urinals	—	EBV-130-A	00000000	00000


												GG	Sensor Lens	Toilets, Urinals	—	EBV-131	00000000	00000


												For Touch-Free ECOS, Optima Plus and SOLIS Flush Valves



												G	Diaphragm Kit	Urinals	0.125 gal.	EBV-1025-A	00000000	00000


												For Touch-Free Optima Plus, G2 Optima Plus and SOLIS Flush Valves



														G	Diaphragm Kit	Toilets	2.4 gal.	EBV-1021-A	00000000	00000


				For Touch-Free ECOS, Optima Plus, G2 Optima Plus and SOLIS Flush Valves



														G	Diaphragm Kit	Toilets	1.6 gal.	EBV-1053-A	00000000	00000


														EE	Battery Cover	Toilets, Urinals	—	—	00000000	00000
														FF	Inside Cover with Solenoid Valve	Toilets, Urinals	—	EBV-145-A	00000000	000000
														HH	Regulator	Toilets	3.5 gal.	EBV-102-1	00000000	0000

Control Stop and Tailpiece Components

Image of System. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. Sloan Flush Valve Replacement Parts, Control Stop and Tailpiece Components.

	Component	For Use With	Mfr. Model No.		Each
For Manual Regal, Royal, and Naval; Touch-Free Optima Plus and G2 Optima Plus Flush Valves



	H	Locking Ring	Toilets, Urinals	H-552	0000000	00000


	L	1" Stop Cap	Toilets, Urinals	H-622	0000000	00000
	M	3/4" Control Stop Kit	Toilets, Urinals	H-543-A	0000000	00000
	M	1" Control Stop Kit	Toilets, Urinals	H-541-A	0000000	00000
	U	Locking Coupling	Toilets, Urinals	H-550	0000000	00000
	V	Control Stop O-Ring	Toilets, Urinals	H-553	0000000	0000


	For Manual Regal and Royal; Touch-Free Optima Plus and G2 Optima Plus Flush Valves



			J	Adjustable Tailpiece with Ring and O-Ring	Toilets, Urinals	H-551-A	0000000	00000


			For Manual Royal and Naval; Touch-Free Optima Plus and G2 Optima Plus Flush Valves



					K	3/4" Vandal-Resistant Stop Cap	Toilets, Urinals	H-1009-A	0000000	00000


					K	1" Vandal-Resistant Stop Cap	Toilets, Urinals	H-1010-A	0000000	00000

Vacuum Breaker and Spud Coupling Components

Image of System. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. Sloan Flush Valve Replacement Parts, Vacuum Breaker and Spud Coupling Components.

	Component	For Use With	Mfr. Model No.		Each
For Manual Regal, Royal, and Naval; Touch-Free Optima Plus, Optima ESS, G2 Optima Plus, ECOS and SOLIS Flush Valves



	W	3/4 Pipe Size × 15" Lg. Vacuum Breaker and Pipe	Urinals	V-500-AA	00000000	000000


	W	1 1/2 Pipe Size × 13 1/2" Lg. Vacuum Breaker and Pipe	Toilets	V-500-AA	00000000	00000
	W	1 1/2 Pipe Size × 21 1/2" Lg. Vacuum Breaker and Pipe	Toilets	V-500-AA	00000000	00000
	X	1 1/2 Pipe Size Spud Coupling Assembly	Toilets	F-56-A	00000000	00000
	WW	3/4" Gasket Set	Urinals	F-3	00000000	0000
	WW	3/4" Gasket Set	Urinals	F-5	00000000	0000
	WW	1 1/2" Gasket Set	Toilets	F-3	00000000	0000
	WW	1 1/2" Gasket Set	Toilets	VBF-5	00000000	0000


	For Manual Regal, Royal, and Naval; Touch-Free Optima Plus and G2 Optima Plus Flush Valves



			N	Vacuum Breaker Kit	Toilets, Urinals	V-551-A	0000000	0000


			N	Vacuum Breaker Kit	Toilets, Urinals	V-651-A	0000000	0000
			P	1 1/2" Coupling Assembly	Toilets, Urinals	F-2-AT	0000000	00000
			W	3/4 Pipe Size × 9" Lg. Vacuum Breaker and Pipe	Urinals	V-500-AA	0000000	00000
			W	1 1/4 Pipe Size × 9" Lg. Vacuum Breaker and Pipe	Urinals	V-500-AA	0000000	00000
			W	1 1/2 Pipe Size × 3" Lg. Vacuum Breaker and Pipe	Toilets	V-500-A	0000000	00000
			W	1 1/2 Pipe Size × 9" Lg. Vacuum Breaker and Pipe	Toilets	V-500-AA	0000000	00000
			W	1 1/2 Pipe Size × 24 1/2" Lg. Vacuum Breaker and Pipe	Toilets	V-500-AA	0000000	00000


			For Manual Royal and Naval; Touch-Free Optima Plus and G2 Optima Plus Flush Valves



					X	3/4 Pipe Size Spud Coupling Assembly	Toilets, Urinals	F-5-AW	0000000	00000


					X	1 1/4 Pipe Size Spud Coupling Assembly	Toilets, Urinals	F-5-AU	0000000	00000
					X	1 1/2 Pipe Size Spud Coupling Assembly	Toilets, Urinals	F-5-AT	0000000	00000

Handle Components

Image of System. Front orientation. Exploded view. Contains Annotated. Flush Valve Replacement Parts. Sloan Flush Valve Replacement Parts, Handle Components.

	Component	For Use With	Mfr. Model No.		Each
For Manual Regal Flush Valves



	R	Handle Repair Kit	Toilets, Urinals	B-50-A	0000000	00000


	S	Standard Handle Kit	Toilets, Urinals	B-32-A	0000000	00000


	For Manual Regal, Royal, and Naval Flush Valves



			Q	ADA Handle Kit	Toilets, Urinals	B-73-A	0000000	00000


			T	Handle Nut	Toilets, Urinals	A-6	0000000	0000

Master Repair Kits


For Manual Regal and Royal Flush Valves	For Touch-Free Optima ESS Flush Valves

	Component	For Use With	For Water per Flush	Mfr. Model No.	Includes		Each
For Manual Regal Flush Valves



	G, N, R, V	Master Repair Kit	Toilets	1.6 gal.	R-1004-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	000000


	G, N, R, V	Master Repair Kit	Toilets	3.5 gal.	R-1003-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
	G, N, R, V	Master Repair Kit	Toilets	4.5 gal.	R-1001-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
	G, N, R, V	Master Repair Kit	Urinals	0.5 gal.	R-1011-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
	G, N, R, V	Master Repair Kit	Urinals	1 gal.	R-1005-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
	G, N, R, V	Master Repair Kit	Urinals	1.5 gal.	R-1002-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000


	For Manual Royal Flush Valves



			G, N, R, V	Master Repair Kit	Toilets	1.6 gal.	A-1101-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000


			G, N, R, V	Master Repair Kit	Toilets	3.5 gal.	A-1102-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
			G, N, R, V	Master Repair Kit	Urinals	0.5 gal.	A-1106-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
			G, N, R, V	Master Repair Kit	Urinals	1 gal.	A-1107-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000
			G, N, R, V	Master Repair Kit	Urinals	1.5 gal.	A-1108-A	Control Stop O-Ring, Diaphragm Kit, Handle Repair Kit, Vacuum Breaker Kit	0000000	00000


			For Touch-Free Optima ESS Flush Valves



					VV	Master Repair Kit	Toilets	1.6 gal.	EL-1101-A	Control Stop O-Ring, Diaphragm Kit, Vacuum Breaker Kit	00000000	00000


					VV	Master Repair Kit	Toilets	3.5 gal.	EL-1102-A	Control Stop O-Ring, Diaphragm Kit, Vacuum Breaker Kit	00000000	00000

Manual Toilet Flush Valves


Sloan Royal For Top Toilet Inlet	Sloan Royal For Back Toilet Inlet

Choose a valve with the same consumption rate (water per flush) as your tankless toilet. Valves have a vacuum breaker to prevent water from backing up into the main line and a control stop to allow repairs without shutting off the water supply. They help you comply with ADA when properly installed.

Cannot Be Sold To—Product regulations restrict sales to the listed jurisdictions/areas.

			For Toilet Inlet		Inlet
	Installation Distance	Water per Flush, gal.	Location	Dia.	Location	Pipe Size	Thread Type	Gender	Mfr. Model No.	Material	Mounting Hardware Included	Specs. Met	Certification	Cannot Be Sold To		Each
Sloan Royal



		11 1/2"	1.28	Top	1 1/2"	Back	1	NPT	Female	111-1.28	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	—	0000000	0000000


		11 1/2"	1.28	Back	1 1/2"	Back	1	NPT	Female	120-1.28	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	—	0000000	000000
		11 1/2"	1.6	Top	1 1/2"	Back	1	NPT	Female	111-1.6	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		11 1/2"	1.6	Back	1 1/2"	Back	1	NPT	Female	120-1.6	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		11 1/2"	3.5	Top	1 1/2"	Back	1	NPT	Female	110	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		11 1/2"	3.5	Back	1 1/2"	Back	1	NPT	Female	120	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		27"	1.28	Top	1 1/2"	Back	1	NPT	Female	116-1.28	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	—	0000000	000000
		27"	1.6	Top	1 1/2"	Back	1	NPT	Female	116-1.6	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		27"	3.5	Top	1 1/2"	Back	1	NPT	Female	116	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000

Manual Urinal Flush Valves


Sloan For 3/4" Diameter Urinal Inlets	Sloan For 1 1/4" Diameter Urinal Inlets

Choose a valve with the same consumption rate (water per flush) as your tankless urinal. Valves have a vacuum breaker to prevent water from backing up into the main line and a control stop to allow repairs without shutting off the water supply. They help you comply with ADA when properly installed.

			For Urinal Inlet		Inlet
	Installation Distance	Water per Flush, gal.	Location	Dia.	Location	Pipe Size	Thread Type	Gender	Mfr. Model No.	Material	Mounting Hardware Included	Specs. Met	Certification		Each
Sloan Royal



		11 1/2"	0.125	Top	3/4"	Back	3/4	NPT	Female	186-0.125	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	0000000


		11 1/2"	0.5	Top	3/4"	Back	3/4	NPT	Female	186-0.5	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1	Top	3/4"	Back	3/4	NPT	Female	186-1.0	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1	Top	1 1/4"	Back	1	NPT	Female	180-1.0	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1.5	Top	3/4"	Back	3/4	NPT	Female	186	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1.5	Top	1 1/4"	Back	1	NPT	Female	180-1.5	Chrome-Plated Brass	Yes	ASSE 1037	CSA Certified	0000000	000000

Manual-to-Touch-Free Flush Valve Converters


Style A	Style B	Style D	Style E

For touch-free flushing on your toilets or urinals, attach these converters to your manual flush valves. They’re activated by a motion sensor, but you can also flush with a manual override option. When properly installed—no higher than 44” from the floor—these converters help you comply with ADA guidelines.

Style A—Style A should have the same consumption rate (water per flush) as your toilet or urinal.

Style B—Style B should have the same consumption rate (water per flush) as your urinal. These are powered by a solar cell, but they also have a backup battery to ensure you can flush repeatedly. The solar cell uses artificial light to generate power, even if the lights only turn on when the room is occupied, which extends the battery life. These converters connect to your phone via Bluetooth to set the sensor distance and check the battery strength. To prevent bacteria growth in rarely used toilets, you can also schedule flushes at set intervals. Download a free app and stand within sight of a converter to connect to your phone.

Style D—Style D replace the handle of your urinal or tankless toilet. Use the tilt-down adapter (sold separately) when connecting Style D to valves with a 27" installation distance. It angles the sensor down to detect users and prevent unintended flushes.

Style E—Style E slip over the handle of your urinal or tankless toilet.

	Style	Batteries Included	Specs. Met	Includes		Each
For Sloan Regal, Royal Toilets







		Battery Powered

		A	1.28	RESS-C	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	0000000


		A	1.6, 3.5, 4.5	RESS-C	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000




				Solar Powered with Backup Battery

				B	1.1, 1.6	RESS-C BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000


				B	1.28	RESS-C BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000


				For Sloan Regal, Royal Urinals







								Battery Powered

								A	0.25	RESS-U	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000


								A	0.5	RESS-U	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000
								A	1, 1.5	RESS-U	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000




										Solar Powered with Backup Battery

										B	0.125	RESS-U BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000


										B	0.25	RESS-U BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000
										B	0.5	RESS-U BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000
										B	1	RESS-U BT	Yes	ICC A117.1	Gasket, Handle Cap, Installation Tools	0000000	000000


										For Zurn, Sloan Toilets and Urinals







														Battery Powered

D														—	—	Yes	—	Installation Tools	0000000	000000


E	—													—	Yes	—	Installation Tools	0000000	000000

Accessories and Replacements for Flush Valve Converters

		Each
Replacement Handle Nut for Style A and B	0000000	000000
Tilt-Down Adapter for Style D	0000000	00000

Touch-Free Urinal Flush Valves


Sloan, For 3/4" Diameter Urinal Inlets	Sloan, For 1 1/4" Diameter Urinal Inlets

These flush valves have a motion sensor for touch-free operation and a manual override button. Choose a valve with the same consumption rate (water per flush) as your tankless urinal. Valves have a vacuum breaker to prevent water from backing up into the main line and a control stop to allow repairs without shutting off the water supply. They help you comply with ADA when properly installed. Product regulations restrict sales to the listed jurisdictions/areas.

			For Urinal Inlet		Inlet
	Installation Distance	Water per Flush, gal.	Location	Dia.	Location	Pipe Size	Thread Type	Gender	Mfr. Model No.	Material	Batteries Included	Mounting Hardware Included	Specs. Met	Certification		Each
Sloan G2 Optima Plus



		11 1/2"	0.5	Top	3/4"	Back	3/4	NPT	Female	8186-0.5	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	0000000


		11 1/2"	1	Top	3/4"	Back	3/4	NPT	Female	8186-1.0	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1	Top	1 1/4"	Back	1	NPT	Female	8180-1.0	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1.5	Top	3/4"	Back	3/4	NPT	Female	8186	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	000000
		11 1/2"	1.5	Top	1 1/4"	Back	1	NPT	Female	8180-1.5	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	000000


		Sloan ECOS



				11 1/2"	0.125	Top	3/4"	Back	3/4	NPT	Female	8186-0.125	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	0000000	000000

Touch-Free Toilet Flush Valves

Sloan G2 Optima Plus

These flush valves have a motion sensor for touch-free operation and a manual override button. Choose a valve with the same consumption rate (water per flush) as your tankless toilet. Valves have a vacuum breaker to prevent water from backing up into the main line and a control stop to allow repairs without shutting off the water supply. They help you comply with ADA when properly installed.

Cannot Be Sold To—Product regulations restrict sales to the listed jurisdictions/areas.

			For Toilet Inlet		Inlet
	Installation Distance	Water per Flush, gal.	Location	Dia.	Location	Pipe Size	Thread Type	Gender	Mfr. Model No.	Material	Batteries Included	Mounting Hardware Included	Specs. Met	Certification	Cannot Be Sold To		Each
Sloan G2 Optima Plus



		11 1/2"	1.28	Top	1 1/2"	Back	1	NPT	Female	8111-1.28	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	—	0000000	0000000


		11 1/2"	1.6	Top	1 1/2"	Back	1	NPT	Female	8111	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000
		11 1/2"	3.5	Top	1 1/2"	Back	1	NPT	Female	8110	Chrome-Plated Brass	Yes	Yes	ASSE 1037	CSA Certified	Colorado	0000000	000000

Pressurized-Tank Toilet Kits

To make sure you get the right kit, first check whether you have a 1-piece or 2-piece toilet. Then, select the kit with a serial number that matches the center numbers on the top of your tank.

	For Mfr.	For Mfr. Series	For Mfr. Model No.	For Manufacturer Serial Number		Each
For One-Piece Toilets



	1	Sloan	Flushmate	504	C01	0000000	0000000


	1	Sloan	Flushmate	504	F4M	0000000	000000
	1	Sloan	Flushmate	504	FC, FC1	0000000	000000


	For Two-Piece Toilets



			1	Sloan	Flushmate	504	F4B, F4BR, F4C, F4F1, F4F2, F4J, F4M, F4MP, F4V, F4V1, F4V2, F4T1, F4P1, F42	0000000	000000


			1	Sloan	Flushmate	504	F4K2, F4KR, F43, F42	0000000	000000
			1.28	Sloan	Flushmate	503H	F3G6, F3H, F3H1, F3HC, F3HE, F3HG, F3HG2, F3HM, F3HS	0000000	000000
			1.28	Sloan	Flushmate	503H	F3HGR, F3HG3, F3H3, F3HL	0000000	000000
			1.6	Sloan	Flushmate	501-A, 501-B	F3B	0000000	000000
			1.6	Sloan	Flushmate	503	F32, F3KR, F3K	00000000	000000
			1.6	Sloan	Flushmate	503	F3A, F3AR, F3C, F3CR, F3E, F3ER, F3G, F3G2, F3G3, F3K1, F3K2, F3L, F3LR, F03, F03R, F3M, F3MP, F3MR, F30, F3U, F3UR, F3S, F3T, F3WM, F31	00000000	000000
			1.6	Sloan	Flushmate	503	F3GR, F3G3	0000000	000000

Replacement Parts for Pressurized-Tank Toilets

Flush Valve Cartridges

Flush valve cartridges activate the flushing mechanism.

For Mfr.	For Mfr. Series	For Mfr. Model No.		Each
Sloan	Flushmate	501-A, 501-B, 503, 504	0000000	000000
Sloan	Flushmate	504, M-102540-C	00000000	00000

Handle Kits

Handle kits replace both left- and right-side flush handles.

For Mfr.	For Mfr. Series	For Mfr. Model No.	Includes		Each
Sloan	Flushmate	503, 503H	Handle, Bushing, Cable, Crank Housing, Locknut, Plate, Screws, Spacer	0000000	000000
Sloan	Flushmate	504	Handle, Bushing, Cable, Crank Housing, Locknut, Plate, Screws, Spacer	00000000	00000

Upper Supply Kits for Pressurized-Tank Toilets

Upper supply kit connects the main line to the lower supply kit.

For Mfr. Series	For Mfr. Model No.	Includes		Each



Sloan	Flushmate	501-A, 501-B, 503, 503H, 504	Air Inducer, Clamp, Vacuum Breaker	0000000	000000
