Single-Channel Soldering Stations
Compact and portable, these stations are best for repetitive soldering tasks that only require one tool. They give you complete control over the temperature, since you can adjust the temperature as you go. To protect sensitive components, they don’t create ESD (electrostatic discharge). Choose your station based on the wattage of the iron. Irons with lower wattages are best for work on parts that require precision and high heating efficiency, such as delicate electronic components. Irons with higher wattages are best for heavy parts and thick wires that require large solder joints.
Add different shaped and sized tips depending on the components you're soldering. The smaller the point width, the smaller the solder joint. For example, use a tip with a point width of 1/64” for soldering extra-small electronics under a microscope. For heavy duty soldering and large components, a tip with a point width of 1/8” works better.
Tip (Plug Connection) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Iron Wattage | Temp. Range, °F | Wattage | Shape | Point Wd. | Duty Cycle | Approx. Heat-Up Time | Includes | Specifications Met | Each | |
WE1010NA | ||||||||||
120V AC | ||||||||||
| 70W | 200° to 850° | 85W | Screwdriver | 1/16" | Continuous | 28 sec. | One Tip One Soldering Iron One Sponge One Soldering Iron Stand | UL Listed | 0000000 | 0000000 |
| For Station Manufacturer Series | Manufacturer Model Number | Wattage | Temp. Range, °F | Tip Shape | Point Wd. | Tip Connection Type | For Tip Manufacturer Series | Duty Cycle | Approx. Heat-Up Time | Grip Material | Voltage | Includes | Each | |
| WE | WEP70 | 70W | 200° to 850° | Screwdriver | 1/16" | Plug | ET | Continuous | 28 sec. | Foam | 24V AC | One Tip | 0000000 | 000000 |
For Iron | |||||
|---|---|---|---|---|---|
| Manufacturer Model Number | Wattage | Manufacturer Model Number | Includes | Each | |
| WEP70 | 70W | PH 70 | One Sponge | 00000000 | 000000 |
| For Iron Manufacturer Model Number | Manufacturer Model Number | Tip Shape | Max. Temp., °F | Lg. | Point Wd. | Connection Type | For Station Type | For Station Manufacturer Series | Each | |
| WEP70 | ETA | Chisel | 850° | 1 3/8" | 1/16" | Plug | Soldering | WE | 0000000 | 00000 |
| WEP70 | ETAA | Round | 850° | 1 3/8" | 1/16" | Plug | Soldering | WE | 00000000 | 0000 |
| WEP70 | ETB | Chisel | 850° | 1 3/8" | 3/32" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETC | Chisel | 850° | 1 3/8" | 1/8" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETD | Chisel | 850° | 1 3/8" | 3/16" | Plug | Soldering | WE | 00000000 | 0000 |
| WEP70 | ETH | Conical | 850° | 1 3/8" | 1/32" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETJ | Conical | 850° | 1 3/4" | 1/32" | Plug | Soldering | WE | 00000000 | 0000 |
| WEP70 | ETL | Chisel | 850° | 1 3/4" | 5/64" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETM | Chisel | 850° | 1 3/4" | 1/8" | Plug | Soldering | WE | 00000000 | 0000 |
| WEP70 | ETO | Conical | 850° | 1 3/4" | 1/32" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETP | Round | 850° | 1 3/8" | 1/32" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETR | Chisel | 850° | 1 3/8" | 1/16" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETS | Conical | 850° | 1 3/4" | 1/64" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETT | Conical | 850° | 1 3/8" | 1/64" | Plug | Soldering | WE | 0000000 | 0000 |
| WEP70 | ETU | Single Flat | 850° | 1 1/2" | 1/64" | Plug | Soldering | WE | 00000000 | 0000 |
| WEP70 | ETV | Single Flat | 850° | 1 1/2" | 1/32" | Plug | Soldering | WE | 00000000 | 0000 |
Adjustable-Temperature Soldering Irons with Fixed-Temperature Tip
These irons come with one fixed temperature tip—to adjust the temperature, change out the tip. They don't create ESD (electrostatic discharge), so they protect ESD-sensitive components. Additional tips are sold separately.
Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | Shape | Min. Temp., °F | Max. Temp., °F | Point Wd. | Connection Type | Duty Cycle | Approximate Heat-Up Time | Voltage | Cord Lg., ft. | Plug Type | Specifications Met | Includes | Each | |
| 60W | Screwdriver | 700° | 800° | 1/16" | Plug | Intermittent | 60 sec. | 120V AC | 6 | Three Prong | UL Listed | 700°F Fixed-Temperature Tip | 0000000 | 0000000 |
| 100W | Screwdriver | 600° | 800° | 3/8" | Plug | Intermittent | 60 sec. | 120V AC | 6 | Three Prong | UL Listed | 700°F Fixed-Temperature Tip | 0000000 | 000000 |
Economy Soldering Irons
From electronics to metal sealing, these irons handle most light duty soldering jobs. Irons come with one tip; additional tips are sold separately.
Tip | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | Shape | Max. Temp., °F | Shank Dia. | Point Wd. | Connection Type | Duty Cycle | Soldering Temp. Setting | Voltage | Cord Lg., ft. | Plug Type | Specifications Met | Includes | Features | Each | |
| 30W | Conical | 750° | 1/8" | 1/32" | Plug | Intermittent | Fixed | 120V AC | 5 | Two Prong | UL Listed | Tip | Light | 00000000 | 000000 |
| 60W | Chisel | 880° | 1/4" | 1/4" | Plug | Intermittent | Fixed | 120V AC | 5 | Two Prong | UL Listed | Tip, Stand | Light | 00000000 | 00000 |
| 80W | Chisel | 800° | 3/8" | 3/8" | Plug | Intermittent | Fixed | 120V AC | 5 | Two Prong | UL Listed | Tip, Stand | Light | 00000000 | 00000 |
Tip | |||||
|---|---|---|---|---|---|
| For Iron Wattage | Application | Point Wd. | Connection Type | Each | |
Chisel | |||||
| 30W | Soldering | 5/32" | Plug | 00000000 | 00000 |
| 60W | Soldering | 1/4" | Plug | 00000000 | 0000 |
| 80W | Soldering | 3/8" | Plug | 00000000 | 00000 |
Conical | |||||
| 30W | Soldering | 1/32" | Plug | 00000000 | 0000 |
| 60W | Soldering | 1/32" | Plug | 00000000 | 0000 |
Screwdriver | |||||
| 30W | Soldering | 5/32" | Plug | 00000000 | 0000 |
| 60W | Soldering | 3/32" | Plug | 00000000 | 0000 |
| 80W | Soldering | 3/8" | Plug | 00000000 | 00000 |
Build-Your-Own Soldering Irons
Combine a handle, a heating element, and a tip (each sold separately) to create the iron you need.
| Voltage | Cord Lg., ft. | Plug Type | Specifications Met | Each | |
| 120V AC | 5 | Three Prong | UL Listed | 00000000 | 000000 |
Economy Instant-Heat Soldering Guns
Pull the trigger for instant heat; release it and the gun quickly cools. Guns come with one tip; additional tips are sold separately.
Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | Shape | Application | Min. Temp., °F | Max. Temp., °F | Connection Type | Duty Cycle | Soldering Temp. Setting | Voltage | Cord Lg., ft. | Plug Type | Specifications Met | Features | Each | |
| 200W/300W | Conical | Soldering | 900° | 1100° | Plug | Intermittent | Adjustable | 120V AC | 6 | Two Prong | UL Listed | Front light to illuminate work surface | 000000 | 0000000 |
| 200W/260W | Conical | Soldering | 900° | 1100° | Plug | Intermittent | Adjustable | 120V AC | 6 | Two Prong | UL Listed | Front light to illuminate work surface | 000000 | 00000 |

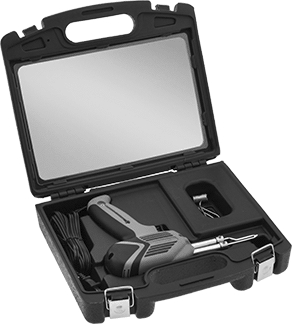

Economy Instant-Heat Soldering Gun Kits
Pull the trigger of the gun for instant heat; release it and the gun quickly cools.
Tip Temp., °F | Conical Tip | Bevel Tip | Knife Tip | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | Min. | Max. | Soldering Temp. Setting | Application | Point Wd. | Application | Point Wd. | Application | Point Wd. | Duty Cycle | Voltage | Includes | Features | Each | |
| 100W/140W | 800° | 900° | Adjustable | Soldering | 5/32" | Smoothing | 5/16" | Plastic Cutting | 11/32" | Intermittent | 120V AC | Three Tips Rosin-Core Solder Hex Wrench Plastic Case | Front light to illuminate work surface | 000000 | 000000 |
| 200W/300W | 900° | 1100° | Adjustable | Soldering | 7/32" | Smoothing | 5/16" | Plastic Cutting | 11/32" | Intermittent | 120V AC | Three Tips Rosin-Core Solder Hex Wrench Plastic Case | Front light to illuminate work surface | 000000 | 000000 |
| 200W/260W | 900° | 1100° | Adjustable | Soldering | 7/32" | Smoothing | 5/16" | Plastic Cutting | 11/32" | Intermittent | 120V AC | Three Tips Rosin-Core Solder Hex Wrench Plastic Case | Front light to illuminate work surface | 000000 | 000000 |
Tip | ||||||
|---|---|---|---|---|---|---|
| For Iron Wattage | Shape | Application | Point Wd. | Pkg. Qty. | Pkg. | |
| 100W/140W | Conical | Soldering | 5/32" | 2 | 000000 | 00000 |
| 100W/140W, 200W/260W, 200W/300W | Bevel | Smoothing | 5/16" | 2 | 000000 | 0000 |
| 100W/140W, 200W/260W, 200W/300W | Knife | Plastic Cutting | 11/32" | 2 | 000000 | 0000 |
| 200W/260W | Conical | Soldering | 7/32" | 1 | 000000 | 0000 |
| 200W/300W | Conical | Soldering | 7/32" | 2 | 0000000 | 0000 |
Instant-Heat Soldering Guns
Pull the trigger for instant heat; release it and the gun quickly cools. The tip is built into the heating element.
Tip | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | Shape | Max. Temp., °F | Point Wd. | Duty Cycle | Soldering Temp. Setting | Voltage | Cord Lg., ft. | Plug Type | Specifications Met | Features | Each | |
| 150W/400W | Conical | 1000° | 1/4" | Continuous | Fixed | 120V AC | 4 | Two Prong | UL Listed | Front light to illuminate work surface | 000000 | 0000000 |
| 300W/550W | Conical | 1050° | 7/16" | Continuous | Fixed | 120V AC | 4 | Two Prong | UL Listed | Front light to illuminate work surface | 000000 | 000000 |
Adjustable-Angle Cordless Soldering Irons
With the push of a button, these irons convert from a straight grip to a pistol grip with either a 45° or 90° head angle. Battery power and no cord means you can take them where you need them. Compared to standard cordless soldering irons, you can solder nearly three times as many joints per charge. These irons come with two tips; additional tips are sold separately.
Conical Tip | Chisel Tip | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Approx. Joints per Charge | Charging Time, min. | Approx. Heat-Up Time | Max. Tip Temp., °F | Soldering Temp. Setting | Application | Point Wd. | Application | Point Wd. | Specifications Met | Includes | Each | |
| 350 | 30 | 20 sec. | 750° | Fixed | Soldering | 1/32" | Soldering | 1/4" | C-UL Listed, UL Listed | Two Tips | 0000000 | 0000000 |
Cordless Soldering Irons
Battery power and no cord means you can take these irons where you need them. They come with two tips; additional tips are sold separately.
Irons that cannot be sold to the listed regions are restricted by local energy efficiency requirements.
| Approximate Joints per Charge | Charging Time, hrs. | Approximate Heat-Up Time | Max. Tip Temp., °F | Soldering Temp. Setting | Tip Application | Tip Shape (Point Wd.) | Tip Connection Type | Duty Cycle | Batteries Included | Specifications Met | Cannot Be Sold To | Each | |
| 125 | 4 | 10 sec. | 900° | Fixed | Soldering | Pointed (1/16"), Conical (3/16") | Plug | Continuous | Yes | UL Listed | CA, Canada | 0000000 | 000000 |
Adjustable-Temperature Butane Soldering Irons
A temperature control button lets you adjust the tip temperature of these irons to suit your application. They come with two tips; additional tips are sold separately. The cylinder tip generates hot air. The run time listed is the maximum run time. Actual run time may be less depending on temperature settings.
Chisel Tip | Cylinder Tip | Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time | Application | Temp. Range, °F | Point Wd. | Application | Max. Temp., °F | Point ID | Shank Dia. | Connection Type | Duty Cycle | Butane Included | Butane Cap., fl. oz. | Specifications Met | Includes | Each | |
| 75W | 2 hrs. | Soldering | 480°-930° | 5/64" | Hot Air | 1200° | 1/8" | 1/2" | Plug | Continuous | No | 7/8 | UL Listed | Two Tips, Protective Cap | 00000000 | 0000000 |
| 200W | 2 hrs. | Soldering | 480°-980° | 3/64" | Hot Air | 1000° | 1/4" | 11/16" | Plug | Continuous | No | 2 1/5 | UL Listed | Two Tips, 1 1/4" Dia. Heat-Shrink Attachment, Ejector, Protective Cap | 000000000 | 000000 |
| Butane Gas (5.1 oz.) | 000000 | Each | 00000 |
Adjustable-Temperature Butane Soldering Iron Kits
A temperature control button lets you adjust the tip temperature of this iron to suit your application.
Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time, hrs. | Approx. Heat-Up Time | Shape | Application | Min. Temp., °F | Max. Temp., °F | Point Wd. | Point ID | Duty Cycle | Butane Included | Specifications Met | Includes | Each | |
| 80W | 2 | 40 sec. | Chisel Cylinder | Soldering Hot Air | 480° __ | 930° 1200° | 1/8" __ | __ 3/16" | Continuous | No | UL Listed | Two Tips 1/2" Dia. Heat-Shrink Attachment Ejector Protective Cap Sponge Metal Case | 00000000 | 0000000 |
| 80W | 2 | 40 sec. | Chisel Chisel Conical Cylinder | Soldering Soldering Soldering Hot Air | 480° 480° 480° __ | 930° 930° 930° 1200° | 1/8" 5/16" 1/64" __ | __ __ __ 13/64" | Continuous | No | UL Listed | Four Tips 60/40 Tin/Lead Solder 1/2" Dia. Heat-Shrink Attachment Hot Knife Attachment Wire Cutter Needle-Nose Pliers Ejector Protective Cap Sponge Plastic Case | 0000000 | 000000 |
| Butane Gas (5.1 oz.) | 000000 | Each | 00000 |
