    9 Products

    Strut Channel Type

    Strut Channel Type

    Clamping Strut Channel Brackets

    Image of Product. Front orientation. Contains Inset. Strut Channel Framing and Fittings. Clamping Strut Channel Brackets.
    Neatly join two pieces of strut channel to create your own back-to-back stacked channel. These brackets are useful for adding onto existing installations or alternating between single and stacked channel. To connect channel, thread the bolt through the holes or slots and tighten the nut. Use two brackets to connect lengths less than one foot and add one nut for each additional foot.
    Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.
    For
    Min. Hole
    Material
    For Channel Ht.
    Wd.
    Lg.
    Static Load
    Cap., lb.
    Each

    For 1 5/8" Channel Width
    Zinc-Plated Steel13/16", 1 5/8", 2 7/16", 3 1/4"9/16"7/8"1,000000000000000


    Concealed Strut Channel Brackets

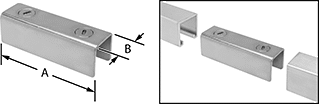

    Image of Product. Front orientation. Contains Annotated, Border, MultipleImages. Strut Channel Framing and Fittings. Concealed Strut Channel Brackets, Style 1.

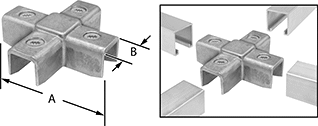

    Image of Product. Front orientation. Contains Annotated, Border, MultipleImages. Strut Channel Framing and Fittings. Concealed Strut Channel Brackets, Style 2.

    Style 1

    Style 2

    Image of Product. Front orientation. Contains Annotated, Border, MultipleImages. Strut Channel Framing and Fittings. Concealed Strut Channel Brackets, Style 3.
    Image of Product. Front orientation. Contains Annotated, Border, MultipleImages. Strut Channel Framing and Fittings. Concealed Strut Channel Brackets, Style 4.

    Style 3

    Style 4

    Create a clean, streamlined look when connecting strut channel. Once installed, the channel conceals these brackets to hide most of the hardware. Push them into channel ends and tighten the cam screws to secure.
    Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.
    Aluminum—One-third the weight of steel for easier handling. These are an alternative to stainless steel for rust resistance but aren't as strong.
    Lg.
    Material
    Shape
    For Channel
    Ht.
    (A)
    (B)
    Thk.
    Mounting Hole
    Ctr.-to-Edge
    Fasteners
    Included
    Each
    Style 1

    For 1 5/8" Channel Width
    Zinc-Plated SteelStraight13/16"4 1/2"1 3/8"1/8"7/8"Yes00000000000000
    Zinc-Plated SteelStraight1 5/8"4 1/2"1 3/8"1/8"7/8"Yes0000000000000

    Style 2

    For 1 5/8" Channel Width
    Zinc-Plated SteelCross13/16"4 1/2"1 3/8"1/8"7/8"Yes00000000000000
    AluminumCross1 5/8"4 7/8"1 3/8"1/16"7/8"Yes00000000000000

    Style 3

    For 1 5/8" Channel Width
    Zinc-Plated SteelElbow13/16"2 5/16"1 3/8"1/8"7/8"Yes0000000000000
    AluminumElbow1 5/8"3 1/4"1 3/8"1/16"7/8"Yes0000000000000

    Style 4

    For 1 5/8" Channel Width
    Zinc-Plated SteelTee13/16"4 1/2"1 3/8"1/8"7/8"Yes00000000000000
    AluminumTee1 5/8"4 7/8"1 3/8"1/16"7/8"Yes0000000000000
