Surface-Mount Swinging Latches

Filter by

Material

Arm Length

Latch Type

Mounting Location

Projection

Arm Mounting Plate Length

Mounting Hole Diameter

Mounting Screw Size

Swinging Latch Type

Appearance

Finish

Strike Plate Height

U.S.–Mexico–Canada Agreement (USMCA) Qualifying

Yes

Export Control Classification Number (ECCN)

EAR99

RoHS

Compliant

Compliant with Exemptions

Screw Size

REACH

DFARS Specialty Metals

Strike Plate Length

Number of Mounting Holes

Arm Mounting Plate Height

Mounting Hole Style

Mounting Screw Length

Maximum Temperature

Minimum Temperature

63 Products

Swinging-Bar Latches


Style A	Style B

These latches are reversible for right- and left-hand mounting.

Style A—Style A have a strike plate that creates a sleeve to hold the bar. A back catch holds the bar when it's not latched. These latches include a machine screw for mounting.

			Arm Mounting Plate		Strike Plate		Back Catch		Mounting		Mounting Holes
Style	Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Lg.	Ht.	Fasteners Included	Screw Size	No. of	Dia.	Style		Each







			Zinc-Plated Steel—Dull

			A	4 7/8"	1 1/4"	—	—	1 1/8"	3 13/16"	7/8"	2 3/4"	Yes	No. 10	5	1/4"	Countersunk	1614A11	000000




					304 Stainless Steel—Polished

					B	1 9/16"	1/2"	7/16"	1 3/8"	7/16"	1 3/8"	—	—	Yes	No. 4	4	1/8"	Straight	1915A14	00000

Heavy Duty Swinging-Bar Latches

Designed to stand up to heavy use, these latches are often seen on refrigerators and truck doors. They're reversible for right- and left-hand mounting.

		Arm Mounting Plate		Strike Plate		Mounting		Mounting Holes
Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Fasteners Included	Screw Size	No. of	Dia.	Style		Each







			Zinc-Plated Steel—Dull

			7 1/4"	1 7/8"	1 1/2"	2 1/4"	7/8"	3 3/8"	No	No. 10	6	3/16"	Countersunk	1250A21	0000000

Swinging-Hook Latches


Style A	Style B	Style C

Style D	Style E	Style F

Style G	Style H

				Arm Mounting Plate		Strike Plate		Mounting		Mounting Holes
	Style	Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Fasteners Included	Screw Size	No. of	Dia.	Style	Pkg. Qty.		Pkg.







				Zinc-Plated Steel—Dull

				A	1"	1/2"	—	—	—	—	Yes	No. 5	—	—	—	5	1779A511	00000


				A	1 1/2"	5/8"	—	—	—	—	Yes	No. 8	—	—	—	5	1779A512	0000
				A	2"	5/8"	—	—	—	—	Yes	No. 9	—	—	—	5	1779A13	0000
				A	2 1/2"	5/8"	—	—	—	—	Yes	No. 10	—	—	—	5	1779A15	0000
				A	3"	3/4"	—	—	—	—	Yes	No. 12	—	—	—	5	1779A513	0000
				A	3 1/2"	3/4"	—	—	—	—	Yes	No. 14	—	—	—	5	1779A514	0000
				A	4"	3/4"	—	—	—	—	Yes	No. 14	—	—	—	5	1779A18	0000
				A	5"	7/8"	—	—	—	—	Yes	No. 16	—	—	—	5	1779A515	0000
				A	6"	1"	—	—	—	—	Yes	No. 18	—	—	—	5	1779A21	0000
				A	8"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A516	0000
				A	10"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A517	0000


				A	12"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A22	0000
				A	14"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A518	0000
				A	18"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A521	0000
				B	4"	2"	—	—	—	—	Yes	—	—	—	—	10	1727A101	00000
				B	5"	2 1/2"	—	—	—	—	Yes	—	—	—	—	10	1727A102	00000
				B	6"	2 1/2"	—	—	—	—	Yes	—	—	—	—	10	1727A103	00000
				C	5"	7/8"	1 5/8"	1 1/4"	1 5/8"	1 1/4"	Yes	No. 8	8	1/4"	Straight	1	1727A4	0000




						304 Stainless Steel—Dull

						A	1 1/2"	5/8"	—	—	—	—	Yes	No. 8	—	—	—	5	1779A522	0000


						A	2"	5/8"	—	—	—	—	Yes	No. 10	—	—	—	5	1779A523	0000
						A	2 1/2"	5/8"	—	—	—	—	Yes	No. 10	—	—	—	5	1779A524	00000
						A	3"	3/4"	—	—	—	—	Yes	No. 12	—	—	—	5	1779A525	00000
						A	3 1/2"	3/4"	—	—	—	—	Yes	No. 14	—	—	—	1	1779A526	0000
						A	4"	3/4"	—	—	—	—	Yes	No. 14	—	—	—	1	1779A527	0000
						A	5"	7/8"	—	—	—	—	Yes	No. 16	—	—	—	1	1779A528	0000
						A	6"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A529	0000
						A	8"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A531	0000
						A	12"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A533	00000
						A	18"	1"	—	—	—	—	Yes	No. 18	—	—	—	1	1779A536	00000




								316 Stainless Steel—Polished

								D	3"	13/16"	1"	1 1/2"	1"	1 1/2"	No	No. 8	4	3/16"	Countersunk	1	18995A31	00000


								D	4"	13/16"	1"	1 1/2"	1"	1 1/2"	No	No. 8	4	3/16"	Countersunk	1	18995A32	00000




Brass—Polished

A	1"									1"	—	—	—	—	Yes	No. 5	—	—	—	5	1779A537	0000


A	1 1/2"									5/8"	—	—	—	—	Yes	No. 8	—	—	—	5	1779A538	0000
A	2"	5/8"								—	—	—	—	Yes	No. 10	—	—	—	5	1779A539	0000
A	2 1/2"	5/8"	—							—	—	—	Yes	No. 12	—	—	—	5	1779A541	00000
A	3"	3/4"	—							—	—	—	Yes	No. 12	—	—	—	5	1779A542	00000
A	4"	3/4"	—							—	—	—	Yes	No. 14	—	—	—	1	1779A544	0000
E	2"	11/16"	3/4"							1 1/4"	3/4"	1 1/4"	No	No. 6	4	3/16"	Countersunk	1	1779A554	00000
F	1 1/2"	11/16"	3/4"							1 3/16"	3/4"	1 3/16"	No	No. 6	4	3/16"	Countersunk	1	1779A41	00000
G	5"	3/4"	15/16"							1 13/16"	15/16"	1 13/16"	No	No. 6	4	3/16"	Countersunk	1	1779A43	00000




		Chrome-Plated Brass—Polished

		D	1 1/2"							11/16"	3/4"	1 1/4"	3/4"	1 1/4"	No	No. 6	4	3/16"	Countersunk	1	1779A556	00000


		E	2"							11/16"	3/4"	1 1/4"	3/4"	1 1/4"	No	No. 6	4	3/16"	Countersunk	1	1779A559	00000
		E	3"							11/16"	3/4"	1 1/4"	3/4"	1 1/4"	No	No. 6	4	3/16"	Countersunk	1	1779A561	00000
		G	5"							3/4"	15/16"	1 13/16"	15/16"	1 13/16"	No	No. 6	4	3/16"	Countersunk	1	1779A562	00000
		H	2 1/2"							3/4"	13/16"	1 7/16"	13/16"	1 7/16"	No	No. 6	4	3/16"	Countersunk	1	1779A557	0000
		H	3"							3/4"	13/16"	1 7/16"	13/16"	1 7/16"	No	No. 6	4	3/16"	Countersunk	1	1779A558	0000

Push-Button-Release Swinging-Bar Latches

Latches snap shut when you push the bar in the strike plate to prevent accidental unlatching. Press the button on the strike plate to release the bar. Latches are reversible for right- and left-hand mounting.

		Arm Mounting Plate		Strike Plate		Mounting		Mounting Holes
Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Fasteners Included	Screw Size	No. of	Dia., mm	Style		Each







			304 Stainless Steel—Polished

			1 15/16"	11/16"	9/16"	1 5/8"	9/16"	1 5/8"	Yes	M3	4	3	Straight	1915A31	000000


			2 1/2"	13/16"	5/8"	1 13/16"	5/8"	1 13/16"	Yes	M4	4	4	Straight	1915A32	00000
			4 1/8"	1 1/16"	1"	3 3/16"	1"	3 3/16"	Yes	M5	4	5	Straight	1915A34	00000

Screw-Securing Swinging-Bar Latches

Tighten the screw on the strike plate to secure the bar and prevent accidental unlatching. Latches are reversible for right- and left-hand mounting.

		Arm Mounting Plate		Strike Plate		Mounting		Mounting Holes
Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Fasteners Included	Screw Size	No. of	Dia., mm	Style		Each







			304 Stainless Steel—Polished

			2 3/8"	3/4"	5/8"	1 13/16"	5/8"	1 13/16"	Yes	M4	4	4	Straight	1915A16	000000


			3 3/8"	15/16"	13/16"	2 9/16"	13/16"	2 9/16"	Yes	M4	4	4	Straight	1915A17	00000

Tight-Hold Swinging-Hook Latches

To prevent accidental unlatching due to vibration, there's a bushing in the eye.

		Arm Mounting Plate		Strike Plate			Mounting		Mounting Holes
Arm Lg.	Projection	Lg.	Ht.	Lg.	Ht.	Bushing Material	Fasteners Included	Screw Size	No. of	Dia.	Style	Pkg. Qty.		Pkg.







			304 Stainless Steel—Polished

			2 5/16"	3/4"	5/8"	1 5/8"	5/8"	1 5/8"	Plastic	No	No. 8	4	3/16"	Countersunk	1	17345A22	000000


			3"	3/4"	5/8"	1 5/8"	5/8"	1 5/8"	Plastic	No	No. 8	4	3/16"	Countersunk	1	17345A26	00000
			4"	3/4"	5/8"	1 5/8"	5/8"	1 5/8"	Plastic	No	No. 8	4	3/16"	Countersunk	1	17345A29	00000

Spring Tight-Hold Swinging-Hook Latches

A spring-action hook creates tension on the arm to prevent accidental unlatching.

Pkg. Qty.		Pkg.







Zinc-Plated Steel—Dull

2"	1/2"	Yes	1	1779A31	00000


2 1/2"	1/2"	Yes	1	1779A32	0000

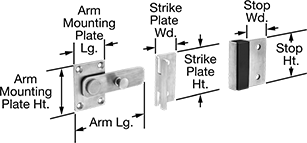

Swinging-Bar Toilet Partition Latches

Each latch comes with a strike plate and door stop.

	Latches													Replacement Latches		Replacement Strike Plates		Replacement Door Stops
	Arm			Arm Mounting Plate		Strike Plate		Stop
	Lg.	Ht.	Thk.	Lg.	Ht.	Ht.	Wd.	Ht.	Wd.	Projection	Mounting Fasteners Included		Each		Each		Each		Each
304 Stainless Steel—Dull



		3 1/4"	7/8"	1/8"	2"	1 1/2"	2 1/2"	1 5/16"	2 1/2"	1 1/8"	3/4"	Yes	11655A25	000000	11655A31	000000	11655A33	000000	11655A35	000000
