T-Slotted Framing Hinges
Use hinges to add doors, lids, and machine guards to T-slotted framing.
Rail-to-rail hinges provide smooth motion at the junction between two rails. Rail-to-panel hinges provide smooth motion at the junction between a rail and a panel.
For technical drawings and 3-D models, click on a part number.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | Lg. | Ht. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||
|---|---|---|---|---|---|---|---|
| 1" | Silver | Lacquer-Coated Aluminum | 2 1/16" | 1 7/8" | Yes | 000000000 | 000000 |
| 1" | Black | Anodized Aluminum | 2" | 2" | Yes | 000000000 | 00000 |
| 1 1/2" | Silver | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 1 1/2" | Silver | Lacquer-Coated Aluminum | 3 1/16" | 1 7/8" | Yes | 000000000 | 00000 |
| 1 1/2" | Black | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 20mm | Silver | Lacquer-Coated Aluminum | 1 1/2" | 1 3/16" | Yes | 00000000 | 00000 |
| 20mm | Black | Plastic | 1 1/4" | 3/4" | Yes | 0000000 | 0000 |
| 30mm | Silver | Lacquer-Coated Aluminum | 2 5/16" | 1 7/8" | Yes | 00000000 | 00000 |
| 30mm | Black | Plastic | 2 3/8" | 1 9/16" | Yes | 00000000 | 0000 |
| 40mm | Silver | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 40mm | Silver | Lacquer-Coated Aluminum | 3 1/16" | 1 7/8" | Yes | 00000000 | 00000 |
| 40mm | Black | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 45mm | Silver | Lacquer-Coated Aluminum | 3 7/16" | 1 7/8" | Yes | 00000000 | 00000 |
Hinges for three rails let you add a door to both sides of one rail.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | For Max. Panel Thick. | Lg. | Ht. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | ||||||||
|---|---|---|---|---|---|---|---|---|
| 20 mm | Black | Plastic | 1/4" | 1 7/16" | 1 11/16" | Yes | 00000000 | 00000 |
Reducer hinges join rails of different heights.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Reducer hinges join rails of different heights.
Hinges for three rails let you add a door to both sides of one rail.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Slotted-hole hinges give you some wiggle room when mounting these hinges to your rails, allowing you to customize the position of your rails.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | Lg. | Ht. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||
|---|---|---|---|---|---|---|---|
| 1 1/2", 40mm | Black | Painted Steel | 2 1/2" | 1 9/16" | Yes | 00000000 | 000000 |
| 1 1/2", 40mm | Black | Plastic | 2 9/16" | 1 9/16" | Yes | 00000000 | 00000 |
| 40mm | Black | Powder-Coated Zinc | 3 1/8" | 1 9/16" | Yes | 0000000 | 00000 |
| 45mm | Black | Powder-Coated Zinc | 3 1/8" | 1 9/16" | Yes | 00000000 | 00000 |
Friction hinges provide constant resistance through the full range of motion to hold lids, panels, and doors at any angle. Tighten or loosen the adjustment screw to change the resistance of the hinge.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Friction hinges provide constant resistance through the full range of motion to hold lids, panels, and doors at any angle. Tighten or loosen the adjustment screw to change the resistance of the hinge.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | For Max. Panel Thickness | Lg. | Ht. | Torque, in.-lbs. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1" | Black | Plastic | 1/4" | 1 7/16" | 1 11/16" | 7 | Yes | 000000000 | 000000 |
| 1 1/2" | Black | Plastic | 1/4" | 2 1/4" | 2 1/2" | 35 | Yes | 000000000 | 00000 |
| 25mm | Black | Plastic | 1/4" | 1 11/16" | 1 7/16" | 7 | Yes | 00000000 | 00000 |
| 40mm | Black | Plastic | 1/4" | 2 1/4" | 2 1/2" | 35 | Yes | 00000000 | 00000 |
Hinges with bearings move smoothly as they open and close.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Bearing | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Rail Ht. | Color | Material | Material | Type | Lg. | Ht. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||||
| 30 mm | Silver | Aluminum | PTFE Plastic | Sleeve | 3 3/4" | 2 1/4" | Yes | 00000000 | 000000 |
| 40 mm | Silver | Aluminum | PTFE Plastic | Sleeve | 3 3/4" | 2 11/16" | Yes | 00000000 | 00000 |
| 45 mm | Silver | Aluminum | PTFE Plastic | Sleeve | 3 3/4" | 3 1/16" | Yes | 0000000 | 00000 |
Two-way hinges open doors and gates in both directions. A spring automatically pulls them closed. Use the included tension adjustment tool to change how quickly they close.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | Lg. | Ht. | Range of Motion | Closing Tension | Mounting Fasteners Included | Includes | Each | |
Nonremovable Pin—Reversible | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2", 40mm | Silver | 201 Stainless Steel | 5 1/2" | 4 1/16" | 350° | Adjustable | Yes | Tension Adjustment Tool | 0000000 | 000000 |
| 1 1/2", 40mm | Black | 201 Stainless Steel | 5 1/2" | 4 1/16" | 350° | Adjustable | Yes | Tension Adjustment Tool | 00000000 | 00000 |
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
| For Rail Ht. | Color | Material | Lg. | Ht. | Mounting Fasteners Included | Each | |
Nonremovable Pin—Reversible | |||||||
|---|---|---|---|---|---|---|---|
| 1" | Silver | Anodized Aluminum | 1 13/16" | 2 5/16" | Yes | 000000000 | 000000 |
| 1" | Black | Anodized Aluminum | 1 3/4" | 2 5/16" | Yes | 000000000 | 00000 |
| 1 1/2" | Silver | Anodized Aluminum | 2 13/16" | 2 5/16" | Yes | 00000000 | 00000 |
| 1 1/2" | Black | Anodized Aluminum | 2 3/4" | 2 5/16" | Yes | 000000000 | 00000 |
Hinges with a lift-off pin have a permanently attached pin for quickly lifting the door off the hinge without removing the pin. To choose between right-side and left-side hinges, stand on the pull side of your door. Use a left-side hinge if the hinge will be on the left of your door. Use a right-side hinge if the hinge will be on the right of your door.
| For Rail Ht. | Color | Material | Lg. | Ht. | Mounting Fasteners Included | Each | |
Lift-Off Pin—Left Side | |||||||
|---|---|---|---|---|---|---|---|
| 1" | Silver | Anodized Aluminum | 2" | 2" | Yes | 000000000 | 000000 |
| 1 1/2", 40mm | Silver | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 40mm | Silver | Anodized Aluminum | 2 3/8" | 3" | Yes | 00000000 | 00000 |
Lift-Off Pin—Right Side | |||||||
| 1" | Silver | Anodized Aluminum | 2" | 2" | Yes | 000000000 | 00000 |
| 1 1/2", 40mm | Silver | Anodized Aluminum | 3" | 3" | Yes | 000000000 | 00000 |
| 40mm | Silver | Anodized Aluminum | 3" | 3" | Yes | 00000000 | 00000 |
Hinges with a lift-off pin have a permanently attached pin for quickly lifting the door off the hinge without removing the pin.
Hinges for three rails let you add a door to both sides of one rail.
| For Rail Ht. | Color | Material | Lg. | Ht. | Mounting Fasteners Included | Each | |
Lift-Off Pin—Reversible | |||||||
|---|---|---|---|---|---|---|---|
| 1 1/2" | Gray | Plastic | 3 15/16" | 1 1/4" | Yes | 00000000 | 000000 |

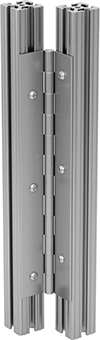

Lever lock position hinges can lock open at any angle up to 180°. Pull the lever up and turn it a quarter turn to make adjustments.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Knuckle | 1 ft. Lg. | 3 ft. Lg. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Rail Ht. | Color | Material | Ht. | Dia. | Lg. | Mounting Fasteners Included | Each | Each | ||
Nonremovable Pin—Reversible | ||||||||||
| 1" | Silver | Anodized Aluminum | 2" | 0.45" | 1" | Yes | 0000000 | 000000 | 0000000 | 000000 |
| 1 1/2" | Silver | Anodized Aluminum | 3" | 0.45" | 1" | Yes | 0000000 | 00000 | 0000000 | 00000 |
| 40mm | Silver | Anodized Aluminum | 3" | 0.45" | 1" | Yes | 0000000 | 00000 | 0000000 | 00000 |
Safety hinges have a switch that automatically shuts off power to machinery when an access door opens. If your door requires more than one hinge, only one needs to have a safety switch; use hinges without a safety switch for the rest. Make sure to mount the safety switch on the rail that won't be moving.
Hinges with a nonremovable pin are reversible and work on left- and right-side doors.
Safety Hinges | Hinges without Safety Switch | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Rail Ht. | Color | Material | Lg. | Ht. | Switching Current | Switching Voltage | Switch Location | Input Voltage | Environmental Rating | Mounting Fasteners Included | Each | Each | ||
Nonremovable Pin—Reversible | ||||||||||||||
Micro M12 Connection on Top | ||||||||||||||
| 1" | Black | Plastic | 2 3/8" | 4 5/16" | 2A | 24V AC/24V DC | Right Side | 24V AC/24V DC | IP67 | Yes | 00000000 | 0000000 | 00000000 | 000000 |
| 1 1/2", 40mm | Black | Plastic | 2 3/8" | 4 5/16" | 2A | 24V AC/24V DC | Right Side | 24V AC/24V DC | IP67 | Yes | 00000000 | 000000 | 00000000 | 00000 |
Micro M12 Connection on Bottom | ||||||||||||||
| 1" | Black | Plastic | 2 3/8" | 4 5/16" | 2A | 24V AC/24V DC | Right Side | 24V AC/24V DC | IP67 | Yes | 00000000 | 000000 | 00000000 | 00000 |
| 1 1/2", 40mm | Black | Plastic | 2 3/8" | 4 5/16" | 2A | 24V AC/24V DC | Right Side | 24V AC/24V DC | IP67 | Yes | 00000000 | 000000 | 00000000 | 00000 |
Hardwire Connection on Back | ||||||||||||||
| 1 1/2", 40mm | Black | Plastic | 2 3/8" | 4 5/16" | 2A | 24V AC/24V DC | Right Side | 24-400V AC/24-250V DC | IP67 | Yes | 00000000 | 000000 | 00000000 | 00000 |
Miniature T-Slotted Framing and Fittings
Build test fixtures, prototypes, and other small structures with this miniature version of T-slotted framing and fittings. The framing has continuous T-slots for attaching fittings with the included mounting fasteners.
For technical drawings and 3-D models, click on a part number.
Hinges provide smooth motion between two rails.
Silver | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hinge Connection Type | Pin Type | For Rail Ht., mm | For Number of Rails | Lg. | Ht. | Mounting Fasteners Included | Includes | Each | |
| Rail-to-Rail | Nonremovable | 10 | 2 | 7/8" | 13/16 " | Yes | 4 Nuts, 4 Screws | 0000000 | 000000 |
