Plastic Toilet Partitions

Filter by

Material

Color

Component

Standard Door Hardware

Column Width

Door Width

For Use With

Column Thickness

For Joining

Column to Wall

Headrail to Wall

Headrail to Wall and Column

Panel to Inline Column

Panel to Wall and Column

Column Height

Panel Width

Mounting Hardware Included

Yes

Panel Height

55"

Mounting Hardware Material

Door Height

Headrail Width

DFARS Specialty Metals

Exempt

REACH

Not Compliant

Export Control Classification Number (ECCN)

RoHS

Partition Type

Overall Depth

Finish

Overall Width

Overall Height

Door Thickness

Specifications Met

ICC A117.1

Forward

How can we improve?

52 Products

Toilet Partition Components


	Plastic Gray	Plastic Cream
	Plastic Dark Blue	Plastic Tan
	Plastic White

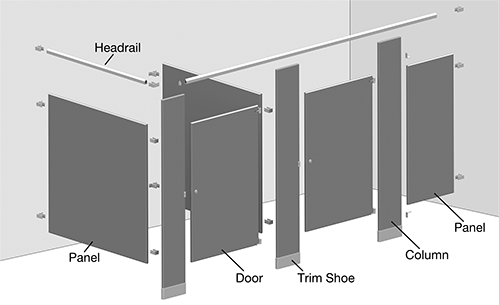

Design your own partitions, add to your existing partition, or replace individual components and hardware. Hardware is included with doors; all other components require installation hardware (sold separately). To account for the hardware, the doors and panels are slightly smaller than the width listed. Headrails can be cut to size.

ADA doors help you comply with ADA when properly installed.

Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.

For the best match, order color samples (sold separately).

Plastic

Door
Ht.	Wd.	Thick.	Mount. Hardware Included	Includes	Choose a Color		Each
Doors
55"	24"	1"	Yes	Coat Hook	Cream, Dark Blue, Gray, Tan, White	0000000	0000000
55"	26"	1"	Yes	Coat Hook	Cream, Dark Blue, Gray, Tan, White	0000000	000000

Door
Ht.	Wd.	Thick.	Mount. Hardware Included	Includes	Specifications Met	Choose a Color		Each
ADA Doors
55"	34"	1"	Yes	Coat Hook, Pull Handle	ANSI A117.1	Cream, Dark Blue, Gray, Tan, White	0000000	0000000
55"	36"	1"	Yes	Coat Hook, Pull Handle	ANSI A117.1	Cream, Dark Blue, Gray, Tan, White	0000000	000000

Panel
Ht.	Wd.	Thick.	Mount. Hardware Included	Choose a Color		Each
Panels
55"	24"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	0000000
55"	48"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	000000
55"	55"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	000000
55"	58"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	000000
55"	60"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	000000
55"	70"	1"	No	Cream, Dark Blue, Gray, Tan, White	0000000	000000

Column
Ht.	Wd.	Thick.	Trim Shoe Material	Mount. Hardware Included	Includes	Choose a Color		Each
Columns
82"	3"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	4"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	5"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	6"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	7"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	8"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	10"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	12"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	18"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	22"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000
82"	24"	1"	Stainless Steel	No	Anchor Kit	Cream, Dark Blue, Gray, Tan, White	0000000	000000

Anodized Aluminum

		For Plastic Laminate, Plastic
Headrail Wd.	Mount. Hardware Included		Each
Headrails
65"	No	0000000	000000
98"	No	0000000	00000

Mounting Hardware Kits for Toilet Partition Components

These kits include all brackets and fasteners needed for mounting partitions. A Torx T27 tamper-resistant screwdriver is required.

			For Plastic
	Material	Mount. Fasteners Included		Each
For Attaching Panel to Wall and Column, Headrail to Column and Wall
1	Aluminum	Yes	0000000	000000
For Attaching Panel to Wall and Column
2	Aluminum	Yes	0000000	00000
For Attaching Column to Wall, Headrail to Wall
3	Aluminum	Yes	0000000	00000
For Attaching Panel to Column (Inline)
4	Stainless Steel	Yes	0000000	00000

Replacement Hardware Kits for Toilet Partitions

Standard Door Hardware

Standard Door Hardware for Plastic

			For Plastic
Material	Mount. Fasteners Included	Includes		Each
Aluminum	Yes	Coat Hook, Hinges, Latch	0000000	000000

ADA Door Hardware

ADA Door Hardware for Plastic

			For Plastic
Material	Mount. Fasteners Included	Includes		Each
Aluminum	Yes	Coat Hook, Hinges, Latch, Pull Handle	0000000	000000

Door Pull Handles

		For Plastic Laminate and Plastic
Material	Mount. Fasteners Included		Each
Aluminum	Yes	0000000	00000

Trim Shoes

Trim Shoe for Plastic

		For Plastic
For Column Wd.	Material		Each
3"	Stainless Steel	00000000	000000
4"	Stainless Steel	00000000	00000
5"	Stainless Steel	00000000	00000
6"	Stainless Steel	00000000	00000
7"	Stainless Steel	00000000	00000
8"	Stainless Steel	00000000	00000
10"	Stainless Steel	00000000	00000
12"	Stainless Steel	00000000	00000
18"	Stainless Steel	00000000	00000
22"	Stainless Steel	0000000	00000
24"	Stainless Steel	00000000	00000

Replacement Hardware Kits for Urinal Partitions

Use one of these kits to replace rusty or broken hardware on urinal partitions.

For Attaching Floor-Braced Partitions

For Attaching Plastic
Floor-Braced
Partitions

		For Plastic
Material	Mount. Fasteners Included		Each
Aluminum	Yes	0000000	0000000

For Attaching Wall-Hung Partitions

For Attaching Plastic
Wall-Hung
Partitions

		For Plastic
Material	Mount. Fasteners Included		Each
Aluminum	Yes	0000000	000000

Toilet Partitions

Corner/Add-On/Add-On

ADA Corner

Corner

ADA Corner

Add-On

Fasteners require a Torx T27 tamper-resistant screwdriver. To account for the hardware, the doors and panels are slightly smaller than the width listed.

ADA partitions help you comply with ADA when properly installed.

Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.

For the best match, order color samples (sold separately).

Plastic

Cream

Dark Blue

Gray

Tan

White

	Overall			Door			Panel			Column
Partition Type	Ht.	Wd.	Dp.	Ht.	Wd.	Thick.	Ht.	Wd.	Thick.	Ht.	Wd.	Thick.	Mount. Hardware Included	Specifications Met	Choose a Color		Each
Corner	84"	37"	60"	55"	24"	1"	55"	58"	1"	82" 82"	7" 5"	1" 1"	Yes	__	Cream, Dark Blue, Gray, Tan, White	000000	000000000
ADA Corner	84"	62"	60"	55"	36"	1"	55"	58"	1"	82" 82"	18" 7"	1" 1"	Yes	ANSI A117.1	Cream, Dark Blue, Gray, Tan, White	000000	00000000
Add-On	84"	36"	60"	55"	24"	1"	55"	58"	1"	82"	12"	1"	Yes	__	Cream, Dark Blue, Gray, Tan, White	0000000	00000000

Urinal Partitions

Fasteners require a Torx T27 tamper-resistant screwdriver. To account for the hardware, the doors and panels are slightly smaller than the width listed.

Plastic partitions are our most durable and damage-resistant partitions. They are often used in harsh environments and washdown areas.

For the best match, order color samples (sold separately).

For technical drawings and 3-D models, click on a part number.

Plastic

Cream

Dark Blue

Gray

Tan

White

Overall			Panel			Column
Ht.	Wd.	Dp.	Ht.	Wd.	Thick.	Ht.	Wd.	Thick.	Mount. Hardware Included	Choose a Color		Each
Floor-Braced Partitions
70"	7"	24"	55"	22"	1"	70"	7"	1"	Yes	Cream, Dark Blue, Gray, Tan, White	0000000	0000000
70"	7"	36"	55"	34"	1"	70"	7"	1"	Yes	Cream, Dark Blue, Gray, Tan, White	0000000	000000
Wall-Hung Partitions
48"	1"	18"	__	__	__	__	__	__	Yes	Cream, Dark Blue, Gray, Tan, White	0000000	000000
48"	1"	24"	__	__	__	__	__	__	Yes	Cream, Dark Blue, Gray, Tan, White	0000000	000000
48"	1"	30"	__	__	__	__	__	__	Yes	Cream, Dark Blue, Gray, Tan, White	0000000	000000

Color Samples for Toilet and Urinal Partitions

For Material	Color		Each
Plastic	Cream, Dark Blue, Gray, Tan, White	000000	00000
