Drawbar Rings
![]() 1 | ![]() 2 | ![]() 2 (Back) |
![]() 3 | ![]() 3 (Back) | |
![]() 4 | ![]() 5 | ![]() 6 |
![]() 7 | ![]() 8 |
These rings mount to a trailer and connect to the drawbar coupler or tow hook on a vehicle to create a towing connection. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring.
Style 2 have a pivoting shackle, so you can tow at an angle. They come with a locking pin.
Styles 3 and 8 are adjustable, so you can create towing connections with vehicles of different heights. Side bolts are included.
Style 7 have prongs to weld them to the outside end of a rectangular tube or channel. The prongs distribute the load evenly for extra stability.
Powder-coated and zinc-plated rings are more corrosion resistant than black-oxide steel rings. Corrosion-resistant-coated rings offer the most corrosion resistance.
Note: Capacity is reduced 25% in off-road use.
![]() 1 | ![]() 2 | ![]() 2 (Back) |
![]() 3 | ![]() 3 (Back) |
Overall | Ring | Mounting Hole | Mounting Plate | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Number of Positions | Ht. Adjustment Increments | Dp. | Ht. | Material | Color | ID | Thick. | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Ctr.-to-Ctr. | Wd. | Ht. | Each | |
Fixed | ||||||||||||||||||
1 | 10,000 | 1,000 | __ | __ | 5 13/16" | 6" | Powder-Coated Steel | Black | 2 1/2" | 1" | 5/8" | 4 1/2" | 4 1/2" | __ | 6" | 6" | 000000000 | 000000 |
1 | 42,000 | 7,000 | __ | __ | 6 11/16" | 6" | Powder-Coated Steel | Black | 2 1/2" | 1 1/4" | 5/8" | 4 1/2" | 4 1/2" | __ | 6" | 6" | 00000000 | 000000 |
1 | 60,000 | 15,000 | __ | __ | 6 7/8" | 6" | Zinc-Plated Steel | __ | 3" | 1 5/8" | 3/4" | 4 1/2" | 4 1/2" | __ | 6 5/8" | 6" | 000000000 | 000000 |
1 | 90,000 | 19,000 | __ | __ | 7" | 6" | Powder-Coated Steel | Black | 3" | 1 5/8" | 7/8" | 4 1/2" | 4 1/2" | __ | 6 5/8" | 6" | 000000000 | 000000 |
2 | 18,000 | Not Rated | __ | __ | 7 1/4" | 5" | Powder-Coated Steel | Black | 2 3/4" | 7/8" | 5/8" | 4 3/8" | 2 7/8" | __ | 6" | 5" | 000000000 | 00000 |
Adjustable | ||||||||||||||||||
3 | 20,000 | 2,000 | 3 | 2" | 8 7/16" | 7 5/8" | Black-Oxide Steel | __ | 3" | 1 5/8" | 5/8" | __ | __ | 5" | 3 15/16" | 7 5/8" | 000000000 | 000000 |
3 | 20,000 | 2,000 | 5 | 2" | 8 7/16" | 11 5/8" | Black-Oxide Steel | __ | 3" | 1 5/8" | 5/8" | __ | __ | 9" | 3 15/16" | 11 5/8" | 000000000 | 000000 |

Overall | Ring | Thread | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Dp. | Ht. | Material | Color | ID | Thick. | Stud Lg. | Size | Lg. | Specifications Met | Each | |
Fixed | ||||||||||||||
4 | 15,000 | 3,000 | 9 1/8" | 2 1/2" | Corrosion-Resistant-Coated Steel | Black | 2 1/2" | 1 1/2" | 3 1/4" | 1 1/2"-6 | 1 3/4" | ASTM B117 | 00000000 | 0000000 |




Overall | Ring | Mounting Plate | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Number of Positions | Ht. Adjustment Increments | Dp. | Ht. | Material | Color | ID | Thick. | Wd. | Ht. | Each | |
Fixed | ||||||||||||||
5 | 12,000 | 1,800 | __ | __ | 8 9/16" | 7/8" | Powder-Coated Steel | Gray | 2" | 7/8" | __ | __ | 00000000 | 0000000 |
6 | 90,000 | 13,500 | __ | __ | 9 5/16" | 1 5/8" | Powder-Coated Steel | Gray | 2 3/8" | 1 5/8" | __ | __ | 00000000 | 000000 |
6 | 150,000 | 15,000 | __ | __ | 11 1/8" | 1 5/8" | Powder-Coated Steel | Gray | 3" | 1 5/8" | __ | __ | 000000000 | 000000 |
7 | 100,000 | 15,000 | __ | __ | 10 1/8" | 5 3/8" | Powder-Coated Steel | Gray | 2 3/8" | 1 5/8" | __ | __ | 000000000 | 000000 |
Adjustable | ||||||||||||||
8 | 20,000 | 1,000 | 3 | 2" | 8" | 8 1/2" | Powder-Coated Steel | Black | 2 1/2" | 1" | 4" | 8 1/2" | 000000000 | 000000 |
8 | 20,000 | 1,000 | 5 | 2" | 7 3/4" | 12 1/2" | Powder-Coated Steel | Black | 2 1/2" | 1" | 4" | 12 1/2" | 000000000 | 000000 |
Hitch Inserts

Use these inserts in hitch-ball connections for towing. They fit into a receiver that's attached to a vehicle. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the hitch ball.
Combination ball/eyes give you the versatility of mating with a drawbar ring or hitch-ball coupler.
Multi-size hitch balls provide two or three sizes in one. The larger hitch ball sizes have higher capacities.
Eyes and combination ball/eyes with multi-size hitch balls allow for more range of movement than ball hitches, making them good for use on uneven surfaces. Since they can also tow higher capacities than ball hitches, they’re often used to haul large items.
Use rings with clevises to evenly distribute pressure. They also keep tow chains and straps from slipping.
Use hooks and multi-size hitch balls with hook to attach towing chains, straps, or cable to haul heavy objects, such as vehicles.
Shackles pivot around a pin, so you can choose the right towing angle. Tighten the pin to secure the shackle in place.

Hitch Ball | ||||||||
---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
Powder-Coated Steel | ||||||||
12,000 | 2,400 | 15 11/32" | 2" Square | 1 | 2" | Chrome-Plated Steel | 0000000 | 0000000 |
12,000 | 2,400 | 15 1/2" | 2" Square | 1 | 2 5/16" | Chrome-Plated Steel | 00000000 | 000000 |
20,000 | 3,600 | 15 3/4" | 2 1/2" Square | 1 | 2" | Chrome-Plated Steel | 00000000 | 000000 |
24,000 | 3,600 | 15 3/4" | 2 1/2" Square | 1 | 2 5/16" | Chrome-Plated Steel | 00000000 | 000000 |

For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Each | |
Powder-Coated Steel | |||||
---|---|---|---|---|---|
20,000 | 4,000 | 14 3/8" | 2" Square | 0000000 | 0000000 |

Hitch Ball | ||||||||
---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
Powder-Coated Steel | ||||||||
6,000/7,500/10,000 | 600/750/1,000 | 12 1/2" | 2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 00000000 | 0000000 |
6,000/10,000/14,000 | 600/1,000/1,400 | 13 1/2" | 2 1/2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 0000000 | 000000 |

Ring | |||||||
---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity | ID | Thickness | Overall Depth | For Hitch Receiver Size | Each | |
Powder-Coated Steel | |||||||
12,000 | Not Rated | 2 1/2" | 1 1/4" | 11 7/16" | 2" Square | 0000000 | 000000 |

For Maximum Trailer Weight, lbs. | Vertical Capacity | Hook Opening Width | Overall Depth | For Hitch Receiver Size | Each | |
Powder-Coated Steel | ||||||
---|---|---|---|---|---|---|
12,000 | Not Rated | 2" | 11 3/4" | 2" Square | 0000000 | 000000 |

Hitch Ball | |||||||||
---|---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Hook Opening Width | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
Powder-Coated Steel | |||||||||
6,000/7,500/10,000 | 600/750/1,000 | 1 5/8" | 13" | 2" Square | 3 | 1 7/8", 2", 2 5/16" | Powder-Coated Steel | 0000000 | 000000 |

Inside | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Pin Diameter | Opening Width | Overall Depth | Length | Width | Thickness | For Hitch Receiver Size | Each | |
Powder-Coated Steel | ||||||||||
10,000 | 1,000 | 7/8" | 1 3/8" | 10" | 2 1/16" | 2" | 3/4" | 2" Square | 00000000 | 000000 |
13,000 | 1,300 | 1" | 1 1/2" | 11 1/4" | 2 3/8" | 2 7/32" | 7/8" | 2 1/2" Square | 00000000 | 000000 |
18,000 | 1,800 | 1" | 1" | 11 1/4" | 2 3/8" | 2 7/32" | 7/8" | 3" Square | 00000000 | 000000 |
Tow Hooks
Add an anchor point to pull stuck vehicles out of mud, snow, or ditches. Mount these hooks to a bumper or trailer and then attach a tow strap or chain. The maximum trailer weight is the total weight being towed.
Weld-on hooks have a narrow throat and curved profile, so chains will catch and not slip off.
Double hooks bolt to both sides of a vehicle for balanced towing. You can also use only one of the hooks to tow, but someone must counter-steer in the towed vehicle to keep it in a straight line.
Powder-coated steel hooks offer more corrosion resistance than uncoated steel in wet environments.
Note: Capacity is reduced 25% in off-road use.

For Chain | Overall | ||||||||
---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Grade | Thick. | Dp. | Ht. | Material | Hook Opening Wd. | Mounting Plate Thick. | Each | |
Single Hook | |||||||||
3,500 | 43 | 5/16" | 3 1/8" | 3 7/8" | Steel | 5/8" | 1 1/16" | 0000000 | 00000 |
5,000 | 43 | 3/8" | 2 3/8" | 3" | Steel | 1/2" | 13/16" | 0000000 | 0000 |
6,500 | 70 | 3/8" | 2 1/4" | 3" | Steel | 9/16" | 11/16" | 0000000 | 0000 |
9,000 | 43 | 1/2" | 3 1/8" | 3 7/8" | Steel | 11/16" | 1" | 0000000 | 0000 |


Overall | Mounting Holes | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Dp. | Ht. | Material | Hook Opening Wd. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Plate Thick. | Each | |
Single Hook | ||||||||||
10,000 | 3 1/4" | 5" | Powder-Coated Steel | 1 5/8" | 2 | 1/2" | 1 3/8" | 1" | 000000 | 00000 |
20,000 | 4 7/8" | 5 3/8" | Powder-Coated Steel | 2 1/8" | 3 | 1/2" | 2 13/16" 2 1/2" | 1" | 0000000 | 00000 |
30,000 | 5 1/4" | 6" | Powder-Coated Steel | 2 1/8" | 4 | 1/2" | 2 3/4" 2 1/4" | 3/4" | 0000000 | 00000 |
Double Hooks | ||||||||||
13,500 | 5 1/4" | 8 1/2" | Powder-Coated Steel | 2 3/16" | 2 | 3/4" | 4 1/4" | 1 1/2" | 0000000 | 00000 |
44,000 | 5 7/16" | 9 1/4" | Steel | 2 1/2" | 1 1 | 3/4" 5/8" | 4 3/16" | 1 7/16" | 0000000 | 000000 |
Drawbar Couplers

Also known as pintle hitches, these are used with drawbar rings to connect a trailer to your vehicle for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball. Use Grade 8 fasteners (included with some couplers) for mounting. Mount couplers directly to a vehicle or use a mounting plate insert to mount them to a hitch receiver. See Mounting Plate Inserts for Drawbar Couplers and Hitch Receivers.

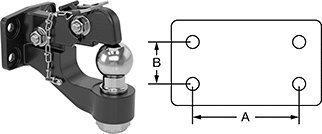

Combination ball/eye couplers include a ball for use with hitch-ball connections.
Couplers with a vertical latch move up to open. They are the most common type. Couplers with a horizontal latch swing open sideways. Use these if there is not enough space above the coupler to open a vertical latch.
Note: Capacity is reduced 25% in off-road use.



Mounting Hole | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Ctr.-to-Ctr. (C) | Each | ||
Vertical Latch | ||||||||||||||
1 | 20,000 | 4,000 | 2" | 1 5/8" | 6 3/8" | Steel | Spring-Loaded Pin | Yes | 17/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |
1 | 30,000 | 6,000 | 2" | 1 5/8" | 6 3/16" | Steel | Spring-Loaded Pin | Yes | 17/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 00000 |
1 | 40,000 | 8,000 | 2" | 1 5/8" | 6 5/8" | Steel | Spring-Loaded Pin | Yes | 19/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |
2 | 20,000 | 4,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 00000 |
2 | 30,000 | 6,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 000000 |
2 | 60,000 | 12,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 000000 |
3 | 60,000 | 15,000 | 2 3/8" | 1 5/8" | 7 3/8" | Steel | Spring-Loaded Pin | Yes | 25/32" | 4 1/2" | 4 1/2" | __ | 00000000 | 000000 |



Hitch Ball | Mounting Hole | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Dia. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | ||
Vertical Latch | |||||||||||||||
4 | 16,000 | 3,000 | 2 1/4" | 1 15/16" | 7" | Steel | 2" | Chrome-Plated Steel | Lever, Pin | Yes | 1/2" | 3 3/8" | 1 3/4" | 000000 | 0000000 |
4 | 16,000 | 3,000 | 2 1/2" | 1 3/4" | 7" | Steel | 2 5/16" | Chrome-Plated Steel | Lever, Pin | Yes | 1/2" | 3 3/8" | 1 3/4" | 000000 | 000000 |
5 | 30,000 | 4,000 | 2 3/8" | 1 9/16" | 7 7/16" | Steel | 2 5/16" | Chrome-Plated Steel | Spring-Loaded Pin | No | 19/32" | 3 3/8" | 1 3/4" | 00000000 | 000000 |
Horizontal Latch | |||||||||||||||
6 | 20,000 | 5,000 | 2 1/4" | 1 7/8" | 6 5/8" | Steel | 2" | Chrome-Plated Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | 00000000 | 000000 |




Mounting Hole | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Ctr.-to-Ctr. (C) | Each | ||
Vertical Latch | ||||||||||||||
7 | 30,000 | 4,500 | 2" | 1 1/2" | 6" | Steel | Lever | No | 5/8" | 4" | 2 5/8" | __ | 000000 | 0000000 |
8 | 70,000 | 30,000 | 2 1/4" | 1 7/8" | 6 7/8" | Steel | Lever | No | 3/4" | 6 1/2" | 3" | 5 1/4" | 00000000 | 000000 |
9 | 90,000 | 18,000 | 2 3/8" | 1 5/8" | 7 1/4" | Iron | Spring-Loaded Pin | No | 3/4" | 6 1/2" | 3" | 5 1/4" | 00000000 | 000000 |
Horizontal Latch | ||||||||||||||
10 | 30,000 | 5,000 | 2 1/4" | 1 7/8" | 6" | Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |

Mounting Hole | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | ||
Vertical Latch | |||||||||||
11 | 12,000 | Not Rated | 2" | 1" | 5 13/16" | Steel | No | 5/8" | 4.25" | 000000 | 0000000 |

Mounting Hole | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | ||
Vertical Latch | |||||||||||
12 | 60,000 | Not Rated | 2" | 1 13/16" | 5" | Steel | No | 1" | 6.5" | 000000 | 0000000 |
