Monitor Wall-Mounts


A	B

C	D

E	F

These arms have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor.

Screw-On Base—Wall Mount


A	B

C	D

E	F

			Projection						Base				Attaching End
	Style	For Monitor Size	Min.	Max.	Max. Load Cap., lb.	Material	Color	Mounting Fasteners Included	Lg.	Wd.	No. of Mounting Holes	Mounting Hole Dia.	Range of Motion	Max. Tilt Range of Motion	Mounting Pattern Compatibility	Certification		Each
Rotate, Tilt



		A	10" to 30"	—	3"	40	Powder-Coated Steel	Silver	Yes	3 13/16"	2 7/16"	3	1/4"	—	90°	VESA 75 × 75, VESA 100 × 100	—	4628T11	000000


		Rotate, Tilt, Side-to-Side



				B	10" to 30"	—	4 11/16"	40	Powder-Coated Steel	Silver	Yes	3 13/16"	2 7/16"	3	1/4"	180°	—	VESA 75 × 75, VESA 100 × 100	—	4628T12	00000


				Rotate, Tilt, Side-to-Side, Up/Down, In/Out



						C	10" to 30"	3 5/8"	10 11/16"	40	Powder-Coated Steel	Silver	Yes	3 13/16"	2 7/16"	3	1/4"	180°	—	VESA 75 × 75, VESA 100 × 100	—	4628T13	00000


						Rotate, Tilt, Side-to-Side, In/Out



								D	13" to 27"	4 1/8"	15 15/16"	30	Powder-Coated Steel	Black	Yes	4 5/8"	4 5/8"	8	0.26"	360°	—	VESA 75 × 75, VESA 100 × 100	—	1133A6	00000


								D	17" to 42"	2 1/4"	22 1/16"	75	Powder-Coated Steel	Black	Yes	9 5/16"	8 3/4"	12	0.33"	360°	—	VESA 75 × 75, VESA 100 × 100, VESA 200 × 200	—	1133A4	00000
								E	37" to 70"	4 9/16"	20 5/8"	165	Powder-Coated Steel	Black	Yes	31 15/16"	8 3/4"	4	0.315"	240°	—	VESA 200 × 200, VESA 300 × 300, VESA 400 × 400, VESA 600 × 600	—	1133A5	000000
								F	60" to 100"	2 3/4"	24 5/8"	275	Powder-Coated Steel	Black	Yes	37"	15 15/16"	4	0.315"	30°	15°	VESA 200 × 200, VESA 300 × 300, VESA 400 × 200, VESA 400 × 400, VESA 500 × 500, VESA 600 × 400, VESA 600 × 600, VESA 600 × 900, VESA 800 × 400, VESA 800 × 600	C-UL Listed, UL Listed	1133A112	000000

Wall-Mount Monitor Stands

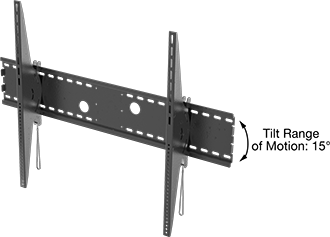

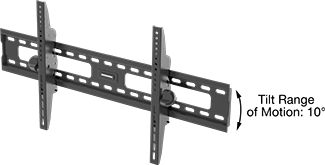

10° Tilt Range of Motion	15° Tilt Range of Motion

Mount flat-panel displays close to a wall. These stands have a standard Video Electronics Standards Association (VESA) mounting hole pattern for compatibility with monitors. After installing your display, tilt these stands up or down to create the best viewing angle. They have a low-profile design for a sleek appearance.

			Overall
For Monitor Size (Diag.) Range	Tilt Range of Motion	Max. Load Cap., lb.	Ht.	Wd.	Material	Color	Attaching End Mounting Pattern Compatibility	Mounting Fasteners Included	Certification		Each







			Up and Down

			26" to 55"	10°	165	17 5/16"	18 1/8"	Powder-Coated Steel	Black	VESA 200 × 200, VESA 200 × 300, VESA 200 × 400, VESA 300 × 200, VESA 300 × 300, VESA 300 × 400, VESA 400 × 200, VESA 400 × 300, VESA 400 × 400	Yes	—	5565N111	000000


			45" to 85"	10°	200	17 5/16"	33 7/8"	Powder-Coated Steel	Black	VESA 200 × 200, VESA 200 × 300, VESA 200 × 400, VESA 300 × 200, VESA 300 × 300, VESA 300 × 400, VESA 400 × 200, VESA 400 × 300, VESA 400 × 400, VESA 500 × 300, VESA 500 × 400, VESA 600 × 300, VESA 600 × 400, VESA 800 × 300, VESA 800 × 400	Yes	—	5565N112	000000
			60" to 100"	15°	350	32 3/4"	44 7/8"	Powder-Coated Steel	Black	VESA 100 × 100, VESA 100 × 200, VESA 200 × 100, VESA 200 × 200, VESA 200 × 300, VESA 200 × 400, VESA 200 × 500, VESA 300 × 200, VESA 300 × 300, VESA 300 × 400, VESA 300 × 500, VESA 300 × 600, VESA 300 × 700, VESA 300 × 800, VESA 400 × 200, VESA 400 × 300, VESA 400 × 400, VESA 400 × 500, VESA 400 × 600, VESA 400 × 700, VESA 400 × 800, VESA 500 × 200, VESA 500 × 300, VESA 500 × 400, VESA 500 × 500, VESA 500 × 600, VESA 500 × 700, VESA 500 × 800, VESA 600 × 300, VESA 600 × 400, VESA 600 × 500, VESA 600 × 600, VESA 600 × 700, VESA 600 × 800, VESA 600 × 900, VESA 700 × 300, VESA 700 × 400, VESA 700 × 500, VESA 700 × 600, VESA 700 × 700, VESA 700 × 800, VESA 800 × 300, VESA 800 × 400, VESA 800 × 500, VESA 800 × 600, VESA 800 × 700, VESA 800 × 800, VESA 900 × 400, VESA 900 × 500, VESA 900 × 600, VESA 900 × 700, VESA 900 × 800, VESA 1000 × 400, VESA 1000 × 500, VESA 1000 × 600, VESA 1000 × 700, VESA 1000 × 800	Yes	UL Listed	5565N113	000000
