    15 Products

    Flexible-Mount Air Flow Control Valves

    A swiveling outlet port allows you to make a connection from any direction. These valves adjust the volume of air exiting an air cylinder (meter out) to control the speed of air-powered equipment. They control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. The valve body has an elbow shape, which allows you to mount them directly to cylinder ports, eliminating additional tubing between the cylinder and valve for better control and consistency than inline valves. Insert plastic or soft metal tubing into the push-to-connect outlet ports.
    Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.
    NPT Male Inlet × Push-to-Connect Female Outlet
    Image of Product. Front orientation. Contains Annotated. Exiting Cylinder. Flexible-Mount Air Flow Control Valves, Meter Out.
    Image of Product. Front orientation. Contains Annotated. Air Flow Control Valves. Flexible-Mount Air Flow Control Valves.

    Meter Out

    Flow Rate @
    100 psi
    Inlet Pipe
    Size
    For Outlet
    Tube OD
    Flow Coefficient
    (Cv)
    Min.
    Max.,
    scfm
    Max. Pressure,
    psi
    Temp. Range,
    ° F
    Flow Adjustment
    Mechanism
    Flow Control Location
    (ISO Designation)
    Each
    Nylon Body with Swiveling Outlet Connection
    1/8
    		1/4"0.44Not Rated21.714535 to 155DialExiting Cylinder (Meter Out)0000000000000
    1/4
    		1/4"0.86Not Rated25.714535 to 155DialExiting Cylinder (Meter Out)000000000000
    1/4
    		3/8"3.56Not Rated83.214535 to 155DialExiting Cylinder (Meter Out)000000000000
    3/8
    		3/8"4.49Not Rated104.914535 to 155DialExiting Cylinder (Meter Out)000000000000


    Air-Operated Air Flow Control Valves with Safety Shut-Off

    Image of System. Front orientation. CrossSection view. Contains Annotated. Air Flow Control Valves. Air-Operated Air Flow Control Valves with Safety Shut-Off.

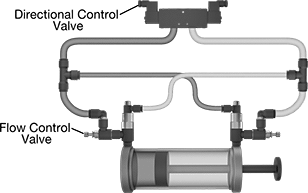

    Protect air-powered equipment in emergency shut-off situations—when system pressure drops, the air signal stops and these valves automatically close to stop cylinder motion, even at a mid-stroke. They control the speed of air-powered equipment by adjusting the volume of airflow. A pressure-release button allows you to exhaust any trapped air pressure from the system after shut down. Install them in pairs on cylinder exhaust ports, and use tee connectors (not included) to direct exhaust air from the cylinder to the air of the opposite valve, and to connect valves to a directional control valve. The elbow shape allows you to mount them directly to cylinder ports, eliminating additional tubing or piping between the cylinder and valve for better control and consistency than inline valves.
    Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve.
    Push-to-Connect Female Inlet × NPT Male Outlet × Female Air Pilot
    Image of Product. Bottom orientation. Contains Annotated. Air Flow Control Valves. Air-Operated Air Flow Control Valves with Safety Shut-Off, Push-to-Connect Female Inlet × NPT Male Outlet × Female Air Pilot.
    Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.
    One Direction—One direction valves control flow as air exits the cylinder (meter out) and moves from the inlet to the outlet.
    Air Pilot
    Flow Rate @ 73
    psi, scfm
    For Inlet
    Tube OD
    Outlet
    Pipe Size
    Pipe
    Size
    Thread
    Size
    Thread
    Type
    Flow Coefficient
    (Cv)
    Min.
    Max.
    Max. Pressure,
    psi
    Temp. Range,
    ° F
    Flow Adjustment
    Mechanism
    Flow Control Location
    (ISO Designation)
    Features
    Each
    Polybutylene Body—One Direction
    1/4"1/8
    		—10-32
    		UNF
    		0.1807.214525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button00000000000000
    1/4"1/4
    		1/8
    		—NPT
    		0.1807.214525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button0000000000000
    3/8"3/8
    		1/8
    		—NPT
    		0.1807.214525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button0000000000000

    Push-to-Connect Female Inlet × BSPP Male Outlet × Push-to-Connect Female Air Pilot
    Image of Product. Front orientation. Contains Annotated. Air Flow Control Valves. Air-Operated Air Flow Control Valves with Safety Shut-Off, Push-to-Connect Female Inlet × BSPP Male Outlet × Push-to-Connect Female Air Pilot.
    Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.
    One Direction—One direction valves control flow as air exits the cylinder (meter out) and moves from the inlet to the outlet.
    Flow Rate @ 87
    psi, scfm
    For Inlet
    Tube OD, mm
    Outlet
    Pipe Size
    For Air Pilot
    Tube OD, mm
    Flow Coefficient
    (Cv)
    Min.
    Max.
    Max. Pressure,
    psi
    Temp. Range,
    ° F
    Flow Adjustment
    Mechanism
    Flow Control Location
    (ISO Designation)
    Features
    Each
    Nylon Body—One Direction
    61/4
    		4Not Rated016.7714525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button000000000000000
    81/8
    		4Not Rated08.4814525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button00000000000000
    83/8
    		4Not Rated030.914525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button00000000000000
    103/8
    		4Not Rated033.214525 to 140DialExiting Cylinder (Meter Out)Pressure-Release Button00000000000000


    Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves

    Made of polybutylene, these plastic valves are more corrosion resistant than valves made of aluminum or nylon. A single dial regulates the speed of airflow in two directions as it enters (meter in) and exits (meter out) equipment, and are often used to control the extension and retraction speed of an air cylinder at the same time. Insert plastic or soft metal tubing into the push-to-connect outlet ports; the outlet ports swivel 360° so you can make a connection from any direction. The elbow shape allows you to mount these valves directly to cylinder ports, eliminating additional tubing between the cylinder and valve for better control and consistency than inline valves.
    Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve.
    NPT Male Inlet × Push-to-Connect Female Outlet
    Image of Product. Front orientation. Contains Annotated. Exiting Cylinder. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves , Meter Out.
    Image of Product. Front orientation. Contains Annotated. Entering Cylinder. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves , Meter In.
    Image of Product. Front orientation. Contains Annotated. Air Flow Control Valves. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves .

    Meter Out

    Meter In

    Flow Rate @ 73
    psi, scfm
    Inlet Pipe
    Size
    For Outlet
    Tube OD
    Flow Coefficient
    (Cv)
    Min.
    Max.
    Max. Pressure,
    psi
    Temp. Range,
    ° F
    Flow Adjustment
    Mechanism
    Flow Control Location (ISO Designation)
    Each
    Polybutylene Body with Swiveling Outlet Connection
    1/8
    		1/4"0.180714525 to 140DialExiting Cylinder (Meter Out), Entering Cylinder (Meter In)0000000000000
    1/4
    		1/4"0.180714525 to 140DialExiting Cylinder (Meter Out), Entering Cylinder (Meter In)000000000000
    1/4
    		3/8"0.180714525 to 140DialExiting Cylinder (Meter Out), Entering Cylinder (Meter In)000000000000

    UNF Male Inlet × Push-to-Connect Female Outlet
    Image of Product. Front orientation. Contains Annotated. Exiting Cylinder. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves , Meter Out.
    Image of Product. Front orientation. Contains Annotated. Entering Cylinder. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves , Meter In.
    Image of Product. Front orientation. Contains Annotated. Air Flow Control Valves. Corrosion-Resistant Single-Control Two-Direction Air Flow Control Valves .

    Meter Out

    Meter In

    Flow Rate @ 73
    psi, scfm
    Inlet Thread
    Size
    For Outlet
    Tube OD
    Flow Coefficient
    (Cv)
    Min.
    Max.
    Max. Pressure,
    psi
    Temp. Range,
    ° F
    Flow Adjustment
    Mechanism
    Flow Control Location (ISO Designation)
    Each
    Polybutylene Body with Swiveling Outlet Connection
    10-32
    		1/8"0.070314525 to 140DialExiting Cylinder (Meter Out), Entering Cylinder (Meter In)0000000000000
