    8 Products

    Wheel Risers with Forklift Pockets

    Image of Product. Front orientation. Contains Annotated. Wheel Risers. Wheel Risers with Forklift Pockets, 1 Riser.

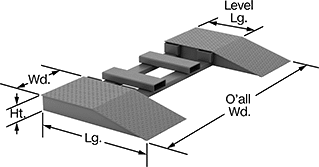

    Image of Product. Front orientation. Contains Annotated. Wheel Risers. Wheel Risers with Forklift Pockets, 2 Risers.

    1 Riser

    2 Risers

    Pockets make it easy to move these risers with a forklift. Use them to raise vehicles up for maintenance jobs or bring vehicles up to dock height for loading and unloading. The diamond surface texture creates good traction, so tires won't slip or spin.
    Roll Off Lip—A roll-off lip stops tires from going too far and accidentally falling off the riser.
    For
    Max. Fork
    No. of
    Risers
    Ht.
    Wt. Cap.,
    lb.
    Wd.
    Ht.
    Level
    Lg.
    Lg.
    Wd.
    Overall
    Wd.
    Material
    Features
    Specs. Met
    Each
    16 1/4"40,0007 1/2"2 1/2"24"48"24"—Painted SteelForklift Pockets, Roll Off LipANSI/ITSDF B56.100000000000000
    26 1/4"40,0007 1/2"2 1/2"24"48"24"101 1/8"Painted SteelForklift PocketsANSI/ITSDF B56.1000000000000000

    Wheel Risers

    Image of Product. Front orientation. Contains Annotated. Wheel Risers. Wheel Risers.
    Raise vehicles up for maintenance jobs or elevate them to dock height for loading and unloading. These risers have a diamond surface texture for positive traction.
    Ht.
    Wt. Cap.,
    lb.
    Level
    Lg.
    Lg.
    Overall
    Wd.
    Material
    Each
    5 7/8"15,00030"48"18"Aluminum00000000000000
    5 7/8"15,00030"48"24"Aluminum0000000000000
    7 7/8"15,00030"54"18"Aluminum0000000000000
    11 7/8"15,00036"72"24"Aluminum000000000000000

    Low-Height Vehicle Ramps

    Image of ProductInUse. Front orientation. Ramps. Low-Height Vehicle Ramps.
    Create a smooth transition for driving forklifts over curbs and into shipping containers. Often used for loading or unloading, these vehicle ramps have a diamond texture on the surface to give wheels traction.
    Black Rubber
    Image of Product. Front orientation. Contains Annotated. Ramps. Low-Height Vehicle Ramps, 2 Ramps Included.
    Image of Product. Front orientation. Contains Annotated. Ramps. Low-Height Vehicle Ramps, 4 Ramps Included.

    2 Ramps Included

    4 Ramps Included

    Rubber ramps are best for occasional use, since fully loaded forklifts will erode their surface over time. Lock them together with the built-in connectors to make a solid ramp, or separate them to use as wheel tracks.
    OSHA Compliant 29 CFR 1910.26 and OSHA Compliant 29 CFR 1926.451—Ramps that have OSHA specifications listed meet dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.
    No. of Ramps
    Included
    Max. Ht.
    Differential
    Wt. Cap.,
    lb.
    Lg.,
    ft.
    Wd.
    Specs. Met
    Each
    26"10,000411"OSHA Compliant 29 CFR 1910.26, OSHA Compliant 29 CFR 1926.451000000000000000
    46"20,000411"OSHA Compliant 29 CFR 1910.26, OSHA Compliant 29 CFR 1926.45100000000000000
