Standards, Shelf Brackets, and Shelves
Design a complete shelving unit with these standards, shelf brackets, and metal shelves (sold separately). The material of the standards and shelf brackets should match. All components are corrosion resistant and are often used for quality control, laboratory, and food service applications.
Warning: Capacity may be reduced due to wall material and fastener choice.
Double-Slotted Standards and Shelf Brackets
These standards and shelf brackets are more stable and hold heavier loads than single-slotted standards and brackets.
Zinc-plated standards and brackets are corrosion resistant.
Warning: Capacity may be reduced due to wall material and fastener choice.
Overall | Slot | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Mounting Fasteners Included | Screw Size  | Mounting Hole Ctr.-to-Ctr. | Choose a Finish | Each | |
Steel | |||||||||||
| 24" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 36" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 48" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 60" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 72" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 84" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |
| 96" | 1 1/4" | 1/2" | 1/8" | 9/16" | 1" | No | No. 10 | 12" | 0000000 | 00000 | |

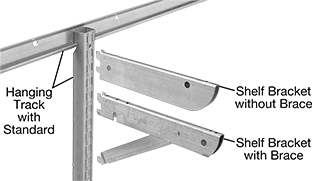

Quick-Mount Standards and Shelf Brackets
These standards mount to a hanging bracket or track, making them easier to install than other standards.
Warning: Capacity may be reduced due to wall material and fastener choice.
Single-Slotted Standards and Shelf Brackets
Zinc-plated standards and brackets are corrosion resistant.
Warning: Capacity may be reduced due to wall material and fastener choice.
Overall | Slot | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Mounting Fasteners Included | Screw Size | Mounting Hole Ctr.-to-Ctr. | Choose a Finish | Each | |
Steel | |||||||||||
| 12" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 00000 | |
| 24" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 0000 | |
| 36" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 0000 | |
| 48" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 0000 | |
| 60" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 00000 | |
| 72" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 00000 | |
| 84" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | Zinc Plated | 0000000 | 00000 |
| 96" | 5/8" | 1/2" | 1/8" | 5/8" | 1" | No | No. 8 | 12" | 000000 | 00000 | |
Standards and Shelf Supports for Cabinets and Bookcases
These standards can be surface mounted or flush mounted inside a routed groove. Four shelf supports per shelf and four standards are required (sold separately).
Double-slotted standards are more stable than single-slotted.
Overall | Slot | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Wd. | Dp. | Wd. | Ht. | Ctr.-to-Ctr. Adjustments | Color | Mounting Fasteners Included | Screw Size | Mounting Hole Ctr.-to-Ctr. | 18" | 24" | 36" | 48" | 60" | 72" | 84" | |
Single Slotted | |||||||||||||||||
| Zinc-Plated Steel | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | __ | No | No. 3 | 6" | 0000000 | |||||||
| Painted Steel | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | White | No | No. 3 | 6" | 0000000 | |||||||
| Aluminum | 5/8" | 1/4" | 1/4" | 1/8" | 1/2" | __ | No | No. 3 | 6" | 0000000 | |||||||
| Stainless Steel | 5/8" | 1/4" | 1/8" | 1/8" | 5/8" | __ | No | No. 5 | 7 3/4" | 00000000 | |||||||
Double Slotted | |||||||||||||||||
| Stainless Steel | 5/8" | 1/4" | 1/16" | 3/8" | 7/8" | __ | No | No. 5 | 7" | 00000000 | |||||||
