Center-Channel Roller Chain Guides
These guides align chain more precisely than open-channel guides. Use them to minimize friction, reduce noise, and prolong the life of your roller chain. They can be cut to the exact length you need.
For technical drawings and 3-D models, click on a part number.
Overall | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Style | For Roller Chain Trade Size | Ht. | Wd. | Center Channel Wd. | Material | Max. Temperature, °F | Lengths, ft. | Per Ft. | |
For Single-Strand ANSI Roller Chain | |||||||||
| A | 40 | 0.31" | 1.00" | 0.25" | Polyethylene Plastic | 175° | 0000000 | 000000 | |
| A | 50 | 0.38" | 1.25" | 0.31" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| A | 60 | 0.50" | 1.50" | 0.44" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| A | 80 | 0.50" | 2.00" | 0.56" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| B | 40 | 0.31" | 1.00" | 0.25" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| B | 50 | 0.31" | 1.25" | 0.31" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| B | 60 | 0.31" | 1.25" | 0.44" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| B | 80 | 0.38" | 1.50" | 0.56" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| C | 40 | 0.59" | 0.79" | 0.29" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| C | 50 | 0.59" | 0.79" | 0.35" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| C | 60 | 0.59" | 1.10" | 0.46" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
| C | 80 | 0.71" | 1.34" | 0.60" | Polyethylene Plastic | 175° | 00000000 | 00000 | |
Deep-Channel Roller Chain Guides
Also known as captured guides, deep-channel guides prevent chain from slipping off track. Use them to minimize friction, reduce noise, and prolong the life of your roller chain. They can be cut to the exact length you need.
Guides with flanged frame allow easy mounting. Stainless steel frames are more corrosion resistant than steel frames.
For technical drawings and 3-D models, click on a part number.
Overall | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Roller Chain Trade Size | Ht. | Wd. | Channel Dp. | Material | Mounting Fasteners Included | Mounting Hole Dia. | Max.Temperature, °F | Lengths, ft. | Per Ft. | |
For Single-Strand ANSI Roller Chain | ||||||||||
304 Stainless Steel Frame | ||||||||||
| 40 | 0.94" | 1.18" | 0.55" | Polyethylene Plastic | __ | __ | 175° | 00000000 | 000000 | |
| 50 | 0.94" | 1.18" | 0.65" | Polyethylene Plastic | __ | __ | 175° | 00000000 | 00000 | |
| 60 | 1.13" | 1.18" | 0.82" | Polyethylene Plastic | __ | __ | 175° | 00000000 | 00000 | |
| 80 | 1.58" | 1.77" | 1.19" | Polyethylene Plastic | __ | __ | 175° | 00000000 | 000000 | |
Steel Flanged Frame | ||||||||||
| 35 | 0.98" | 2.09" | 0.39" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 00000 | |
| 40 | 0.98" | 2.09" | 0.51" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 00000 | |
| 50 | 0.98" | 2.09" | 0.59" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 00000 | |
| 60 | 0.98" | 2.09" | 0.69" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 00000 | |
304 Stainless Steel Flanged Frame | ||||||||||
| 35 | 0.98" | 2.09" | 0.39" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 000000 | |
| 40 | 0.98" | 2.09" | 0.51" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 000000 | |
| 50 | 0.98" | 2.09" | 0.59" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 000000 | |
| 60 | 0.98" | 2.09" | 0.69" | Polyethylene Plastic | No | 5/16" | 175° | 00000000 | 000000 | |
Open-Channel Roller Chain Guides
Minimize friction, reduce noise, and prolong the life of your roller chain. Guides can be cut to the exact length you need.
For technical drawings and 3-D models, click on a part number.
Overall | |||||||
|---|---|---|---|---|---|---|---|
| For Roller Chain Trade Size | Ht. | Wd. | Material | Max. Temperature, °F | Lengths, ft. | Per Ft. | |
For Single-Strand ANSI Roller Chain | |||||||
| 40 | 0.31" | 1.25" | Polyethylene Plastic | 175° | 0000000 | 000000 | |
| 50 | 0.38" | 1.25" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| 60 | 0.38" | 1.50" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
| 80 | 0.50" | 2.00" | Polyethylene Plastic | 175° | 0000000 | 00000 | |
Roller Chain Alignment Tools

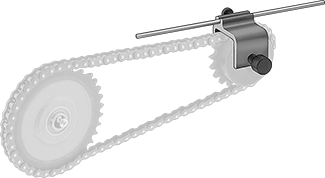

Align sprockets and roller chain during installation and adjustment. Clamp this tool to your sprocket, and the alignment rod indicates when the sprocket lines up with the chain.
For technical drawings and 3-D models, click on a part number.
Overall | |||||
|---|---|---|---|---|---|
| For Max. Sprocket Wd. | Lg. | Wd. | Material | Each | |
| 1" | 7" | 2 1/8" | Aluminum | 0000000 | 000000 |
