Sign Post Base Type Sign Post Base Type |
|---|
 |  |
| Freestanding | Bolt Down |
 | |
| In Ground |
DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense AcquisitionRegulations Supplement)  |
|---|
Post Finish Post Finish |
|---|
|
RoHS (Restriction of Hazardous Substances) RoHS (Restriction ofHazardous Substances) |
|---|
|
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration,Evaluation, Authorization and Restriction of Chemicals) |
|---|
|

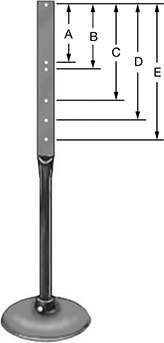

Freestanding Sign Posts
These posts have a cast iron base that's portable but hard to knock over. Mount the post to the base with the included hex head screw. Fasten a sign to the post using two 1” long screws and two nuts (not included).
Post | Mounting Hole Center-to-Center | Base | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht., ft. | Dia. | Material | Mounting Hole Dia. | (A) | (B) | (C) | (D) | (E) | Dia. | Weight, lbs. | Each | |
| 4 | 1 7/8" | Black-Painted Steel | 5/16" | 9" | 10" | 15" | 18" | 21" | 14" | 32 | 0000000 | 0000000 |
Bounce-Back Sign Posts
Reduce damage to signs, parking lot surfaces, and vehicles by installing these posts that rebound after contact. They have a spring at the bottom that offers 360° of flexibility.
Bounce-Back Sign Posts with Guard
The plastic guard reduces impact damage to the post and offers more protection to vehicles than other bounce-back sign posts. These posts have a spring at the bottom that offers 360° of flexibility and allows them to rebound after contact. The reflective bands increase visibility in low-light conditions.
Post | Guard | Base | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sign Post Base Type | Ht., ft. | Dia. | Material | Ht. | Dia. | Material | Color | Band Color | Wd. | Lg. | Mounting Fasteners Included | Includes | Each | |
| Bolt Down | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | 9" | 9" | Yes | Sign Mounting Brackets | 0000000 | 0000000 |
| In Ground | 8 1/2 | 1 5/8" | Steel | 52" | 7" | Plastic | Yellow | Reflective Red | __ | __ | __ | Sign Mounting Brackets | 0000000 | 000000 |
| Replacement Sign Mounting Brackets (Pkg. of 2) | 0000000 | Pkg. | 000000 |
Sign Posts
Drive these posts into the ground or use them with a base. Fasten a sign to a post using two 2-1/2" long screws and two nuts (not included).
Galvanized steel sign posts are more corrosion resistant than painted steel posts.
Sign Posts | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Post | Mounting Hole | Green-Painted Steel | Galvanized Steel | Optional Installation Caps | Optional Reflective Covers | |||||||
| Ht., ft. | Wd. | Weight, lbs. | Dia. | Ctr.-to-Ctr. | Each | Each | Each | Each | ||||
| 6 | 2 3/16" | 7 | 3/8" | 1" | 000000 | 000000 | 0000000 | 000000 | 000000 | 00 | 000000 | 000000 |
| 7 | 2 3/16" | 8 | 3/8" | 1" | 0000000 | 00000 | 0000000 | 00000 | 000000 | 00 | 000000 | 00000 |
| 8 | 3 1/8" | 16 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 000000 | 000000 | 00000 |
| 10 | 3 1/8" | 20 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 00000 | 000000 | 00000 |
| 12 | 3 1/8" | 24 | 3/8" | 1" | 000000 | 00000 | 0000000 | 00000 | 000000 | 00000 | 000000 | 00000 |
Sign Post Mounting Pegs
Bolt these pegs directly into the ground. They fit into the U-channel of a sign post.
Base Mounting | Peg Wd. | Post Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Base Wd. | Base Lg. | Fasteners Included | Number of Holes | Hole Dia. | (A) | (B) | Peg Dp. | Fasteners Included | Number of Holes | Hole Thread Size | Material | Each | |
| 2 1/2" | 3 1/2" | No | 2 | 3/8" | 1 1/2" | 1" | 1" | No | 2 | 5/16"-18 | Aluminum | 0000000 | 000000 |
Sign Post Bases
Use these bases to hold a sign post. The mounting peg fits into the U-channel of a sign post.
Sign Stakes
Drive these stakes into the ground and then slide a foam or corrugated plastic sign over the top. Use a single sign stake for signs up to 18 × 24. For signs that are wider, use additional sign stakes for increased stability.
Style B are twice as thick as Style A, making them more rigid and longer lasting.
Pedestal Sign Holders
These holders come with a cover to protect signs from smudging and wear. Insert a sign or document from the top.
26”-50” tall holders have a telescoping pole to position signs at the right height.
For technical drawings and 3-D models, click on a part number.
For Max. Sign | Base | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | Thick. | Ht. | Wd. | Material | Cover Material | Cover Color | Dia. | Weight, lbs. | Choose a Color | Each | |
| 8 1/2" | 11" | 0.188" | 26"-50" | 12" | Aluminum | PETG Plastic | Clear | 11" | 5 | 000000 | 0000000 | |
| 11" | 8 1/2" | 0.188" | 26"-50" | 9 1/2" | Aluminum | PETG Plastic | Clear | 11" | 5 | 000000 | 000000 | |
| 11" | 14" | 0.188" | 26"-50" | 15" | Aluminum | PETG Plastic | Clear | 11" | 5 | 0000000 | 000000 | |
| 11" | 17" | 0.188" | 26"-50" | 18" | Aluminum | PETG Plastic | Clear | 11" | 5 | 0000000 | 000000 | |
| 14" | 11" | 0.188" | 26"-50" | 12" | Aluminum | PETG Plastic | Clear | 11" | 5 | 0000000 | 000000 | |
| 14" | 22" | 0.188" | 26"-50" | 23" | Aluminum | PETG Plastic | Clear | 13" | 7 | 0000000 | 000000 | |
| 17" | 11" | 0.188" | 26"-50" | 12" | Aluminum | PETG Plastic | Clear | 11" | 5 | 0000000 | 000000 | |
| 22" | 14" | 0.188" | 26"-50" | 15" | Aluminum | PETG Plastic | Clear | 13" | 7 | 0000000 | 000000 | |
| 24" | 18" | 1/4" | 61" | 19" | Aluminum | PETG Plastic | Clear | 19" | 15 | 0000000 | 000000 | |
Slanted Table-Top Sign Holders
Designed for one-sided viewing, these holders prominently display signs or documents on a table or countertop. Insert a sign or document from the sides and bottom.
Straight Table-Top Sign Holders
Prominently display documents or signs on a table or countertop. Insert a sign or document from the top and sides to display a sign on the front and back.
A-Frame Sign Holders
Display signs on sidewalks or other areas with high foot traffic, indoors and out. Holders are designed to fit two signs, one on each side. Slide a sign in from the top and down through the two tabs; there is a slot on the bottom to hold the sign in place. Holders fold flat for easy storage.
Tripod Easels
Easels with telescoping legs adjust for floor or tabletop use.
Easels with a flip chart bar allow you to hang pads from the top of the easel to use them as flip charts.
| Material | Ht. | Mount Type | Features | Each | |
| Black Plastic | 63" | Freestanding | Adjustable Height Paper Pad Holder, Collapsible | 00000000 | 000000 |
| Oak | 64" | Freestanding | Adjustable-Height Paper Pad Holder | 00000000 | 00000 |
| Aluminum | 35" to 66" | Freestanding | Adjustable-Height Paper Pad Holders, Flip Chart Bar, Telescoping Legs | 0000000 | 000000 |
| Aluminum | 40" to 73" | Freestanding | Adjustable-Height Paper Pad Holders, Flip Chart Bar, Telescoping Legs | 0000000 | 000000 |
