Secure your robot arm to benches, frames, or other surfaces with these base mounts. They’re compatible with the mounting patterns on Universal Robots (UR) arms. Made from aluminum, they’re machinable, so you can drill holes to match them to custom mounting patterns. They also resist corrosion in wet environments.

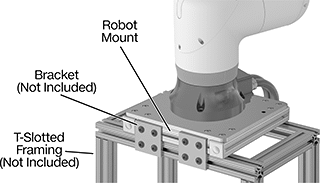

Attach mounts for T-slotted framing to frames and workstations made from T-slotted framing using brackets, nuts, and fasteners (not included). Bolt them to your robot arm through mounting holes on the face.
For technical drawings and 3-D models, click on a part number.
Rail | Robot Mounting Location | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
For Robot Arm Manufacturer | For Robot Arm Manufacturer Series | Wd. | Lg. | Thick. | Static Load Capacity, lbs. | T-Slotted Framing Mount Type | Profile | Ht. | Wd. | T-Slot Wd. | Mount Type | Mounting Hole Dia. (No. of Holes) | Mounting Fasteners Included | Each | |
Robot Base Mount | |||||||||||||||
Silver Anodized Aluminum | |||||||||||||||
Universal Robots | UR3, UR3e | 11" | 11" | 1 7/8" | 125 | Rail | Single | 1 1/2" | 1 1/2" | 0.32" | Bolt On | 0.260" (4) | No | 00000000 | 0000000 |
Universal Robots | UR10, UR10e, UR16e, UR5, UR5e | 11" | 11 1/4" | 1 7/8" | 125 | Rail | Single | 1 1/2" | 1 1/2" | 0.32" | Bolt On | 0.354" (8) | No | 00000000 | 000000 |
