Static-Dissipative Laminate Workbench Tops
These tops have a grounding snap and a laminate surface that dissipates static to protect electronic components from electrostatic discharge. Tops are easy to clean and resistant to stains, oils, and diluted chemicals.
The 96" wide workbench tops require at least three workbench legs.
For technical drawings and 3-D models, click on a part number.
| Wd. | Dp. | Cap., lbs. | Material | Thick. | Electrical Properties | Surface Resistivity, ohms/sq. | Mounting Fasteners Included | Features | Choose a Color | Each | |
Straight Edge | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 60" | 30" | 950 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | 00000000 | 0000000 | |
| 72" | 30" | 1,150 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | 00000000 | 000000 | |
| 72" | 36" | 1,375 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | 00000000 | 000000 | |
| 96" | 30" | 1,525 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | 00000000 | 000000 | |
| 96" | 36" | 1,825 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | 00000000 | 000000 | |
Bullnose Edge | |||||||||||
| 60" | 30" | 950 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | Beige | 0000000 | 000000 |
| 72" | 30" | 1,150 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | Beige | 0000000 | 000000 |
| 72" | 36" | 1,375 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | Beige | 0000000 | 000000 |
| 96" | 30" | 1,525 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | Beige | 0000000 | 000000 |
| 96" | 36" | 1,825 | Plastic Laminate | 1 1/4" | Static Dissipative | 106-109 | Yes | 3/8" Grounding Snap | Beige | 0000000 | 000000 |

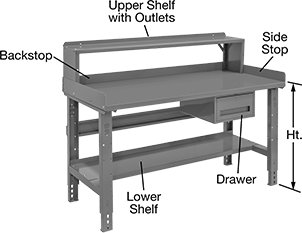

Workbenches
Choose a workbench and then add any of the optional accessories. All workbenches come with a support brace and have legs with knockouts in the front and back to accept duplex electrical outlets.
Static-dissipative plastic laminate tops have a grounding snap and a laminate surface that dissipates static to protect sensitive electronic equipment from damage. They are also easy to clean.
Optional backstop and side stops keep items from sliding off.
Optional drawers mount under the work surface. They have a keyed lock installed and come with two keys. Add a mounting kit to mount drawers to workbenches with plain steel tops.
Optional lower shelves provide additional storage space.
Optional upper shelves have a 1 1/2" backstop. Shelves with eight outlets include a power switch and circuit breaker.
For technical drawings and 3-D models, click on a part number.
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 33 1/2" | 950 | Beige | 1 1/4" | 950 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 33 1/2" | 1,150 | Beige | 1 1/4" | 1,150 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | O'all Cap., lbs. | Color | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 33 1/2" | 1,375 | Beige | 1 1/4" | 1,375 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
O'all | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Top Wd. | Wd. | Dp. | Ht. | Material | Color | Gauge | Cap., lbs. | Mounting Fasteners Included | Assembled or Unassembled | Each | |
Shelves | |||||||||||
| 60" | 60" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 0000000 |
| 72" | 72" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Shelves with Eight Outlets | |||||||||||
| 60" | 60" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
| 72" | 72" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Adjustable-Height Workbenches
Choose a workbench and then add any of the optional accessories. Keyhole slots in the legs allow you to adjust the height of these workbenches in 1 1/2" increments. All workbenches come with a support brace and have legs with knockouts in the front and back to accept duplex electrical outlets.
Static-dissipative plastic laminate tops have a grounding snap and a laminate surface that dissipates static to protect sensitive electronic equipment from damage. They are also easy to clean.
Optional backstop and side stops keep items from sliding off.
Optional drawers mount under the work surface. They have a keyed lock installed and come with two keys. Add a mounting kit to mount drawers to workbenches with plain steel tops.
Optional lower shelves provide additional storage space.
Optional upper shelves have a 1 1/2" backstop. Shelves with eight outlets include a power switch and circuit breaker.
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 29 1/4"-36 3/4" | 1 1/2" | Keyhole Slots | 950 | 1 1/4" | 950 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 29 1/4"-36 3/4" | 1 1/2" | Keyhole Slots | 1,150 | 1 1/4" | 1,150 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
Adjustments | Top | Mtg. Holes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Material | Ht. | Ctr.-to-Ctr. | Type | O'all Cap., lbs. | Thick. | Cap., lbs. | Frame Material | No. of | Fasteners Included | Assembled or Unassembled | Each | |
| Static-Dissipative Plastic Laminate | 29 1/4"-36 3/4" | 1 1/2" | Keyhole Slots | 1,375 | 1 1/4" | 1,375 | Powder-Coated Steel | 4 | No | Unassembled | 00000000 | 0000000 |
O'all | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Top Wd. | Wd. | Dp. | Ht. | Material | Color | Gauge | Cap., lbs. | Mounting Fasteners Included | Assembled or Unassembled | Each | |
Shelves | |||||||||||
| 60" | 60" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 0000000 |
| 72" | 72" | 10 1/2" | 12" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
Shelves with Eight Outlets | |||||||||||
| 60" | 60" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |
| 72" | 72" | 15" | 18" | Powder-Coated Steel | Gray | 20 | 750 | Yes | Unassembled | 0000000 | 000000 |

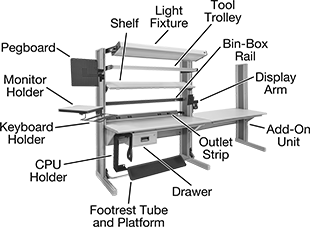

Adjustable-Height Workstations
Create a customized work area by adding accessories. These workstations are often used for small-parts assembly.
Static-dissipative tops, shelves, and bin-box rails have a surface that dissipates static to protect sensitive electronic equipment from damage.
Monitor holders rotate 360° on a swing arm.
Keyboard holders attach to the bottom of the monitor holder.
CPU holders suspend your CPU on a platform below the workstation to free up space. They slide out for access to the CPU.
Outlet strips have six outlets, a power switch, and a circuit breaker.
Drawers mount under the work surface and have a keyed lock.
Light fixtures adjust in any direction. They use two tubular T8 fluorescent bulbs (not included).
Shelves tilt forward and backward 45°.
Bin box racks contain four 13-in. rails, and can hold up to 12 four-in.-wide × three-in.-tall bin boxes.
Bin-box rails accept hanging bin boxes.
Move tools along the length of workstations with tool trolleys. Trolleys come with one hanger; additional hangers sold separately.
Footrest tubes span the length of workstations for foot support. Use footrest platforms along with footrest tubes for additional support.
Workstations | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O'all | Top | Bin-Box Rails | Shelves | ||||||||||
| Wd. | Dp. | Ht. | Ht. | O'all Cap., lbs. | Color | Cap., lbs. | Assembled or Unassembled | Each | Each | Each | |||
Complete Unit | |||||||||||||
Static-Dissipative Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 000000000 | 00000000 | 0000000 | 00000000 | 0000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
Add-On Unit | |||||||||||||
Static-Dissipative Plastic Laminate Top with Blue Powder-Coated Steel Frame | |||||||||||||
| 60" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| 72" | 30" | 72" | 21"-72" | 750 | Gray | 500 | Unassembled | 00000000 | 00000000 | 00000000 | 000000 | 00000000 | 000000 |
| Length | Width | Height | Each | ||
Bin-Box Racks with Swing Arms | |||||
|---|---|---|---|---|---|
| For Workstations with 60" and 72" Overall Width | __ | 12" | 14 3/8" | 00000000 | 0000000 |
CPU Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 12" | 22" | 00000000 | 000000 |
Drawers | |||||
| For Workstations with 60" and 72" Overall Width | __ | 15" | 6 1/2" | 00000000 | 000000 |
| For Workstations with 60" and 72" Overall Width | __ | 15" | 12 1/2" | 00000000 | 000000 |
Flat Panel Display Arms | |||||
| For Workstations with 60" and 72" Overall Width | __ | __ | __ | 00000000 | 000000 |
Footrest Platforms | |||||
| For Workstations with 60" and 72" Overall Width | 36" | 36" | 3/4" | 00000000 | 000000 |
Footrest Tubes | |||||
| For Workstations with 60" Overall Width | __ | 60" | 1" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | 72" | 1" | 00000000 | 000000 |
Keyboard Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 18" | 2 3/4" | 00000000 | 00000 |
Light Fixtures | |||||
| For Workstations with 60" Overall Width | 56" | 11" | 3" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | 68" | 13 1/2" | 3" | 00000000 | 000000 |
Monitor Holders | |||||
| For Workstations with 60" and 72" Overall Width | __ | 15" | __ | 00000000 | 000000 |
Outlet Strips | |||||
| For Workstations with 60" Overall Width | __ | 52" | 3 1/2" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | 64" | 3 1/2" | 00000000 | 000000 |
Pegboards | |||||
| For Workstations with 60" and 72" Overall Width | __ | 12" | 16" | 00000000 | 000000 |
Tool Hangers | |||||
| For Workstations with 60" and 72" Overall Width | __ | __ | __ | 00000000 | 00000 |
Tool Trolleys | |||||
| For Workstations with 60" Overall Width | __ | __ | 2 1/4" | 00000000 | 000000 |
| For Workstations with 72" Overall Width | __ | __ | 2 1/4" | 00000000 | 000000 |
