Hold-Down Fixture Clamps
Tighten the spring-loaded socket head cap screw on these clamps to hold your workpiece from above. Also known as swing clamps, you can rotate the hook out of the way when the screw is loose. Install these clamps in a drilled hole for maximum rigidity.
Add mounting blocks to rotate the clamp’s hook consistently—these blocks have a stop every 90°. They’re also useful if you don’t have an easy mounting location for the fixture clamp.
Clamps | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Body | Thread | Drive | Mounting Blocks | ||||||||||
| Max. Clamping Clearance | Holding Capacity, lbs. | Reach | Lg. | Dia. | Size | Lg. | Size | Style | Material | Each | Each | ||
| 7/8" | 4,800 | 11/16" | 1 3/8" | 5/8" | 5/16"-18 | 1 3/4" | 1/4" | Hex | Steel | 0000000 | 000000 | 000000 | 00 |
| 29/32" | 2,200 | 1 3/16" | 1 3/8" | 3/4" | 5/16"-18 | 2" | 1/4" | Hex | Black-Oxide Steel | 0000000 | 00000 | 0000000 | 000000 |
| 1 17/32" | 2,700 | 2 3/8" | 2 1/4" | 1" | 1/2"-13 | 3" | 3/8" | Hex | Black-Oxide Steel | 0000000 | 00000 | 0000000 | 00000 |
| 1 17/32" | 3,700 | 2 3/8" | 2 3/8" | 1 1/4" | 5/8"-11 | 3 1/4" | 1/2" | Hex | Black-Oxide Steel | 0000000 | 000000 | 0000000 | 000000 |
| 1 5/8" | 6,400 | 1" | 2 1/4" | 7/8" | 3/8"-16 | 3" | 5/16" | Hex | Steel | 0000000 | 00000 | 000000 | 00 |
| 1 5/8" | 12,000 | 1" | 2 1/4" | 7/8" | 1/2"-13 | 3" | 3/8" | Hex | Steel | 0000000 | 00000 | 000000 | 00 |
| 1 13/16" | 17,000 | 1 7/16" | 2 3/4" | 1 1/8" | 5/8"-11 | 3 1/2" | 1/2" | Hex | Steel | 0000000 | 00000 | 000000 | 00 |
Light Duty Fixture Clamp Kits

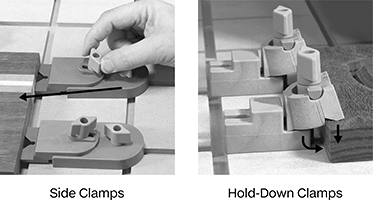

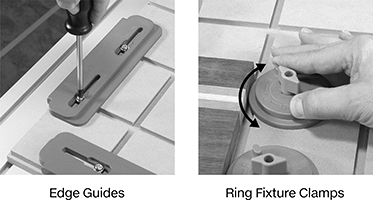

Made of plastic, the clamps in these kits are used for woodworking and other machining jobs that don’t need high clamping pressure. Each kit comes with edge guides and three different types of clamps, so you can secure workpieces of all shapes and sizes. Edge guides are often used as a frame to consistently position multiple workpieces for repeat jobs. Ring fixture clamps tighten with a twist—they press into the side of your workpiece to hold it in place. Side clamps apply force both inward and downward without blocking the top of your workpiece. Hold-down clamps grip the top and side of your workpiece for the most secure hold.
| No. of Pieces | Includes | Material | Mounting Screw Thread Size | Each | |
| 12 | 3 Edge Guides, 2 Ring Fixture Clamps, 2 Side Clamps, 4 Hold-Down Clamps, Nylon Mounting Hardware | Plastic | 1/4"-20 | 0000000 | 0000000 |
