T-Slot Fixturing Tables
Mount workpiece holders, light machinery, collaborative robots, and other components onto these tables to create custom workspaces, no drilling or tapping required. Fasten equipment to tables by sliding T-slot nuts, bolts or setup studs into the T-shaped gaps. Tables have adjustable feet, so you can compensate for uneven floors and create a stable base. Store tools and accessories on the bottom shelf. These table are aluminum, so they’re lightweight and corrosion resistant.
For technical drawings and 3-D models, click on a part number.
Overall | Shelves | T-Slots | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Capacity, lbs. | Type | Capacity, lbs. | Clearance | No. of | Wd. | Ctr.-to-Ctr. | Mounting Slot Ht. | Parallel Tolerance | Plate Material | Plate Thickness | Features | Each | |
| 39 3/8" | 19 3/4" | 29 1/2" | 495 | Fixed | 55 | 17 3/4" | 10 | 5/16" | 2" | 1/2" | Not Rated | Aluminum | 0.5" | Leveling Feet | 0000000 | 000000000 |
| 59 1/8" | 29 1/2" | 29 1/2" | 1,045 | Fixed | 165 | 17 3/4" | 15 | 5/16" | 2" | 1/2" | Not Rated | Aluminum | 0.5" | Leveling Feet | 0000000 | 00000000 |
| 59 1/8" | 39 3/8" | 29 1/2" | 1,045 | Fixed | 165 | 17 3/4" | 20 | 5/16" | 2" | 1/2" | Not Rated | Aluminum | 0.5" | Leveling Feet | 0000000 | 00000000 |
T-Slot Fixture Plates
These plates have three T-slots for use with T-slot nuts, bolts, and setup studs. There is a slot along each side of the plate for mounting with clamps.
Aluminum plates are lightweight and have mild corrosion resistance. Iron plates are heavy duty for long term use.
For technical drawings and 3-D models, click on a part number.
Fine-Adjust Cross-Slide Tables
Precisely position work on X- and Y-axes using the handles.
Tilting tables position work at any angle up to 90°.
50-lb. capacity tables have a keyway for accurately positioning the table on your machine.
150-lb. capacity tables have handles at both ends so you can position work from either side.
Table | Base | Max. Travel | X-Axis T-Slots | Y-Axis T-Slots | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Lg. | Wd. | X-Axis | Y-Axis | X- and Y-Axis Adjustment Dial Graduations | Keyway Size | Overall Ht. | No. of | Wd. | Ctr.-to-Ctr. | No. of | Wd. | Ctr.-to-Ctr. | Flatness Tolerance | Material | Mounting Fasteners Included | Each | |
Standard 50-lb. Capacity | |||||||||||||||||||
| 10" | 6" | 6 3/8" | 7 5/8" | 6" | 4" | 0.001" | 5/8" | 4 3/8" | 1 | 7/16" | __ | 3 | 7/16" | 2 1/2" | 0.001" | Iron | No | 000000 | 0000000 |
Standard 150-lb. Capacity | |||||||||||||||||||
| 18 5/8" | 6" | 7 1/8" | 12" | 12" | 8" | 0.001" | __ | 5 1/4" | 2 | 1/2" | 2 3/8" | __ | __ | __ | 0.002" | Iron | No | 0000000 | 000000 |
Tilting 50-lb. Capacity | |||||||||||||||||||
| 12" | 6" | 5" | 9" | 8" | 4" | 0.001" | 5/8" | 4 5/8" | 1 | 7/16" | __ | 3 | 7/16" | 3" | 0.001" | Iron | No | 000000 | 00000000 |
Fine-Adjust Rotary Cross-Slide Tables
Rotate work 360° and precisely position it on X- and Y-axes by turning the handles. Use the keyway to accurately position the table on your machine.
Tilting tables position work at any angle up to 90°.
Base | Max. Travel | T-Slots | Rotation Graduations | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Table Dia. | Load Capacity, lbs. | Lg. | Wd. | X-Axis | Y-Axis | X- and Y-Axis Adjustment Dial Graduations | Keyway Size | Overall Ht. | No. of | Wd. | Center Bore Dia. | Adjustment Dial | Table | Flatness Tolerance | Material | Each | |
Standard | |||||||||||||||||
| 8" | 50 | 6 1/4" | 7 1/2" | 4" | 4" | 0.001" | 5/8" | 5 1/2" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.001" | Iron | 000000 | 000000000 |
| 10" | 50 | 6 1/4" | 7 1/2" | 4" | 4" | 0.001" | 5/8" | 5 3/8" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.001" | Iron | 000000 | 00000000 |
Tilting | |||||||||||||||||
| 8" | 50 | 5" | 9" | 4" | 4" | 0.001" | 5/8" | 5" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.001" | Iron | 000000 | 00000000 |
| 10" | 50 | 5" | 9" | 4" | 4" | 0.001" | 5/8" | 5 3/4" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.001" | Iron | 000000 | 00000000 |
Fine-Adjust Rotary Tables
Turn the handles to rotate work 360°. These tables can be mounted horizontally or vertically and have a keyway for accurate positioning on your machine.
Base | T-Slots | Rotation Graduations | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Table Dia. | Load Capacity, lbs. | Lg. | Wd. | Keyway Size | Overall Ht. | No. of | Wd. | Center Bore Dia. | Adjustment Dial | Table | Flatness Tolerance | Material | Mounting Fasteners Included | Each | |
| 8" | 50 | 12" | 9 1/2" | 5/8" | 3 7/8" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.002" | Iron | No | 000000 | 0000000 |
| 10" | 50 | 12" | 9 1/2" | 5/8" | 3 7/8" | 2 | 5/8" | 1 5/8" | 1/20° | 1° | 0.002" | Iron | No | 000000 | 00000000 |

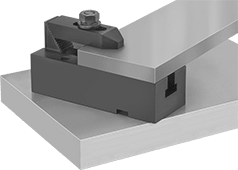

T-Slot Blocks
Mount these versatile blocks to any flat surface for machine table-style T-slot clamping. They can also be used on a machine table to clamp parts at specific angles or add more total clamping points. Secure the block to your table using the slot for a 5/8" fixture key (not included) on the bottom of the block. Tapped holes on the top let you attach clamps or thread in screws to use as workstops.
Right-angle blocks are a good choice for clamping parts from the side.
T-Slots | Mounting | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | No. of | Wd. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | No. of Holes | Hole Thread Size | Slot Wd. | Material | Each | |
Flat | ||||||||||||
| 5" | 2 1/4" | 1 3/4" | 1 | 3/8" | __ | __ | 1 | 5/16"-18 | 5/16" | Aluminum | 0000000 | 000000 |
| 5" | 3 1/4" | 1 3/4" | 4 | 3/8" | 2 5/32" | 1 1/4" | 2 | 5/16"-18 | 5/16" | Aluminum | 0000000 | 000000 |
| 7 1/4" | 2 3/4" | 2" | 1 | 5/8" | __ | __ | 1 | 1/2"-13 | 1/2" | Aluminum | 0000000 | 00000 |
| 7 1/4" | 5 1/2" | 2" | 4 | 5/8" | 2 3/4" | 3" | 2 | 1/2"-13 | 1/2" | Aluminum | 0000000 | 000000 |
Right Angle | ||||||||||||
| 3 1/4" | 2" | 2 1/2" | 2 | 3/8" | 1" | __ | 1 | 5/16"-18 | __ | Aluminum | 0000000 | 00000 |
| 4" | 2 1/4" | 3 1/2" | 2 | 5/8" | 1 1/2" | __ | 1 | 1/2"-13 | __ | Aluminum | 0000000 | 00000 |
T-Slot Covers
Prevent chips, debris, and small parts from falling into T-slots. These covers snap securely into T-slots but can be easily removed to change your table setup. They can be cut to length.
T-Slot Cleaners
Scrape debris out of machine table T-slots.
For Slot Wd. | ||||
|---|---|---|---|---|
| Inch | Metric | Overall Lg. | Each | |
Black-Oxide Steel | ||||
| 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 1", 1 1/16", 1 1/8", 1 1/4", 1 5/16", 1 3/8" | 16 mm, 17 mm, 18 mm, 20 mm, 22 mm, 27 mm, 33 mm | 6" | 000000000 | 00000 |
Steel | ||||
| 7/8", 15/16", 1", 1 1/16", 1 1/8", 1 3/16", 1 1/4" | 22 mm, 23 mm, 24 mm, 25 mm, 26 mm, 27 mm, 28 mm, 29 mm, 30 mm, 31 mm, 32 mm | 7 1/4" | 000000000 | 00000 |
T-Slotted Framing Bases
Get projects off to a quick start with these kits that include the components you need to build simple structures, such as workbenches and stands. When assembled, bases are 34" high to allow room for bench tops and mounting feet.
For technical drawings and 3-D models, click on a part number.
Rail | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Ht. | Profile | Ht. | Wd. | T-Slot Wd. | Color | Holding Capacity, lbs. | Includes | Assembled or Unassembled | Each | |
Anodized 6560 Aluminum | ||||||||||||
| 24" | 24" | 34" | Single | 1 1/2" | 1 1/2" | 0.32" | Silver | 250 | Corner Brackets, End Caps, Mounting Fasteners, Rails | Unassembled | 00000000 | 0000000 |
| 36" | 36" | 34" | Single | 1 1/2" | 1 1/2" | 0.32" | Silver | 250 | Corner Brackets, End Caps, Mounting Fasteners, Rails | Unassembled | 00000000 | 000000 |
| 48" | 36" | 34" | Single | 1 1/2" | 1 1/2" | 0.32" | Silver | 250 | Corner Brackets, End Caps, Mounting Fasteners, Rails | Unassembled | 00000000 | 000000 |
