How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
High-Polish Metal Quick-Clamp Sanitary Tube Fittings
- Temperature Range: See Gaskets
The smooth finish inside these fittings makes it easy to remove product residue. Also known as aseptic and tri-clamp fittings, they connect with a gasket, a clamp, and another quick-clamp fitting for a fast and easy way to access your line. The pressure rating of the fitting will vary depending on the clamp you choose, and the temperature rating will vary based on the gasket material you choose.
304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.
3-A certified fittings comply with sanitary standards.

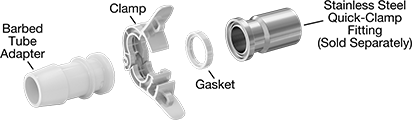

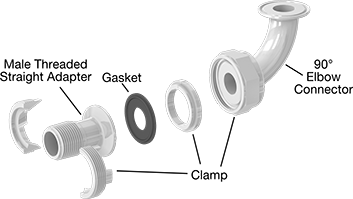

Note: To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Caps
- For Use With: Air, Beverage, Dairy, Food, Water
- Tubing: Use with welded 304/304L or 316/316L stainless steel that meets ASTM A269 or ASTM 270
- Specifications Met: 3-A Certified 63-04
304 Stainless Steel
| For Tube OD | Flange OD | Each | |
| 1/2", 3/4" | 0.986" | 000000000 | 000000 |
| 1", 1 1/2" | 1.984" | 00000000 | 0000 |
| 2" | 2.516" | 00000000 | 0000 |
| 2 1/2" | 3.047" | 00000000 | 00000 |
| 3" | 3.579" | 00000000 | 00000 |
| 4" | 4.682" | 00000000 | 00000 |
| 6" | 6.57" | 00000000 | 00000 |
| 8" | 8.57" | 000000000 | 000000 |
| 10" | 10.57" | 000000000 | 000000 |
| 12" | 12.57" | 000000000 | 000000 |
316/316L Stainless Steel
| For Tube OD | Flange OD | Certification | Each | |
| 1/2", 3/4" | 0.986" | Material Certificate with Traceable Lot Number and Test Report | 00000000 | 000000 |
| 1", 1 1/2" | 1.984" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 0000 |
| 2" | 2.516" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 00000 |
| 2 1/2" | 3.047" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 00000 |
| 3" | 3.579" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 00000 |
| 4" | 4.682" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 00000 |
| 6" | 6.57" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 000000 |
| 8" | 8.57" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 000000 |
| 10" | 10.57" | Material Certificate with Traceable Lot Number and Test Report | 000000000 | 000000 |
| 12" | 12.57" | __ | 00000000 | 000000 |
Clamps
304 Stainless Steel with Wing Nut
304 Stainless Steel with Wing Nut, Spring Loaded
304 Stainless Steel with Bolt
316 Stainless Steel with Wing Nut and 2-Pin Hinge
316 Stainless Steel with Safety Wing Nut and 2-Pin Hinge
316 Stainless Steel with Double Bolt
316 Stainless Steel with
Recessed Nut, Hole for
Lockout, and 2-Pin Hinge
Recessed Nut, Hole for
Lockout, and 2-Pin Hinge
White Nylon Plastic with Wing Nut
Clamps with wing nut tighten by hand. Clamps with bolt tighten with a wrench. They handle higher pressures than wing-nut clamps for a stronger, more secure hold.
| For Tube OD | For Flange OD | Bolt Material | Max. Pressure | For Tube Specifications Met | Specifications Met | Each | |
304 Stainless Steel with Wing Nut | |||||||
|---|---|---|---|---|---|---|---|
| 1/2", 3/4" | 0.984" | __ | 1,200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | __ | 450 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | __ | 400 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | __ | 350 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | __ | 200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 6" | 6.57" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 8" | 8.57" | __ | 100 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 10" | 10.57" | __ | 40 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 000000 |
| 12" | 12.695" | 304 Stainless Steel | 30 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 000000 |
304 Stainless Steel with Wing Nut, Spring Loaded | |||||||
| 1/2", 3/4" | 0.984" | __ | 1,200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 450 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 2 1/2" | 3.047" | __ | 400 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 350 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
304 Stainless Steel with Bolt | |||||||
| 1", 1 1/4", 1 1/2" | 1.984" | 304 Stainless Steel | 1,500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 6" | 6.57" | 304 Stainless Steel | 300 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 8" | 8 3/4" | 304 Stainless Steel | 100 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 000000 |
316 Stainless Steel with Wing Nut and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2 1/2" | 3.047" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 6" | 6.57" | __ | 430 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 8" | 8.57" | __ | 290 psi @ 72 ° F | __ | __ | 0000000 | 000000 |
| 10" | 10.57" | __ | 230 psi @ 72 ° F | __ | __ | 0000000 | 000000 |
| 12" | 12.695" | __ | 140 psi @ 72 ° F | __ | __ | 0000000 | 000000 |
316 Stainless Steel with Safety Wing Nut and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 6" | 6.57" | __ | 430 psi @ 72 ° F | __ | __ | 0000000 | 000000 |
316 Stainless Steel with Double Bolt | |||||||
| 1", 1 1/4", 1 1/2" | 1.984" | 316 Stainless Steel | 2,400 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 2" | 2.516" | 316 Stainless Steel | 1,300 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 3" | 3.579" | 316 Stainless Steel | 1,300 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 4" | 4.682" | 316 Stainless Steel | 820 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 6" | 6.57" | 316 Stainless Steel | 210 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 8" | 8.57" | 316 Stainless Steel | 140 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 10" | 10.57" | 316 Stainless Steel | 100 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
316 Stainless Steel with Recessed Nut, Hole for Lockout, and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 6" | 6.57" | __ | 430 psi @ 72 ° F | __ | __ | 0000000 | 000000 |
White Nylon Plastic with Wing Nut | |||||||
| 1/2", 3/4" | 0.984" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 6" | 6.57" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 000000 |
| 8" | 8.57" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 000000 |
Gaskets
Buna-N gaskets are oil resistant. EPDM gaskets resist water and steam and work well in humid environments. Silicone gaskets withstand high temperatures. Fluoroelastomer gaskets stand up to fuel, oil, and acid condensates. PTFE gaskets withstand harsh chemicals, with the exception of molten alkali metal and elemental fluorine.
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Specifications Met | Each | |
Buna-N Rubber | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.380" | 0.860" | 0.178" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 3/4" | 0.620" | 0.860" | 0.178" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
| 2" | 1.900" | 2.520" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 6" | 5.820" | 6.510" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 8" | 7.780" | 8.670" | 0.205" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 10" | 9.770" | 10.660" | 0.205" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 12" | 11.730" | 12.660" | 0.205" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
EPDM Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3/4" | 0.620" | 0.860" | 0.178" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 6" | 5.820" | 6.670" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 8" | 7.780" | 8.670" | 0.205" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 10" | 9.770" | 10.660" | 0.205" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 12" | 11.730" | 12.660" | 0.205" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
Silicone Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3/4" | 0.620" | 0.860" | 0.178" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 6" | 5.820" | 6.510" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 8" | 7.780" | 8.670" | 0.205" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 10" | 9.770" | 10.660" | 0.205" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 12" | 11.730" | 12.660" | 0.205" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
Fluoroelastomer Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3/4" | 0.620" | 0.860" | 0.178" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 6" | 5.820" | 6.510" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 8" | 7.780" | 8.670" | 0.205" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 10" | 9.770" | 10.660" | 0.205" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 12" | 11.730" | 12.660" | 0.205" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
PTFE Plastic | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 3/4" | 0.620" | 0.860" | 0.178" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 6" | 5.820" | 6.510" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 00000 |
| 8" | 7.780" | 8.670" | 0.205" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 00000 |
| 10" | 9.770" | 10.660" | 0.205" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 000000 |
| 12" | 11.730" | 12.660" | 0.205" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 000000 |
Gasket Fittings—Male Straight Adapters, Gasket × Standard Tube
For Tube OD | |||||||
|---|---|---|---|---|---|---|---|
| Gasket Connection | Standard Connection | Wall Thick. | Material | For Tube Specifications Met | Includes | Each | |
| 1" | 1" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 304 Stainless Steel Nut | 0000000 | 0000000 |
| 1 1/2" | 1 1/2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 304 Stainless Steel Nut | 0000000 | 000000 |
| 2" | 2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 304 Stainless Steel Nut | 0000000 | 000000 |
| 2 1/2" | 2 1/2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 304 Stainless Steel Nut | 0000000 | 000000 |
Gasket Fittings—Female Straight Adapters, Gasket × Standard Tube
For Tube OD | ||||||
|---|---|---|---|---|---|---|
| Gasket Connection | Standard Connection | Wall Thick. | Material | For Tube Specifications Met | Each | |
| 1" | 1" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 1 1/2" | 1 1/2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 2" | 2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 2 1/2" | 2 1/2" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
Extra-Support Fittings—Male Straight Adapters, Extra-Support Tube × Standard Tube
Flange OD | |||||||
|---|---|---|---|---|---|---|---|
| For Tube OD | Extra-Support Connection | Standard Connection | Wall Thick. | Material | For Tube Specifications Met | Each | |
| 1" | 1.995" | 1.984" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 1 1/2" | 1.995" | 1.984" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 00000 |
| 2" | 2.64" | 2.516" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 3" | 3.87" | 3.579" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
Extra-Support Fittings—Female Straight Adapters, Extra-Support Tube × Standard Tube
Flange OD | |||||||
|---|---|---|---|---|---|---|---|
| For Tube OD | Extra-Support Connection | Standard Connection | Wall Thick. | Material | For Tube Specifications Met | Each | |
| 1" | 1.995" | 1.984" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 1 1/2" | 1.995" | 1.984" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 00000 |
| 2" | 2.64" | 2.516" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
| 3" | 3.87" | 3.579" | 0.065" | 316 Stainless Steel | ASTM A269, ASTM A270 | 0000000 | 000000 |
Extra-Support High-Polish Metal Quick-Clamp Sanitary Tube Fittings
- For Use With: Dairy, Water
- Temperature Range: -30° to 200° F
- Tubing:
304 Stainless Steel: Use with welded 304/304L or 316/316L stainless steel that meets ASTM A269 or ASTM A270
316 Stainless Steel: Use with welded 304/304 L or 316/316L stainless steel - Specifications Met: See table
Also known as I-line fittings, these quick-clamp fittings permit easy access to your line. They have a smooth finish on the interior to prevent bacterial growth and help you remove product residue. The pressure rating of the fitting will depend on the clamp you choose.
304 stainless steel fittings have very good corrosion resistance. They’re 3-A certified to meet sanitary design standards. Note: To complete a connection, you’ll need a male and female straight adapter, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Caps
Male
Female
Male | Female | ||||||
|---|---|---|---|---|---|---|---|
| For Tube OD | Flange OD | Material | Specifications Met | Each | Each | ||
| 1" | 1.995" | 304 Stainless Steel | 3-A Certified 63-04 | 00000000 | 000000 | 00000000 | 000000 |
| 1 1/2" | 1.995" | 304 Stainless Steel | 3-A Certified 63-04 | 00000000 | 00000 | 00000000 | 00000 |
| 2" | 2.64" | 304 Stainless Steel | 3-A Certified 63-04 | 00000000 | 00000 | 00000000 | 00000 |
| 3" | 3.87" | 304 Stainless Steel | 3-A Certified 63-04 | 00000000 | 00000 | 00000000 | 00000 |
Gaskets
Buna-N gaskets are oil resistant. 316 stainless steel/PTFE blend gaskets hold up to oil, harsh chemicals, high pressures, and high temperatures. They’re also metal detectable.
| For Tube OD | ID | OD | Thick. | Color | Specifications Met | Each | |
Oil-Resistant Buna-N Rubber | |||||||
|---|---|---|---|---|---|---|---|
| 1" | 1" | 1 1/4" | 1/16" | Black | 3-A Certified 63-04 | 0000000 | 00000 |
| 1 1/2" | 1 1/2" | 1 3/4" | 1/16" | Black | 3-A Certified 63-04 | 0000000 | 0000 |
| 2" | 2" | 2 1/4" | 1/16" | Black | 3-A Certified 63-04 | 0000000 | 0000 |
| 3" | 3" | 3 5/16" | 1/16" | Black | 3-A Certified 63-04 | 0000000 | 0000 |
Ultra-Chemical-Resistant Metal-Detectable 316 Stainless Steel/PTFE Plastic Blend | |||||||
| 1" | 0.910" | 1.270" | 0.072" | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 1 1/2" | 1.410" | 1.760" | 0.072" | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 2" | 1.880" | 2.260" | 0.072" | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 3" | 2.880" | 3.320" | 0.072" | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
Extra-High-Polish Metal Quick-Clamp Sanitary Tube Fittings
- For Use With: Air, Beverage, Dairy, Deionized Water, Food, Pharmaceuticals, Water
- Temperature Range: See Gaskets
- Tubing:
Fittings: Use with 316/316L stainless steel that meets ASTM A269 or ASTM A270
Gaskets: Use with 304/304L and 316/316L stainless steel - Specifications Met: See table
- Certification: Material Certificate with Traceable Lot Number and Test Report
Polished to a 20 Ra finish, these fittings have an extra-smooth interior that prevents product buildup and inhibits bacteria growth. Use them in pharmaceutical and bioprocessing applications. Also known as tri-clamp fittings, they connect with a clamp, a gasket, and another quick-clamp fitting for a fast and easy way to access your line. Fittings are 316 stainless steel for excellent corrosion resistance.
The pressure rating of the fitting will depend on the clamp you choose.
The temperature rating of the fitting will vary depending on the gasket material you choose.
Note: To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Caps
| For Tube OD | Flange OD | Length | Material | Max. Pressure | Specifications Met | Each | |
| 1/2", 3/4" | 0.984" | 3/16" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 0000000 | 000000 |
| 1", 1 1/2" | 1.984" | 1/4" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 0000000 | 00000 |
| 2" | 2.516" | 1/4" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 0000000 | 00000 |
| 2 1/2" | 3.047" | 1/4" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 00000000 | 00000 |
| 3" | 3.579" | 1/4" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 00000000 | 00000 |
| 4" | 4.682" | 5/16" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 00000000 | 00000 |
Clamps
304 Stainless Steel with Wing Nut
304 Stainless Steel with Wing Nut, Spring Loaded
304 Stainless Steel with Bolt
316 Stainless Steel with Wing Nut and 2-Pin Hinge
316 Stainless Steel with Safety Wing Nut and 2-Pin Hinge
316 Stainless Steel with Double Bolt
316 Stainless Steel with
Recessed Nut, Hole for
Lockout, and 2-Pin Hinge
Recessed Nut, Hole for
Lockout, and 2-Pin Hinge
White Nylon Plastic with Wing Nut
Clamps with wing nut or safety wing nut tighten by hand. Clamps with double bolt or recessed nut tighten with a wrench.
| For Tube OD | For Flange OD | Bolt Material | Max. Pressure | For Tube Specifications Met | Specifications Met | Each | |
304 Stainless Steel with Wing Nut | |||||||
|---|---|---|---|---|---|---|---|
| 1/2", 3/4" | 0.984" | __ | 1,200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | __ | 450 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | __ | 400 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | __ | 350 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | __ | 200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
304 Stainless Steel with Wing Nut, Spring Loaded | |||||||
| 1/2", 3/4" | 0.984" | __ | 1,200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 450 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 350 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 200 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 0000000 | 00000 |
304 Stainless Steel with Bolt | |||||||
| 1", 1 1/4", 1 1/2" | 1.984" | 304 Stainless Steel | 1,500 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | 304 Stainless Steel | 1,000 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
316 Stainless Steel with Wing Nut and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2 1/2" | 3.047" | __ | 700 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
316 Stainless Steel with Safety Wing Nut and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
316 Stainless Steel with Double Bolt | |||||||
| 1", 1 1/4", 1 1/2" | 1.984" | 316 Stainless Steel | 2,400 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 2" | 2.516" | 316 Stainless Steel | 1,300 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 3" | 3.579" | 316 Stainless Steel | 1,300 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
| 4" | 4.682" | 316 Stainless Steel | 820 psi @ 72 ° F | __ | ASME BPVC.VIII | 0000000 | 000000 |
316 Stainless Steel with Recessed Nut, Hole for Lockout, and 2-Pin Hinge | |||||||
| 1/2", 3/4" | 0.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 2" | 2.516" | __ | 720 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 3" | 3.579" | __ | 580 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
| 4" | 4.682" | __ | 500 psi @ 72 ° F | __ | __ | 0000000 | 00000 |
White Nylon Plastic Wing Nut | |||||||
| 1/2", 3/4" | 0.984" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 1", 1 1/4", 1 1/2" | 1.984" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2" | 2.516" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 2 1/2" | 3.047" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 3" | 3.579" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
| 4" | 4.682" | __ | 150 psi @ 72 ° F | ASTM A269, ASTM A270 | __ | 00000000 | 00000 |
Gaskets
Buna-N gaskets are oil resistant. EPDM gaskets resist water and steam and work well in humid environments. Silicone gaskets withstand high temperatures. Fluoroelastomer gaskets stand up to fuel, oil, and acid condensates. PTFE gaskets withstand harsh chemicals, with the exception of molten alkali metal and elemental fluorine.
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Specifications Met | Each | |
Buna-N Rubber | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.380" | 0.860" | 0.178" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 1" | 0.900" | 1.980" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
| 2" | 1.900" | 2.520" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
EPDM Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Silicone Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Fluoroelastomer Rubber | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
PTFE Plastic | ||||||||
| 1/2" | 0.380" | 0.860" | 0.178" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 1" | 0.900" | 1.980" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 2 1/2" | 2.400" | 3.050" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 3" | 2.900" | 3.580" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 4" | 3.870" | 4.680" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
Plastic Quick-Clamp Sanitary Fittings for Stainless Steel Tubing
- For Use With: Dairy, Water
- Temperature Range: -40° to 170° F, except gaskets (see table)
- Tubing: Use with welded 304/304L or 316/316L stainless steel that meets ASTM A269 or ASTM A270
- Specifications Met: 3-A Certified 62-02, FDA Compliant 21 CFR 177.2510
Made of PVDF (Kynar), these fittings are lightweight compared to metal quick-clamp fittings. The clamp separates into three pieces and threads over the quick-clamp ends of the fittings to create an access point in a line. Tighten the clamp with a spanner wrench (sold separately) for a secure seal.
Note: To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Gaskets
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Specifications Met | Each | |
Buna-N Rubber | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1" | 0.900" | 1.980" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
| 2" | 1.900" | 2.520" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 000 |
EPDM Rubber | ||||||||
| 1" | 0.900" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Silicone Rubber | ||||||||
| 1" | 0.900" | 1.980" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Fluoroelastomer Rubber | ||||||||
| 1" | 0.900" | 1.980" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
PTFE Plastic | ||||||||
| 1" | 0.900" | 1.980" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
| 2" | 1.900" | 2.520" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
High-Polish Gasket Fittings for Stainless Steel Tubing
- For Use With: Air, Dairy, Water
- Temperature Range: See Gaskets
- Tubing:
Inch Butt-Weld Fittings and Quick-Clamp Fittings: Use with welded 304/304L or 316/316L stainless steel that meets ASTM 269 or ASTM 27
Metric Butt-Weld Fittings: Use with welded or seamless 316 stainless steel - Specifications Met:
304 Stainless Steel Adapters, Caps, and Nuts: 3-A Certified 63-04
Gaskets: See table
Join these fittings with a threaded nut and a gasket for a secure connection that grants you easy access to your line. Also known as bevel seat fittings, the fittings are beveled to fit snugly around the gasket, creating a vibration-resistant seal. Fittings are polished to a smooth finish on the interior to prevent product buildup and bacterial growth.
304 stainless steel fittings have very good corrosion resistance. They’re 3-A certified to meet sanitary design standards.
Note: For a complete connection, you’ll need a threaded straight adapter, an unthreaded straight adapter, a gasket, and a nut (all sold separately unless noted).
For technical drawings and 3-D models, click on a part number.
Caps
| For Tube OD | Material | Max. Pressure | Each | |
| 1" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 1 1/2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 2 1/2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 3" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 4" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
Nuts
| For Tube OD | Nut Material | Max. Pressure | Each | |
| 1" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 000000 |
| 1 1/2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 2 1/2" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 3" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
| 4" | 304 Stainless Steel | 400 psi @ 72° F | 000000000 | 00000 |
Gaskets
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Specifications Met | Each | |
Buna-N Rubber | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1" | 0.900" | 1.325" | 0.3" | -30° to 200° | Black | __ | 0000000 | 00000 |
| 1 1/2" | 1 3/8" | 1 7/8" | 0.33" | -30° to 200° | Black | __ | 0000000 | 0000 |
| 2" | 1.850" | 2 3/8" | 0.35" | -30° to 200° | Black | __ | 0000000 | 0000 |
| 2 1/2" | 2.340" | 2.950" | 0.35" | -30° to 200° | Black | __ | 0000000 | 0000 |
| 3" | 2 7/8" | 3.475" | 0.35" | -30° to 200° | Black | __ | 0000000 | 0000 |
| 4" | 3.700" | 4 1/2" | 0.45" | -30° to 200° | Black | __ | 0000000 | 0000 |
PTFE Plastic | ||||||||
| 1" | 0.900" | 1.325" | 0.3" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
| 1 1/2" | 1 3/8" | 1 7/8" | 0.33" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
| 2" | 1.850" | 2 3/8" | 0.35" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
| 2 1/2" | 2.340" | 2.950" | 0.35" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
| 3" | 2 7/8" | 3.475" | 0.35" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
| 4" | 3.700" | 4 1/2" | 0.33" | -100° to 500° | White | 3-A Certified 20-27 | 0000000 | 0000 |
316 Stainless Steel/PTFE Plastic Blend | ||||||||
| 1" | 0.900" | 1.325" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 1 1/2" | 1 3/8" | 1 7/8" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 2" | 1.850" | 2 3/8" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 2 1/2" | 2.340" | 2.950" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 3" | 2 7/8" | 3.475" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
| 4" | 3.700" | 4 1/2" | 0.32" | -350° to 550° | Gray | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550, USP VI Certified | 0000000 | 00000 |
Quick-Clamp Fittings for Dairy
- Temperature Range: See table
- Tubing: Use with soft (Durometer 50A-65A) silicone rubber
- Specifications Met: See table
Also known as single-use fittings, these are disposable so you don't have to sterilize your line. Join the flanged end of the fittings to any other sanitary stainless steel quick-clamp fitting (sold separately) with a gasket and a clamp for a fast and easy way to access your line. Fittings have a smooth interior to prevent product buildup and contamination. They are PVDF (also known as Kynar), which has excellent strength.
Note: For a complete connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Caps
| For Tube OD | Flange OD | Material | Color | Max. Pressure | Temp. Range, °F | Specifications Met | Each | |
| 3/4" | 0.98" | PVDF Plastic | White | 80 psi @ 72° F | Not Rated | FDA Compliant 21 CFR 177.2510, USP Class VI | 0000000 | 000000 |
Clamps
| For Tube OD | For Flange OD | Material | Color | Max. Pressure | Temp. Range, °F | Specifications Met | Each | |
| 1/2", 3/4" | 0.984" | Nylon Plastic | White | 80 psi @ 72° F | 0° to 140° | FDA Compliant 21 CFR 177.1500, USP Class VI | 0000000 | 000000 |
Gaskets
| For Tube OD | For Flange OD | Gasket Material | Gasket Color | Maximum Pressure | Temp. Range, °F | Each | |
| 3/4" | 0.984" | Silicone Rubber | Clear | 80 psi @ 72° F | 0° to 140° | 0000000 | 00000 |
