How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More

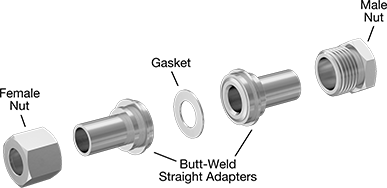

Ultra-High-Polish Gasket Fittings for Stainless Steel Tubing
- For Use With: Argon, Helium, Nitrogen
- Temperature Range: -420° to 1000° F
- Tubing: Use with 316/316L stainless steel
- Compatible With: Swagelok® VCR
The 15 Ra finish on the interior of these fittings creates an ultra-smooth surface. Also known as ultra-high-purity fittings, they are packed in a Class 100 clean room to prevent contamination. They are commonly used in semiconductor applications. Fittings use a metal gasket (sold separately), which generates fewer particles than a rubber gasket and creates a strong seal in high-pressure and high-vacuum applications. Fittings are 316 stainless steel for excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.

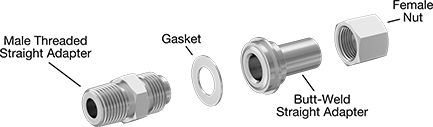

Ultra-High-Polish Gasket Adapters for Stainless Steel Tubing
- For Use With: Argon, Helium, Nitrogen
- Temperature Range: -420° to 1000° F
- Tubing: Use with 316/316L stainless steel
- Compatible With: Swagelok® VCR
The 15 Ra finish on the interior of these adapters provides an ultra-smooth surface. Also known as ultra-high-purity fittings, they are packed in a Class 100 clean room to prevent contamination. They are commonly used in semiconductor applications. Adapters use a metal gasket (sold separately) which generates fewer particles than a rubber gasket and creates a strong seal in high-pressure and high-vacuum applications. Adapters are 316 stainless steel for excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
Quick-Clamp High-Vacuum Fittings for Stainless Steel Tubing
- For Use With:
Fittings with Gasket End: Air, Argon, Helium, Nitrogen
All Other Fittings: Air - Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L or 316/316L stainless steel
- Specifications Met: ISO 2861
Instead of a gasket, these fittings have a special ring that is designed for high-vacuum applications, such as vacuum coating and heat treating, leak testing, and analyzing gases. Also known as KF, QF, and NW fittings, they are the most common type of connection in high-vacuum systems. Connect with a clamp and another quick-clamp fitting for fast, easy access to your line. To use fittings in pressure applications, use a pressure-rated ring (sold separately).
304 stainless steel fittings have very good corrosion resistance.
Note: To complete a connection, you’ll need two quick-clamp fittings, a ring, and a clamp (all sold separately).
Fittings with gasket end connect with a stainless steel gasket (sold separately) instead of a rubber one, generating fewer particles to create a stronger high-vacuum seal. Their interior is ultra-smooth to attract fewer contaminants. These adapters are commonly used to add gases such as helium, argon, or nitrogen into high-vacuum systems. Also known as VCR fittings.
Quick-Clamp Tube Connection | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | For Tube OD (Gasket) | Max. Vacuum | Max. Pressure | Compatible With | Each | |
| 3/4" | 1.18" | 16 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 3/4" | 1.18" | 16 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
Fittings with gasket end connect with a stainless steel gasket (sold separately) instead of a rubber one, generating fewer particles to create a stronger high-vacuum seal. Their interior is ultra-smooth to attract fewer contaminants. These adapters are commonly used to add gases such as helium, argon, or nitrogen into high-vacuum systems. Also known as VCR fittings.
Quick-Clamp Tube Connection | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | For Tube OD (Gasket) | Max. Vacuum | Max. Pressure | Compatible With | Each | |
| 3/4" | 1.18" | 16 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 3/4" | 1.18" | 16 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 1/4" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 1/2" | 1 × 10 -9 torr @ 72° F | 5 psi @ 72° F | Swagelok® VCR | 00000000 | 000000 |
Clamps tighten by hand. Spring-loaded clamps are also known as toggle clamps.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Lanyard Length | Each | |
with Wing Nut | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Spring Loaded | ||||||||
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Spring Loaded with Lanyard | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
Use these rings with quick-clamp high-vacuum fittings. They consist of a stainless steel inner ring covered by a fluoroelastomer O-ring.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Inner Ring Material | Max. Vacuum | Max. Pressure | Each | |
Rings | ||||||||
|---|---|---|---|---|---|---|---|---|
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 0000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
Rings with Stainless Steel Screen | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
Rings with Aluminum Outer Ring | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 100 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 75 psi @ 72° F | 0000000 | 00000 |
Hose absorbs moderate vibration
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Bend Radius | Flexibility | Each | |
3 3/16" Lg. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Rigid | 0000000 | 000000 |
4 3/16" Lg. | |||||||||
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Rigid | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Rigid | 0000000 | 000000 |
12" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
24" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
39" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
