46 Products

Wall-Mount Flat-Panel Monitor Positioning Arms

These arms have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor.

For technical drawings and 3-D models, click on a part number.

		Projection				Base
	For Monitor Size	Min.	Max.	Max. Load Capacity, lbs.	Material	Lg.	Wd.	Mounting Fasteners Included	Attaching End Mounting Hole Pattern Compatibility	Specifications Met		Each
Rotate, Tilt
A	10"-30"	__	3"	40	Powder-Coated Steel	3 13/16"	2 7/16"	Yes	VESA 75, VESA 100	__	0000000	000000
Rotate, Tilt, Side-to-Side
B	10"-30"	__	4 11/16"	40	Powder-Coated Steel	3 13/16"	2 7/16"	Yes	VESA 75, VESA 100	__	0000000	00000
Rotate, Tilt, Side-to-Side, Up/Down, In/Out
C	10"-30"	3 5/8"	10 11/16"	40	Powder-Coated Steel	3 13/16"	2 7/16"	Yes	VESA 75, VESA 100	__	0000000	000000
Rotate, Tilt, Side-to-Side, In/Out
D	13"-27"	4 1/8"	15 15/16"	30	Powder-Coated Steel	4 5/8"	4 5/8"	Yes	VESA 75, VESA 100	__	000000	00000
D	17"-42"	2 1/4"	20"	75	Powder-Coated Steel	9 5/16"	8 3/4"	Yes	VESA 75, VESA 100, VESA 200	__	000000	00000
E	37"-70"	4 9/16"	20 5/8"	165	Powder-Coated Steel	31 15/16"	8 3/4"	Yes	VESA 200, VESA 300, VESA 400, VESA 600	__	000000	000000
F	60"-100"	2 3/4"	24 5/8"	275	Powder-Coated Steel	37"	15 15/16"	Yes	VESA 400×200, VESA 200, VESA 300, VESA 400, VESA 600x400, VESA 600, VESA 500, VESA 600×900, VESA 800×600, VESA 800x400	C-UL Listed, UL Listed	00000000	000000

Ceiling-Mount Flat-Panel Monitor Positioning Arms

These arms have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor.

Style B have a hollow mounting pole for routing cords.

For technical drawings and 3-D models, click on a part number.

						Base
Style	For Monitor Size	Distance from Ceiling	Max. Projection	Max. Load Capacity, lbs.	Material	Lg.	Wd.	Mounting Fasteners Included	Attaching End Mounting Hole Pattern Compatibility	Features		Each
Rotate, Tilt, Up/Down
A	10"-23"	17"-27"	4 3/4"	25	Powder-Coated Steel	4 11/16"	4 11/16"	Yes	VESA 75, VESA 100	__	0000000	0000000
A	25"-37"	18"-30"	4 3/4"	75	Powder-Coated Steel	5 1/2"	5 1/2"	Yes	VESA 75, VESA 100, VESA 100×200, VESA 200, VESA 200×100	__	0000000	000000
B	37"-70"	23"-35"	0"	180	Powder-Coated Steel	7 1/2"	7 1/2"	Yes	VESA 200×100-VESA 800×500	Hollow Mounting Pole	0000000	000000

Bench-Mount Flat-Panel Monitor Positioning Arms

These arms have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor.

Threaded hole and clamp-on arms have gas springs that counterbalance monitor weight to keep the arm in position.

For technical drawings and 3-D models, click on a part number.

Screw On

					Base
For Monitor Size	Display Ht.	Max. Projection	Max. Load Capacity, lbs.	Material	Lg.	Wd.	No. of Mounting Holes	Mounting Hole Dia.	Mounting Fasteners Included	Attaching End Mount Type	Attaching End Mounting Hole Pattern Compatibility		Each
Rotate, Side-to-Side, Tilt, Up/Down
10"-32"	8"-21 1/4"	7 1/4"	10	Powder-Coated Aluminum	3 1/2"	3 1/2"	4	5/16"	No	Plate	VESA 75	00000000	0000000

Threaded Hole

		Projection		Load Capacity, lbs.			Base
For Monitor Size	Display Ht.	Min.	Max.	Min.	Max.	Material	Dia.	No. of Mounting Holes	Mounting Hole Dia.	For Max. Mounting Surface Thick.	Mounting Fasteners Included	Attaching End Mount Type	Attaching End Mounting Hole Pattern Compatibility		Each
In/Out, Rotate, Side-to-Side, Tilt, Up/Down
10"-24"	7"-14"	4"	22"	7	20	Aluminum	4"	1	1/2"	2 1/4"	Yes	Plate	VESA 75, VESA 100	000000	0000000

Clamp On

Clamp On

		Projection		Load Capacity, lbs.
For Monitor Size	Display Ht.	Min.	Max.	Min.	Max.	Material	Base Dia.	For Max. Mounting Surface Thick.	Attaching End Mount Type	Attaching End Mounting Hole Pattern Compatibility		Each
In/Out, Rotate, Side-to-Side, Tilt, Up/Down
10"-24"	7"-14"	4"	22"	7	20	Aluminum	4"	3 5/8"	Plate	VESA 75, VESA 100	000000	0000000

Monitor Wall Mounts

Mount flat-panel displays close to a wall. These mounts have a standard Video Electronics Standards Association (VESA) mounting hole pattern for compatibility with monitors. After installing your display, tilt these mounts up or down to create the best viewing angle. They have a low-profile design for a sleek appearance.

For technical drawings and 3-D models, click on a part number.

		Overall
For Monitor Size (Diagonal)	Tilt Range of Motion	Ht.	Wd.	Max. Load Capacity, lbs.	Material	Color	Attaching End Mounting Hole Pattern Compatibility	Mounting Fasteners Included	Specifications Met		Each
Up/Down

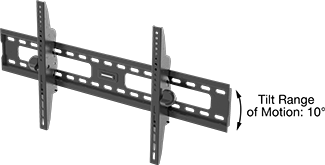

26"-55"	10°	17 5/16"	18 1/8"	165	Powder-Coated Steel	Black	VESA 200, VESA 200×300, VESA 200×400, VESA 300, VESA 300×200, VESA 300×400, VESA 400, VESA 400×200, VESA 400×300	Yes	__	00000000	000000
45"-85"	10°	17 5/16"	33 7/8"	200	Powder-Coated Steel	Black	VESA 200, VESA 200×300, VESA 200×400, VESA 300, VESA 300×200, VESA 300×400, VESA 400, VESA 400×200, VESA 400×300, VESA 500×300, VESA 500×400, VESA 600×300, VESA 600×400, VESA 800×300, VESA 800×400	Yes	__	00000000	000000

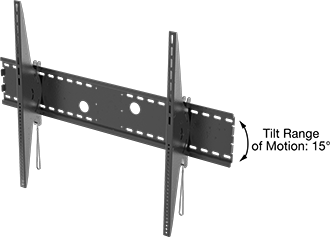

60"-100"	15°	32 3/4"	44 7/8"	350	Powder-Coated Steel	Black	VESA 100, VESA 100×200, VESA 1000×400, VESA 1000×500, VESA 1000×600, VESA 1000×700, VESA 1000×800, VESA 200, VESA 200×100, VESA 200×300, VESA 200×400, VESA 200×500, VESA 300, VESA 300×200, VESA 300×400, VESA 300×500, VESA 300×600, VESA 300×700, VESA 300×800, VESA 400, VESA 400×200, VESA 400×300, VESA 400×500, VESA 400×600, VESA 400×700, VESA 400×800, VESA 500, VESA 500×200, VESA 500×300, VESA 500×400, VESA 500×600, VESA 500×700, VESA 500×800, VESA 600, VESA 600×300, VESA 600×400, VESA 600×500, VESA 600×700, VESA 600×800, VESA 600×900, VESA 700, VESA 700×300, VESA 700×400, VESA 700×500, VESA 700×600, VESA 700×800, VESA 800, VESA 800×300, VESA 800×400, VESA 800×500, VESA 800×600, VESA 800×700, VESA 900×400, VESA 900×500, VESA 900×600, VESA 900×700, VESA 900×800	Yes	UL Listed	00000000	000000

Flat-Panel Monitor Mobile Stands

Attach a monitor to these stands, then route cords through the hollow mounting poles for a clean, organized appearance. They have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor.

			Overall			Shelf
For Monitor Size	Display Ht.	Max. Load Capacity, lbs.	Wd.	Dp.	Material	Type	Capacity, lbs.	Wd.	Dp.	Attaching End Mounting Hole Pattern Compatibility	Assembled or Unassembled		Each
Up/Down
32"-60"	46 1/2"-62 1/2"	100	32 3/4"	28 3/4"	Powder-Coated Steel	Adjustable	25	19 5/8"	12 1/2"	VESA 100×100-VESA 600×400	Unassembled	0000000	0000000

T-Slotted Framing Monitor Mounts and Positioning Arms

Attach and position phones, tablets, monitors, and other displays on T-slotted rails.

For technical drawings and 3-D models, click on a part number.

Monitor Mounts

Friction Monitor Mount

Counterbalance Monitor Mount

Monitor mounts allow you to rotate and tilt 12"-24" monitors. They have a VESA (Video Electronics Standards Association) standard mounting hole pattern to attach a monitor. Friction monitor mounts require you to move the entire weight of the monitor. Counterbalance monitor mounts offset the weight of the monitor for easy adjustment.

For Rail Ht.			Projection						Range of Motion
Single	Double, Quad	Triple	Min.	Max.	Material	Lg.	Wd.	Adjustability	Rotation	Tilt	Max. Load Capacity, lbs.	Mounting Fasteners Included		Each
Friction Mount
1 1/2" 40mm	3" 80mm	4 1/2"	__	__	Plastic	4 7/16"	4 7/16"	Rotate, Tilt	360°	180°	10	Yes	000000000	000000
45mm	90mm	__	__	__	Plastic	4 7/16"	4 7/16"	Rotate, Tilt	360°	180°	10	Yes	0000000	00000
Counterbalance Mount
1 1/2" 40mm 45mm	3" 80mm 90mm	4 1/2"	14 1/4"	17 3/16"	Lacquer Coated Aluminum	__	__	Rotate, Side-to-Side, Tilt	180°	60° Down 75° Up 90°	20	Yes	00000000	000000

Positioning Arms

Ball-Grip Positioning Arm

Ball-Grip Positioning Arm for Hand-Held Devices

Ball-Grip Positioning Arm for Tablet Devices

Heavy Duty Ball-Grip Positioning Arm

Positioning arms have ball-and-socket connections for 360° positioning. Arms with AMPS mounting hole pattern are often used on GPS units, cameras, and other small electronics. Heavy duty positioning arms lock into position by tightening the screws in the joints. Arms are hollow, which allows you to route cables through them.

For Rail Ht.							Range of Motion
Single	Double, Quad	Triple	For Device Wd.	Material	Arm Lg.	Adjustability	Rotation	Tilt	Max. Load Capacity, lbs.	Mounting Fasteners Included		Each
Ball-Grip Positioning Arm
1" 1 1/2" 30mm 40mm 45mm	2" 3" 60mm 80mm 90mm	3" 4 1/2"	__	Powder Coated Aluminum	3 1/2"	In/Out Rotate Side-to-Side Tilt	360°	180°	10	Yes	000000000	000000
Ball-Grip Positioning Arm for Hand-Held Devices
1" 1 1/2" 30mm 40mm 45mm	2" 3" 60mm 80mm 90mm	3" 4 1/2"	1 7/8"-3 1/4"	Powder Coated Aluminum	5 1/4"	In/Out Rotate Side-to-Side Tilt	360°	180°	10	Yes	000000000	00000
Ball-Grip Positioning Arm for Tablet Devices
1" 1 1/2" 30mm 40mm 45mm	2" 3" 60mm 80mm 90mm	3" 4 1/2"	6 1/4"-8 3/32"	Powder Coated Aluminum	6"	In/Out Rotate Side-to-Side Tilt	360°	180°	10	Yes	00000000	000000
Heavy Duty Ball-Grip Positioning Arm
1" 1 1/2" 40mm	2" 3" 80mm	3" 4 1/2"	__	Anodized Aluminum	11 7/16"	Rotate Tilt	360°	248°	30	Yes	00000000	000000

Clamp-On Framing and Fittings

Fittings come in two pieces to clasp over rails, making assembly and disassembly quicker than our other framing. Use it to form temporary partitions, modular conveyors, and workstations. To assemble, clamp fittings onto the rail and tighten the included cap screw and nut. For permanent connections and added strength, fittings have a 5/32" hole to drill in an additional screw (not included).

For technical drawings and 3-D models, click on a part number.

Monitor Mount

Monitor mount has a VESA (Video Electronics Standards Association) standard mounting hole pattern.

For Rail OD	Material		Each
1.08"	Black-Painted Steel	0000000	000000

Ball-Grip Positioning Arms

Arm Built with Rotating Complete Arm with Ball, Rigid Connector, and Universal Mounting Plate

Ball-and-socket connections allow 360° positioning. Choose a complete arm or select a base, connectors, and a plate, grip, holder, or tray to build a complete arm.

For technical drawings and 3-D models, click on a part number.

Tablet and Laptop Holders

Tablet and laptop holder has a spring-loaded adjustment to fit most tablets and compact laptops. In addition to a universal AMPS mounting hole pattern, it has a VESA (Video Electronics Standards Association) standard mounting hole pattern. It does not have a ball; affix a screw-on base (sold separately) to attach to a connector.

				Mount.
Lg.	Wd.	Max. Load Capacity, lbs.	Material	Fasteners Included	Hole Pattern Compatibility		Each
6"	8 9/16"-11 1/8"	10	Plastic	Yes	AMPS, VESA 75	00000000	000000

Flat-Panel Monitor Mounting Plates

Flat-panel monitor mounting plate has a VESA (Video Electronics Standards Association) standard mounting hole pattern.

						Mount.
Lg.	Wd.	Ball Dia.	Max. Load Capacity, lbs.	Material	Ball Material	Fasteners Included	No. of Holes	Hole Pattern Compatibility		Each
4 3/4"	4 3/4"	1 1/2"	10	Powder-Coated Aluminum	Rubber	No	14	VESA 100, VESA 75	0000000	000000

Heavy Duty Ball-Grip Positioning Arms

Arm Built with Base, Two Straight Connectors, Straight Link, Locking Handle, and Sensor Mount

With strength for higher load capacities than other ball-grip positioning arms, these arms have a heavy duty construction. Ball-and-socket connections allow 360° positioning. The base, connectors, and links are hollow for routing wires, cables, and small hoses. Select a base, connectors, link, and plate or mount to build a complete arm.

For technical drawings and 3-D models, click on a part number.

Flat-Panel Monitor Mounting Plate

Mounting plates require a base and a straight or tee connector to attach to a link. Flat-panel monitor mounting plate has a VESA (Video Electronics Standards Association) standard mounting hole pattern.

					Mount.
Lg.	Wd.	Max. Load Capacity, lbs.	Material	Color	Fasteners Included	Hole Pattern Compatibility		Each
4 1/2"	4 1/2"	35	Anodized Aluminum	Blue	Yes	VESA 100, VESA 75	0000000	000000

Heavy Duty Positioning Arms

Heavy duty construction adds strength for higher load capacities than other positioning arms. Choose a complete arm or select a base, connectors, and plate, bracket, or tray to build a complete arm. The load capacity of an assembled arm is determined by the component with the lowest capacity.

For technical drawings and 3-D models, click on a part number.

Flat-Panel Monitor Mounting Plates

Flat-Panel Monitor Mounting Plate

Flat-panel monitor mounting plates have a VESA (Video Electronics Standards Association) standard mounting-hole pattern.

To see the product in motion, click on a part number.

							Mount.				Attaching End
Lg.	Wd.	Ht.	For Pin Dia.	Max. Load Capacity, lbs.	Material	Color	Fasteners Included	Number of Holes	Hole Dia.	Hole Pattern Compatibility	Plate Lg.	Plate Wd.		Each
Flat-Panel Monitor Mounting Plate
6 1/8"	4 1/2"	4 1/2"	7/8"	30	Anodized Aluminum	Black	Yes	8	7/32"	VESA 100, VESA 75	4 1/2"	4 1/2"	00000000	000000

Flat-Panel Monitor Enclosures

ABS Plastic

Polyethylene Plastic

Stainless Steel

Protect monitors and televisions from environmental damage with these enclosures. The polycarbonate cover shows your display clearly and won’t shatter under impact. To prevent heat damage and reduce condensation, filtered fans keep enclosures cool. Enclosures fit most VESA patterns.

ABS plastic enclosures meet NEMA 12, so they seal out dust, dirt, and splashing water and oil. Mount them directly to the wall, or add an optional tilt bracket to adjust the angle of your monitor.

Rated IP55 and NEMA 4, polyethylene plastic enclosures keep your monitor dry in wet and outdoor environments. An anti-glare coating on the cover makes your display easy to see in bright light. Use a tilt bracket (sold separately) to mount these enclosures.

Stainless steel enclosures are rated IP66 and NEMA 4X for use outdoors and in corrosive environments. Mount them on your wall, or use the optional tilt bracket to hold the enclosure at a downward angle so it’s easy to see when mounted high up.

Enclosures
					Cover		Number of						Tilt Brackets
For Maximum Monitor Size	Height	Width	Depth	Environment	Attachment Style	Closure Method	Locks	Keys Included	Color	Mounting Fasteners Included		Each		Each
ABS Plastic—NEMA 12
32"	29"	36"	8"	Oily	Hinged	Key Lock	1	2	Black	No	0000000	000000000	000000	000000
42"	33"	44"	8 3/16"	Oily	Hinged	Key Lock	1	2	Black	No	0000000	00000000	000000	000000
50"	38 1/4"	50"	8 3/16"	Oily	Hinged	Key Lock	1	2	Black	No	0000000	00000000	000000	000000
52"	45 1/2"	55"	8 3/16"	Oily	Hinged	Key Lock	1	2	Black	No	0000000	00000000	000000	000000
65"	48 1/4"	65 1/2"	8 3/16"	Oily	Hinged	Key Lock	1	2	Black	No	0000000	00000000	000000	000000
Polyethylene Plastic—IP55, NEMA 4
29"	23 3/4"	32 1/4"	6 1/4"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	000000	000000	00000
32"	22"	34 1/4"	4 7/8"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	000000	000000	00000
43"	27 1/8"	42 1/4"	7"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	000000	000000	000000
50"	31 3/8"	49 1/2"	6 13/16"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	000000	000000	000000
55"	35"	55 3/8"	6 7/8"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	00000000	000000	000000
65"	40 1/8"	64 3/8"	6 7/8"	Wet Location	Lift Off	Screws	__	__	Black	No	0000000	00000000	000000	000000
Stainless Steel—IP66, NEMA 4X
24"	19"	27"	5"	Corrosive, Outdoor, Washdown, Wet Location	Hinged	Key Lock	1	1	__	No	0000000	00000000	0000000	000000
32"	24 1/2"	36 1/2"	6"	Corrosive, Outdoor, Washdown, Wet Location	Hinged	Key Lock	2	1	__	No	0000000	00000000	0000000	000000
49"	32"	47"	6"	Corrosive, Outdoor, Washdown, Wet Location	Hinged	Key Lock	2	1	__	No	0000000	00000000	0000000	000000
55"	35 1/2"	56 1/2"	6"	Corrosive, Outdoor, Washdown, Wet Location	Hinged	Key Lock	2	1	__	No	0000000	00000000	0000000	000000
65"	41"	65"	6"	Corrosive, Outdoor, Washdown, Wet Location	Hinged	Key Lock	2	1	__	No	0000000	00000000	0000000	000000
