About Calculating the Airflow Required for Air Cleaning
More
Positionable-Arm Fume Exhaust Hoses
Move the hose into position and the support arm will hold it in place. These hoses remove fumes, vapors, and fine dust particles from your space. They are commonly used in welding, soldering, and other operations that create fumes.
Hose | Nozzle | Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID | Lg., ft. | Material | Dia. | Material | Fasteners Included | For Screw Size | Hole Dia. | Number of Holes | Includes | Each | |
Ceiling and Wall Mount | |||||||||||
| 4" | 4 | Rubber | 9" | Aluminum | No | 3/8" | 1/2" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 000000000 |
| 4" | 6 | Rubber | 9" | Aluminum | No | 3/8" | 1/2" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 00000000 |
| 4" | 8 | Rubber | 9" | Aluminum | No | 3/8" | 1/2" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 00000000 |
| 6" | 7 | Neoprene-Coated Cotton/Polyester Blend Fabric | 10 3/4" | Steel | No | 3/8" | 7/16" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 00000000 |
| 6" | 9 | Neoprene-Coated Cotton/Polyester Blend Fabric | 10 3/4" | Steel | No | 3/8" | 7/16" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 00000000 |
| 8" | 9 | Neoprene-Coated Cotton/Polyester Blend Fabric | 12 1/2" | Steel | No | 3/8" | 7/16" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 00000000 |
Swivel-Arm Fume Exhaust Hoses
For exact positioning, this hose swivels 360° to remove fumes, vapors, and fine dust particles from your space. It's commonly used in welding, soldering, and other operations that create fumes.
Hose | Nozzle | Mounting | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID | Lg., ft. | Material | Dia. | Material | Fasteners Included | For Screw Size | Hole Dia. | Number of Holes | Includes | Each | |
Bench and Wall Mount | |||||||||||
| 3" | 5 | PVC Plastic | 5" | Powder-Coated Aluminum | No | 1/4"-20 | 3/8" | 6 | Hose, Mounting Bracket, Nozzle | 0000000 | 0000000 |
Adjustable-Length Fume Exhaust Hoses
The arm length adjusts from 3 to 6 feet making these exhaust hoses good for locations with low ceilings. Use these hoses to remove fumes, vapors, and fine dust particles from your space. They are commonly used in welding, soldering, and other operations that create fumes.
Hose | Nozzle | Mounting | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ID | Lg., ft. | Material | Dia. | Material | Fasteners Included | Hole Dia. | Number of Holes | Includes | Each | |
Ceiling Mount | ||||||||||
| 6 1/4" | 3-6 | PVC-Coated Nylon Plastic | 11 3/4" | Powder-Coated Steel | No | 1/2" | 4 | Hose, Mounting Bracket, Nozzle | 0000000 | 000000000 |
Portable Fume Exhausters
In addition to using the handle to carry these exhausters, you can mount them to a wall, bench, or floor. They remove fumes, vapors, and fine dust particles from your space. They are commonly used in welding, soldering, and other operations that create fumes. All have a totally enclosed motor enclosure, which can be used in dirty, dusty, and damp environments. They have a flexible hose with nozzle to capture fumes at the source and rubber pads on the base to reduce vibration.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
Single-duct kits (sold separately) include a hose, a nozzle, and two clamps to replace existing components.
Double-duct kits (sold separately) create two points for fume collection, although each will have lower airflow than the one collection point of a single-duct kit. These kits include two hoses, two nozzles, four clamps, and a wye connector.
Overall | Nozzle | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow @ Static Pressure | Volume | Power, hp | Inlet Dia. | Outlet Dia. | Ht. | Wd. | Dp. | Ht. | Wd. | Housing Material | Fasteners Included | For Screw Size | Hole Dia. | Number of Holes | Each | |
120V AC, Single Phase—Plug | ||||||||||||||||
| 280 cfm @ 1 1/2 in. of H₂O 330 cfm @ 1/4 in. of H₂O 345 cfm @ 0 in. of H₂O | 62 dB @ 15 ft. | 1/2 | 4" | 4" | 18 3/4" | 17 1/2" | 16" | 4" | 8" | Steel | No | 3/8" | 7/16" | 4 | 0000000 | 0000000 |
| 310 cfm @ 1/4 in. of H₂O 335 cfm @ 0 in. of H₂O | 59 dB @ 15 ft. | 1/4 | 6" | 6" | 17 7/8" | 13 3/4" | 18 1/4" | 8" | 8" | Aluminum | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
| 575 cfm @ 1 1/2 in. of H₂O 655 cfm @ 1/4 in. of H₂O 670 cfm @ 0 in. of H₂O | 59 dB @ 15 ft. | 1 | 6" | 6" | 17 7/8" | 13 3/4" | 18 1/4" | 8" | 8" | Aluminum | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
120/230V AC, Single Phase—Hardwire | ||||||||||||||||
| 730 cfm @ 1 1/2 in. of H₂O 795 cfm @ 1/4 in. of H₂O 810 cfm @ 0 in. of H₂O | 73 dB @ 15 ft. | 1 1/2 | 6" | 6" | 21 3/8" | 21 1/2" | 16 1/2" | 8" | 8" | Steel | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
230/460V AC, Three Phase—Hardwire | ||||||||||||||||
| 280 cfm @ 1 1/2 in. of H₂O 330 cfm @ 1/4 in. of H₂O 345 cfm @ 0 in. of H₂O | 62 dB @ 15 ft. | 1/2 | 4" | 4" | 18 3/4" | 17 1/2" | 16" | 4" | 8" | Steel | No | 3/8" | 7/16" | 4 | 0000000 | 000000 |
| 310 cfm @ 1/4 in. of H₂O 335 cfm @ 0 in. of H₂O | 59 dB @ 15 ft. | 1/4 | 6" | 6" | 17 7/8" | 13 3/4" | 18 1/4" | 8" | 8" | Aluminum | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
| 575 cfm @ 1 1/2 in. of H₂O 655 cfm @ 1/4 in. of H₂O 670 cfm @ 0 in. of H₂O | 59 dB @ 15 ft. | 1 | 6" | 6" | 17 7/8" | 13 3/4" | 18 1/4" | 8" | 8" | Aluminum | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
| 730 cfm @ 1 1/2 in. of H₂O 795 cfm @ 1/4 in. of H₂O 810 cfm @ 0 in. of H₂O | 73 dB @ 15 ft. | 1 1/2 | 6" | 6" | 21 3/8" | 21 1/2" | 16 1/2" | 8" | 8" | Steel | No | 3/8" | 7/16" | 4 | 0000000 | 00000000 |
Floor-Mount Fume Exhausters
Remove fumes, vapors, and fine dust particles from your space. These exhausters are commonly used in welding, soldering, and other operations that create fumes.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
Use open dripproof exhausters in relatively clean, dry, well-ventilated indoor locations.
Totally enclosed exhausters have an external fan for cooling. These exhausters offer more protection than open dripproof exhausters. They can be used in dirty, dusty, and damp environments, but are not airtight.
Single-duct kits (sold separately) maximize airflow at one fume collection point. They include a hose, a nozzle, and two clamps.
Dual-duct kits (sold separately) create two points for fume collection, although each will have lower airflow than the one collection point of a single-duct kit. These kits include two hoses, two nozzles, four clamps, and a wye connector.
Overall | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow @ Static Pressure | Volume | Power, hp | Inlet Dia. | Outlet Dia. | Ht. | Wd. | Dp. | Housing Material | Base Material | Fasteners Included | For Screw Size | Hole Dia. | Number of Holes | Each | |
Open Dripproof | |||||||||||||||
120V AC,Single Phase—Hardwire | |||||||||||||||
| 800 cfm @ 1/2 in. of H₂O | 65 dB @ 15 ft. | 1/3 | 6" | 6" | 15 1/8" | 16" | 20 3/8" | Galvanized Steel | Steel | No | 1/4" | 9/32" | 4 | 000000 | 0000000 |
Totally Enclosed | |||||||||||||||
120V AC,Single Phase—Plug | |||||||||||||||
| 755 cfm @ 1/2 in. of H₂O | 72 dB @ 15 ft. | 3/4 | 6" | 6" | 20 1/4" | 17" | 15 3/4" | Black Powder-Coated Steel | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
230V AC,Single Phase—Hardwire | |||||||||||||||
| 1,135 cfm @ 1/2 in. of H₂O | 78 dB @ 15 ft. | 3 | 6" | 6" | 22 7/8" | 19 1/8" | 18 1/4" | Black Powder-Coated Steel | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
120/230V AC,Single Phase—Hardwire | |||||||||||||||
| 1,045 cfm @ 1/2 in. of H₂O | 75 dB @ 15 ft. | 1 1/2 | 6" | 6" | 16 3/8" | 12 1/4" | 18" | Aluminum | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
| 1,615 cfm @ 1/2 in. of H₂O | 72 dB @ 15 ft. | 2 | 8" | 8" | 21 1/2" | 14 7/8" | 18 5/8" | Aluminum | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
230/460V AC,Three Phase—Hardwire | |||||||||||||||
| 450 cfm @ 1/2 in. of H₂O | 64 dB @ 15 ft. | 1/4 | 6" | 6" | 16 3/8" | 12 1/4" | 15 1/4" | Aluminum | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 000000 |
| 855 cfm @ 1/2 in. of H₂O | 74 dB @ 15 ft. | 1 1/2 | 6" | 6" | 22 7/8" | 19 1/8" | 17 1/8" | Black Powder-Coated Steel | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
| 1,135 cfm @ 1/2 in. of H₂O | 78 dB @ 15 ft. | 3 | 6" | 6" | 22 7/8" | 19 1/8" | 19 7/8" | Black Powder-Coated Steel | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
| 1,615 cfm @ 1/2 in. of H₂O | 72 dB @ 15 ft. | 2 | 8" | 8" | 21 1/2" | 14 7/8" | 18 1/4" | Aluminum | Steel | No | 3/8" | 7/16" | 4 | 00000000 | 00000000 |
Wall-Mount Fume Exhausters
Remove fumes, vapors, and fine dust particles from your space. This exhauster is commonly used in welding, soldering, and other operations that create fumes. It has an open dripproof motor enclosure for relatively clean, dry, indoor locations.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
Overall | Mounting | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow @ Static Pressure | Volume | Power, hp | Inlet Dia. | Outlet Dia. | Ht. | Wd. | Dp. | Housing Material | Base Material | Wheel Material | Fasteners Included | For Screw Size | Hole Dia. | Number of Holes | Each | |
120V AC—Hardwire | ||||||||||||||||
| 300 cfm @ 1/2 in. of H₂O | 61 dB @ 15 ft. | 1/4 | 4" | 4" | 16" | 16" | 8 7/8" | Galvanized Steel | Steel | Steel | No | 1/4" | 9/32" | 4 | 000000 | 0000000 |
Suspended-Hood Fume Exhausters
Position these exhausters above drums, tanks, and distillers to remove fumes, vapors, and fine dust particles from your space. All include a pulley system to adjust the hood height. Add an optional swivel wall bracket (sold separately) for side-to-side movement.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
Exhausters | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Hose | Optional Swivel Wall Bracket | ||||||||||
| Hood Dia. | Airflow @ Static Pressure | Volume | Power, hp | ID | Lg., ft. | Mounting Location | Includes | Each | Each | ||
120V AC—Plug | |||||||||||
| 27" | 500 cfm @ 0 in. of H 2 O | 50 dB @ 15 ft. | 1/8 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | 00000000 | 0000000 | 00000000 | 0000000 |
| 32" | 500 cfm @ 0 in. of H 2 O | 50 dB @ 15 ft. | 1/8 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | 00000000 | 000000 | 00000000 | 000000 |
| 37" | 500 cfm @ 0 in. of H 2 O | 50 dB @ 15 ft. | 1/8 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | 00000000 | 000000 | 00000000 | 000000 |
| 44" | 500 cfm @ 0 in. of H 2 O | 50 dB @ 15 ft. | 1/8 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | 00000000 | 00000000 | 00000000 | 000000 |
Suspended-Hood Hazardous Location Fume Exhausters
Position these exhausters above drums, tanks, and distillers to remove fumes, vapors, and fine dust particles from your space. All have a motor that is UL listed for Class I, Divisions 1 and 2, Groups C and D; and Class II, Divisions 1 and 2, Groups F and G locations. Exhausters include a pulley system to adjust the hood height. Add an optional swivel wall bracket (sold separately) for side-to-side movement.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
Exhausters | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hose | Optional Swivel Wall Bracket | |||||||||||
| Hood Dia. | Airflow @ Static Pressure | Volume | Power, hp | ID | Lg., ft. | Mounting Location | Includes | Environmental Rating | Each | Each | ||
120/230V AC—Hardwire | ||||||||||||
| 27" | 450 cfm @ 0 in. of H 2 O | 59 dB @ 15 ft. | 1/2 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups F, G IP54  | 00000000 | 000000000 | 00000000 | 0000000 |
| 32" | 450 cfm @ 0 in. of H 2 O | 59 dB @ 15 ft. | 1/2 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups F, G IP54 | 00000000 | 00000000 | 00000000 | 000000 |
| 37" | 450 cfm @ 0 in. of H 2 O | 59 dB @ 15 ft. | 1/2 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups F, G IP54 | 00000000 | 00000000 | 00000000 | 000000 |
| 44" | 450 cfm @ 0 in. of H 2 O | 59 dB @ 15 ft. | 1/2 | 6" | 10 | Ceiling, Wall | Blower, Outside Vent Kit | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups F, G IP54 | 00000000 | 00000000 | 00000000 | 000000 |
Floor-Mount Hazardous Location Fume Exhausters
This fume exhauster has a motor that is UL listed for Class I, Divisions 1 and 2, Groups C and D; and Class II, Divisions 1 and 2, Groups E, F, and G locations. Use it to remove fumes, vapors, and fine dust particles from your space. It is commonly used in welding, soldering, and other operations that create fumes.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
O'all | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow @ Static Pressure | Volume | Power, hp | Inlet Dia. | Outlet. Dia. | Ht. | Wd. | Dp. | Housing Material | Base Material | Wheel Material | Fasteners Included | Hole Dia. | Environmental Rating | Each | |
120V AC—Hardwire | |||||||||||||||
| 800 cfm @ 1/2 in. of H₂O | 65 dB @ 15 ft. | 1/3 | 6" | 6" | 15 1/8" | 18 1/4" | 20 3/8" | Galvanized Steel | Steel | Aluminum | No | 9/32" | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups E, F, G | 000000 | 000000000 |
Wall-Mount Hazardous Location Fume Exhausters
This fume exhauster has a motor that is UL listed for Class I, Divisions 1 and 2, Groups C and D; and Class II, Divisions 1 and 2, Groups E, F, and G locations. Use it to remove fumes, vapors, and fine dust particles from your space. It is commonly used in welding, soldering, and other operations that create fumes.
Note: Airflow depends on the resistance created by ductwork. This resistance, known as static pressure (SP), is measured in inches of water.
O'all | Mounting | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Airflow @ Static Pressure | Volume | Power, hp | Inlet Dia. | Outlet Dia. | Ht. | Wd. | Dp. | Housing Material | Base Material | Wheel Material | Fasteners Included | Hole Diameter | Environmental Rating | Each | |
120V AC—Hardwire | |||||||||||||||
| 300 cfm @ 1/2 in. of H₂O | 61 dB @ 15 ft. | 1/4 | 4" | 4" | 16" | 17 5/8" | 8 7/8" | Galvanized Steel | Steel | Aluminum | No | 9/32" | NEC Class I Divisions 1, 2 Groups C, D NEC Class II Divisions 1, 2 Groups E, F, G | 000000 | 0000000 |

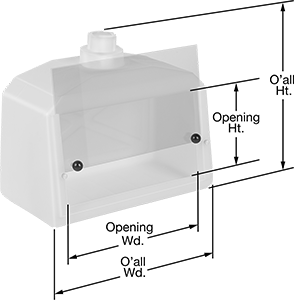

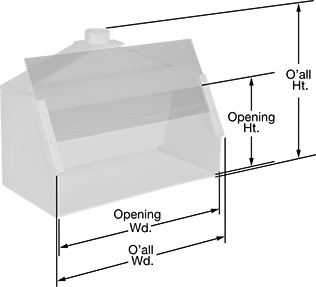

Fume Hoods
Pair these hoods with an exhaust system to contain harmful fumes, vapors, and gasses while venting them away from work spaces—they protect users from inhaling or coming in contact with them. To access the enclosed space, these hoods have an adjustable sliding window, which also lets your exhaust system pull air from the outside. Polycarbonate windows are more durable than acrylic windows. All of these hoods resist chemicals and corrosion.
Polyethylene hoods have a molded one-piece construction with rounded inside corners to prevent gaps and crevices, making them easy to wipe clean.
Polypropylene hoods are nonconductive. They’re also translucent, so they let in more light than polyethylene hoods for added visibility.
Polycarbonate hoods are dent and scratch resistant. They’re also clear, offering an unobstructed view from all sides.
Overall | Opening | Windows | Outlets | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Recommended Airflow, cfm | Height | Width | Depth | Height | Width | Number of | Material | Clarity | Number of | OD | Gender | Each | |
Polyethylene Plastic with Adjustable Sliding Window | |||||||||||||
| 200 | 22" | 27" | 13" | 12" | 22" | 1 | Acrylic Plastic | Clear | 1 | 4", 6" | Male | 00000000 | 0000000 |
| 350 | 30" | 42" | 20" | 14 1/8" | 34 1/2" | 1 | Acrylic Plastic | Clear | 1 | 6" | Male | 00000000 | 00000000 |
Polypropylene Plastic with Adjustable Sliding Window | |||||||||||||
| 500 | 36" | 48" | 24" | 21" | 46" | 1 | Acrylic Plastic | Clear | 1 | 6" | Male | 00000000 | 00000000 |
Polycarbonate Plastic with Adjustable Sliding Window | |||||||||||||
| 200 | 26 1/8" | 25 7/8" | 24" | 13" | 20 1/8" | 1 | Polycarbonate Plastic | Clear | 1 | 6" | Male | 00000000 | 00000000 |
| 200 | 26 1/8" | 43 7/8" | 24" | 13" | 38 1/8" | 1 | Polycarbonate Plastic | Clear | 2 | 6" | Male | 00000000 | 00000000 |
