Black-Oxide High-Speed Steel Drill Bit

1/8" Size, 2-3/4" Overall Length

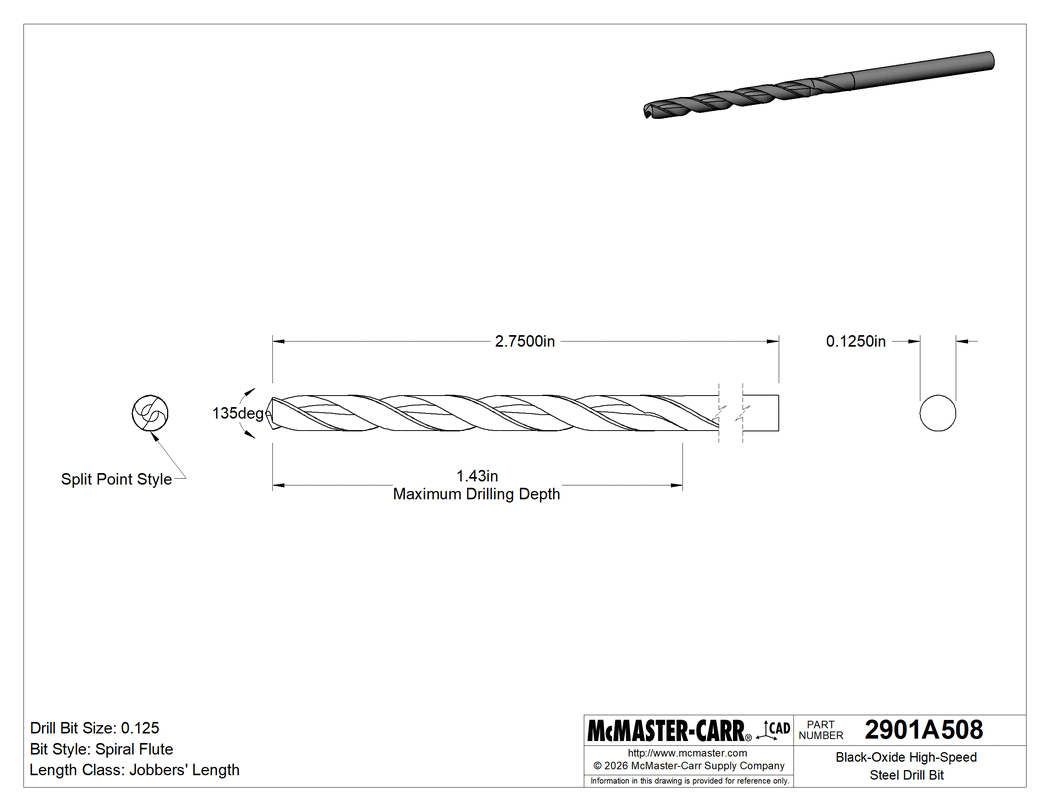

Technical Drawing of Black-Oxide High-Speed Steel Drill Bit, 1/8" Size, 2-3/4" Overall Length.

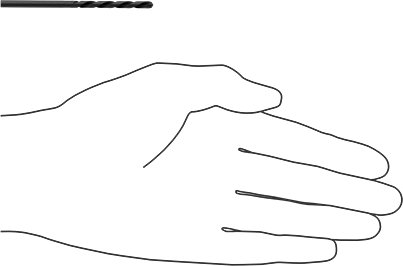

Image of Product. Side1 orientation. Contains SizingReference. Black-Oxide High-Speed Steel Drill Bit, 1/8" Size, 2-3/4" Overall Length.

2-D PDF

$25.57 per pack of 12

2901A508

In stock

2901A508

$25.57 per pack of 12

QuantityPack of 12

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Material	High-Speed Steel
Length Class	Jobbers
Drill Bit Size	1/8"
Decimal Size Equivalent	0.125"
Overall Length	2 3/4"
Maximum Drilling Depth	1.43"
Shank
Size	1/8"
Type	Round
Drill Bit Point Type	Split
Bit Style	Fluted
Certification	Mil. Spec.
Finish	Black Oxide
Flute Direction	Right Hand
Flute Type	Spiral
For Use On	Iron, Stainless Steel, Steel
Military Specification	NAS907 Type B
Number of Flutes	2
Point Angle	135°
System of Measurement	Inch
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	820750.2055
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

Our basic drill bits are also the most versatile. Cut holes in a variety of metals, from the softest aluminum to the hardest steel.

Jobbers' Length—These bits have the balance of rigidity and length needed for most applications.

Black Oxide—The dark finish increases wear resistance and reduces friction to improve chip flow, so these bits can last 50% longer than uncoated bits.
