    Tamper-Resistant Button Head Torx Screws

    Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 16 mm Long

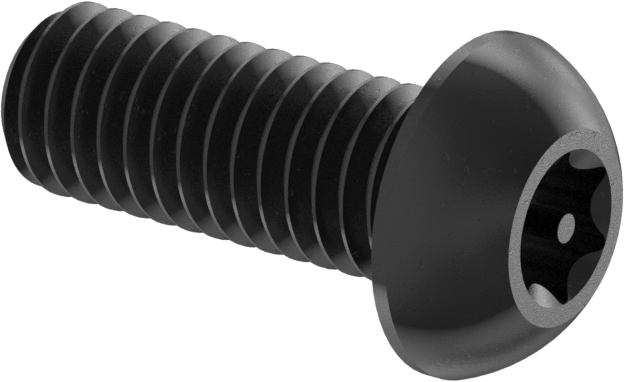

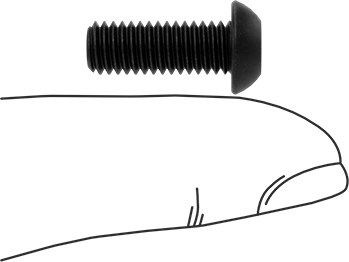

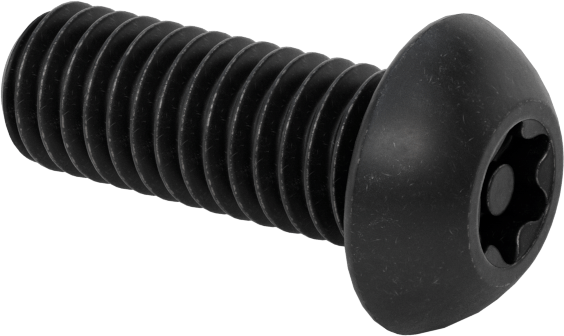

    Image of Product. Front orientation. Tamper-Resistant Button Head Torx Screws, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 16 mm Long.

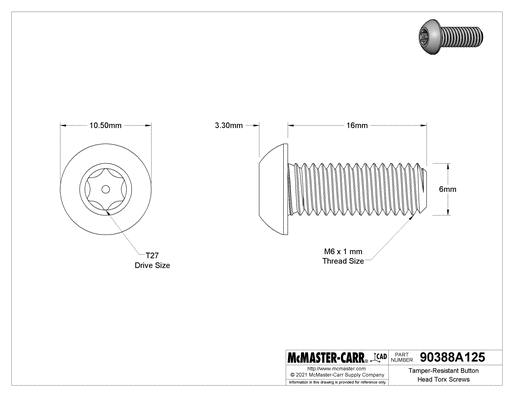

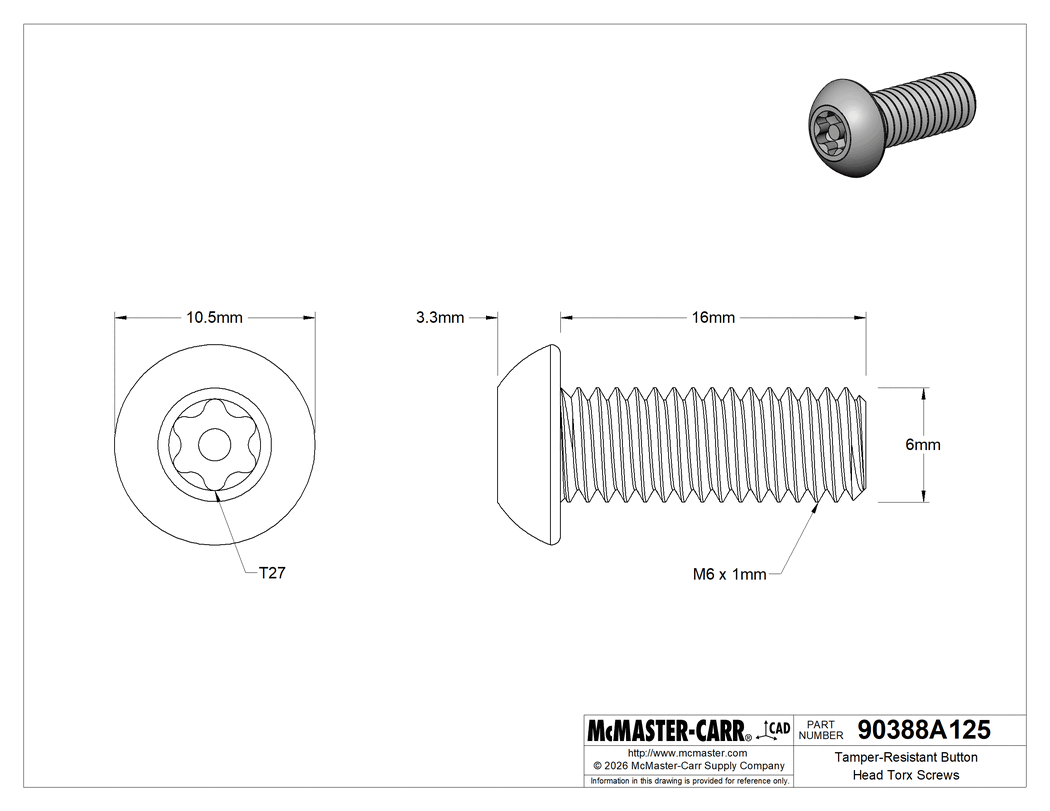

    Technical Drawing of Tamper-Resistant Button Head Torx Screws, Black-Oxide Alloy Steel, M6 x 1.00 mm Thread, 16 mm Long.
    2-D PDF
    000000 per pack of 25
    90388A125
    In stock
    90388A125
    000000 per pack of 25
    Pack of 25
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread

    Size

    M6

    Pitch

    1 mm

    Direction

    Right Hand

    Spacing

    Coarse

    Type

    Metric

    Fit

    Metric Class 6g

    Tip Type

    Flat

    Fastener Head Type

    Rounded

    Head

    Style

    Button

    Profile

    Standard

    Height

    3.3 mm

    Diameter

    10.5 mm

    Drive

    Style

    Tamper-Resistant Torx

    Size

    T27

    Length

    16 mm

    Threading

    Fully Threaded

    Tensile Strength

    130,000 psi

    Specifications Met

    ASME B18.3.4M, ISO 7380

    Hardness

    Rockwell C38

    Material

    Black-Oxide Alloy Steel

    Performance

    High Strength, Tamper Resistant

    System of Measurement

    Metric

    Country of Origin

    United States

    DFARS Compliance

    Not Specialty Metals Compliant

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Products

    Our strongest Torx screws for deterring unauthorized access. With a security pin in the drive, you can only turn them with a tamper-resistant Torx driver. Also known as pin-in Torx, the drive has a deep six-lobe opening that withstands high torque without the driver slipping and stripping the drive. Made of alloy steel, they have nearly twice the tensile strength of other screws. The button head looks similar to a pan head, but it's lower and more compact, taking up less space.

    Length is measured from under the head.

    Black-Oxide Alloy SteelTypically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.

    L-KeysTurn screws by hand for more control and less chance of overtightening compared to power tools.

    Power Tool BitsPair these bits with your power tools to turn screws more quickly than manual tools.
