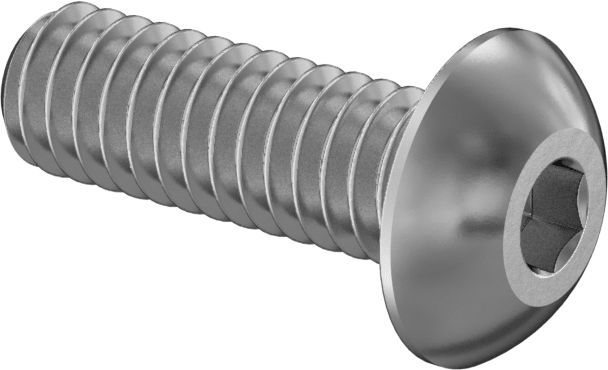

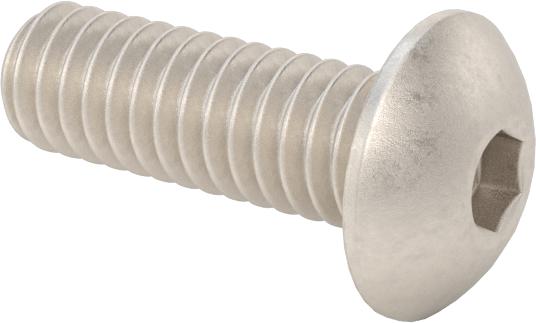

Titanium Button Head Hex Drive Screw
8-32 Thread, 1/2" Long
Thread | |
Size | 8-32 |
Direction | Right Hand |
Spacing | Coarse |
Type | UNC |
Fit | Unified Standard Class 2A |
Tip Type | Flat |
Fastener Head Type | Rounded |
Head | |
Style | Button |
Profile | Standard |
Height | 0.082" |
Diameter | 0.312" |
Drive | |
Style | Hex |
Size | 3/32" |
Material | Grade 5 Titanium |
Length | 1/2" |
Threading | Fully Threaded |
Tensile Strength | 130,000 psi |
Specifications Met | ASME B18.3 |
Hardness | Rockwell C36 |
Performance | Chemical Resistant, Lightweight, Nonmagnetic, Ultra Corrosion Resistant |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 810890.8000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Made of grade 5 titanium, these screws are nearly as strong as alloy steel but only 40% of the weight. More corrosion resistant than stainless steel, these screws stand up to salt water, strong acids, and harsh chemicals. The button head looks similar to a pan head, but it's lower and more compact, taking up less space. With six contact points, the hex drive withstands more torque than slotted and Phillips to securely grip your driver.
Length is measured from under the head.

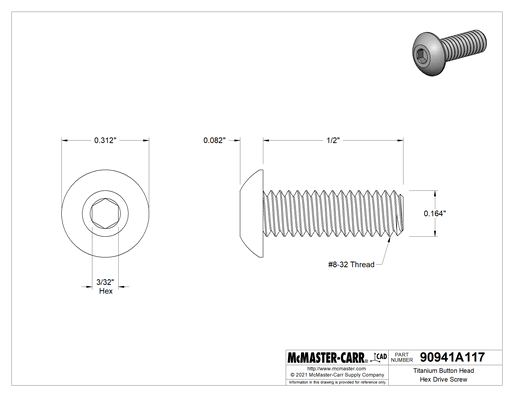

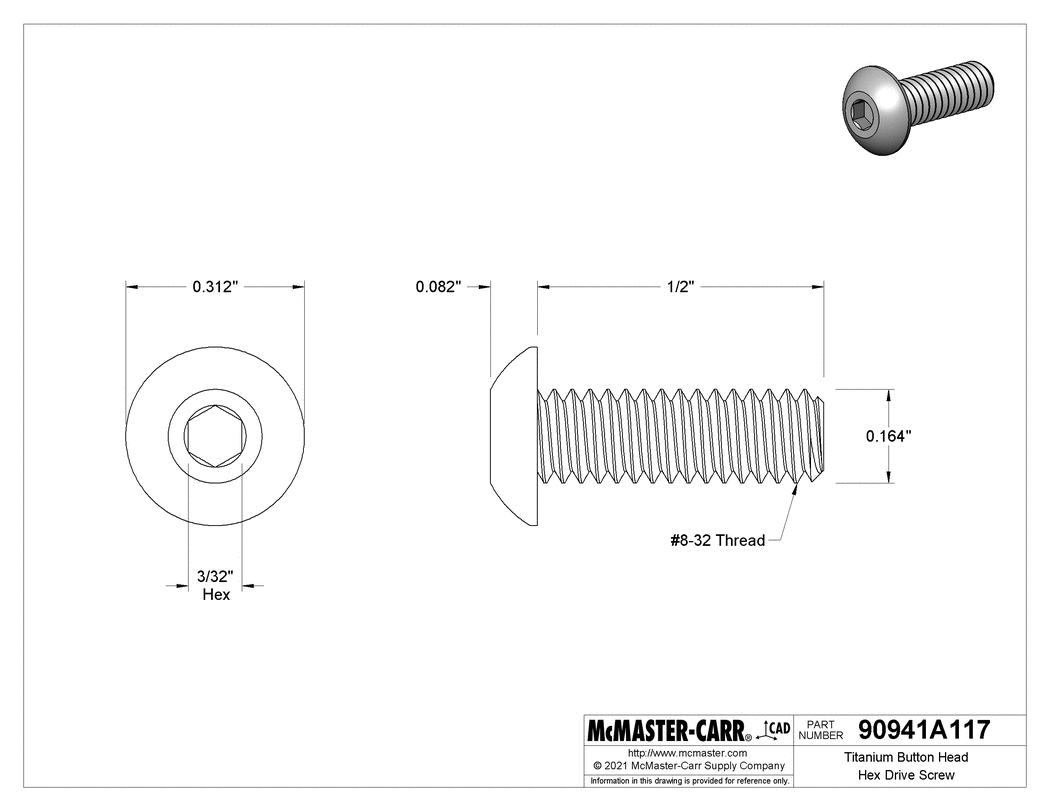

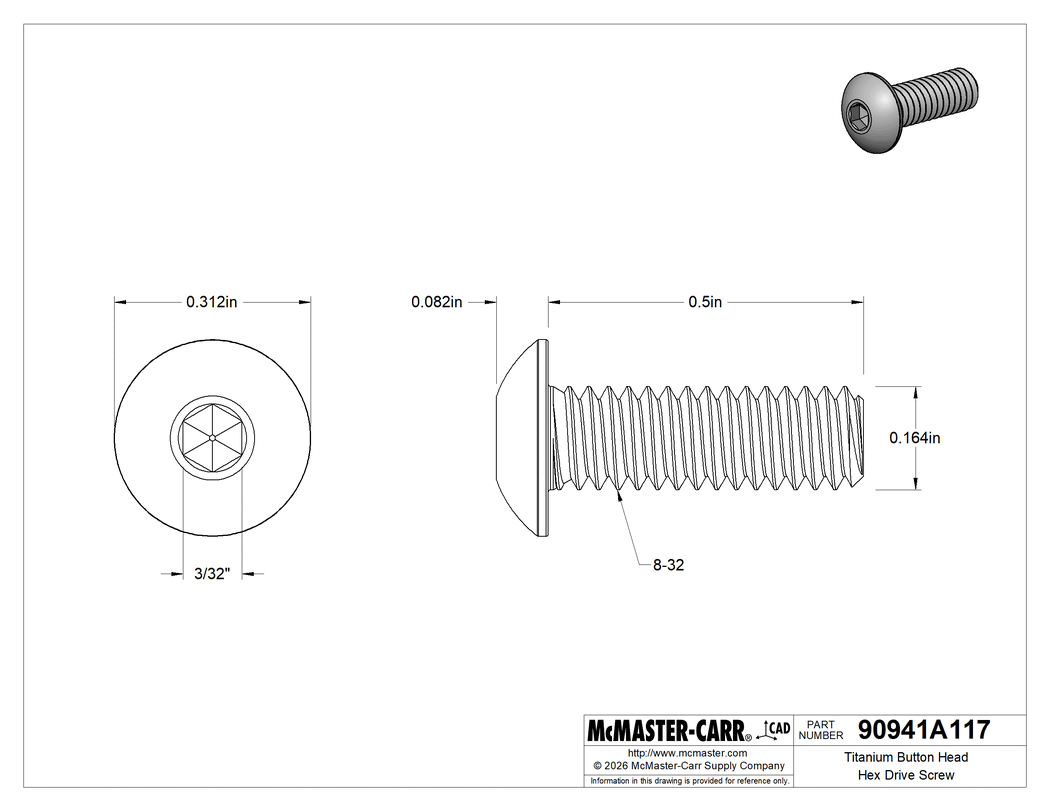

The information in this 3-D model is provided for reference only.
